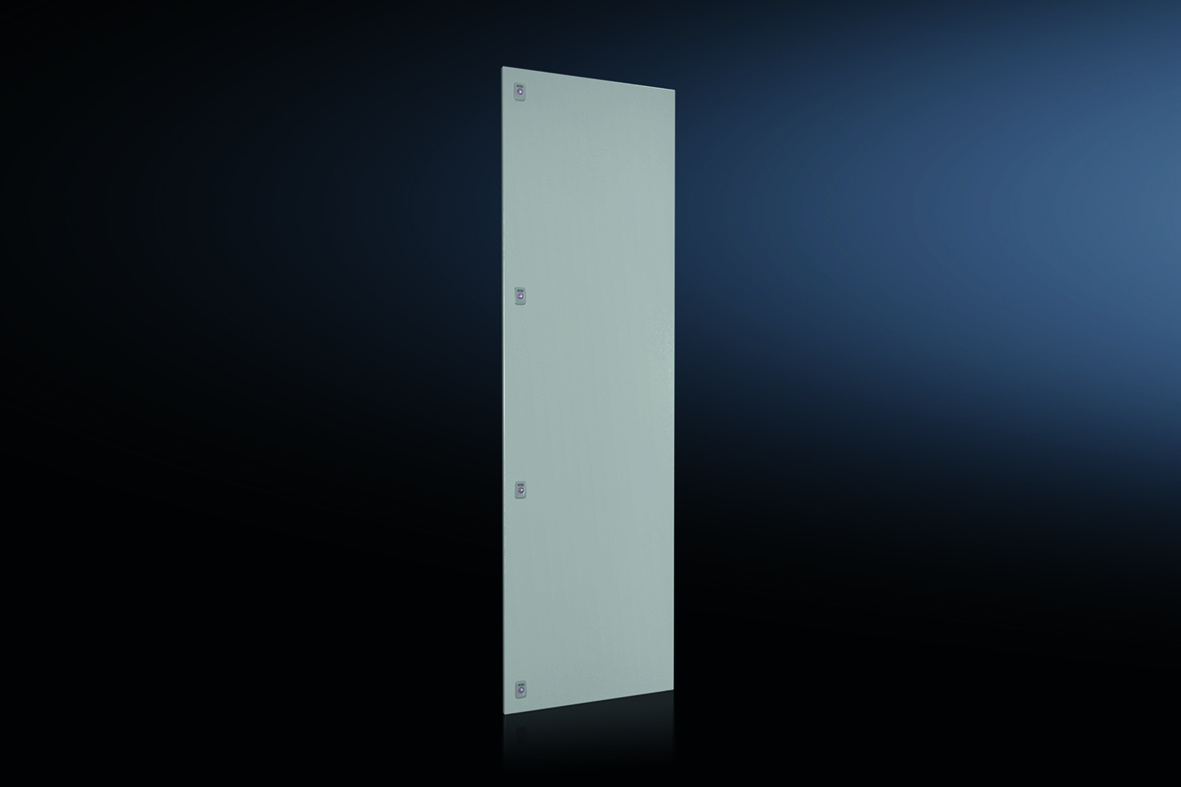

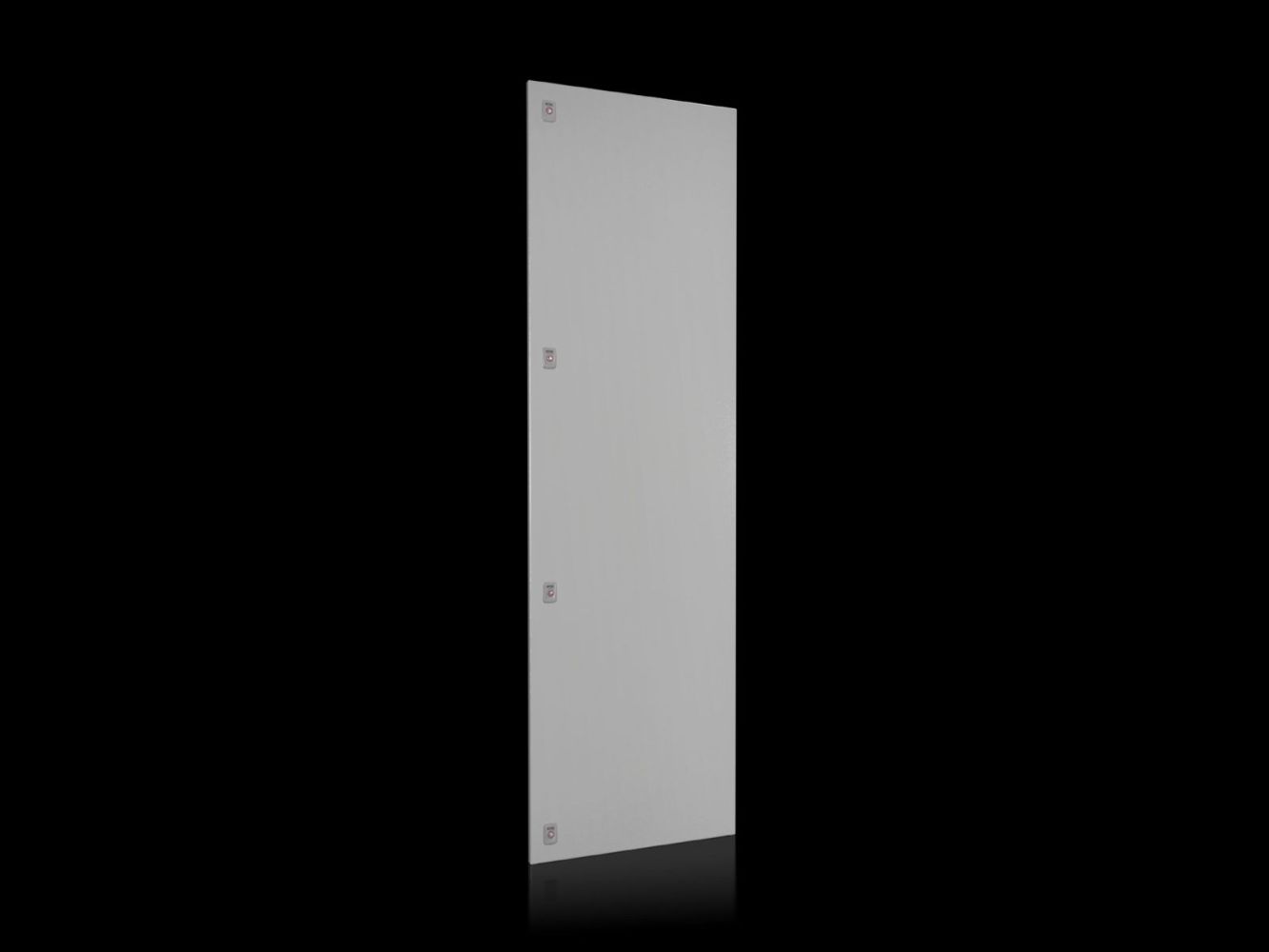

Rittal 9682170 SV partial door for VX, W x H: 600x2000 mm

Your rating:
Average rating
product review for Rittal 9682170 SV partial door for VX, W x H: 600x2000 mm
( 5 / 5 ) 2 ratings
Rittal 9682170
This image may differ from the desired article.
Rittal 9682170Rittal 9682170Rittal 9682170
-12% 200,45 EUR 228,22 EUR
( 238,54 EUR incl. VAT )
≈ £167.78  |  ≈ $220.29
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9682170 SV partial door for VX, W x H: 600x2000 mm
Datasheet:file_download Download
Lieske Part No.:2130611
Mfg Part No: 9682170
UPC/EAN: 4028177928923
Weight:26.5 kg
Type:SV 9682170

Product information for Rittal 9682170:

The Rittal SV 9682170 is a partial door for VX enclosures, designed as a replacement for a complete door or rear panel. It enables flexible partitioning of the enclosure interior and can be combined with additional partial doors as required. The door has a width of 600 mm and a height of 2,000 mm and is specifically designed for enclosures with a width of 600 mm. The material consists of sheet steel with a thickness of 2 mm, coated with a textured paint in the colour RAL 7035. The surface provides robust protection against mechanical stress and is suitable for use in industrial environments.

Applications
The partial door is used in industrial plants where modular and flexible enclosure design is required. It is particularly suitable for enclosures where not the entire front surface needs to be covered, but only specific areas need to be protected or made accessible. The combination with other partial doors allows individual adaptation to the respective installation. Front trim panels are required at the top and bottom ends of the partial door to ensure optical and functional finishing quality.

Functions and equipment in detail
The SV 9682170 features a standard double-bar lock insert, which is interchangeable with lock inserts of type A. The door is equipped with four locks to ensure secure latching. The hinges allow a maximum opening angle of 130°, providing sufficient access to the enclosure interior. The door swing direction can be chosen as either right or left, allowing flexible installation at various positions within the enclosure. The delivery includes the partial door, a partition strip, hinges, lock components, and the necessary mounting materials.

Technology explained simply
The partial door is made of sheet steel, providing sufficient mechanical stability to protect the components installed in the enclosure from mechanical impacts. The textured paint finish in RAL 7035 ensures uniform surface quality and high corrosion protection. The protection rating IP 54 according to IEC 60 529 means that the door is dust-tight and protected against splashing water from all directions, making it suitable for use in damp or dusty environments. The maximum opening of 130° ensures good access to the components behind the door without requiring the door to be fully opened.

Compatibility and accessories
The partial door is specifically designed for VX enclosures with a width of 600 mm. It can be combined with additional partial doors to enable modular enclosure design. Front trim panels are required at the top and bottom ends for mounting, available in various types (e.g. IP 54, IP 2X) and sizes (e.g. 600x300 mm, 600x100 mm). Additionally, lock inserts made of zinc die-cast or mini comfort handles for padlocks can be used to enhance security or operability. For doors without a viewing window and a height of 600 to 1000 mm, the monitor frame 2305.000 can be installed to integrate a screen.

Mounting and installation
Mounting is carried out using the mounting materials included in the delivery. The hinges and lock components are pre-assembled, so the door is fully functional immediately after installation in the enclosure. The door swing direction can be set to right or left as required. The maximum opening of 130° allows sufficient access without needing to fully open the door.

Advantages in operation
The modular design of the partial door enables flexible adaptation to different enclosure configurations. The IP 54 protection rating provides high protection against dust and splashing water, increasing reliability in industrial environments. The interchangeable lock inserts allow adaptation to specific security requirements. The optional door swing direction and the possibility to install monitor frames increase flexibility during installation. The robust sheet steel construction ensures long service life and high mechanical stability.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 4
Width600 mm
Height2.000 mm
Suitable forWidth: = 600 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)101 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682170, EAN: 4028177928923

Questions & answers

What is the delivery time of Rittal 9682170 SV partial door for VX, W x H: 600x2000 mm?

The article Rittal 9682170 SV partial door for VX, W x H: 600x2000 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682170 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682170 SV partial door for VX, W x H: 600x2000 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682170 SV partial door for VX, W x H: 600x2000 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
