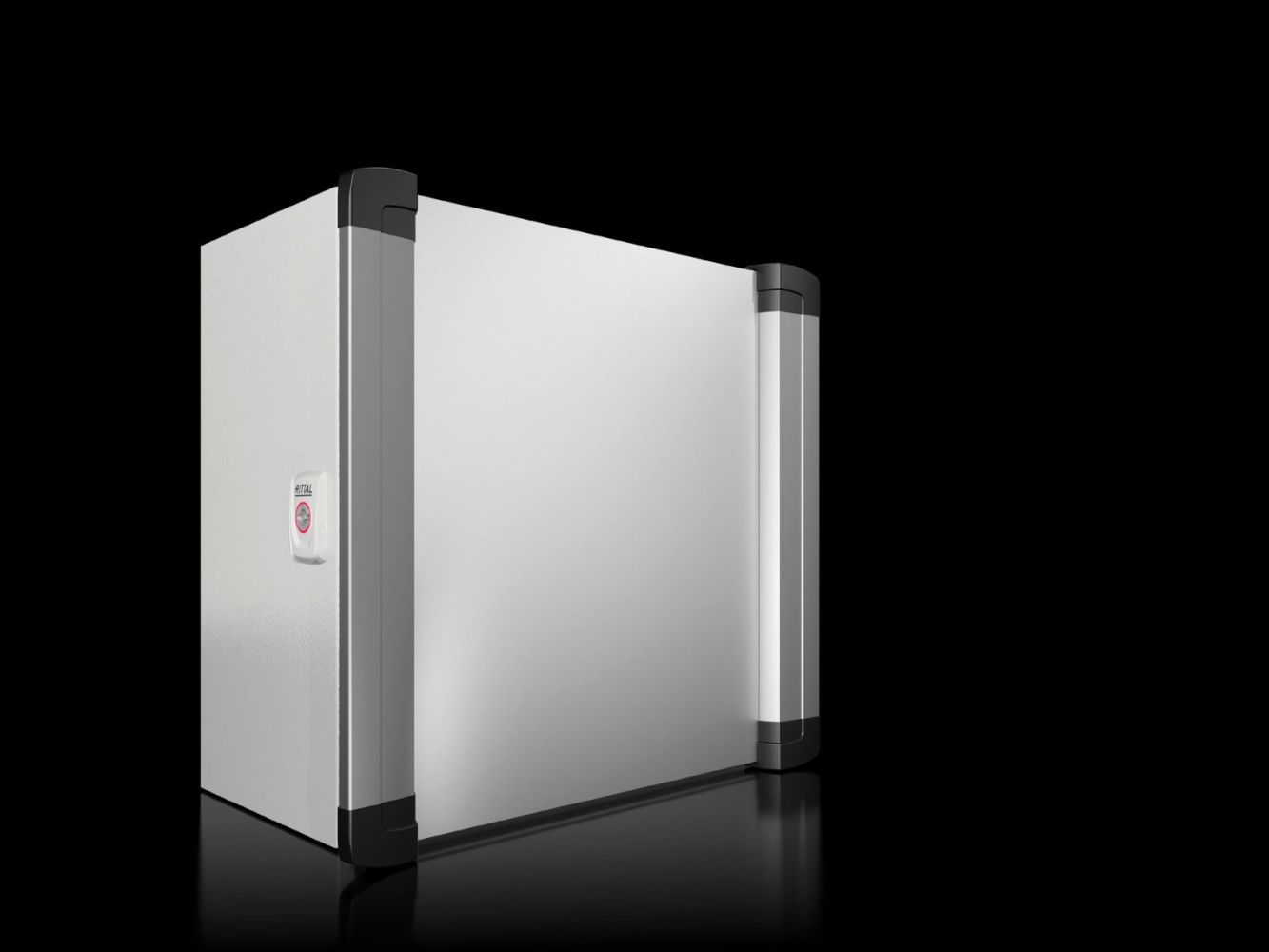

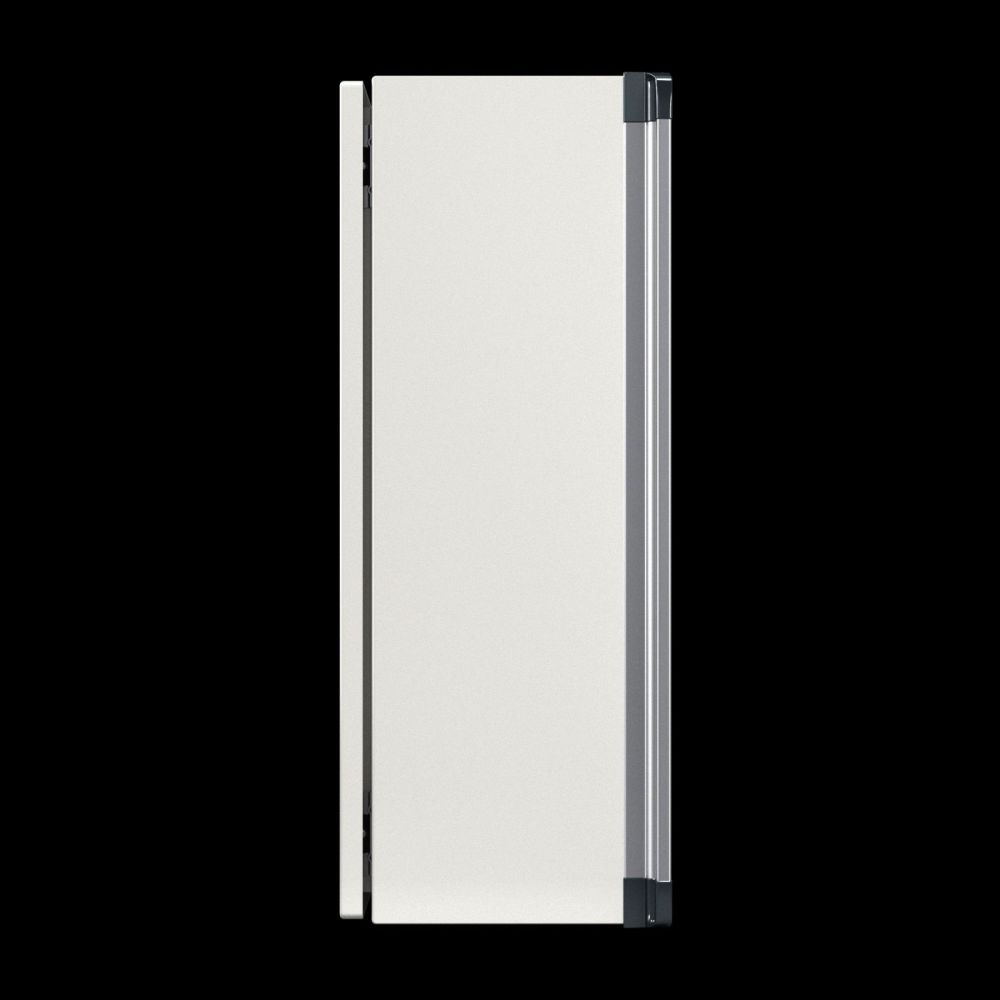

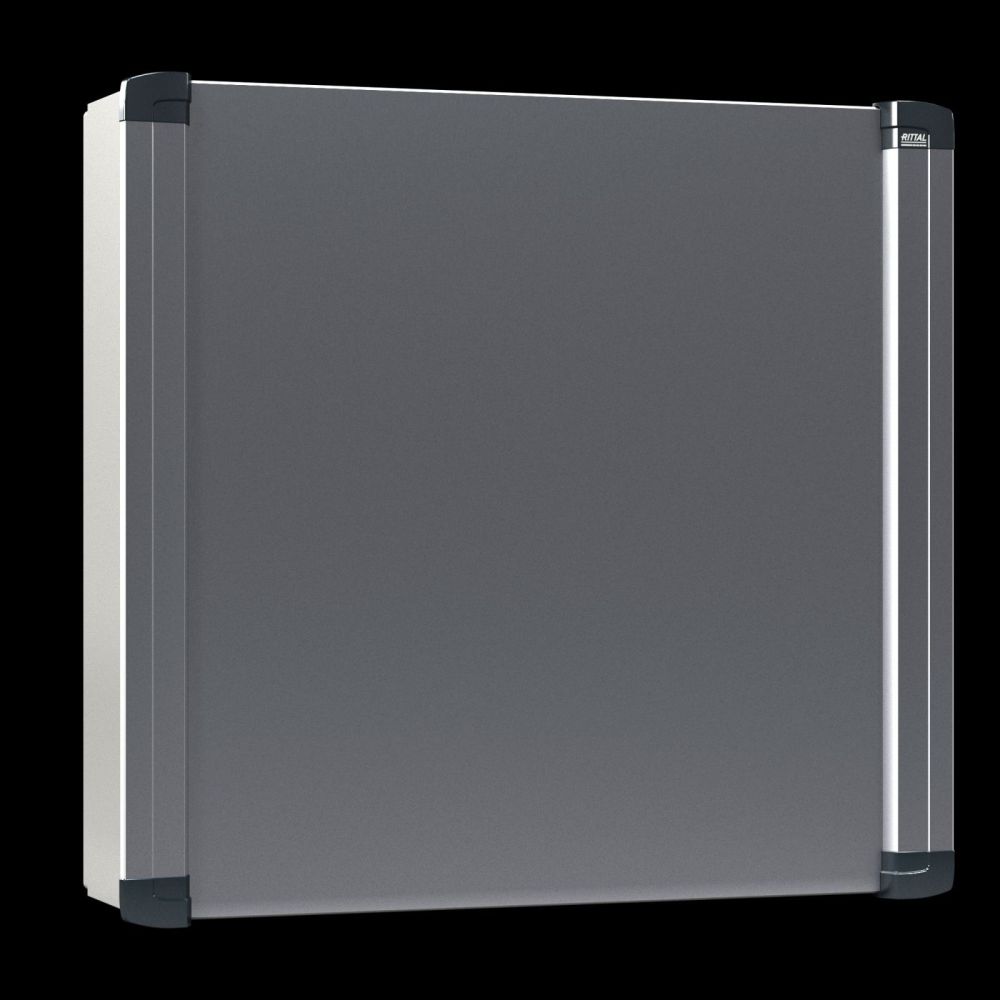

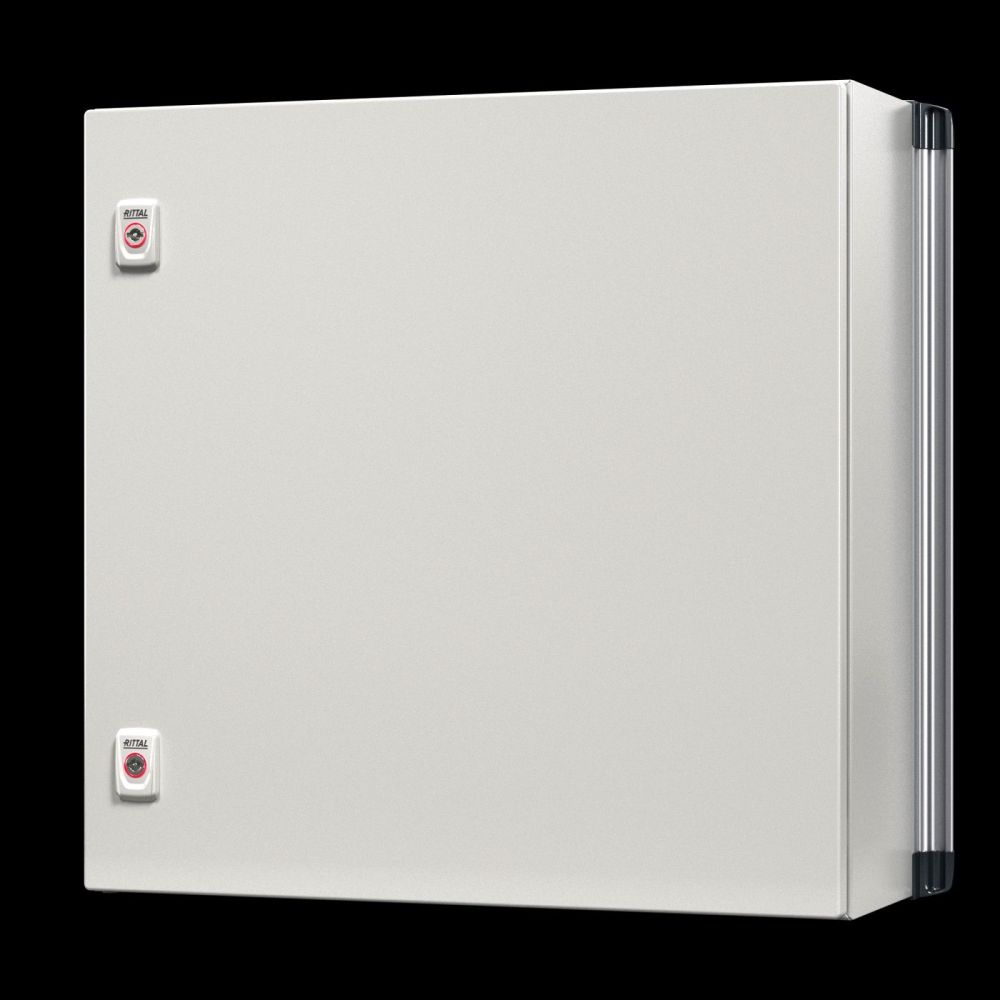

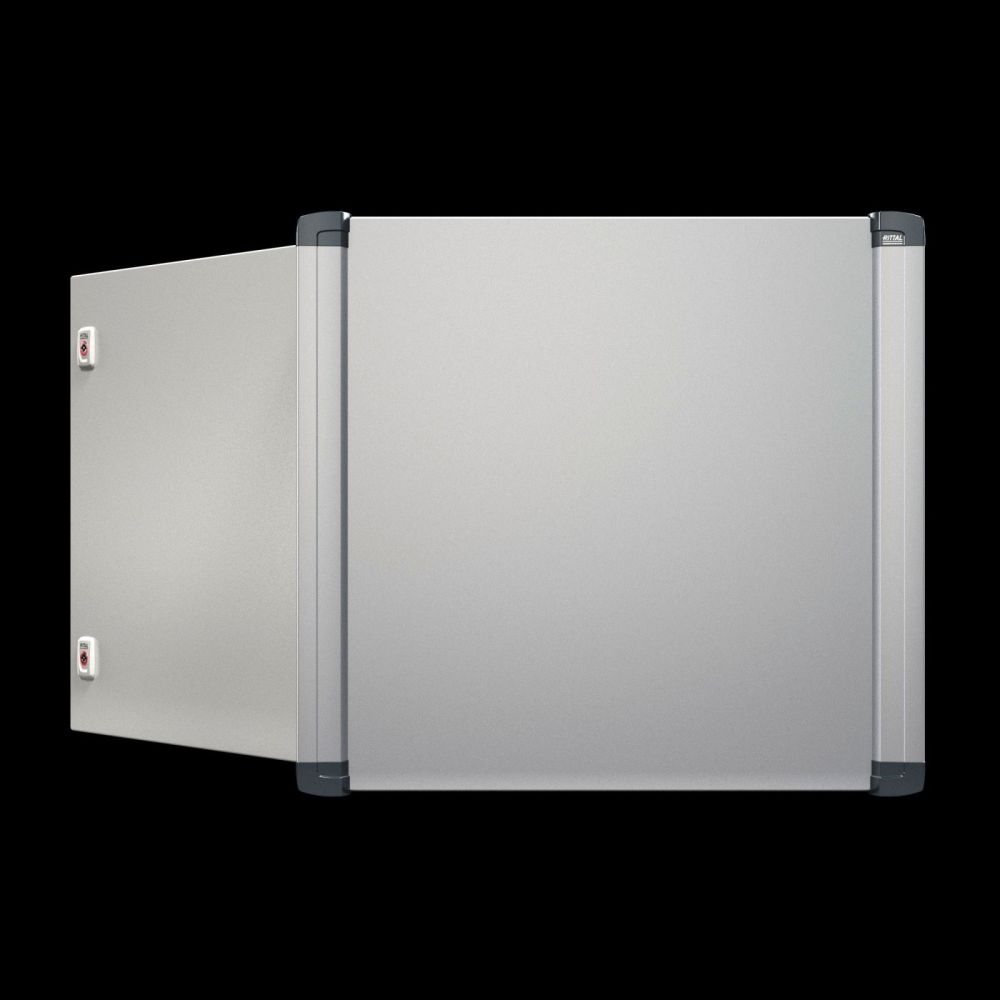

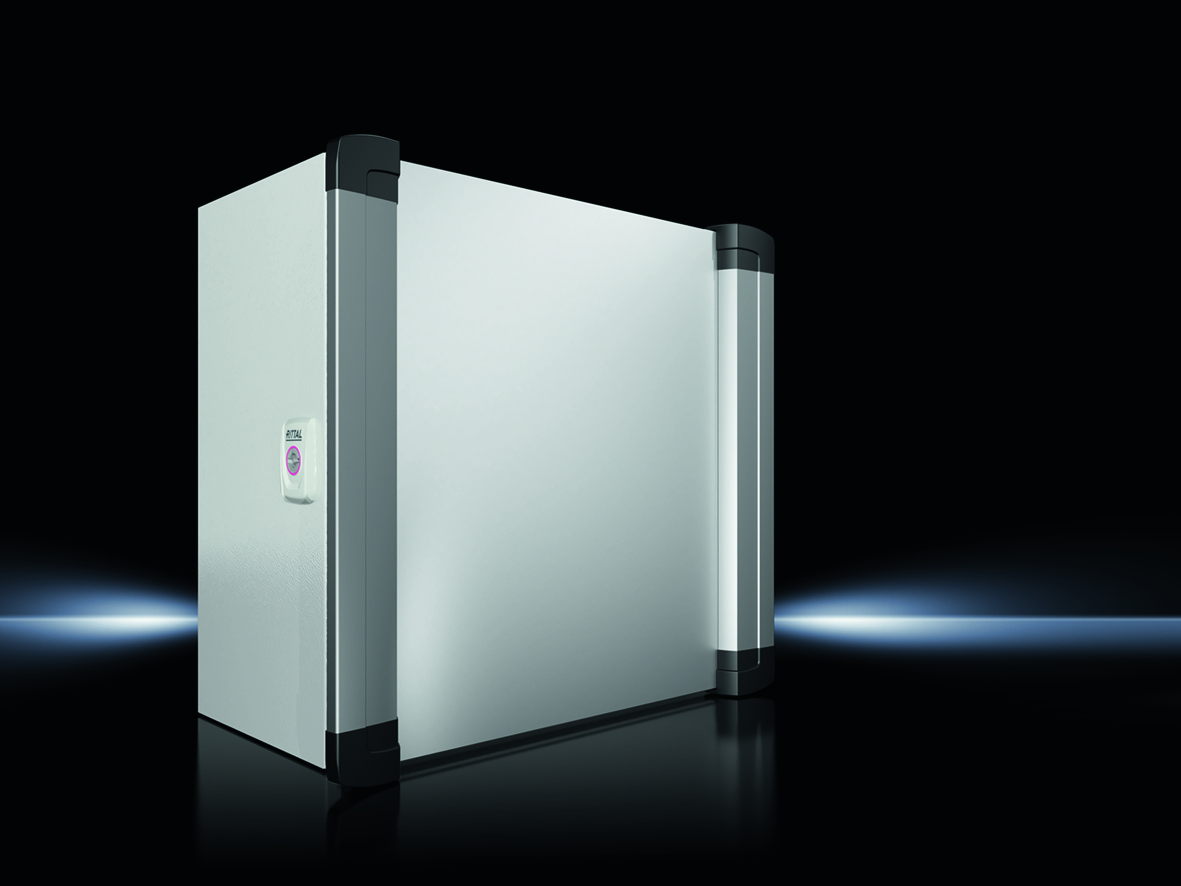

Rittal 6315350 AX command panel housing with grip strips, 380x380x210 mm, S

Your rating:
Average rating
product review for Rittal 6315350 AX command panel housing with grip strips, 380x380x210 mm, S
( 4.5 / 5 ) 6 ratings
Rittal 6315350
This image may differ from the desired article.
Rittal 6315350Rittal 6315350Rittal 6315350Rittal 6315350Rittal 6315350Rittal 6315350Rittal 6315350
228,97 EUR 239,42 EUR
( 272,47 EUR incl. VAT )
≈ £191.65  |  ≈ $251.64
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 6315350 AX command panel housing with grip strips, 380x380x210 mm, S
Datasheet:file_download Download
Lieske Part No.:1593373
Mfg Part No: 6315350
UPC/EAN: 4028177923157
Weight:9.26 kg
Type:AX 6315350

Product information for Rittal 6315350:

The Rittal AX 6315350 is a command panel housing made of sheet steel, designed for use in industrial plants and control systems. It features a compact design with dimensions of 380 mm width, 380 mm height, and 210 mm depth, and is specifically designed for front-side service access. The housing is equipped with side grip strips made of naturally anodized aluminium, providing a secure and ergonomic grip. The 3 mm aluminium front plate is easy to process and can be removed to facilitate the installation of operating elements such as keyboards or displays. The mounting arm connection with a diameter of 130 mm is intended for integration into the mounting arm system CP 60/120/180, enabling flexible mounting on various support structures.

Applications
This command panel housing is suitable for use in industrial environments where a robust and easily accessible operating surface is required. It is particularly suitable for control systems, machine operating panels, plant controls, and other applications where secure and quick maintenance or commissioning is necessary. The protection rating IP 55 ensures high protection against dust and splashing water, making it suitable for outdoor use or in damp environments. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry indoor environments and environments with limited dust and splashing water ingress.

Functions and Equipment in Detail
The housing is equipped with a pre-lubricated locking mechanism fitted with a 3 mm double-barrel lock insert. This lock can be replaced, depending on requirements, with other lock inserts, such as the 27 mm version A, or with a mini comfort handle AX, to optimize access to internal components. The side grip strips are fitted with end caps in a colour similar to RAL 7024 to ensure a uniform appearance. The internal mounting angle is shaped and features system perforation to enable easy installation of internal components.

Technology Explained Simply
The surface of the housing and door is dip-primed and externally powder-coated, using a textured lacquer that offers high mechanical durability and weather resistance. The standard colour RAL 7035 (grey) allows the housing to blend well into industrial environments. The continuous PU foam seal ensures a tight seal and prevents ingress of dust and moisture. The IK code rating IK08 indicates that the housing is protected against mechanical impacts such as shocks or vibrations up to a certain extent, which is important for use in industrial plants.

Compatibility and Accessories
The housing features a pre-formed mounting arm connection Ø 130 mm, optionally offset in the reinforcement plate and easily reamed. This enables flexible mounting on various mounting arm systems. Compatible accessories include lock inserts made of zinc die-cast (length 27 mm, version A), adjustable keyboard trays (depth 128 to 228 mm), mounting brackets for enclosures and components, and the AS Multitool AX/VX 4052000. Additionally, mini comfort handles AX are available, which can replace the lock insert and provide more convenient access.

Mounting and Installation
Mounting is done via the integrated mounting arm connection, which can be adjusted to a different position by rotating the housing. This allows flexible adaptation to the specific mounting geometry. The side grip strips and shaped internal mounting angle facilitate the installation of operating elements and internal components. The pre-drilled system perforation in the internal mounting angle enables quick and secure fastening of mounting plates and other components.

Advantages in Operation
The Rittal AX 6315350 offers high mechanical stability and reliable protection for internal components. The easily processed aluminium front plate allows individual adaptation to specific operating requirements. The integrated grip strips and interchangeable locking mechanism ensure secure and flexible access, simplifying maintenance and servicing. The IP 55 protection rating and IK08 rating guarantee high operational safety in demanding environments. Compatibility with the mounting arm system CP 60/120/180 and the wide range of accessories increase flexibility in system design.

General
ModelBracket connection Ø 130 mm
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal, front plate: aluminium, cover caps: plastic
Surface protectionEnclosure and door: dip primed, externally powder coated, textured lacquer, handle strip: natural anodized, front plate: natural anodized
Basic colourRAL 7035
ColourHousing and door: RAL 7035, handle strip: natural anodized, front plate: natural anodized, cover caps: similar to RAL 7024
Scope of deliveryHousing with cutout and reinforcement for mounting arm connection Ø 130 mm, front with max. cutout, covered by easily machinable 3 mm aluminium front plate, side grip rails with end caps, shaped internal mounting angle with system perforation, pre-ribbed latch with 3 mm double-barrel insert
Width380 mm
Height380 mm
Depth210 mm
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
NoteChange of mounting arm connection and door hinge possible by rotating the housing; optional: mounting arm connection Ø 130 mm, offset in the reinforcement plate, pre-formed, can be easily drilled out; locking systems for service access from rear: locking insert, interchangeable with Mini-Comfort handle AX, locking inserts 27 mm, type A; locking systems for service access from front: locking insert, interchangeable with locking inserts 27 mm, type A
Base materialsteel sheet
Note on part numberCompatible mounting plate 5051.371 with shipping bag 5051.300
PCF/VE (Cradle-to-Gate)40.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 6315350, EAN: 4028177923157
