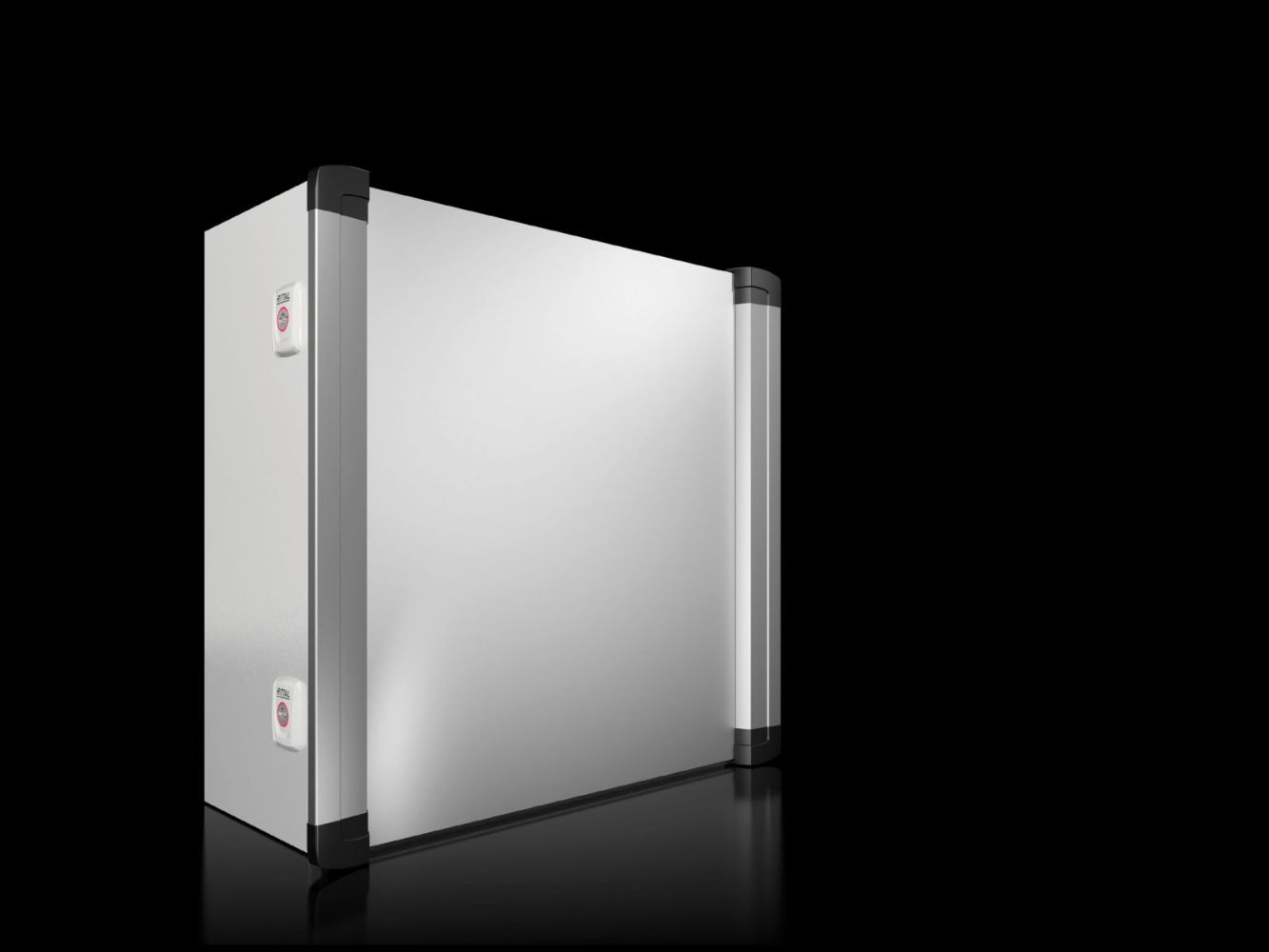

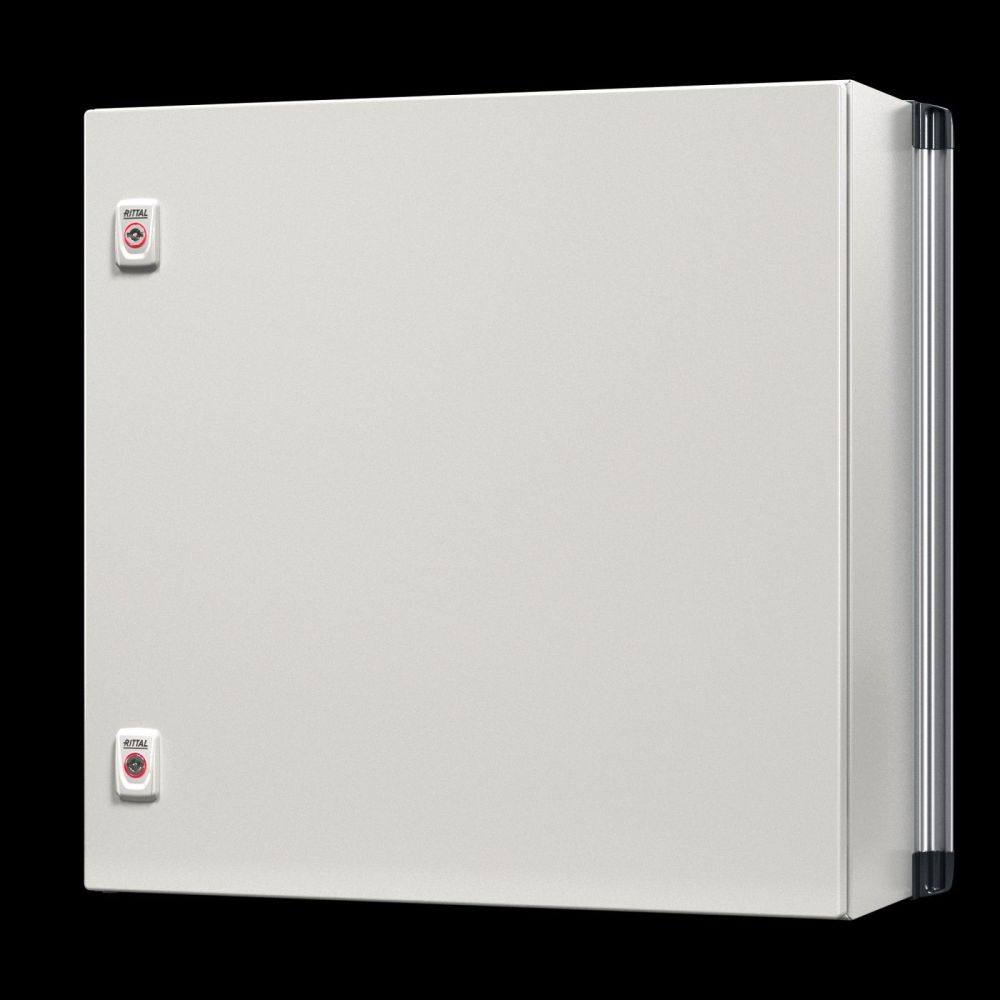

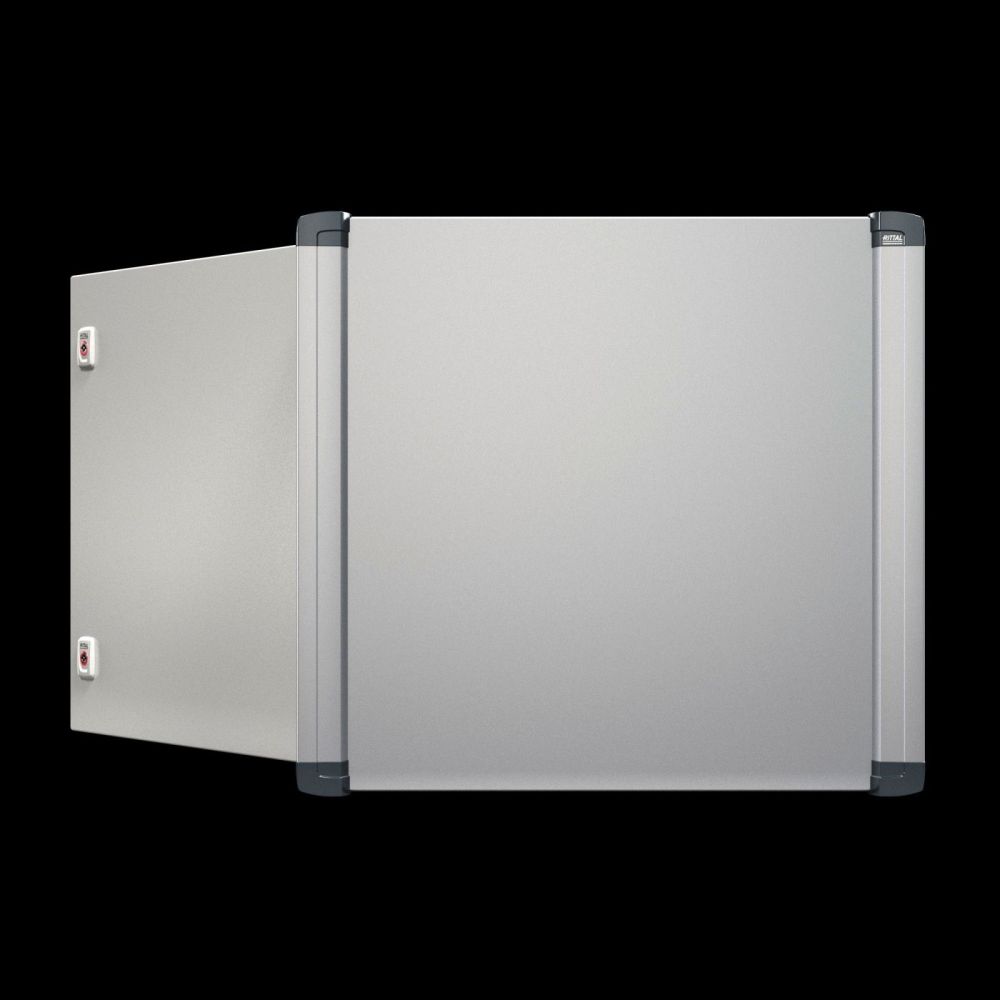

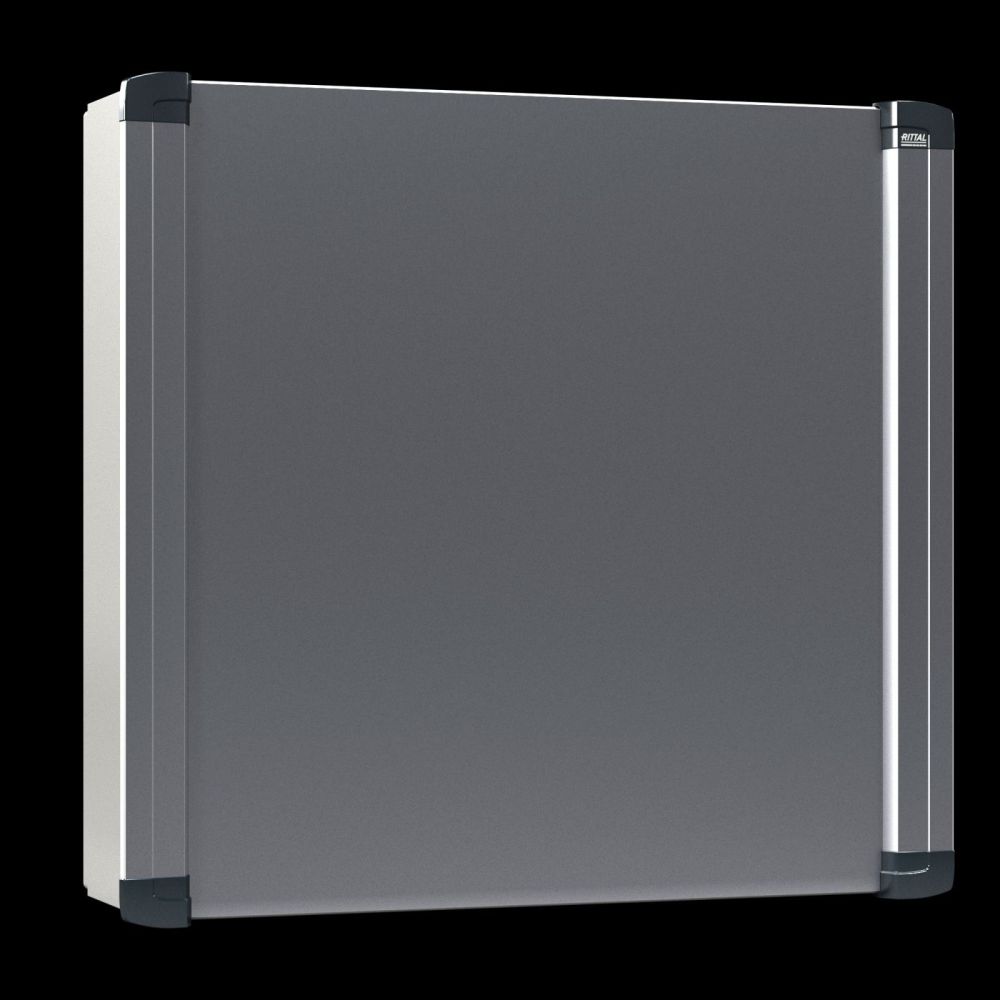

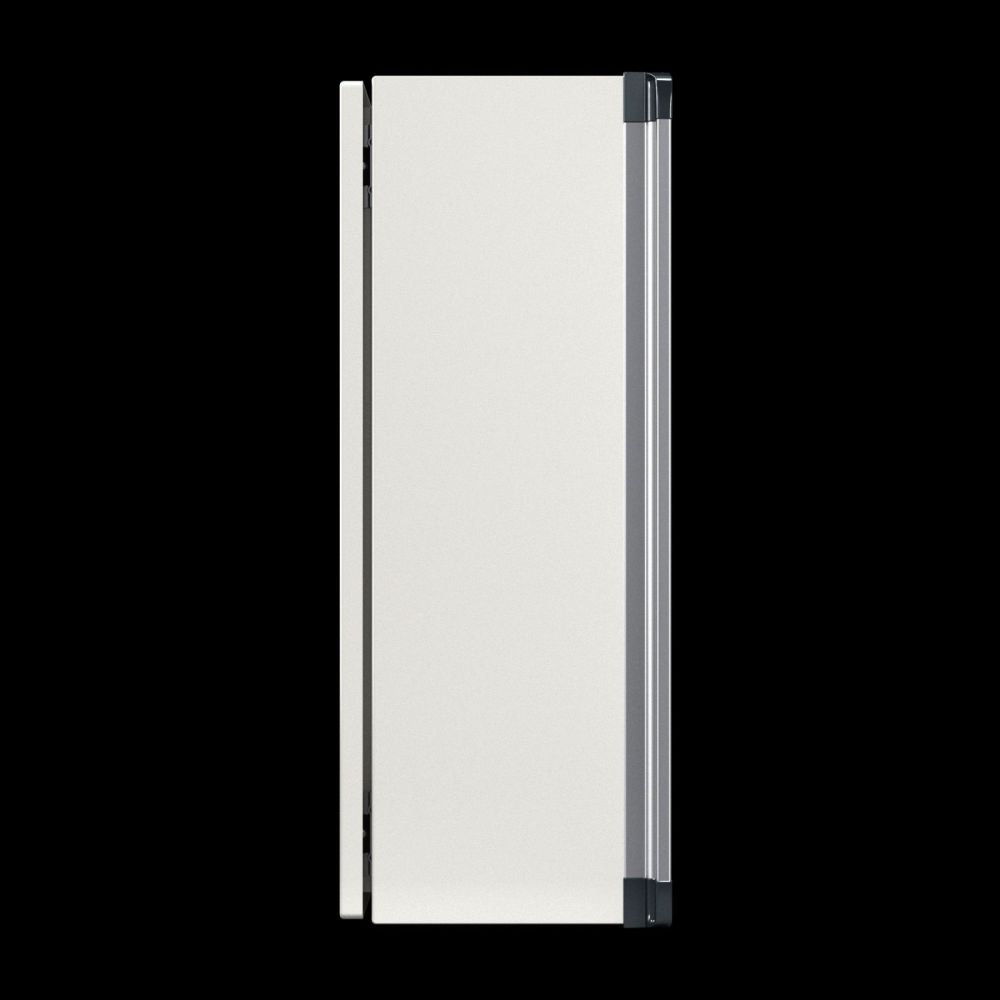

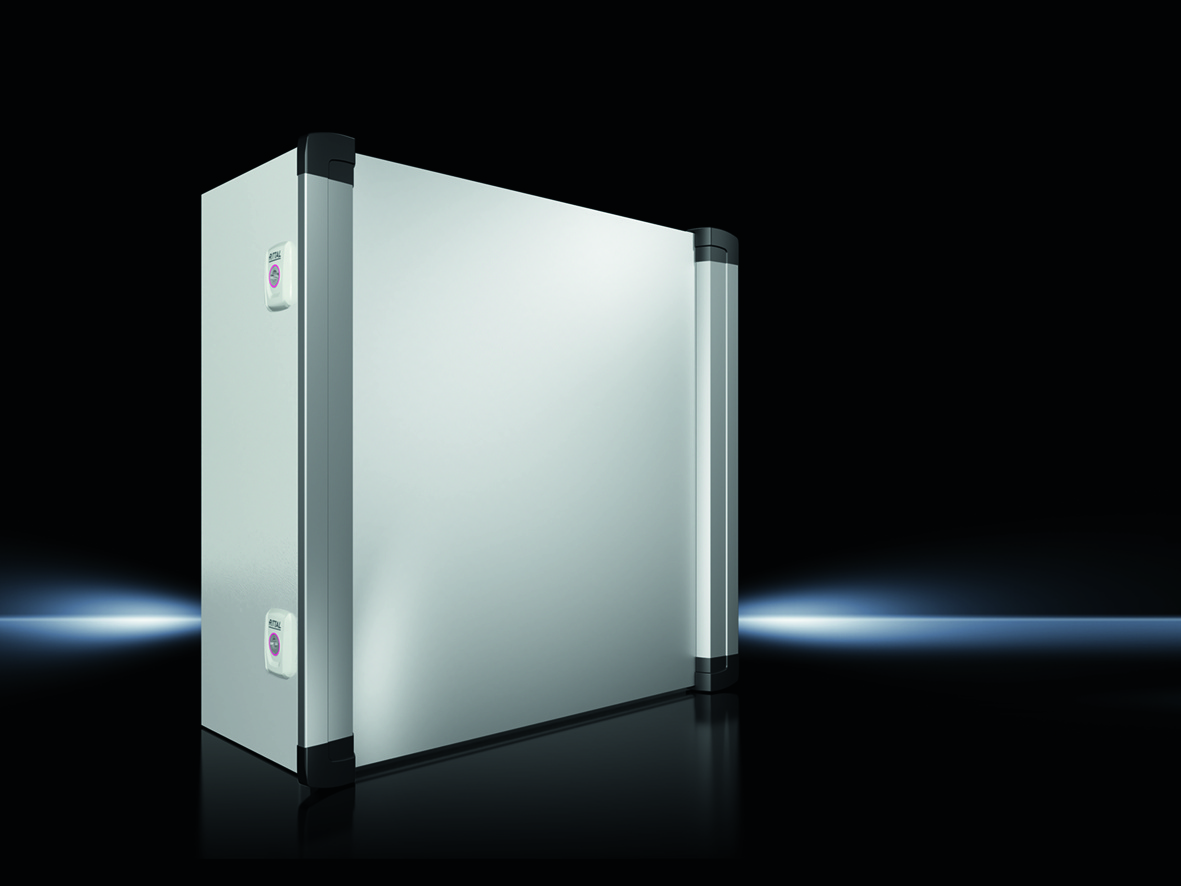

Rittal 6315450 AX command panel housing with grip strips, 500x500x210 mm, S

Your rating:
Average rating
product review for Rittal 6315450 AX command panel housing with grip strips, 500x500x210 mm, S
( 4.9 / 5 ) 16 ratings
Rittal 6315450
This image may differ from the desired article.
Rittal 6315450Rittal 6315450Rittal 6315450Rittal 6315450Rittal 6315450Rittal 6315450Rittal 6315450
262,66 EUR 274,15 EUR
( 312,57 EUR incl. VAT )
≈ £219.85  |  ≈ $288.66
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 6315450 AX command panel housing with grip strips, 500x500x210 mm, S
Datasheet:file_download Download
Lieske Part No.:1593372
Mfg Part No: 6315450
UPC/EAN: 4028177923201
Weight:13.2 kg
Type:AX 6315450

Product information for Rittal 6315450:

The Rittal AX 6315450 is a command panel housing made of sheet steel, designed for use in industrial plants and control systems. It has dimensions of 500 mm width, 500 mm height, and 210 mm depth, and is specifically designed for front-side service access. The housing is equipped with a mounting arm connection Ø 130 mm, compatible with the mounting arm system CP 60/120/180. The front side is covered with a 3 mm aluminium front plate that is easy to work with, intended for individual adaptations such as control panels or displays.

Applications
This command panel housing is suitable for use in industrial environments where robust and flexible mounting of control elements is required. It is frequently used in control systems, automation technology, and machine building, where front-side access to control elements is desired. The protection rating IP 55 ensures high protection against dust and splashing water, making it suitable for outdoor areas or humid indoor environments. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry and slightly contaminated indoor areas, as well as environments with minor dust and splashing water exposure.

Functions and Equipment in Detail
The housing is equipped with side grip strips made of natural anodized aluminium, providing a secure and ergonomic grip. The grip strip caps are made of plastic and are coloured similar to RAL 7024. The door is fitted with a continuously foamed PU seal, ensuring a tight closure. The locking mechanism uses a cam lock with a 3 mm double-barrel lock insert, designed for front-side service access. Optionally, the lock insert can be replaced with a Mini Comfort Handle AX or other lock inserts 27 mm, type A, to optimize access.

Technology Explained Simply
The surface of the housing and door is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035. The grip strip and front plate are naturally anodized, offering high corrosion resistance and an attractive metallic appearance. The internal mounting angles are shaped and feature system perforation, enabling flexible mounting of assemblies and components. The reinforcement for the mounting arm connection is pre-formed and can be drilled out if necessary to optimize the connection to the mounting arm system. The ability to change the mounting arm connection and door hinge by rotating the housing provides additional flexibility during installation.

Compatibility and Accessories
The housing is compatible with the mounting arm system CP 60/120/180. Suitable accessories include lock inserts made of zinc die-cast with a length of 27 mm, adjustable keyboard trays (depth 128 to 228 mm), mounting brackets for enclosures and expansion parts, and the AS Multitool AX/VX 4052000. For use with VX systems, chassis are available in door widths of 500 mm and 600 mm. The Mini Comfort Handle AX is also available as a replacement option to improve access.

Mounting and Installation
Mounting is done via the integrated mounting arm connection Ø 130 mm, which connects directly to the mounting arm system. The shaped internal mounting angles with system perforation allow flexible and secure fastening of assemblies. The pre-formed reinforcement for the mounting arm connection can be drilled out if required to adapt the mounting to individual needs. The ability to change the door hinge by rotating the housing facilitates installation in tight or specially configured environments.

Advantages in Operation
The command panel housing offers high mechanical stability due to the use of sheet steel and a robust seal ensuring a tight closure. The protection rating IP 55 and the IK code classification IK08 protect the housing against mechanical impacts and environmental influences. The easily workable aluminium front plate allows individual adaptation to specific control requirements. The flexible mounting options and the interchangeability of locking systems increase the adaptability of the housing to different application scenarios.

General
ModelBracket connection Ø 130 mm
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal, front plate: aluminium, cover caps: plastic
Surface protectionEnclosure and door: dip primed, externally powder coated, textured lacquer, handle strip: natural anodized, front plate: natural anodized
Basic colourRAL 7035
ColourHousing and door: RAL 7035, handle strip: natural anodized, front plate: natural anodized, cover caps: similar to RAL 7024
Scope of deliveryHousing with cutout and reinforcement for mounting arm connection Ø 130 mm, front with max. cutout, covered by easily machinable 3 mm aluminium front plate, side grip rails with end caps, shaped internal mounting angle with system perforation, pre-ribbed latch with 3 mm double-barrel insert
Width500 mm
Height500 mm
Depth210 mm
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
NoteChange of mounting arm connection and door hinge possible by rotating the housing; optional: mounting arm connection Ø 130 mm, offset in the reinforcement plate, pre-formed, can be easily drilled out; locking systems for service access from rear: locking insert, interchangeable with Mini-Comfort handle AX, locking inserts 27 mm, type A; locking systems for service access from front: locking insert, interchangeable with locking inserts 27 mm, type A
Base materialsteel sheet
Note on part numberCompatible mounting plate 5051.375 with shipping bag 5051.300
PCF/VE (Cradle-to-Gate)59.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 6315450, EAN: 4028177923201
