Rittal 6315250 AX command panel housing with grip strips, 380x300x210 mm, S

Your rating:
Average rating
product review for Rittal 6315250 AX command panel housing with grip strips, 380x300x210 mm, S
( 4.5 / 5 ) 6 ratings

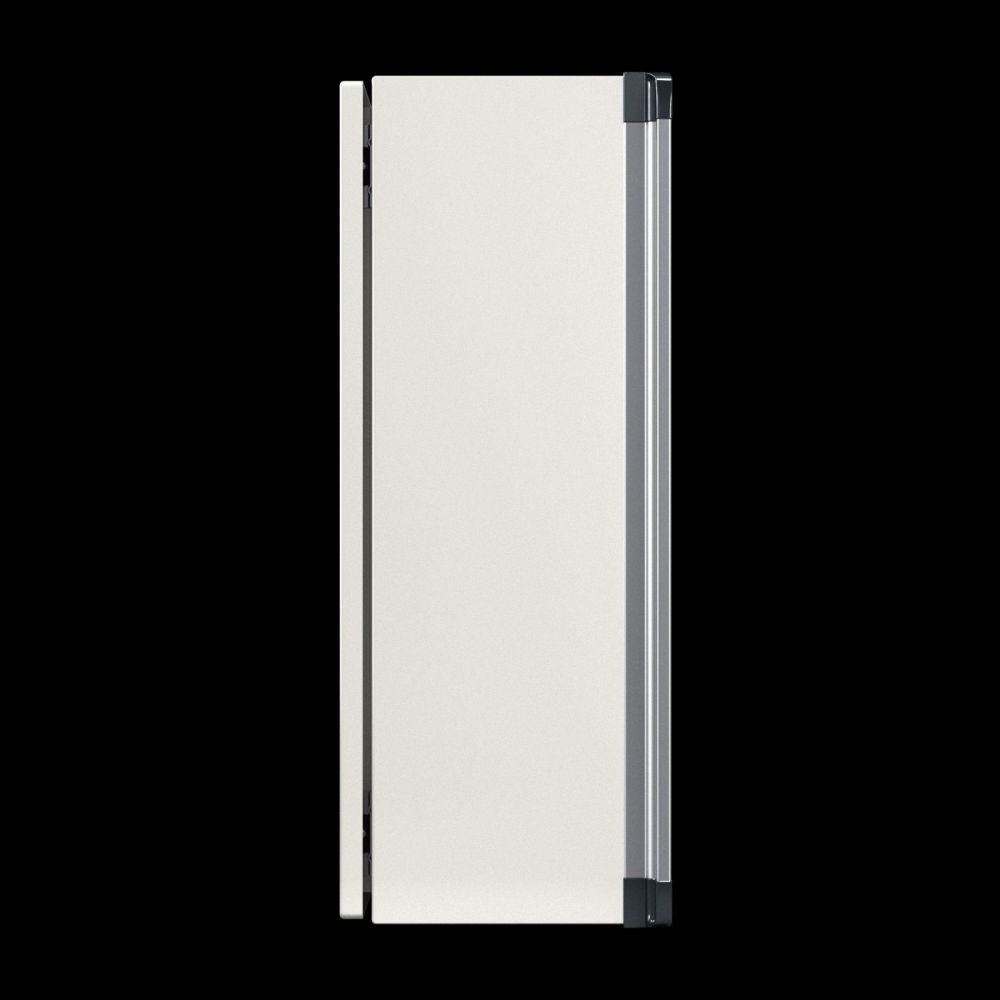

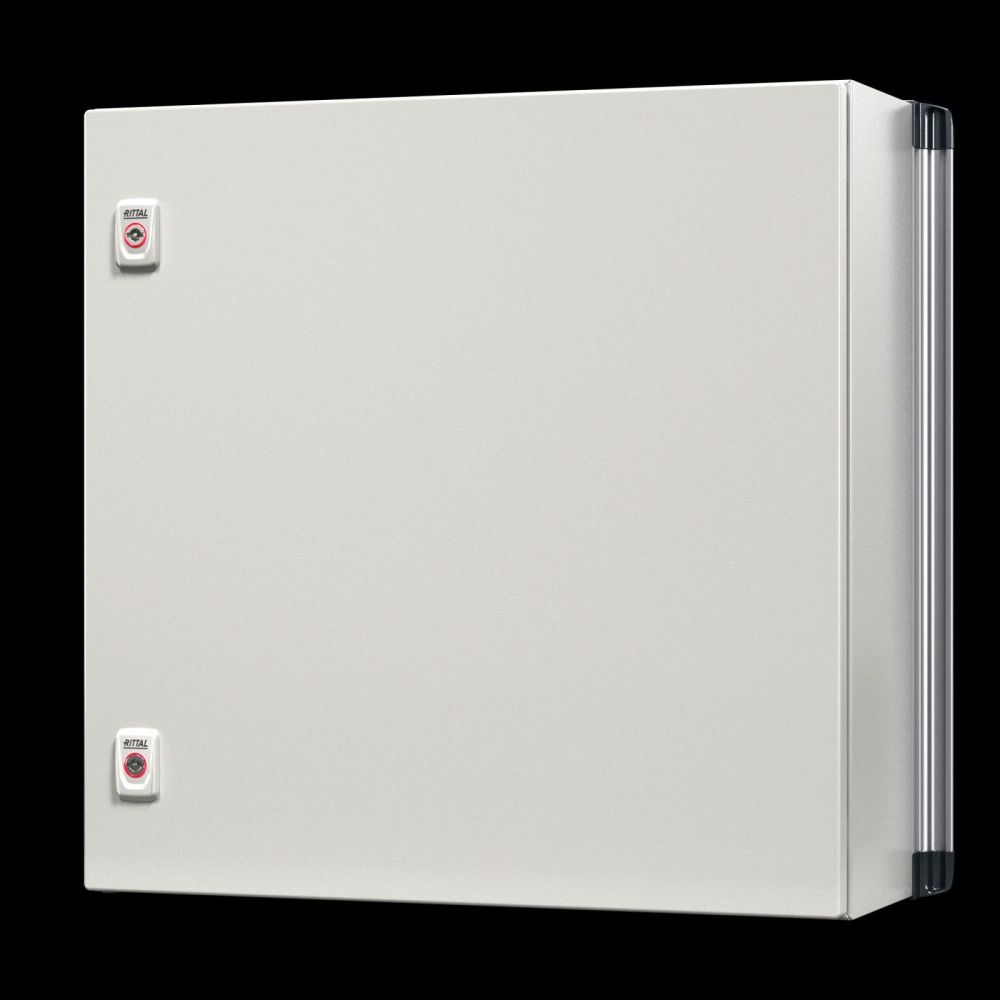

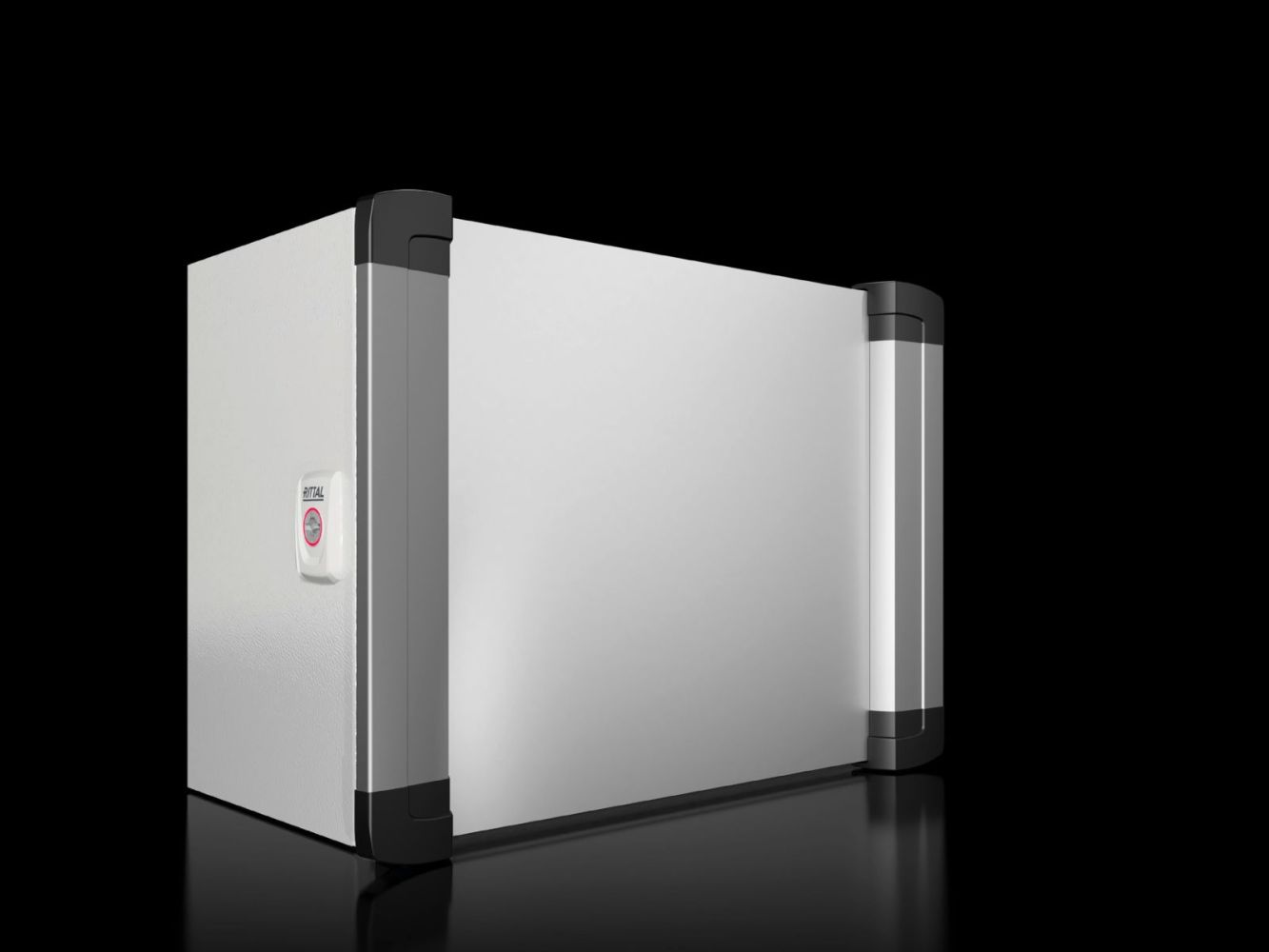

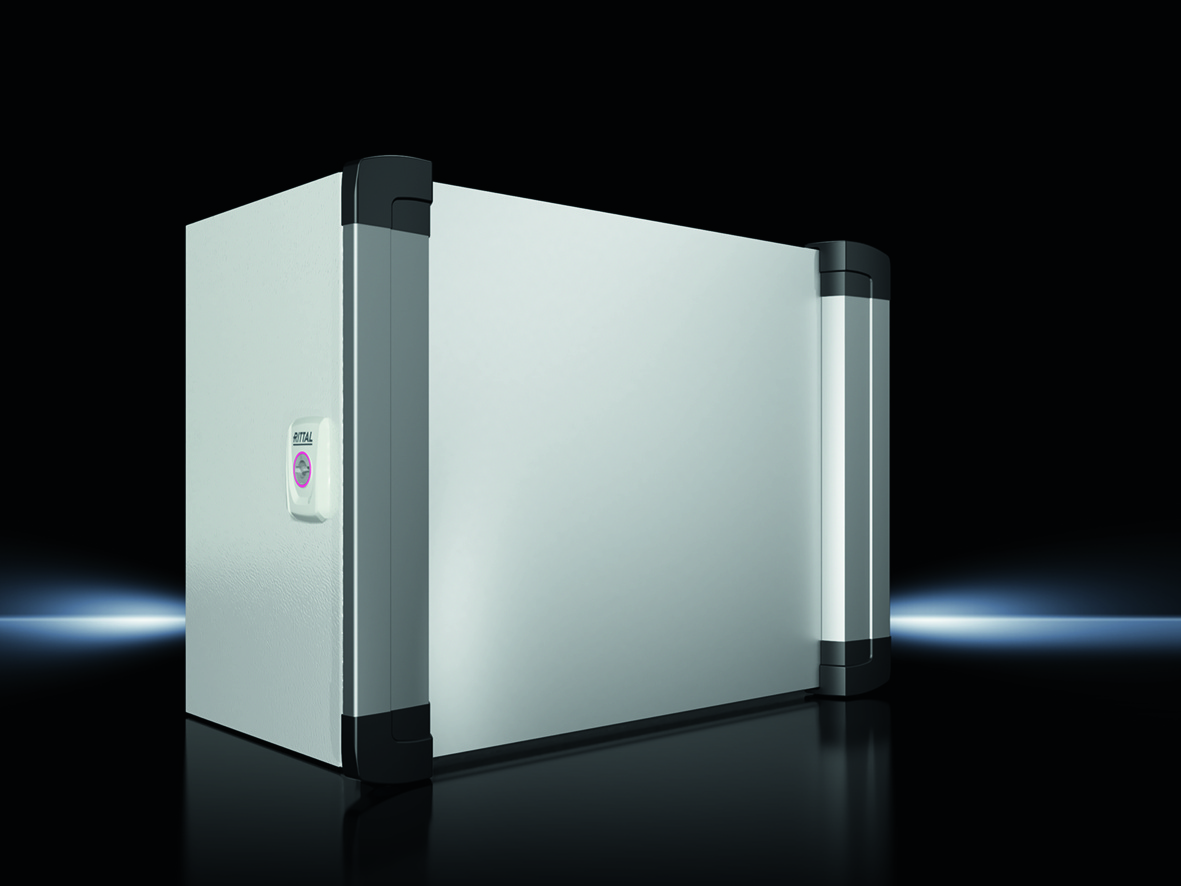

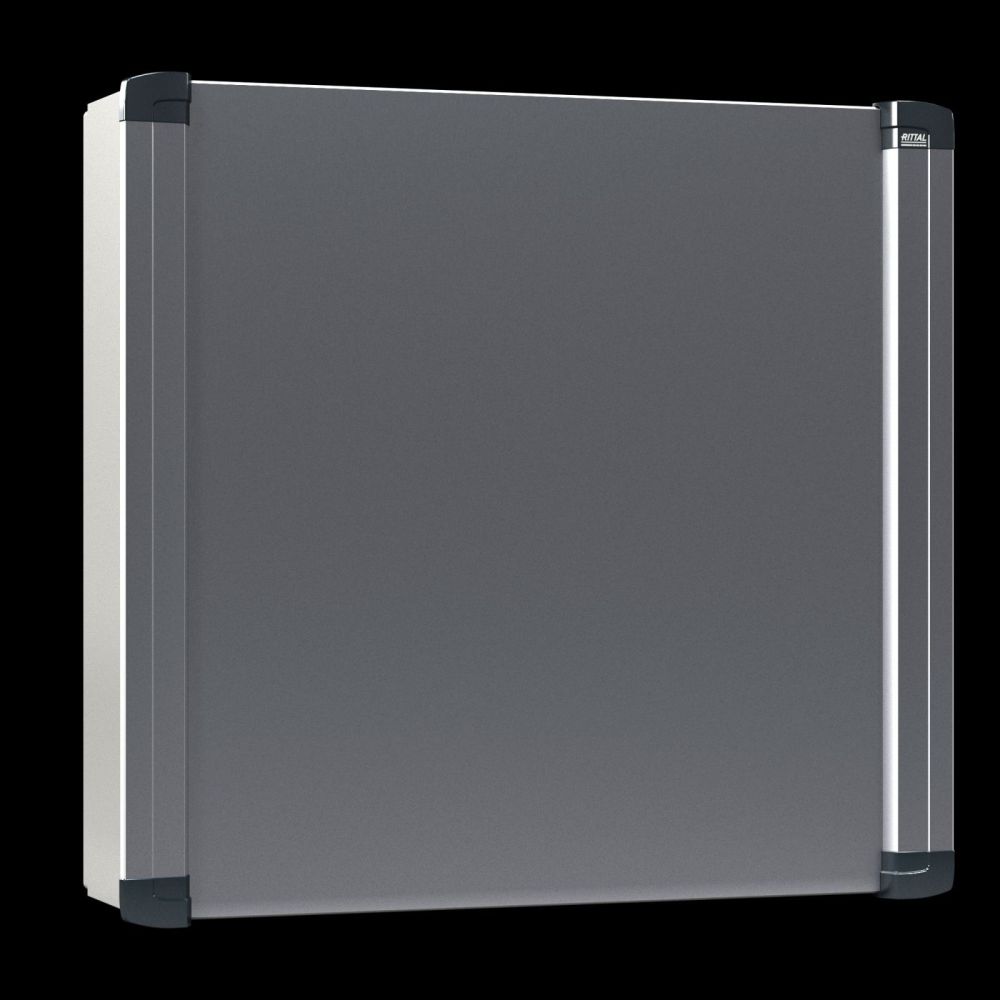

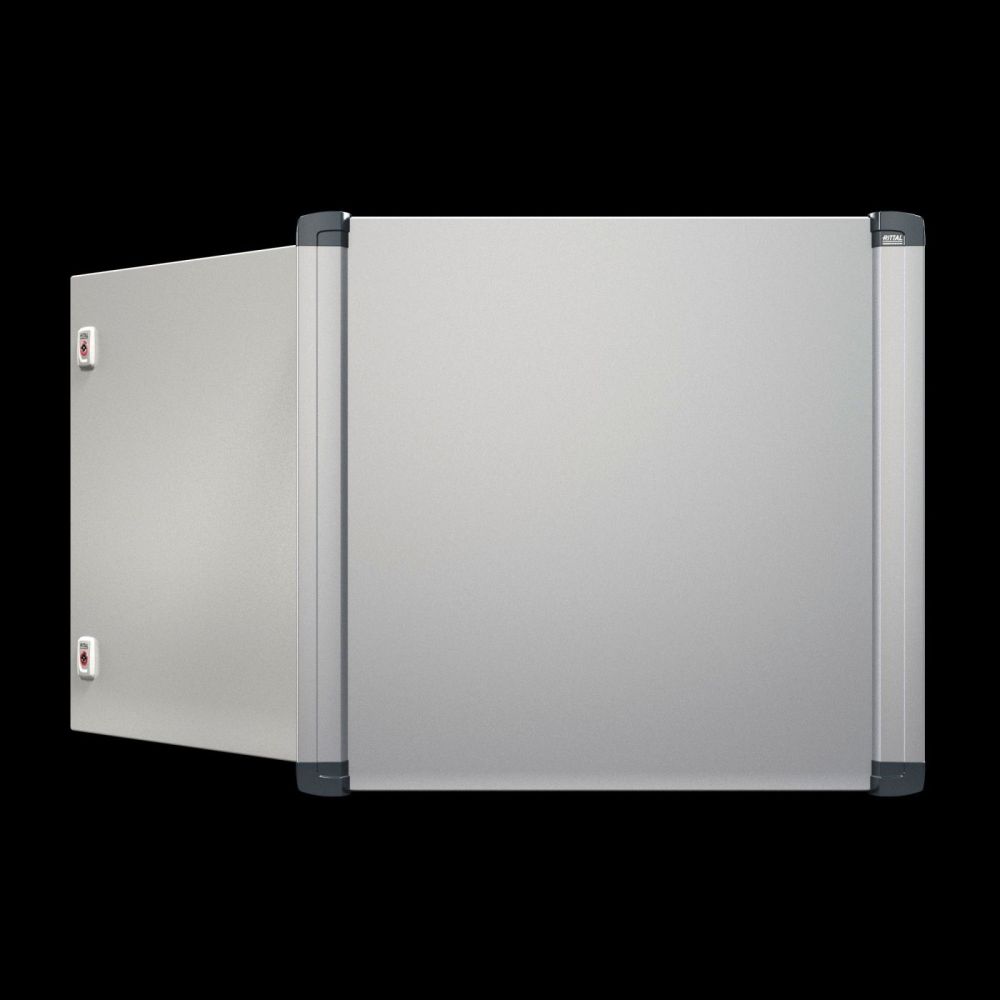

Rittal 6315250
This image may differ from the desired article.
Rittal 6315250Rittal 6315250Rittal 6315250Rittal 6315250Rittal 6315250Rittal 6315250Rittal 6315250
214,02 EUR
( 254,68 EUR incl. VAT )
≈ £179.13  |  ≈ $235.21
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 6315250 AX command panel housing with grip strips, 380x300x210 mm, S
Datasheet:file_download Download
Lieske Part No.:1593360
Mfg Part No: 6315250
UPC/EAN: 4028177923140
Weight:8.06 kg
Type:AX 6315250

Product information for Rittal 6315250:

The Rittal AX 6315250 is a command panel housing made of sheet steel, specifically designed for use in industrial plants and enclosures. It features dimensions of 380 mm width, 300 mm height, and 210 mm depth, and is equipped with aluminium grip strips that enable secure and ergonomic handling. The housing is designed for service access from the front, with the front side covered by a 3 mm aluminium front plate that is easy to process and intended for individual adaptations such as installing control elements or indicators. The surface of the housing and door is dip-primed and externally powder-coated with a textured finish in the colour RAL 7035, while the grip strips and front plate are naturally anodized. The grip strip caps are made of plastic and are coloured similar to RAL 7024.

Applications
This command panel housing is suitable for use in industrial environments where robust and flexible mounting of control elements is required. It is particularly suitable for plants connected to the CP 60/120/180 carrier arm system, as it features a pre-formed carrier arm connection with a diameter of 130 mm. The reinforcement in the breakout area ensures stable fastening. The ability to change the carrier arm connection and door hinge by rotating the housing provides flexibility during installation and integration into existing systems.

Functions and Equipment in Detail
The housing is equipped with a push-to-open lock, supplied with a 3 mm double-barrel lock insert. This lock enables secure access to the front side. The side grip strips with end caps facilitate opening and closing the housing. The shaped internal mounting angle with system perforation allows easy installation of internal components and accessories. The continuously foamed PU sealing gasket provides effective protection against dust and splashing water.

Technology Explained Simply
The housing offers a protection rating of IP 55, meaning it is dust-tight and protected against splashing water from all directions. This makes it suitable for outdoor use or in humid environments. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry indoor environments and environments with limited dirt and moisture exposure. The IK code IK08 indicates that the housing is protected against mechanical impacts such as shocks and vibrations up to a certain level. The aluminium front plate is easy to process, allowing individual control elements or indicators to be installed.

Compatibility and Accessories
The housing is compatible with the CP 60/120/180 carrier arm system. It can be combined with various locking systems, including lock inserts with a length of 27 mm, type A, which can be used for service access from the front or rear. Optionally, the push-to-open lock can be replaced with a mini comfort handle AX. Suitable accessories include mounting angles for internal installation, an adjustable-depth keyboard tray, and the AS Multitool AX/VX 4052000. A matching mounting plate (5051.370) and shipping bag (5051.300) are also available.

Mounting and Installation
Mounting is done via the pre-formed carrier arm connection with Ø 130 mm, which can be directly hung into the CP 60/120/180 carrier arm system. The reinforcement in the breakout area ensures stable fastening. The carrier arm connection can optionally be pre-formed off-centre in the reinforcement plate and can be easily drilled out to allow mounting at different positions. The grip strips and push-to-open lock facilitate handling during installation.

Operational Advantages
The command panel housing offers high mechanical stability and reliable protection for installed components. The easy-to-process aluminium front plate allows individual adaptations without additional tools. The integrated system perforation in the internal mounting angle simplifies the installation of additional components. The IP 55 protection rating and IK08 rating ensure a long service life even in demanding environments. The ability to change the carrier arm connection and door hinge increases flexibility when integrating into existing systems.

General
ModelBracket connection Ø 130 mm
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal, front plate: aluminium, cover caps: plastic
Surface protectionEnclosure and door: dip primed, externally powder coated, textured lacquer, handle strip: natural anodized, front plate: natural anodized
Basic colourRAL 7035
ColourHousing and door: RAL 7035, handle strip: natural anodized, front plate: natural anodized, cover caps: similar to RAL 7024
Scope of deliveryHousing with cutout and reinforcement for mounting arm connection Ø 130 mm, front with max. cutout, covered by easily machinable 3 mm aluminium front plate, side grip rails with end caps, shaped internal mounting angle with system perforation, pre-ribbed latch with 3 mm double-barrel insert
Width380 mm
Height300 mm
Depth210 mm
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
NoteChange of mounting arm connection and door hinge possible by rotating the housing; optional: mounting arm connection Ø 130 mm, offset in the reinforcement plate, pre-formed, can be easily drilled out; locking systems for service access from rear: locking insert, interchangeable with Mini-Comfort handle AX, locking inserts 27 mm, type A; locking systems for service access from front: locking insert, interchangeable with locking inserts 27 mm, type A
Base materialsteel sheet
Note on part numbercompatible mounting plate 5051.370 with shipping bag 5051.300
PCF/VE (Cradle-to-Gate)35.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 6315250, EAN: 4028177923140
