Rittal 9681548 SV roof plate for VX (cable entry)

Your rating:
Average rating
product review for Rittal 9681548 SV roof plate for VX (cable entry)
( 4.3 / 5 ) 6 ratings
Rittal 9681548
This image may differ from the desired article.
Rittal 9681548Rittal 9681548Rittal 9681548
-12% 90,62 EUR 103,17 EUR
( 107,84 EUR incl. VAT )
≈ £75.85  |  ≈ $99.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9681548 SV roof plate for VX (cable entry)
Datasheet:file_download Download
Lieske Part No.:1597407
Mfg Part No: 9681548
UPC/EAN: 4028177926561
Weight:3.42 kg
Type:SV 9681548

Product information for Rittal 9681548:

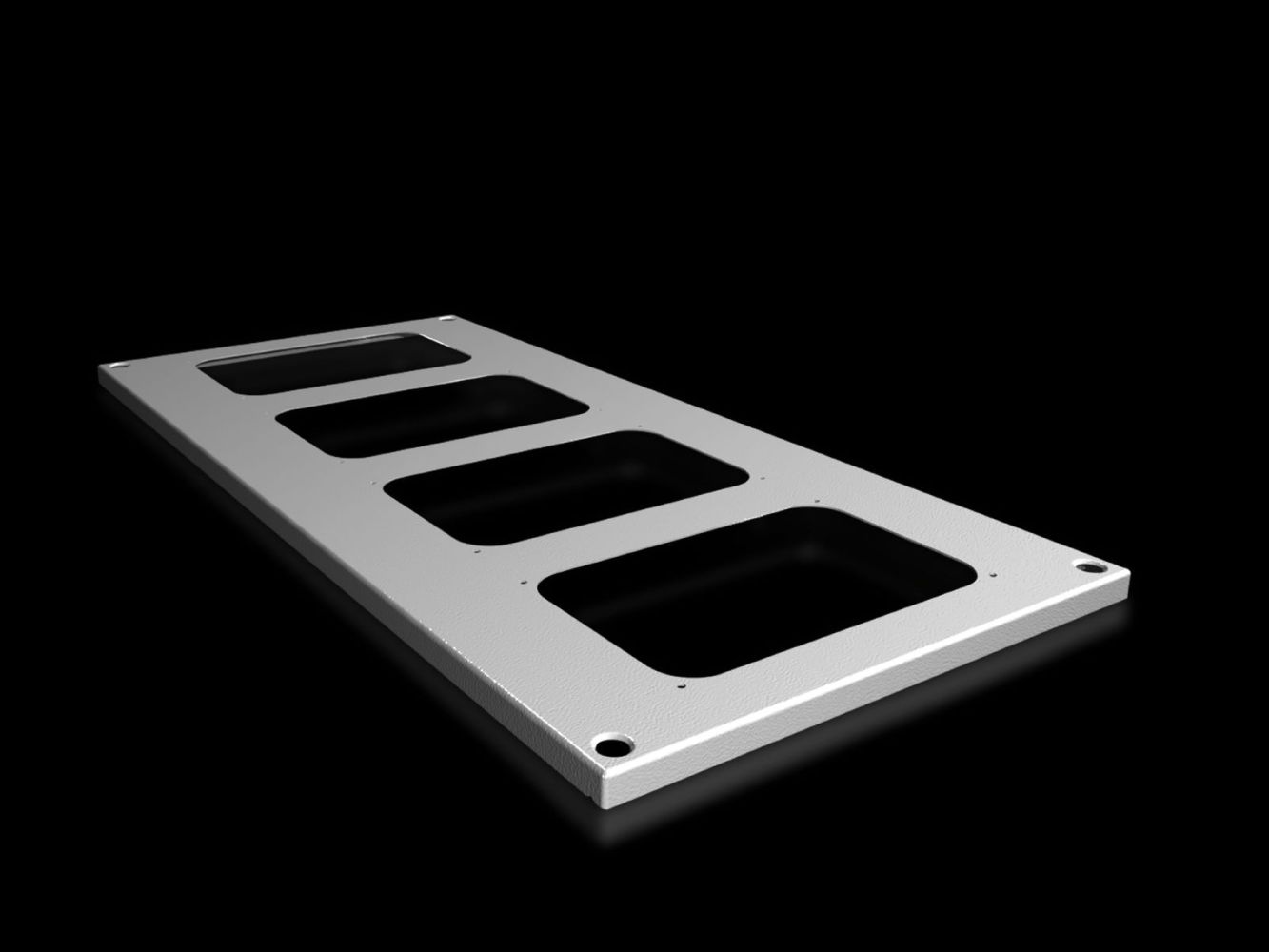

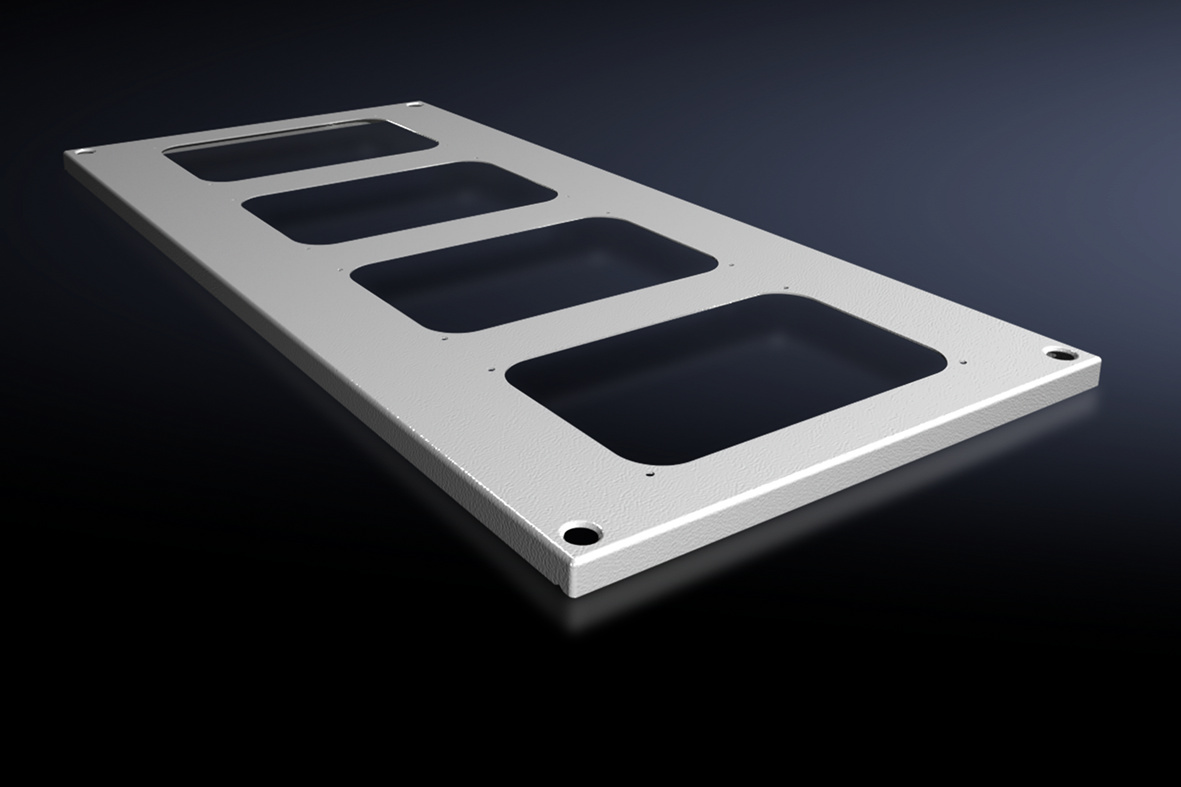

The Rittal SV 9681548 is a roof plate for enclosures of the VX series, specifically designed for an enclosure width of 400 mm and a depth of 800 mm. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is designed for mounting cable entry flanges and thus enables structured and secure cable routing in the upper section of the enclosure. Its use is particularly relevant in industrial facilities and during the installation of power distribution components, where proper cable routing and mechanical stability are required.

Applications

The roof plate is used in industrial electrical engineering where enclosures with exact dimensions of 400 mm width and 800 mm depth are employed. It is suitable for installations requiring additional or replacement roof construction to enable integration of cable entries. Typical applications include production environments, during the assembly of control and distribution enclosures, and in building automation, where secure and accessible cable connections in the upper section of the enclosure are necessary.

Functions and Equipment in Detail

The roof plate is made of steel sheet with a thickness of 1.5 mm, providing sufficient mechanical strength for use in industrial environments. The surface is coated with a structured lacquer, forming a robust and abrasion-resistant layer. The color corresponds to the standard RAL 7035, a gray tone commonly used in industrial electrical engineering to enable uniform visual design. The delivery includes mounting hardware required for attaching the roof plate to the enclosure. Mounting is performed at four points, requiring four cable entry flanges to ensure secure and orderly cable connections.

Technology Explained Simply

The roof plate is designed as a flat metal sheet placed on top of the enclosure roof and secured in place. The steel sheet construction with 1.5 mm thickness provides sufficient stability to withstand mechanical loads during operation. The structured lacquer coating ensures high abrasion resistance and protects the material from corrosion. The RAL 7035 color allows for visual harmonization with other enclosure components. The four designated positions for cable entry flanges enable flexible and structured cable routing.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with dimensions of 400 mm width and 800 mm depth. It is compatible with cable entry flanges installed at the designated mounting points. Suitable accessories include transport lugs for VX, TS, SE, designed for freight shipping. These transport lugs can be used in shipping logistics to secure the enclosure during transit. The combination of roof plate and transport lugs enables safe and efficient handling of the enclosure.

Installation and Mounting

Mounting of the roof plate is performed by securing it at the designated points on the enclosure roof. The included mounting hardware is used for this purpose. Installation requires no additional tools or materials. The four cable entry flanges must be mounted at the corresponding positions to enable cable connections. Mounting is simple and does not require specialized expertise, with the predefined mounting points ensuring a secure and stable connection.

Operational Advantages

The roof plate provides a stable and secure surface for cable routing within the enclosure. The use of cable entry flanges enables structured and orderly cable routing, facilitating maintenance and inspection. The robust steel sheet construction with structured lacquer coating ensures long service life and high mechanical strength. The RAL 7035 color supports uniform visual design of the installation. The included mounting hardware reduces installation effort and ensures quick and secure assembly.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Number of required cable entry flanges4
Suitable forWidth: = 400 mm, Depth: = 800 mm
PCF/VE (Cradle-to-Gate)13 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9681548, EAN: 4028177926561
