Rittal 1305600 Compact enclosure HD 1.4301, 390x550x210 mm

Your rating:
Average rating
product review for Rittal 1305600 Compact enclosure HD 1.4301, 390x550x210 mm
( 4.5 / 5 ) 2 ratings
Rittal 1305600
This image may differ from the desired article.
Rittal 1305600Rittal 1305600Rittal 1305600Rittal 1305600Rittal 1305600Rittal 1305600
478,06 EUR
( 568,89 EUR incl. VAT )
≈ £400.14  |  ≈ $525.39
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 1305600 Compact enclosure HD 1.4301, 390x550x210 mm
Datasheet:file_download Download
Lieske Part No.:1990012
Mfg Part No: 1305600
UPC/EAN: 4028177967458
Weight:17 kg
Type:HD 1305600

Product information for Rittal 1305600:

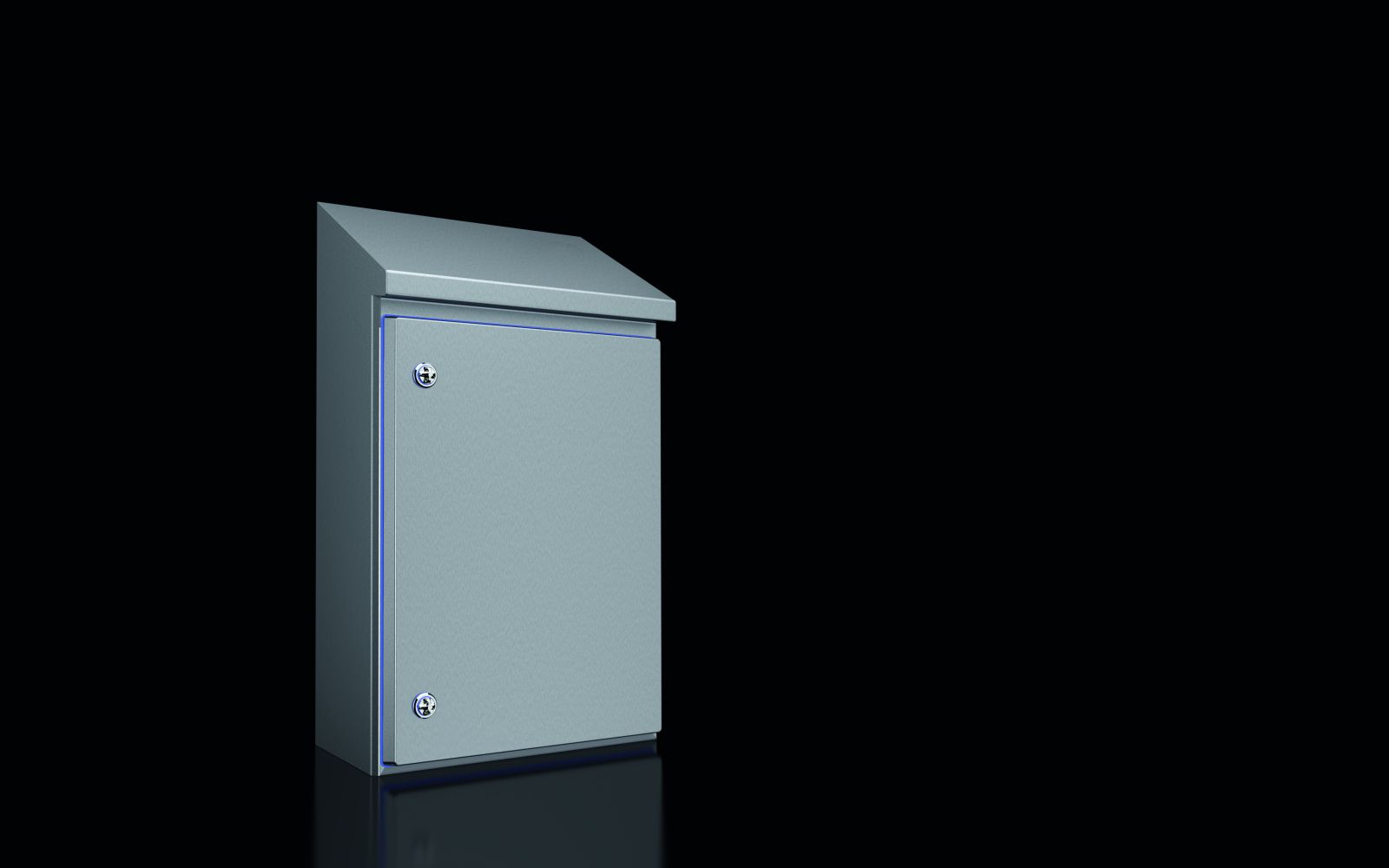

The Rittal compact enclosure HD 1305600 is a hygienic design enclosure made of stainless steel 1.4301 (AISI 304), specifically designed for use in the food and beverage industry. The enclosure is fully sealed, without additional gaps or dead spaces, and features an integrated sloped roof with a 30° incline forward. The drip edge on the roof protects the upper door seal and enables safe cleaning. The door is single, with a 10° inclined frame all around, and includes a hygienic design pre-wipe closure, which is designed without recesses or gaps to ensure quick and easy cleaning. The silicone door seal is compliant with FDA regulation 21 CFR 177.2600 and is dyed blue (RAL 5010) to clearly distinguish it from food products. The door is standard right-hinged, but can be converted to left-hinged. The surface of the enclosure and door is brush-finished (grit 400, roughness < 0.8 μm), ensuring high cleanability. The mounting plate made of galvanized steel sheet is already integrated and has dimensions of 330 mm x 475 mm. The door opens to an angle of 125°.

Applications
This enclosure is designed for environments with high hygiene requirements, such as food processing, beverage industry, or pharmaceutical production. The materials and construction are selected to allow effective cleaning and disinfection, preventing dirt or microbes from accumulating in gaps or recesses. The protection rating IP 66 and IP X9 according to IEC 60 529 ensure high protection against dust, water, and high-pressure cleaning. Protection ratings according to NEMA (NEMA 1, 3, 3X, 4, 4X, 12, 13) and Type Ratings according to UL 50E (Type 1, 3, 3X, 4, 4X, 12, 13) confirm suitability for industrial applications with demanding environmental conditions. The impact resistance IK08 protects the enclosure against mechanical impacts.

Functions and Equipment in Detail
The enclosure is made as a single piece, bent and welded, to ensure a closed, gap-free construction. The mounting plate is included in the delivery scope and allows mounting of control devices. The silicone seal is seamlessly integrated between door and enclosure, ensuring a tight seal and simultaneous cleanability. The lock insert is made of stainless steel 1.4404 (AISI 316L), offering higher corrosion resistance compared to the enclosure material. The blue-dyed seal serves as a visual indicator to distinguish it from food products.

Technical Explanation
The protection rating IP 66 means the enclosure is dust-tight and protected against strong splashing water. IP X9 guarantees resistance to high-pressure cleaning, which is essential for hygienic applications. The NEMA 4X and Type 4X protection ratings refer to protection against water, dust, and corrosion, especially in humid or saline environments. The IK08 impact resistance protects the enclosure against mechanical impacts, such as those occurring during transport or operation. The surface finish with brush finish (grit 400) reduces dirt accumulation and facilitates cleaning.

Compatibility and Accessories
Various accessories are available to extend the hygienic setup, including HD wall spacers (spacing 50 mm), Bit HD for universal key 2549500, universal key with various attachments, SZ pressure equalization plugs made of stainless steel 1.4305, HD viewing window 4000081 (W x H: 330x190 mm, stainless steel 1.4301), as well as HD knobs and knobs with safety cylinder insert made of stainless steel. These components allow application-specific adaptation of the enclosure to specific requirements.

Mounting and Installation
Mounting is done via the integrated mounting plate, which is included in the delivery scope. The door can be hinged on the right or left side, allowing flexible installation at different locations. The enclosure dimensions are 390 mm (width) x 550 mm (height front) x 669 mm (height rear) x 210 mm (depth). The mounting plate has dimensions of 330 mm x 475 mm. Installation is typically done on a wall or support, and using wall spacers enables optimal air circulation and cleaning.

Operational Advantages
The enclosure offers high cleanability due to its gap-free construction, brush-finished surface, and blue-dyed seal. The corrosion resistance of stainless steel 1.4301 (AISI 304) and the lock insert made of 1.4404 (AISI 316L) ensures long service life, even in humid or aggressive environments. The protection ratings IP 66, IP X9, NEMA 4X, and IK08 ensure reliable operation under harsh industrial conditions. The integrated mounting plate and flexible door hinge options simplify installation and maintenance.

General
ModelHygienic Design housing
Market-relevant product changesThe compact control cabinet HD, single-door, will receive from June 2020 the new mounting plate of the compact control cabinet AX.
MaterialHousing and door: stainless steel 1.4301 (AISI 304), mounting plate: sheet steel, locking insert HD: stainless steel 1.4404 (AISI 316L), sealing: silicone, compliant with FDA regulation 21 CFR 177.2600
Surface protectionHousing and door: brushed finish, grit 400, roughness depth < 0.8 μm, mounting plate: galvanised, seal: blue tinted (RAL 5010)
Scope of deliveryHousing fully enclosed, door with inserted seal, door hinge on right, reversible to left, mounting plate
Width390 mm
Height front550 mm
Height at rear669 mm
Depth210 mm
Mounting plate dimensions (W x H)330 mm x 475 mm
Door opening angle125°
IK codeIK08
Base materialStainless steel 1.4301 (AISI 304)
Degree of protection IP according to IEC 60 529IP 66, IP X9
NEMA degree of protectionNEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type rating according to UL 50EType 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13
PCF/VE (Cradle-to-Gate)56,83


Product data sheet
Datasheet for Rittal 1305600, EAN: 4028177967458
