Rittal 1314600 Hygienic Design compact enclosure HD

Your rating:
Average rating
product review for Rittal 1314600 Hygienic Design compact enclosure HD
( 4.6 / 5 ) 14 ratings
Rittal 1314600
This image may differ from the desired article.
Rittal 1314600Rittal 1314600Rittal 1314600Rittal 1314600Rittal 1314600Rittal 1314600Rittal 1314600Rittal 1314600
593,17 EUR
( 705,87 EUR incl. VAT )
≈ £496.48  |  ≈ $651.89
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 1314600 Hygienic Design compact enclosure HD
Datasheet:file_download Download
Lieske Part No.:1263706
Mfg Part No: 1314600
UPC/EAN: 4028177815674
Weight:26 kg
Type:HD 1314.600

Product information for Rittal 1314600:

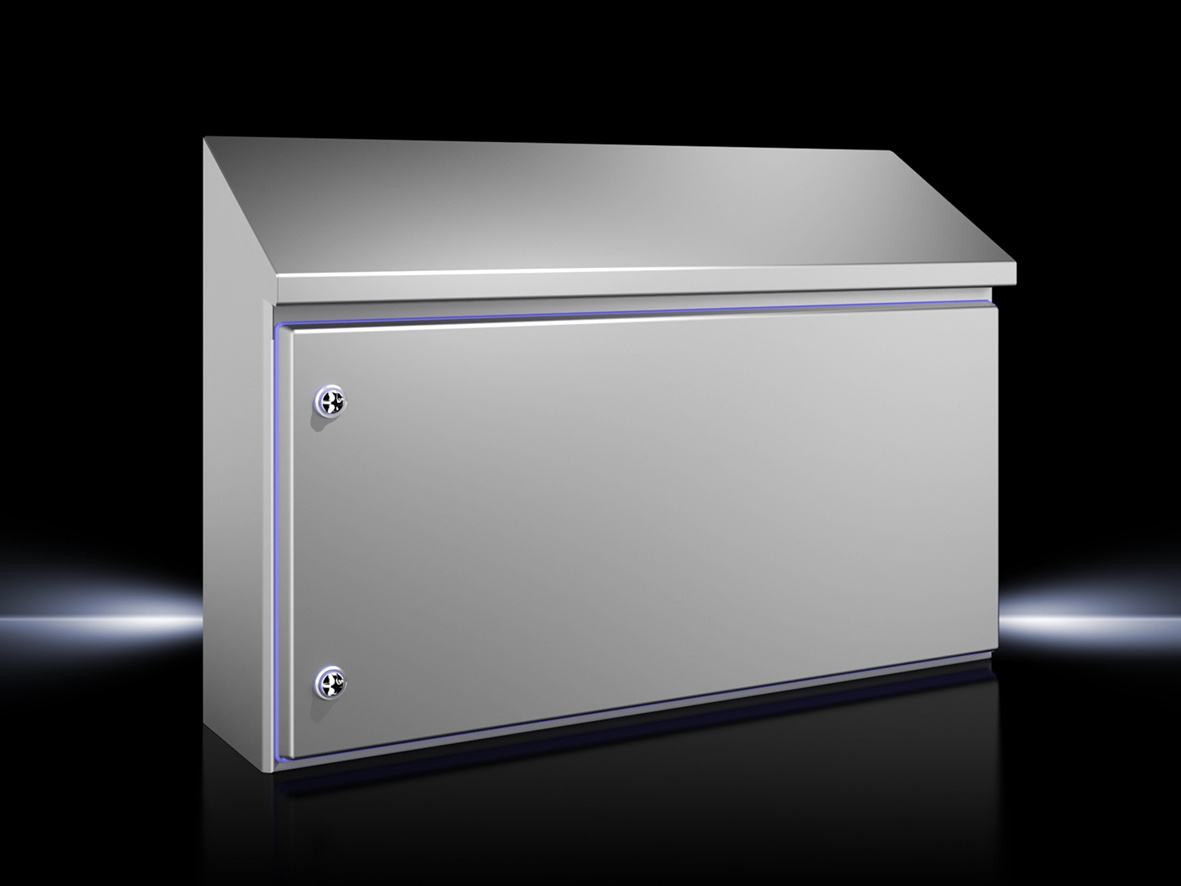

The Rittal compact enclosure HD 1314.600 is a hygienic design enclosure made of stainless steel 1.4301 (AISI 304), specifically designed for use in the food and beverage industry. The enclosure is fully enclosed, without additional gaps or dead spaces, and features an integrated sloped roof with a 30° forward inclination. The drip edge on the roof protects the upper door seal and enables safe cleaning. The door is single, with a 10° inclined bevelled edge all around, and has a right-hand hinge, which can be changed to left-hand. The silicone door seal is blue-coloured (RAL 5010) and compliant with FDA regulation 21 CFR 177.2600, ensuring clear distinction from food products. The surface of the enclosure and door is brush-finished (grit 400, roughness depth < 0.8 μm), ensuring easy cleaning and hygiene. The mounting plate made of galvanised steel sheet is included in the delivery and has dimensions 750 mm (W) × 355 mm (H). The door opens to an angle of 125°.

Applications
This enclosure is designed for environments requiring high hygiene standards, such as food processing, beverage industry, or pharmaceutical production. The materials and construction prevent the accumulation of dirt, bacteria, or residues. The silicone seal is suitable for use in food environments and complies with FDA regulations. The enclosure is designed for indoor and outdoor use, as it meets protection ratings IP 66 and IP X9 according to IEC 60 529, providing dust-tight and water-tight protection, as well as resistance to high-pressure cleaning. Protection ratings according to NEMA include NEMA 1, 3, 3X, 4, 4X, 12, and 13, confirming suitability for various industrial environments. The impact resistance corresponds to IK code IK08.

Functions and equipment in detail
The enclosure is formed and welded in one piece, creating a gap-free connection between door and enclosure. The door seal is firmly inserted and prevents ingress of dust, water, or other particles. The latches consist of a push-button latch in hygienic design, without recesses or gaps, enabling quick and easy cleaning. The lock insert is made of stainless steel 1.4404 (AISI 316L), a highly corrosion-resistant material. The mounting plate is intended for securing electrical components and provides a stable base for installation.

Technology explained simply
The IP 66 rating means the enclosure is completely dust-tight and protected against strong splashing water, even at spray angles up to 60°. IP X9 refers to resistance against high-pressure cleaning, which is essential for hygiene in food facilities. The NEMA and UL 50E (Type 1 to 13) protection ratings confirm suitability for dry, damp, dusty, or splashing water environments. The IK code IK08 guarantees impact resistance against mechanical stresses that may occur during installation or operation. The surface finish with brush finish and roughness depth under 0.8 μm minimises dirt accumulation and facilitates cleaning.

Compatibility and accessories
To build a consistently hygienic system, various accessories are available, including wall spacers HD (50 mm spacing), viewing windows with knob handles (e.g. 470x290 mm or 330x190 mm, stainless steel 1.4301), cable strain relief rails for mounting plates (length 699 mm), Bit HD for universal key 2549500, universal key with various attachments, SZ pressure equalisation plugs made of stainless steel 1.4305, and knob handles with or without safety cylinder inserts. These components enable flexible and hygienic integration into existing installations.

Mounting and installation
Mounting is done via the integrated mounting plate, which is included in the delivery. The door can be changed from right to left hinge if required, allowing flexible installation at various locations. The enclosure dimensions are 810 mm (width) × 430 mm (height front) × 549 mm (height rear) × 210 mm (depth). The mounting plate has dimensions 750 mm (W) × 355 mm (H). Installation requires no additional tools or components, as the enclosure is delivered fully assembled.

Advantages in operation
The enclosure offers high mechanical and chemical resistance due to the use of stainless steel 1.4301 and 1.4404. The hygienic design with gap-free transitions, inclined edges, and an easy-to-clean surface reduces cleaning time and contamination risk. Protection ratings IP 66, IP X9, NEMA, and UL 50E ensure reliable operation in demanding environments. The integrated mounting plate simplifies installation of electrical components, and the blue-coloured seal enables clear visual distinction from food products.

General
ModelHygienic Design housing
Market-relevant product changesThe compact control cabinet HD, single-door, will receive from June 2020 the new mounting plate of the compact control cabinet AX.
MaterialHousing and door: stainless steel 1.4301 (AISI 304), mounting plate: sheet steel, locking insert HD: stainless steel 1.4404 (AISI 316L), sealing: silicone, compliant with FDA regulation 21 CFR 177.2600
Surface protectionHousing and door: brushed finish, grit 400, roughness depth < 0.8 μm, mounting plate: galvanised, seal: blue tinted (RAL 5010)
Scope of deliveryHousing fully enclosed, door with inserted seal, door hinge on right, reversible to left, mounting plate
Width810 mm
Height front430 mm
Height at rear549 mm
Depth210 mm
Mounting plate dimensions (W x H)750 mm x 355 mm
Door opening angle125°
Number of locks2
IK codeIK08
Base materialStainless steel 1.4301 (AISI 304)
Degree of protection IP according to IEC 60 529IP 66, IP X9
NEMA degree of protectionNEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type rating according to UL 50EType 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13
PCF/VE (Cradle-to-Gate)84,57
