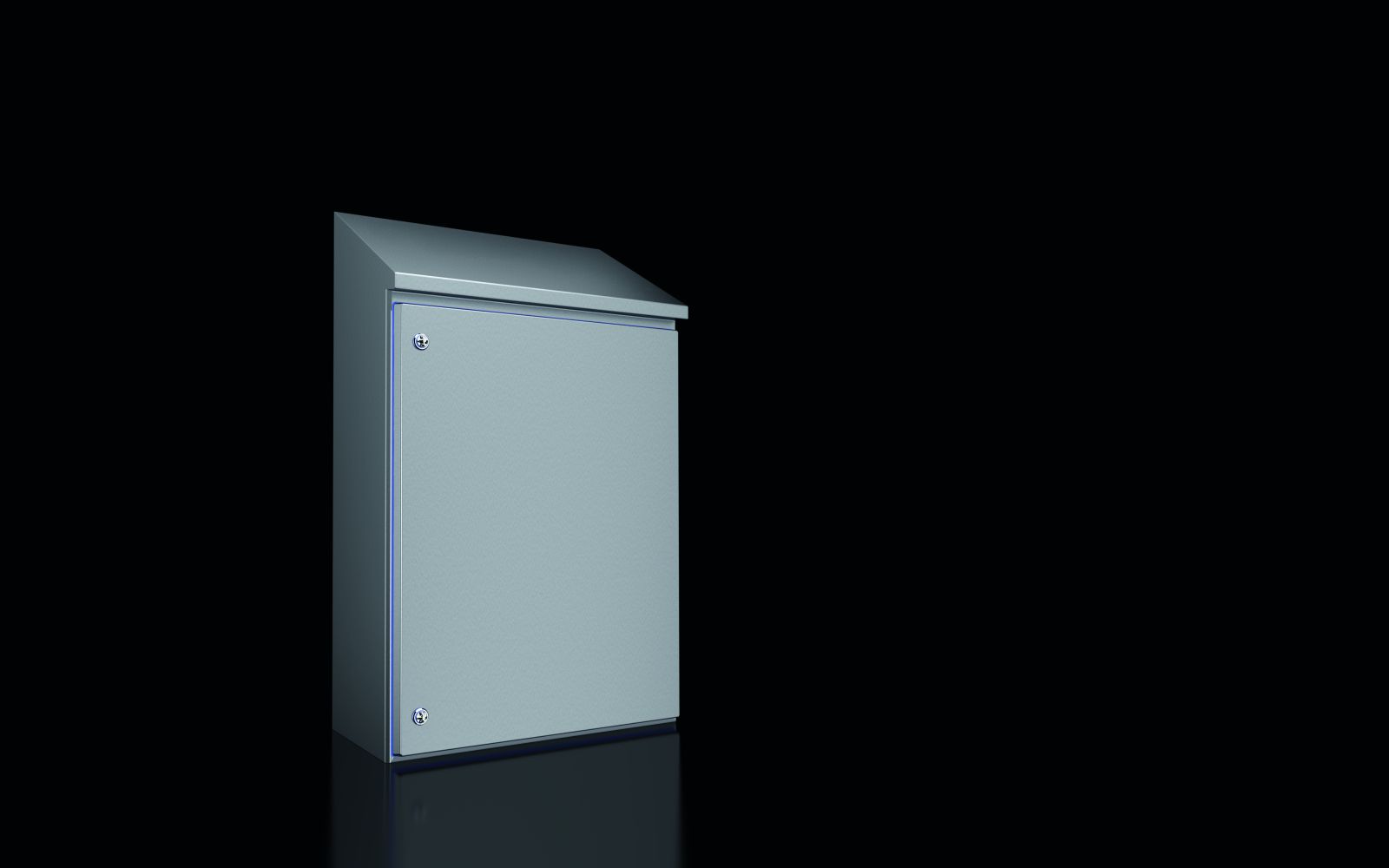

Rittal 1312600 Compact enclosure HD 1.4301, 610x800x300 mm

Your rating:
Average rating
product review for Rittal 1312600 Compact enclosure HD 1.4301, 610x800x300 mm
( 4.3 / 5 ) 3 ratings
Rittal 1312600
This image may differ from the desired article.
Rittal 1312600Rittal 1312600Rittal 1312600Rittal 1312600Rittal 1312600Rittal 1312600Rittal 1312600
-8% 746,35 EUR 808,32 EUR
( 888,16 EUR incl. VAT )
≈ £624.69  |  ≈ $820.24
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 4 pieces
1x Rittal 1312600 Compact enclosure HD 1.4301, 610x800x300 mm
Datasheet:file_download Download
Lieske Part No.:2061811
Mfg Part No: 1312600
UPC/EAN: 4028177967434
Weight:38 kg
Type:HD 1312600

Product information for Rittal 1312600:

The Rittal compact enclosure HD 1312600 is a hygienic design enclosure made of stainless steel 1.4301 (AISI 304), specifically designed for use in the food and beverage industry. The enclosure is fully enclosed, without additional gaps or dead spaces, and features an integrated sloped roof with a 30° incline forward. The drip edge on the roof protects the upper door seal and enables safe cleaning. The door is single, with a 10° bevelled edge all around, and has a right-hand hinge, which can be changed to left-hand. The hinges are hygienically positioned within the door seal, and the stainless steel 1.4404 (AISI 316L) lock insert is designed to be gap-free, ensuring quick and easy cleaning.

Applications
This enclosure is designed for environments with high hygiene requirements, such as food processing, the pharmaceutical industry, or beverage production. The surface of the enclosure and door is brushed with a grit 400 and a roughness depth under 0.8 μm, enabling easy cleaning and preventing biofilm formation. The silicone seal is compliant with FDA regulation 21 CFR 177.2600 and is blue-coloured (RAL 5010) to clearly distinguish it from food products.

Functions and equipment in detail
The enclosure is supplied with a mounting plate made of galvanised steel sheet, measuring 550 mm (W) × 735 mm (H). The door opens to an angle of 125°, providing good access to the interior. The door seal is integrated gap-free between the door and enclosure, avoiding crevices and dead spaces. The lock insert is also gap-free and without recesses, ensuring efficient cleaning.

Technology explained simply
The protection rating IP 66 and IP X9 according to IEC 60 529 ensures high protection against dust and water, including high-pressure cleaning. The protection ratings NEMA 1, 3, 3X, 4, 4X, 12 and 13, as well as the type rating according to UL 50E (Type 1, 3, 3X, 4, 4X, 12, 13), confirm suitability for use in damp, dusty, or corrosive environments. The IK code IK08 indicates high mechanical resistance against mechanical impacts. The materials are selected to meet the requirements of the food industry, particularly the use of stainless steel 1.4301 and 1.4404, as well as the FDA-compliant silicone seal.

Compatibility and accessories
Various accessories are available for this enclosure to support installation and operation. These include HD wall spacers with a 50 mm distance, cable strain relief rails for mounting plates (length 499 mm), viewing windows with knob handles in various sizes (e.g. 518x436 mm, 470x290 mm, 330x190 mm), HD knob handles, knob handles with stainless steel security cylinder inserts, as well as Bit HD for universal keys and universal keys with various inserts. These components allow flexible adaptation to specific system requirements.

Mounting and installation
Mounting is done via the integrated mounting plate, which is included in the delivery scope. The door is standard right-hand mounted, but can be changed to left-hand. The mounting plate provides sufficient space for fixing control elements and controls. The enclosure dimensions are 610 mm (width), 810 mm (height front), 981 mm (height rear), and 300 mm (depth). The 30° forward roof slope supports fluid drainage and prevents dirt accumulation.

Advantages in operation
The enclosure offers high mechanical and chemical resistance, is easy to clean, and meets the hygiene and safety requirements of the food industry. The use of stainless steel and FDA-compliant materials ensures long service life and resistance to corrosion. The gap-free construction minimises dirt accumulation and facilitates cleaning. The integrated mounting plate and compatible accessory range enable flexible and efficient installation in industrial systems.

General
ModelHygienic Design housing
Market-relevant product changesThe compact control cabinet HD, single-door, will receive from June 2020 the new mounting plate of the compact control cabinet AX.
MaterialHousing and door: stainless steel 1.4301 (AISI 304), mounting plate: sheet steel, locking insert HD: stainless steel 1.4404 (AISI 316L), sealing: silicone, compliant with FDA regulation 21 CFR 177.2600
Surface protectionHousing and door: brushed finish, grit 400, roughness depth < 0.8 μm, mounting plate: galvanised, seal: blue tinted (RAL 5010)
Scope of deliveryHousing fully enclosed, door with inserted seal, door hinge on right, reversible to left, mounting plate
Width610 mm
Height front810 mm
Height at rear981 mm
Depth300 mm
Mounting plate dimensions (W x H)550 mm x 735 mm
Door opening angle125°
IK codeIK08
Base materialStainless steel 1.4301 (AISI 304)
Degree of protection IP according to IEC 60 529IP 66, IP X9
NEMA degree of protectionNEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type rating according to UL 50EType 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13
PCF/VE (Cradle-to-Gate)114,6


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1312600, EAN: 4028177967434

Questions & answers

What is the delivery time of Rittal 1312600 Compact enclosure HD 1.4301, 610x800x300 mm?

The article Rittal 1312600 Compact enclosure HD 1.4301, 610x800x300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1312600 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1312600 Compact enclosure HD 1.4301, 610x800x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 1312600 Compact enclosure HD 1.4301, 610x800x300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
