Rittal 1683630 HD pushbutton housing, stainless steel 1.4301, 3 pushbuttons 30.5 mm

Your rating:
Average rating
product review for Rittal 1683630 HD pushbutton housing, stainless steel 1.4301, 3 pushbuttons 30.5 mm
( 0 / 5 ) 0 ratings
Rittal 1683630
This image may differ from the desired article.
Rittal 1683630Rittal 1683630Rittal 1683630Rittal 1683630Rittal 1683630
-9% 163,65 EUR 180,63 EUR
( 194,74 EUR incl. VAT )
≈ £136.98  |  ≈ $179.85
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 1683630 HD pushbutton housing, stainless steel 1.4301, 3 pushbuttons 30.5 mm
Datasheet:file_download Download
Lieske Part No.:603837
Mfg Part No: 1683630
UPC/EAN: 4028177995468
Weight:1.667 kg
Type:HD 1683630

Product information for Rittal 1683630:

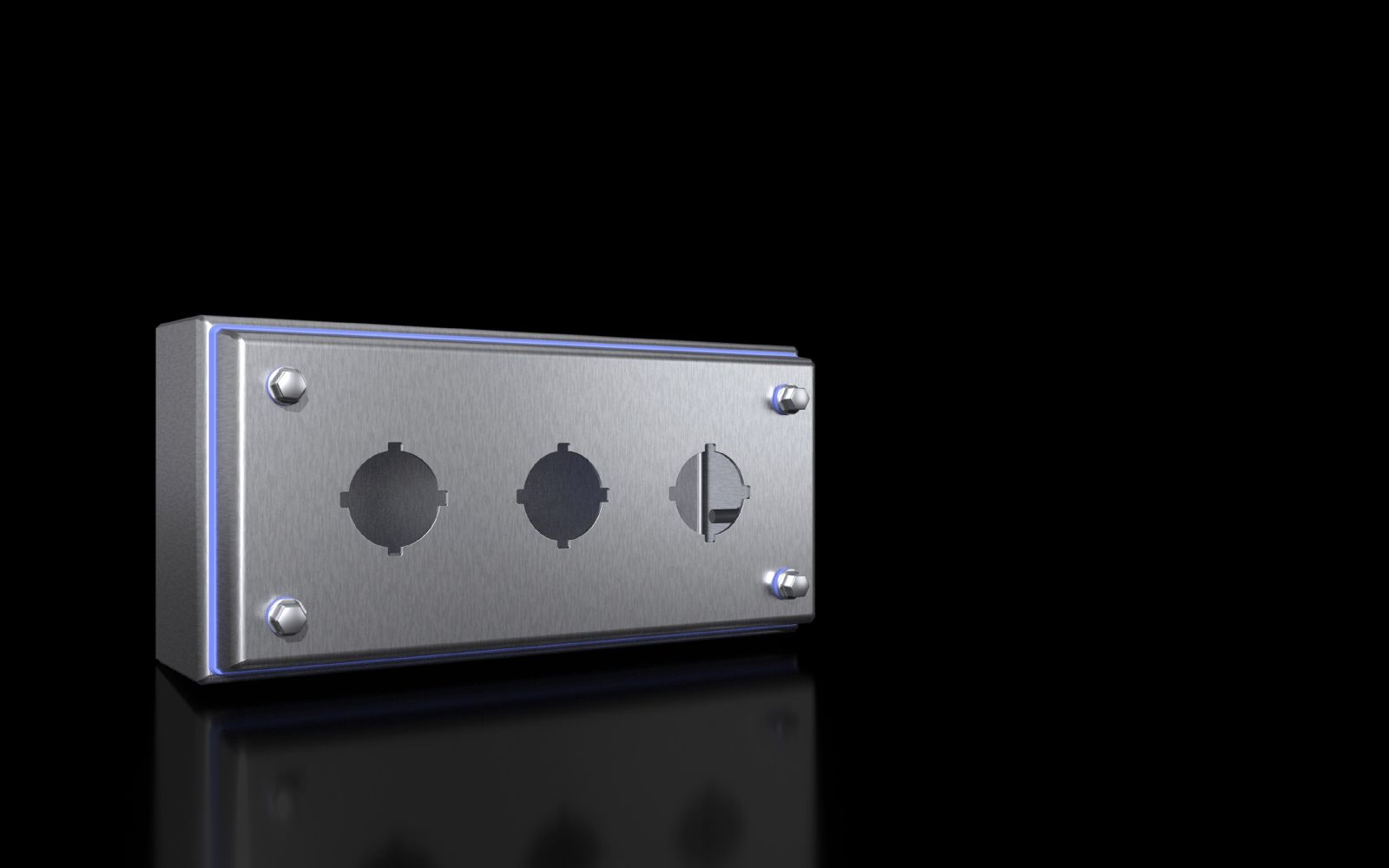

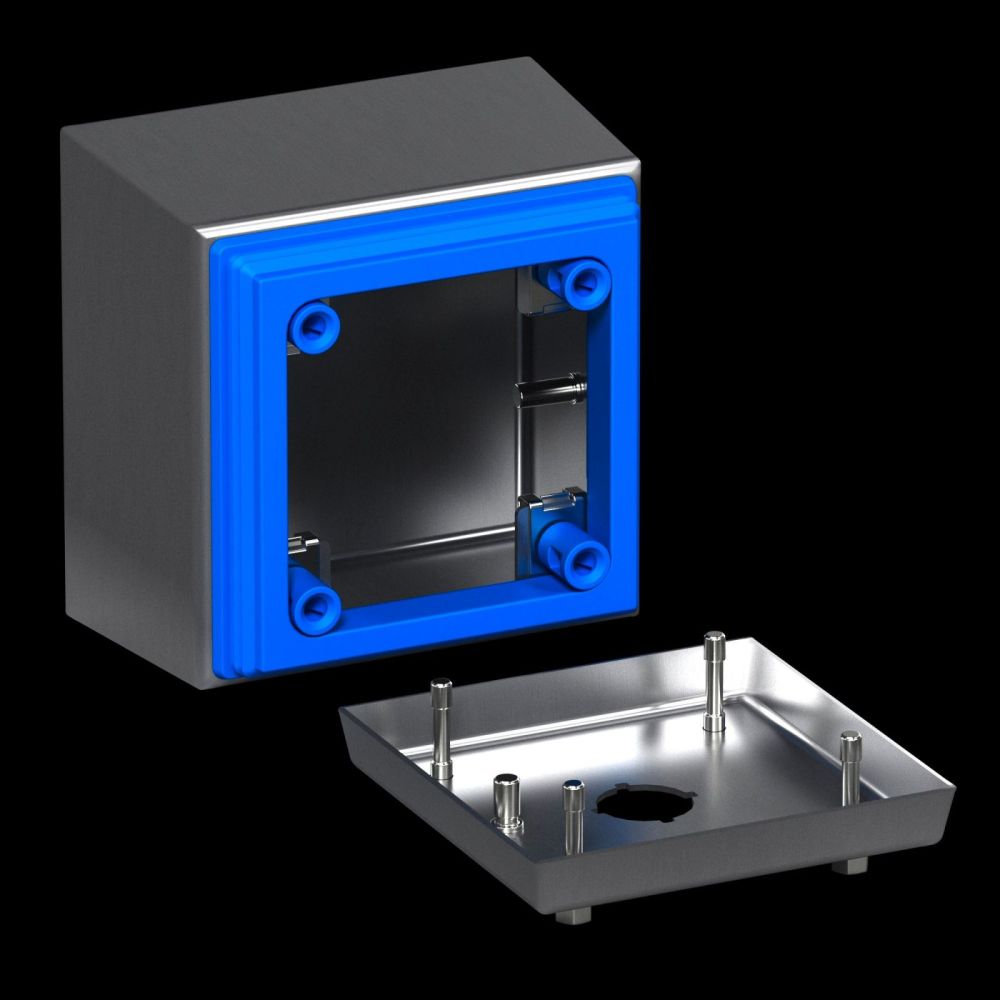

The Rittal HD 1683630 is a pushbutton housing in hygienic design, specifically developed for applications in the food and beverage industry. It is made of stainless steel 1.4301 (AISI 304) with a wall thickness of 1.5 mm and is designed for mounting three pushbuttons with a diameter of 30.5 mm. The housing dimensions are 100 mm width and 220 mm height at the front, 122 mm width and 242 mm height at the rear, with a depth of 90 mm. The housing is fully enclosed and features a lid with integrated pushbutton cutouts, secured using hygienic hexagon quick-release fasteners. The silicone seal is compliant with FDA regulation 21 CFR 177.2600 and is blue-colored (RAL 5010), ensuring a hygienically flawless, gap-free connection between housing and lid. The surface of the housing and lid is brushed (grit 400) with a roughness depth under 0.8 µm, enabling easy cleaning and high corrosion resistance.

Applications

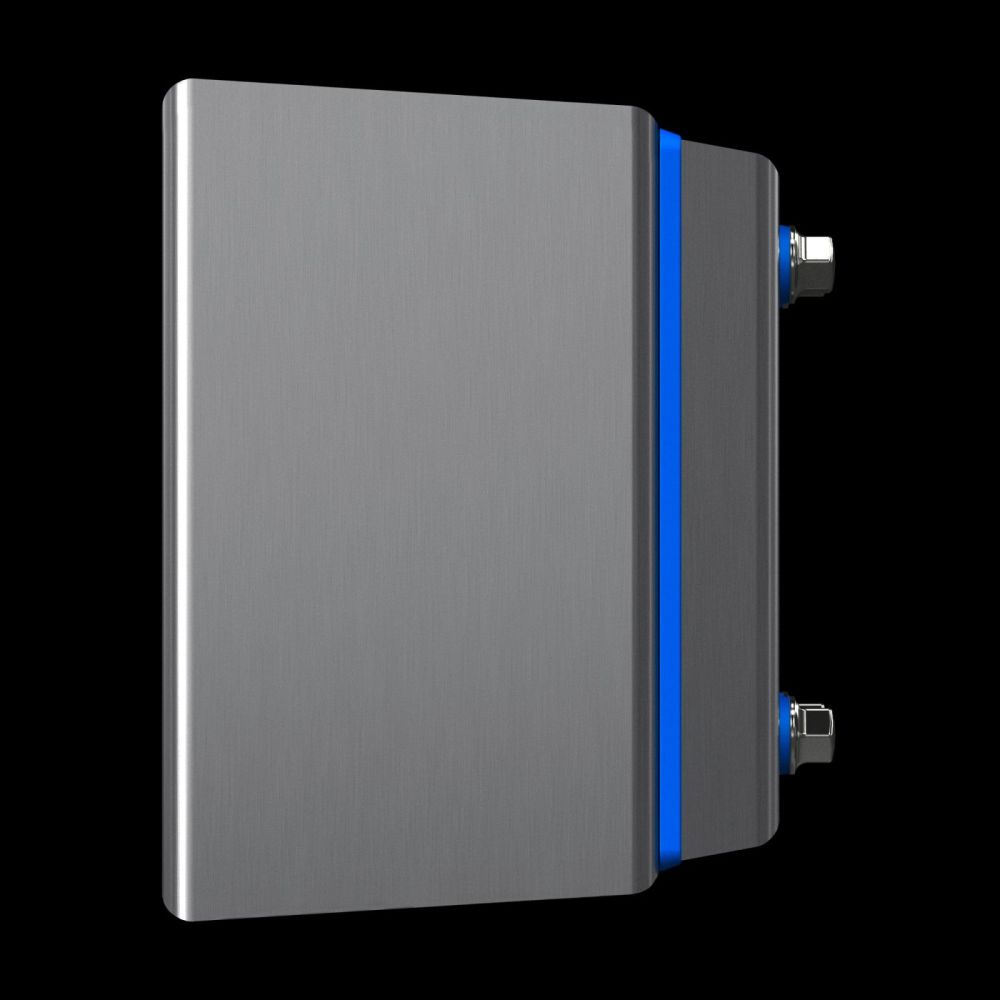

This pushbutton housing is designed for applications in food processing, the pharmaceutical industry, and other sectors with high hygiene requirements. The construction with a gap-free seal and easy-to-clean surface minimizes the accumulation of dirt and microorganisms. The 3° forward tilt of the housing improves water drainage and facilitates cleaning. The protection rating IP 66 and IP X9 according to IEC 60 529, along with NEMA classification (NEMA 1, 3, 3X, 4, 4X, 12, 13) and Type rating according to UL 50E (Type 1, 3, 3X, 4, 4X, 12, 13), ensures high protection against dust, water, and splashing water, even under intensive outdoor or moist environment use. The IK08 rating provides protection against mechanical impacts such as shocks or vibrations.

Functions and Equipment in Detail

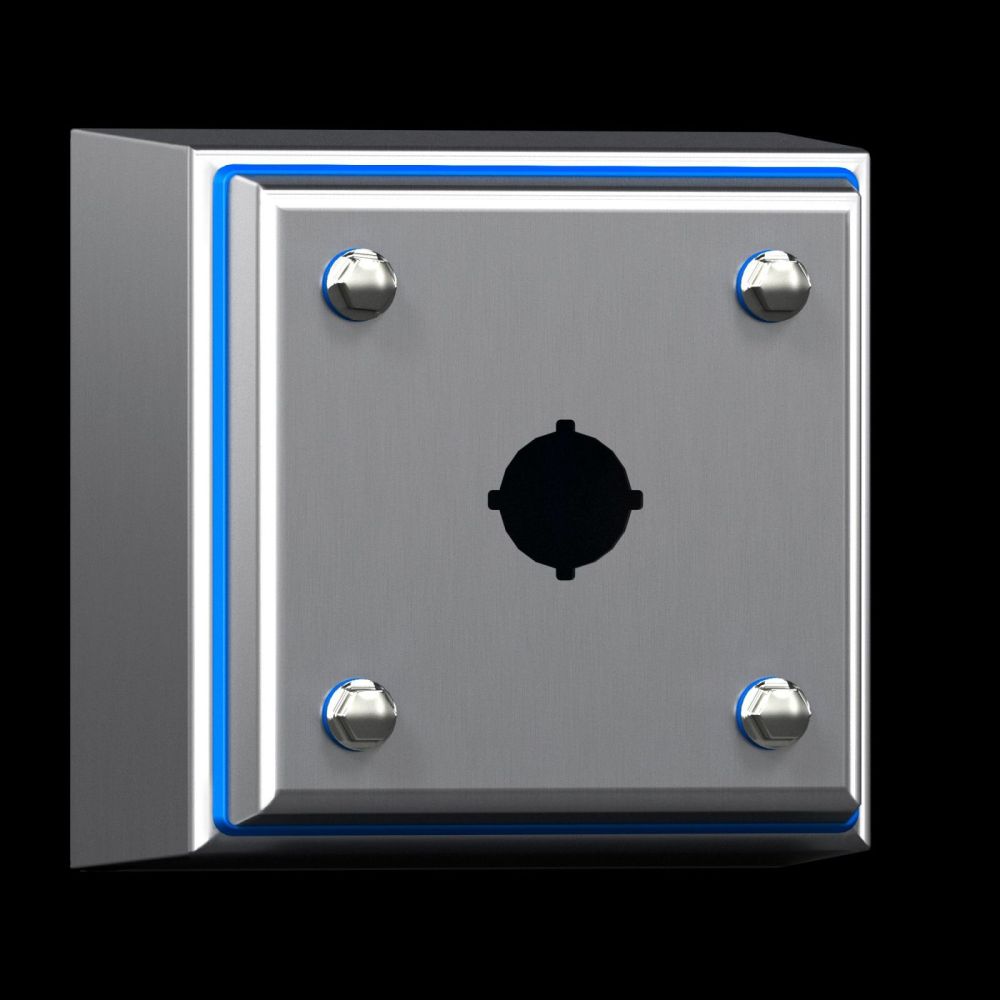

The housing features three pre-drilled cutouts with a diameter of 30.5 mm, intended for mounting pushbuttons or other control elements. The fasteners are hygienic hexagon quick-release fasteners, enabling quick and secure assembly as well as easy cleaning. The seal is made of silicone and meets the requirements of FDA regulation 21 CFR 177.2600, allowing use in food and pharmaceutical applications. The delivery includes the housing, lid with pushbutton cutouts, seal, and fastening screws.

Technical Explanation
The IP 66 rating means the housing is dust-tight and protected against strong splashing water, while IP X9 indicates resistance to high-pressure cleaning with hot or cold liquids. The NEMA classification covers various protection levels, commonly used in the USA and Canada, and includes protection against dust, water, splashing water, and mechanical impacts. The IK08 rating corresponds to protection against impacts with an energy of 5.3 J, which is sufficient for industrial applications. The choice of stainless steel 1.4301 ensures high corrosion resistance and long service life, even in aggressive environments.

Compatibility and Accessories
The pushbutton housing is compatible with accessories such as wall spacers (50 mm spacing) and earthing straps (M6-M6, cross-section 10 mm², length 200 m). Additionally, SZ pressure equalization plugs made of stainless steel 1.4305 are available, which are useful during installation in enclosed spaces or under pressure differences. The 60 mm grid spacing allows standardized mounting in enclosures or on panels.

Mounting and Installation
Mounting is done by securing the lid to the four hexagon quick-release fasteners. The pre-drilled cutouts facilitate the installation of pushbuttons. The 3° forward tilt of the housing supports water drainage and cleaning. The use of wall spacers can simplify mounting on walls or panels and ensure better air circulation.

Operational Advantages
The pushbutton housing offers high hygiene performance due to the gap-free seal, easy-to-clean surface, and use of FDA-compliant silicone. The robust construction from stainless steel 1.4301 ensures long service life and high corrosion resistance. The protection ratings IP 66, IP X9, NEMA, and UL 50E enable use in demanding environments. The quick-release fasteners simplify assembly and maintenance, while the pre-drilled cutouts allow rapid installation of control elements.

General
ModelHygienic Design housing
MaterialHousing and cover: stainless steel 1.4301 (AISI 304) 1.5 mm, locking screw: stainless steel, seal: silicone, compliant with FDA regulation 21 CFR 177.2600
Surface protectionEnclosure and cover: brushed finish, grit 400, roughness depth < 0.8 µm, seal: blue tinted (RAL 5010)
Scope of deliveryhousing fully enclosed, cover with push-button cutout, seal and locking screw (included)
Width front100 mm
Width at rear122 mm
Height front220 mm
Height at rear242 mm
Depth90 mm
Modular spacing60 mm
Cutouts (number x Ø)3 x 30,5 mm
IK codeIK08
Base materialStainless steel 1.4301 (AISI 304)
LockClosure type: Hygienic hexagonal quick-release fastener, Number of closures: 4
Degree of protection IP according to IEC 60 529IP 66, IP X9
NEMA degree of protectionNEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type rating according to UL 50EType 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13
PCF/VE (Cradle-to-Gate)7,39


Product data sheet
Datasheet for Rittal 1683630, EAN: 4028177995468
