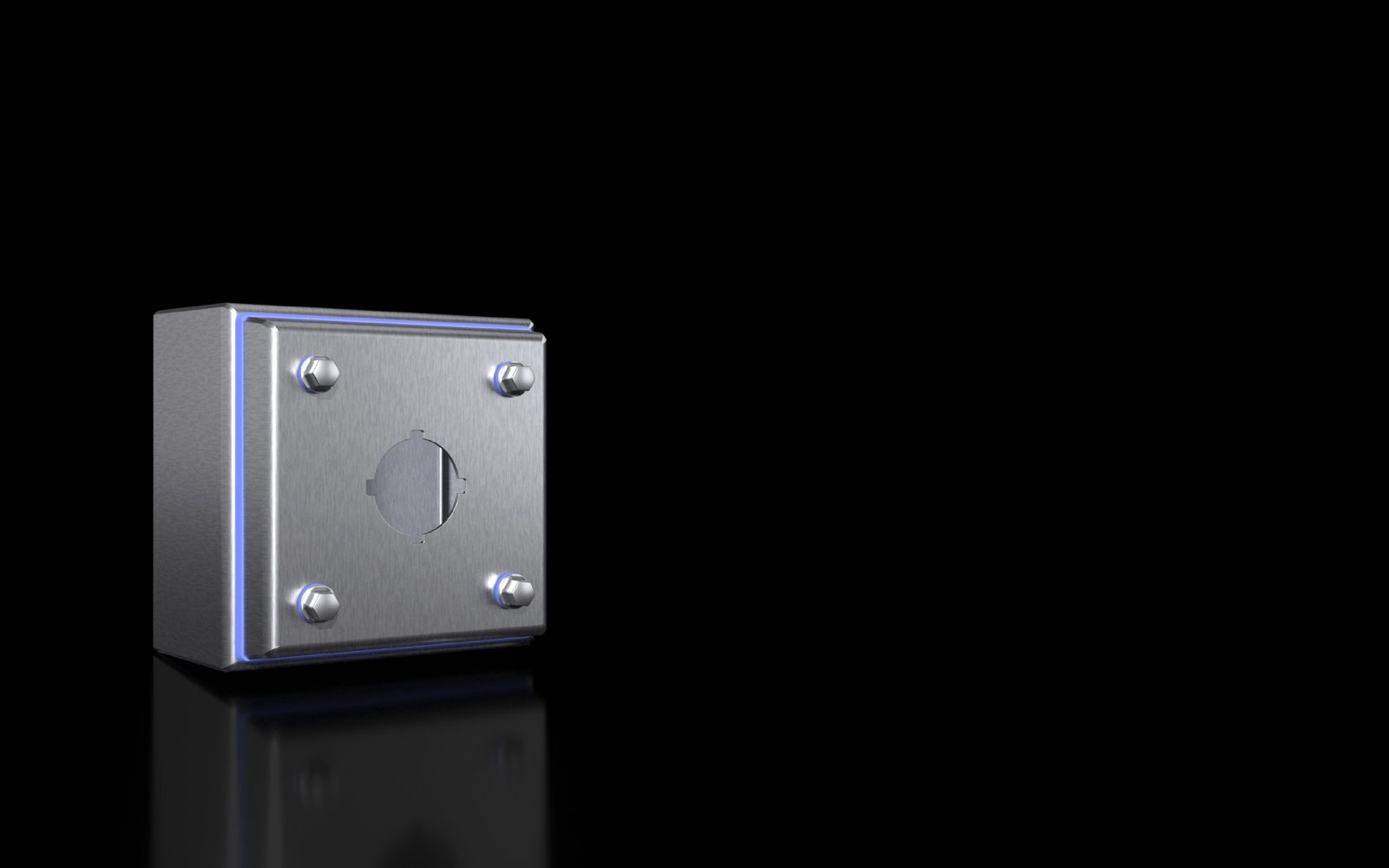

Rittal 1681630 HD pushbutton housing, stainless steel 1.4301, 1 pushbutton 30.5 mm

Your rating:
Average rating
product review for Rittal 1681630 HD pushbutton housing, stainless steel 1.4301, 1 pushbutton 30.5 mm
( 0 / 5 ) 0 ratings
Rittal 1681630
This image may differ from the desired article.
Rittal 1681630Rittal 1681630Rittal 1681630Rittal 1681630Rittal 1681630
137,20 EUR
( 163,27 EUR incl. VAT )
≈ £114.84  |  ≈ $150.78
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 1681630 HD pushbutton housing, stainless steel 1.4301, 1 pushbutton 30.5 mm
Datasheet:file_download Download
Lieske Part No.:603833
Mfg Part No: 1681630
UPC/EAN: 4028177995482
Weight:1 kg
Type:HD 1681630

Product information for Rittal 1681630:

The Rittal HD 1681630 is a pushbutton housing in hygienic design, made of stainless steel 1.4301 (AISI 304) with a wall thickness of 1.5 mm. It is specifically designed for use in the food and beverage industry, where high requirements for cleanability and hygiene apply. The housing features a gap-free construction with a surrounding silicone seal that complies with FDA regulation 21 CFR 177.2600. The surface is brushed (grit 400) with a Ra depth under 0.8 µm, enabling easy cleaning and preventing contamination. The seal is dyed blue (RAL 5010), facilitating visual inspection.

Hygienic Design housing

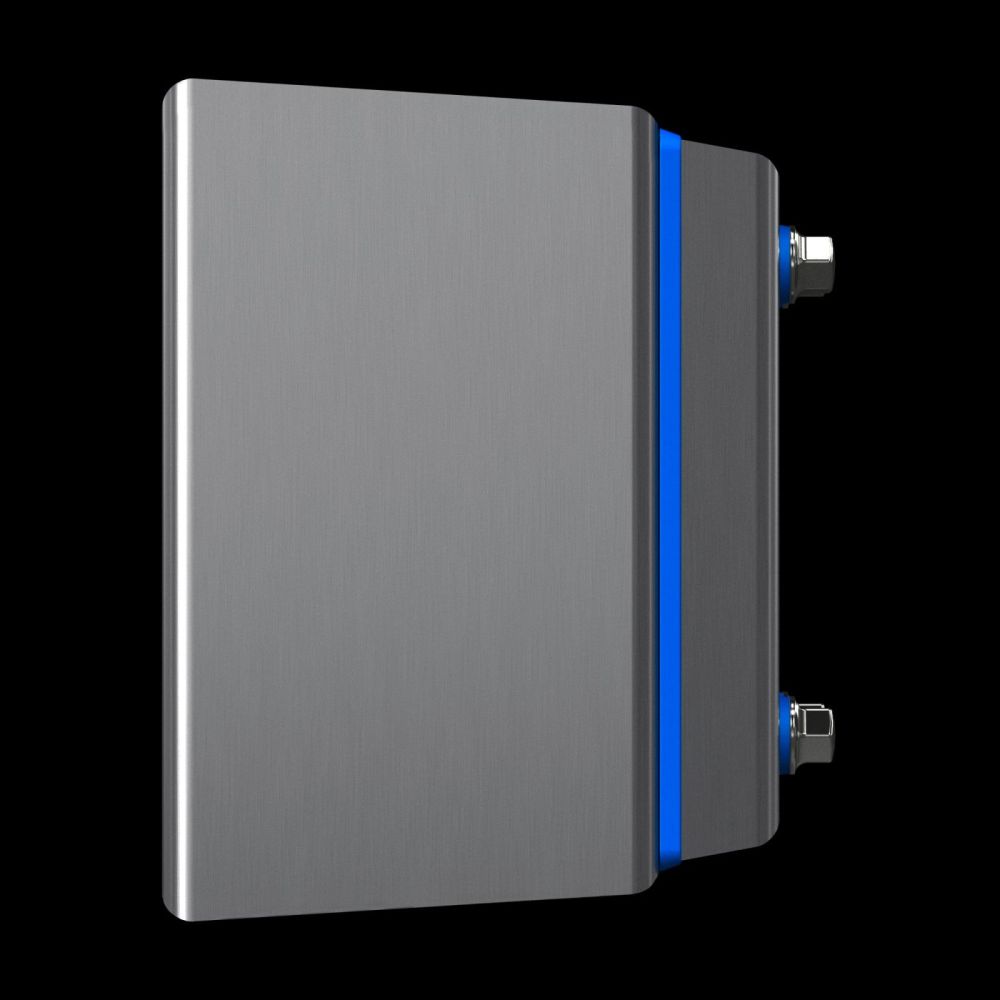

The housing is designed for hygienic applications, meaning it is suitable for environments with high hygiene requirements. The gap-free construction and smooth surface prevent the accumulation of dirt, germs, or residues. The housing has a 3° forward tilt, which improves liquid drainage and facilitates cleaning.

Functions and equipment in detail

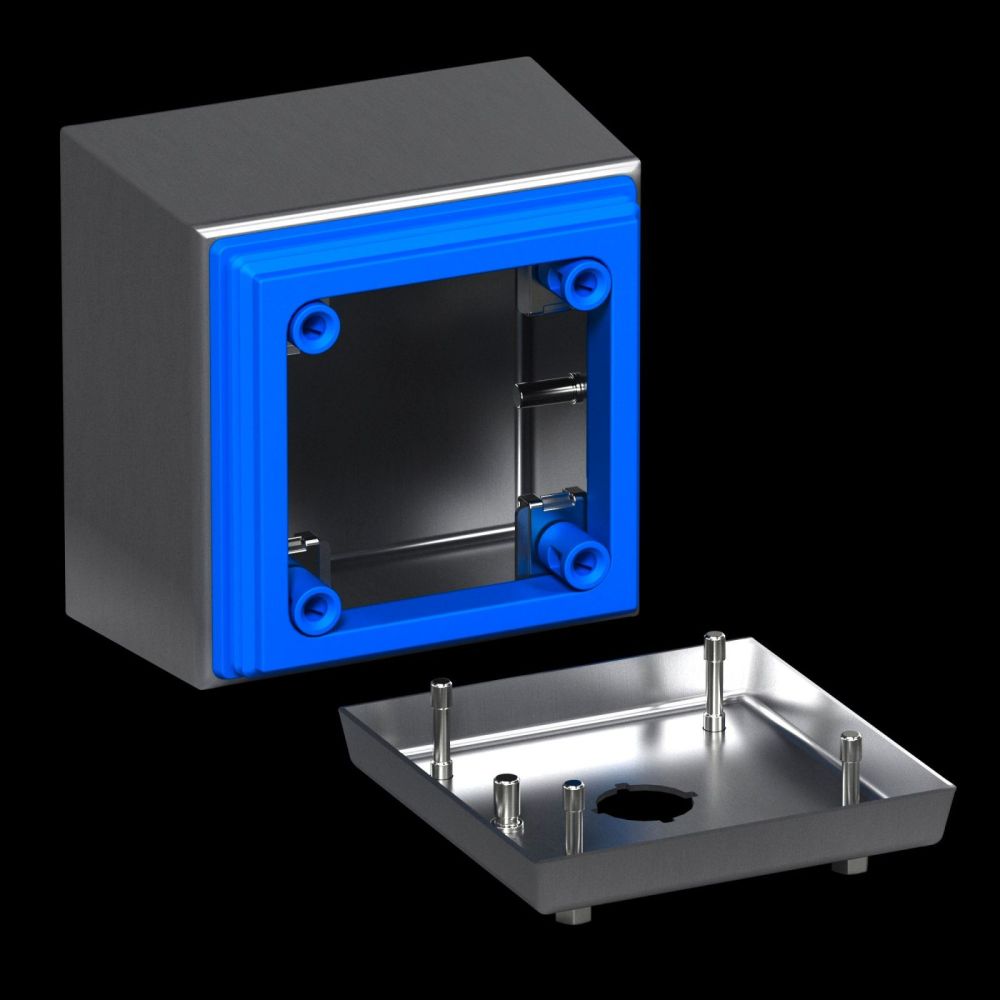

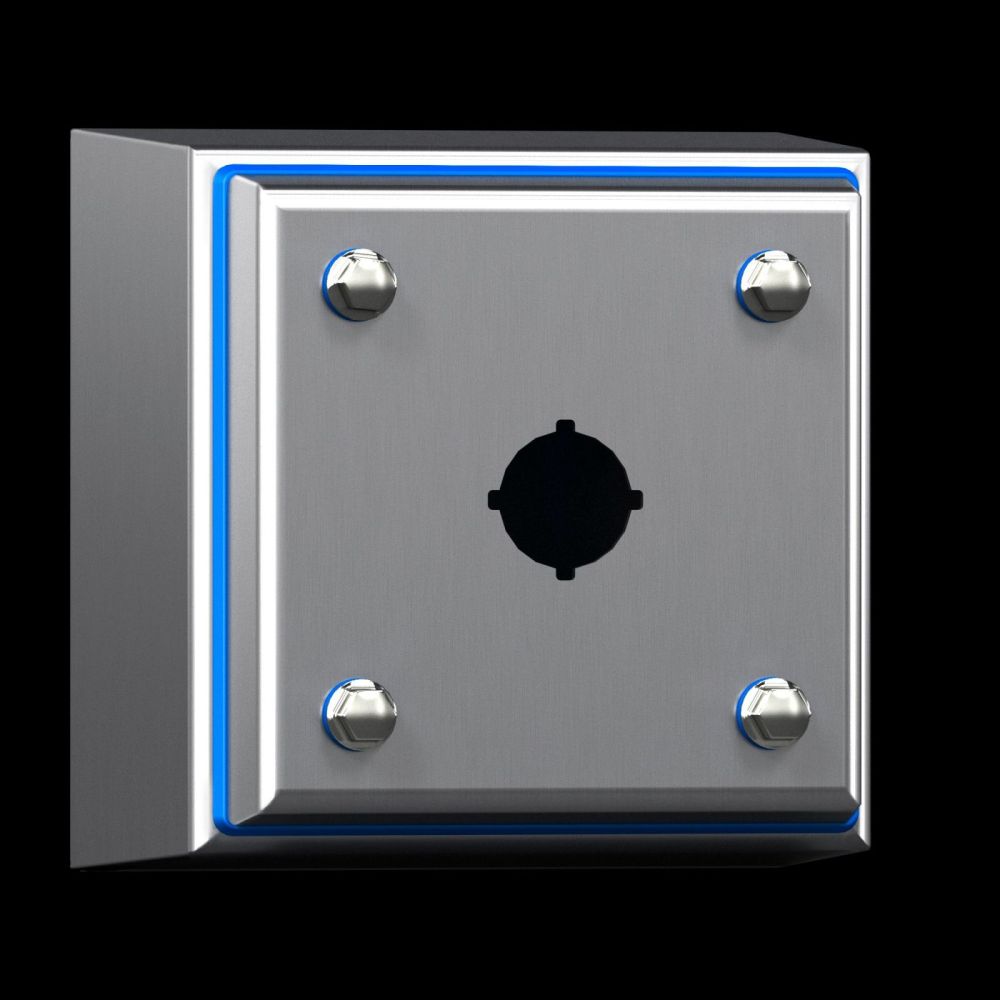

The pushbutton housing features a pre-cut pushbutton opening with a diameter of 30.5 mm, intended for mounting a pushbutton. The lid is secured using four hygienic hexagon quick-release fasteners, enabling secure and rapid assembly and disassembly. The fastening screws are also made of stainless steel to prevent corrosion. The seal and fastening screws are included in the delivery scope.

Technology explained clearly
The protection rating IP 66 according to IEC 60 529 ensures high protection against dust and water, including strong water jets. The IP X9 rating means the housing is also protected against hot steam jets, which is relevant for cleaning processes in the food industry. The IK08 rating indicates that the housing is protected against mechanical impacts such as shocks or vibrations up to a certain energy level. The NEMA protection ratings include NEMA 1, 3, 3X, 4, 4X, 12, and 13, confirming suitability for various environments, including damp or dusty areas. The type rating according to UL 50E includes Type 1, 3, 3X, 4, 4X, 12, and 13, demonstrating compliance with US safety standards.

Compatibility and accessories
The housing is designed with a grid spacing of 60 mm, allowing easy mounting on standard installation rails. Compatible accessories include HD wall spacers with a 50 mm spacing, earthing straps M6-M6 with a cross-section of 10 mm² and a length of 200 m, and SZ pressure equalization plugs made of stainless steel 1.4305. These components can be used to extend functionality or adapt to specific mounting conditions.

Mounting and installation

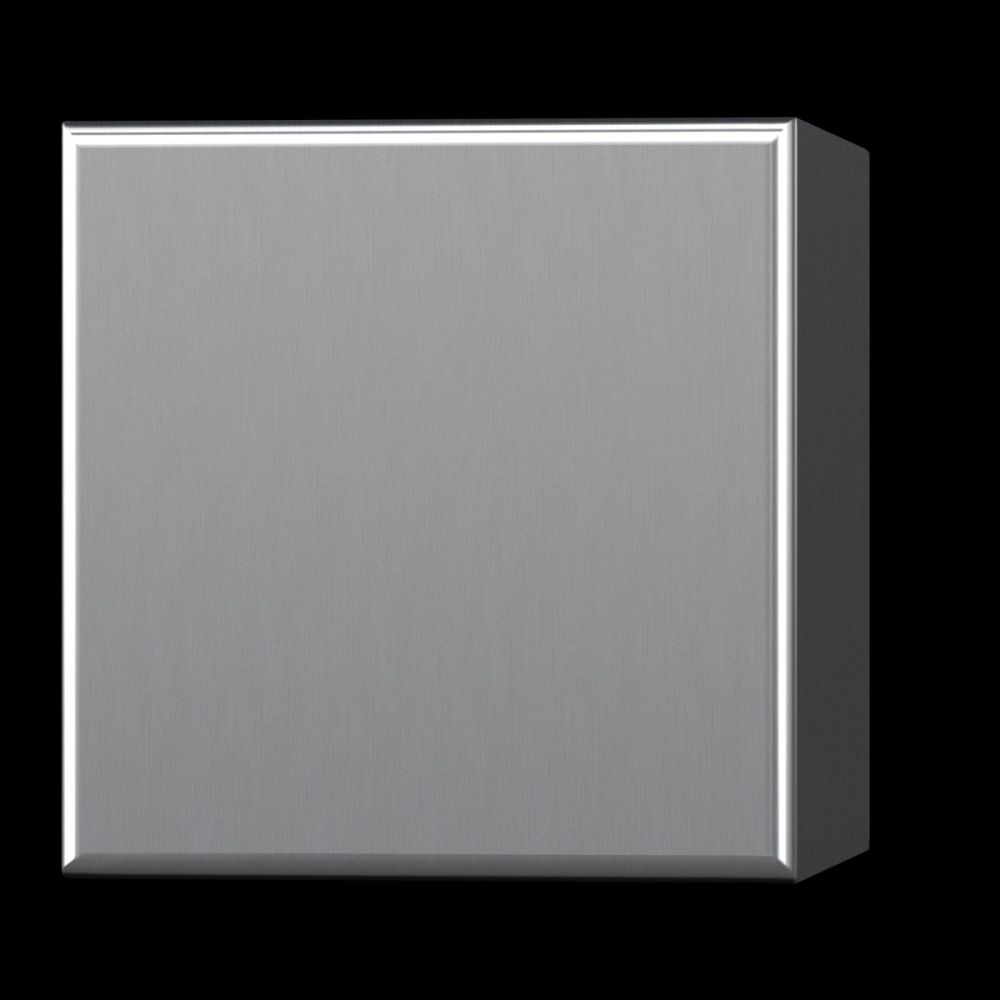

Mounting is done via the 60 mm grid spacing, enabling attachment to standard installation rails or panels. The pre-cut openings and quick-release fasteners simplify installation. Dimensions are 100 mm (width and height) at the front, 122 mm (width and height) at the back, and a depth of 90 mm. The 3° forward tilt of the housing supports drainage and facilitates cleaning.

Advantages in operation
The Rittal HD 1681630 provides a robust and hygienic solution for mounting pushbuttons in demanding environments. The use of stainless steel 1.4301 ensures high corrosion resistance, while the gap-free construction and smooth surface meet cleaning and hygiene requirements. The protection ratings IP 66 and IP X9, along with NEMA and UL approvals, make the housing suitable for a wide range of industrial applications, particularly in food processing, the pharmaceutical industry, or other areas with high hygiene demands.

General
ModelHygienic Design housing
MaterialHousing and cover: stainless steel 1.4301 (AISI 304) 1.5 mm, locking screw: stainless steel, seal: silicone, compliant with FDA regulation 21 CFR 177.2600
Surface protectionEnclosure and cover: brushed finish, grit 400, roughness depth < 0.8 µm, seal: blue tinted (RAL 5010)
Scope of deliveryhousing fully enclosed, cover with push-button cutout, seal and locking screw (included)
Width front100 mm
Width at rear122 mm
Height front100 mm
Height at rear122 mm
Depth90 mm
Modular spacing60 mm
Cutouts (number x Ø)1 x 30,5 mm
IK codeIK08
Base materialStainless steel 1.4301 (AISI 304)
LockClosure type: Hygienic hexagonal quick-release fastener, Number of closures: 4
Degree of protection IP according to IEC 60 529IP 66, IP X9
NEMA degree of protectionNEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type rating according to UL 50EType 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13
PCF/VE (Cradle-to-Gate)11,63


Product data sheet
Datasheet for Rittal 1681630, EAN: 4028177995482

Questions & answers

What is the delivery time of Rittal 1681630 HD pushbutton housing, stainless steel 1.4301, 1 pushbutton 30.5 mm?

The article Rittal 1681630 HD pushbutton housing, stainless steel 1.4301, 1 pushbutton 30.5 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1681630 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1681630 HD pushbutton housing, stainless steel 1.4301, 1 pushbutton 30.5 mm always at the best possible price. We can give you a discount of 2% on Rittal 1681630 HD pushbutton housing, stainless steel 1.4301, 1 pushbutton 30.5 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
