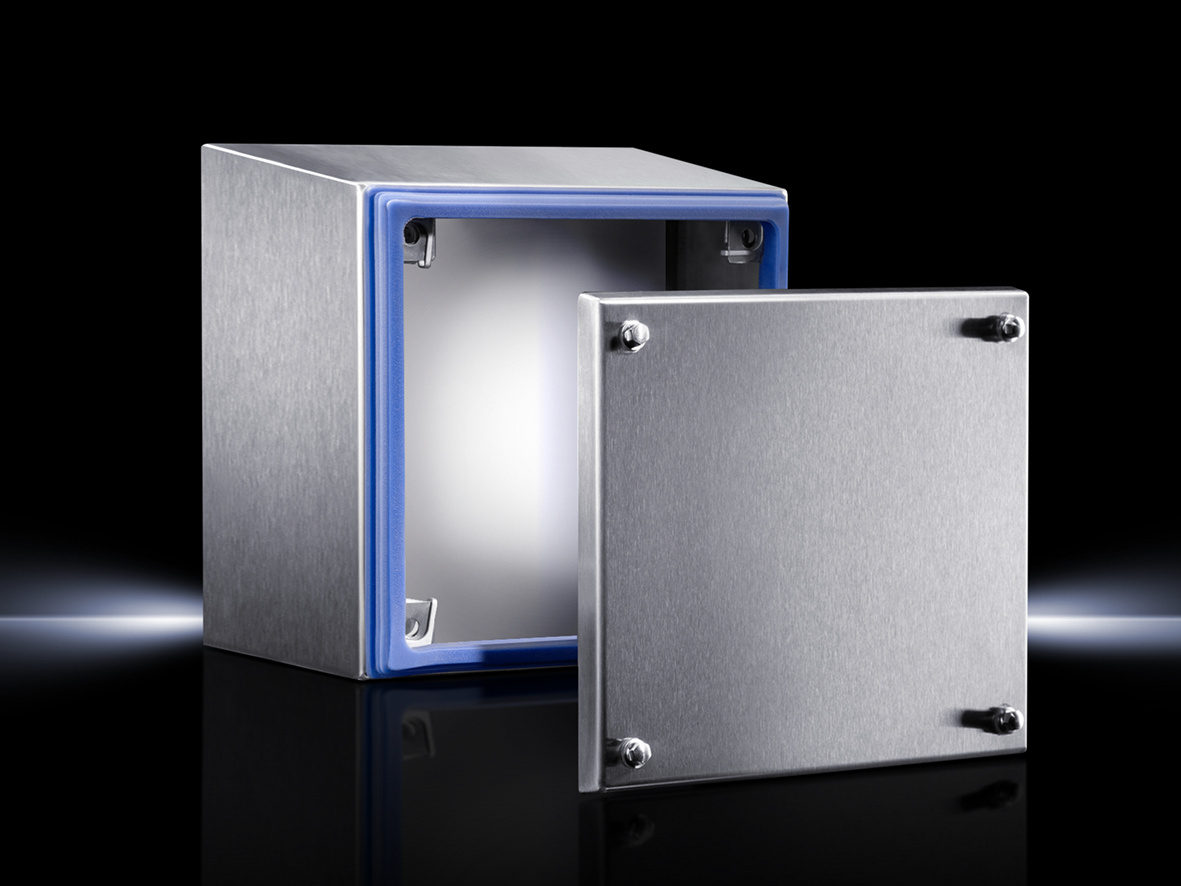

Rittal 1671600 Terminal boxes HD, stainless steel 1.4301, W x H x D: 150x150x120 mm
|
230,92 EUR |
|
|
( 274,79 EUR incl. VAT ) ≈ £193.28 | ≈ $253.78 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 945826 |
| Mfg Part No: | 1671600 |
| UPC/EAN: | 4028177639744 |
| Weight: | 2.06 kg |
| Type: | HD 1671600 |
Product information for Rittal 1671600:
Mounting bracket: Sheet steel, zinc-plated, passivated, 2.0 mm
Screw plug: Stainless steel
Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish: Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm
Seal: Blue, dyed (RAL 5010)
Protection category IP to IEC 60 529: IP 66
Protection category IP to DIN 40 050-9: IP 69K
Protection category NEMA: NEMA 13
NEMA 3R
NEMA 4X
Supply includes: Enclosure of all-round solid construction
Cover
Mounting bracket (pre-assembled)
Seal and screw plug (supplied loose)
Packs of: 1 pc(s).
EAN: 4028177639744
Customs tariff number: 94032080
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC002713
Dimensions: Width (front): 150 mm
Width (rear): 177 mm
Height (front): 150 mm
Height (rear): 177 mm
Depth: 120 mm
Weight/pack: 2.15 kg
| General | |
| Model | Hygienic Design housing |
| Material | Housing and cover: stainless steel 1.4301 (AISI 304) 1.5 mm, mounting angle: sheet steel, galvanised, 2.0 mm, locking screw: stainless steel, seal: silicone, compliant with FDA regulation 21 CFR 177.2600 |
| Surface protection | Enclosure and cover: brushed finish, grit 400, roughness depth < 0.8 µm, seal: blue tinted (RAL 5010) |
| Scope of delivery | housing fully enclosed, cover, mounting bracket (pre-assembled), seal and locking screw (included) |
| Width front | 150 mm |
| Width at rear | 177 mm |
| Height front | 150 mm |
| Height at rear | 177 mm |
| Depth | 120 mm |
| IK code | IK08 |
| Base material | Stainless steel 1.4301 (AISI 304) |
| Degree of protection IP according to IEC 60 529 | IP 66, IP X9 |
| NEMA degree of protection | NEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Type rating according to UL 50E | Type 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13 |
| PCF/VE (Cradle-to-Gate) | 9,5 |
