Rittal 1682630 HD pushbutton housing, stainless steel 1.4301, 2 pushbuttons 30.5 mm

Your rating:
Average rating
product review for Rittal 1682630 HD pushbutton housing, stainless steel 1.4301, 2 pushbuttons 30.5 mm
( 0 / 5 ) 0 ratings
Rittal 1682630
This image may differ from the desired article.
Rittal 1682630Rittal 1682630Rittal 1682630Rittal 1682630Rittal 1682630Rittal 1682630
-9% 151,11 EUR 166,77 EUR
( 179,82 EUR incl. VAT )
≈ £126.48  |  ≈ $166.07
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 1682630 HD pushbutton housing, stainless steel 1.4301, 2 pushbuttons 30.5 mm
Datasheet:file_download Download
Lieske Part No.:603834
Mfg Part No: 1682630
UPC/EAN: 4028177995475
Weight:1.33 kg
Type:HD 1682630

Product information for Rittal 1682630:

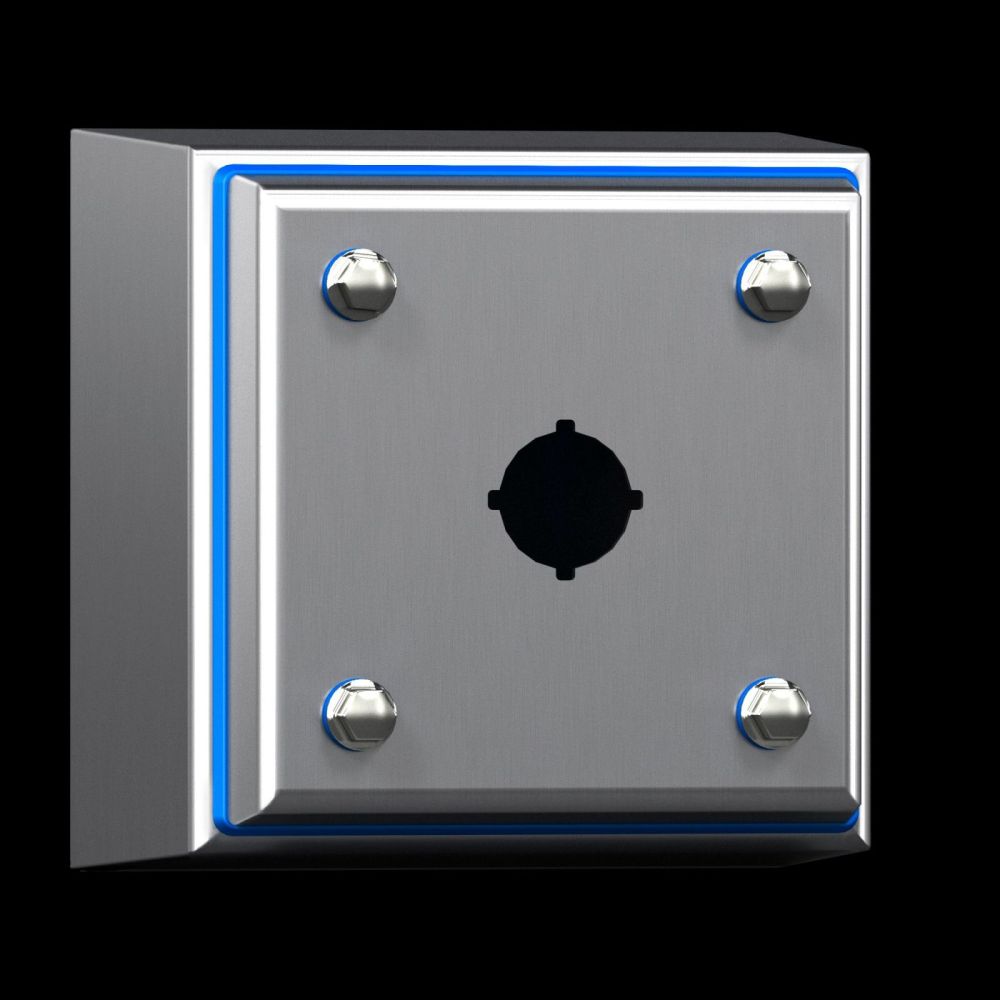

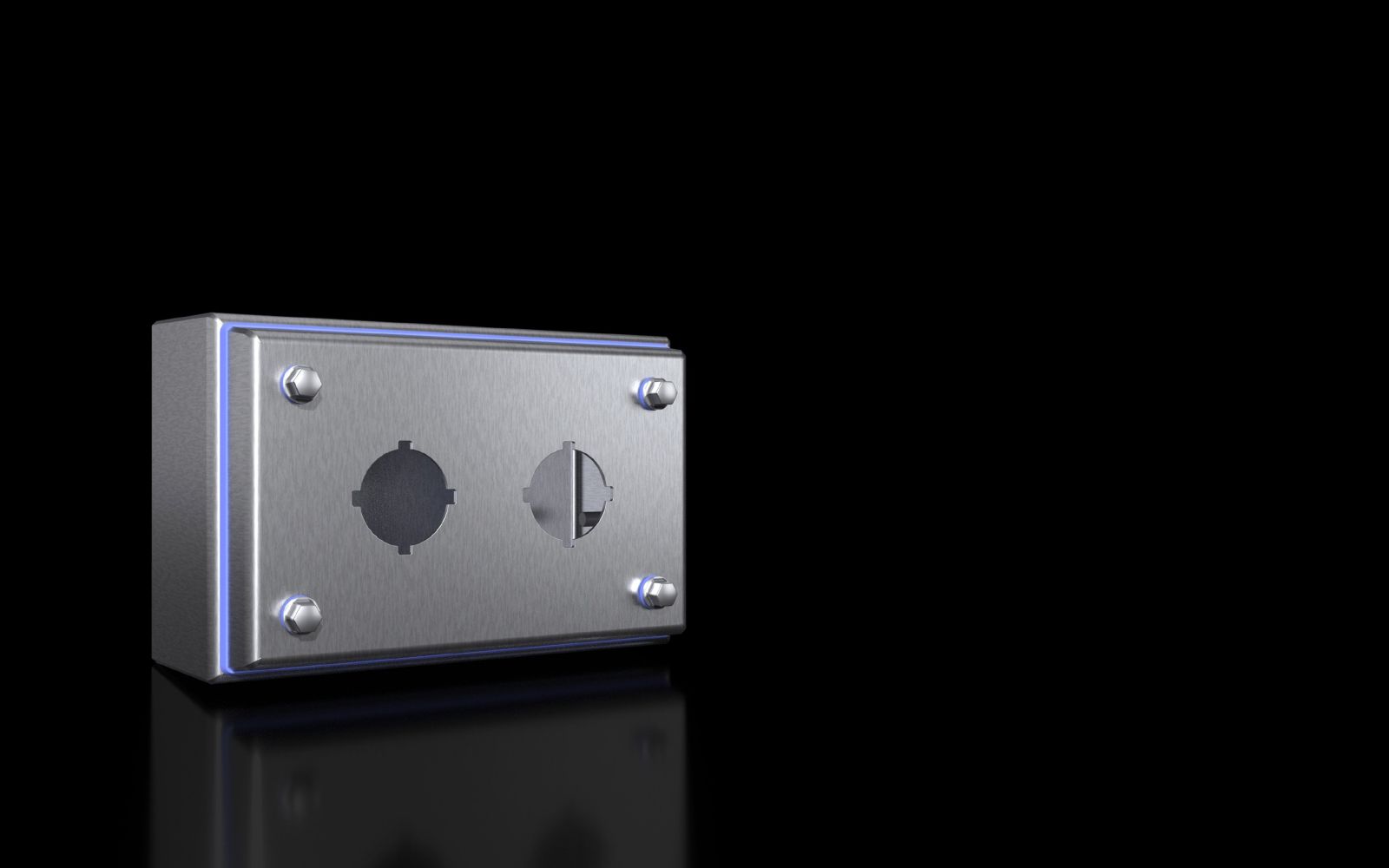

The Rittal HD 1682630 is a push-button housing in hygienic design, specifically designed for use in the food and beverage industry. It is made of stainless steel 1.4301 (AISI 304) with a wall thickness of 1.5 mm and offers a robust, corrosion-resistant construction. The surface is brushed with a grit 400 and a Ra depth under 0.8 µm, ensuring easy cleaning and hygiene compliance. The housing is fully enclosed and features a lid with two pre-cut push-button openings with a diameter of 30.5 mm. The silicone seal is blue-tinted (RAL 5010) and compliant with FDA regulation 21 CFR 177.2600, enabling use in food environments. The closures consist of hygienic hexagonal quick-release fasteners made of stainless steel, with four fasteners included in the delivery scope.

Applications

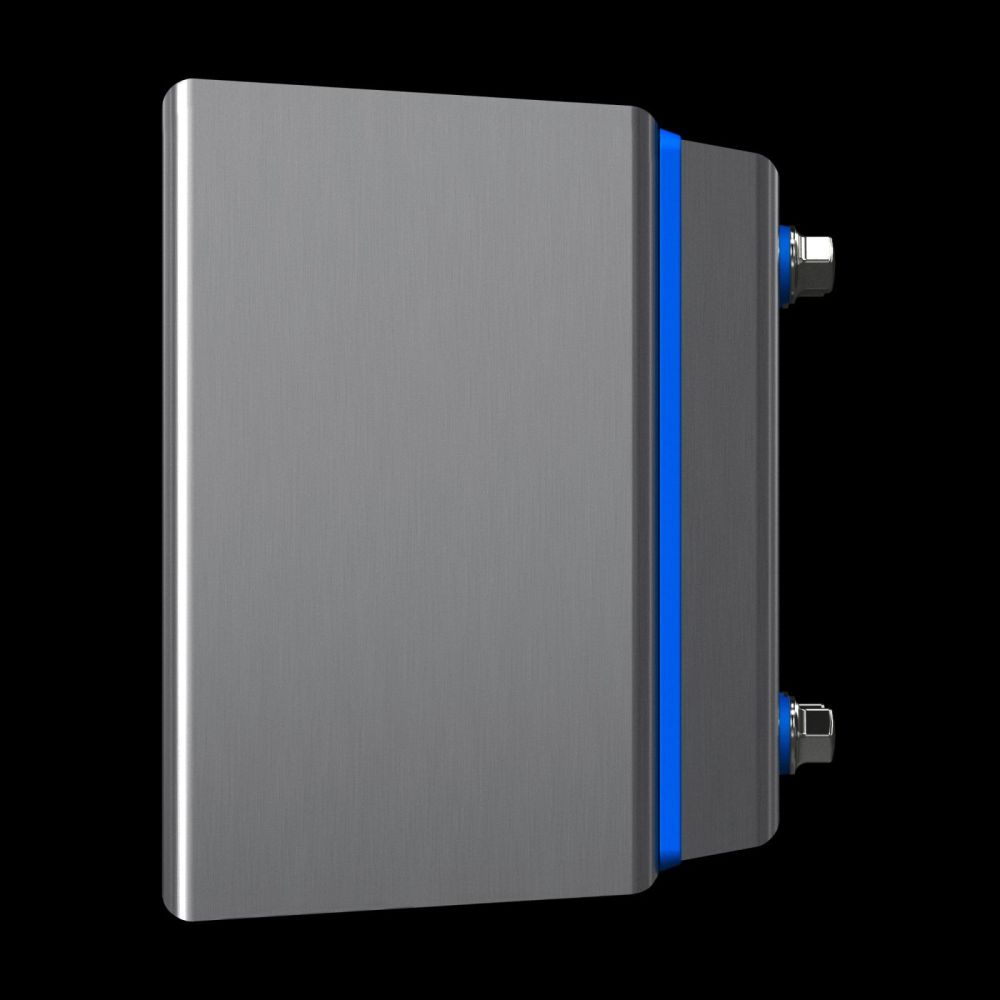

This push-button housing is suitable for applications in food processing, the beverage industry, and other environments with high hygiene requirements. The design with a seamless seal and easy-to-clean surface minimizes the accumulation of dirt and bacteria. The housing is inclined 3° forward, facilitating operation and access to the push-buttons. The protection rating IP 66 and IP X9 ensures protection against dust and heavy splashing water, including steam jet cleaning, which is crucial for industrial cleaning processes. Protection ratings according to NEMA (NEMA 1, 3, 3X, 4, 4X, 12, 13) and UL 50E (Type 1, 3, 3X, 4, 4X, 12, 13) confirm suitability for various industrial environments, including damp and dusty areas.

Functions and Equipment in Detail
The housing features a grid spacing of 60 mm, enabling easy mounting on standard plug-in boards. Dimensions are 100 mm (width) × 160 mm (height) at the front and 122 mm (width) × 182 mm (height) at the rear, with a depth of 90 mm. The two push-button openings with Ø 30.5 mm are intended for mounting push-buttons or switches. The seal ensures a tight closure between housing and lid, guaranteeing protection against environmental media. The closures are designed as quick-release fasteners, allowing for rapid assembly and disassembly without requiring special tools.

Technology Explained Simply
The IP 66 rating means the housing is dust-tight and protected against heavy splashing water, which is important for use in damp or wet environments. IP X9 refers to resistance against steam jet cleaning, a central requirement in the food industry. The IK08 rating indicates that the housing is protected against mechanical impacts such as shocks or vibrations with an energy of up to 5.3 J. The use of stainless steel 1.4301 ensures high corrosion resistance and longevity, even in aggressive environments.

Compatibility and Accessories
Compatible accessories are available for this push-button housing, including wall spacers HD with a distance of 50 mm, enabling secure wall mounting. Earthing straps M6-M6 with a cross-section of 10 mm² and a length of 200 m can be used for electrical earthing. SZ pressure equalization plugs made of stainless steel 1.4305 are also available to ensure pressure equalization in sealed housings.

Mounting and Installation

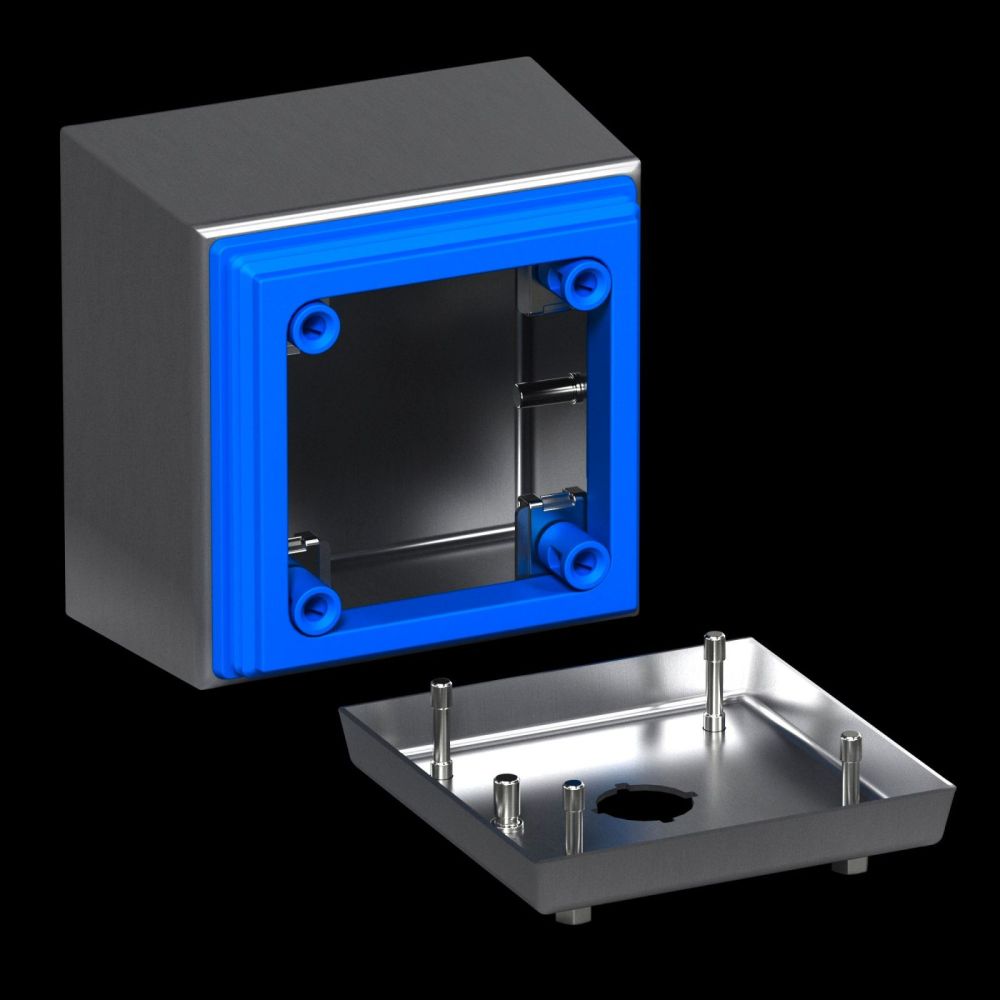

Mounting is done via the provided fasteners and the grid spacing structure. The 3° forward inclination of the housing facilitates operation. The seal ensures a tight closure, with the silicone seal being blue-tinted and compliant with FDA regulation 21 CFR 177.2600. The fasteners are hexagonal quick-release fasteners, enabling fast and secure mounting.

Operational Advantages
The push-button housing offers high mechanical stability and resistance to environmental conditions. Hygienic features such as brushed surface, seamless seal, and FDA-compliant materials ensure easy cleaning and hygiene compliance. Protection ratings IP 66, IP X9, along with NEMA and UL approvals, guarantee suitability for demanding industrial environments. The robust construction from stainless steel 1.4301 ensures long service life and high reliability.

General
ModelHygienic Design housing
MaterialHousing and cover: stainless steel 1.4301 (AISI 304) 1.5 mm, locking screw: stainless steel, seal: silicone, compliant with FDA regulation 21 CFR 177.2600
Surface protectionEnclosure and cover: brushed finish, grit 400, roughness depth < 0.8 µm, seal: blue tinted (RAL 5010)
Scope of deliveryhousing fully enclosed, cover with push-button cutout, seal and locking screw (included)
Width front100 mm
Width at rear122 mm
Height front160 mm
Height at rear182 mm
Depth90 mm
Modular spacing60 mm
Cutouts (number x Ø)2 x 30,5 mm
IK codeIK08
Base materialStainless steel 1.4301 (AISI 304)
LockClosure type: Hygienic hexagonal quick-release fastener, Number of closures: 4
Degree of protection IP according to IEC 60 529IP 66, IP X9
NEMA degree of protectionNEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type rating according to UL 50EType 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13
PCF/VE (Cradle-to-Gate)14,23


Product data sheet
Datasheet for Rittal 1682630, EAN: 4028177995475

Questions & answers

What is the delivery time of Rittal 1682630 HD pushbutton housing, stainless steel 1.4301, 2 pushbuttons 30.5 mm?

The article Rittal 1682630 HD pushbutton housing, stainless steel 1.4301, 2 pushbuttons 30.5 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1682630 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1682630 HD pushbutton housing, stainless steel 1.4301, 2 pushbuttons 30.5 mm always at the best possible price. We can give you a discount of 2% on Rittal 1682630 HD pushbutton housing, stainless steel 1.4301, 2 pushbuttons 30.5 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
