Rittal 1686630 HD pushbutton housing, stainless steel 1.4301, 6 pushbuttons 30.5 mm

Your rating:
Average rating
product review for Rittal 1686630 HD pushbutton housing, stainless steel 1.4301, 6 pushbuttons 30.5 mm
( 5 / 5 ) 1 ratings
Rittal 1686630

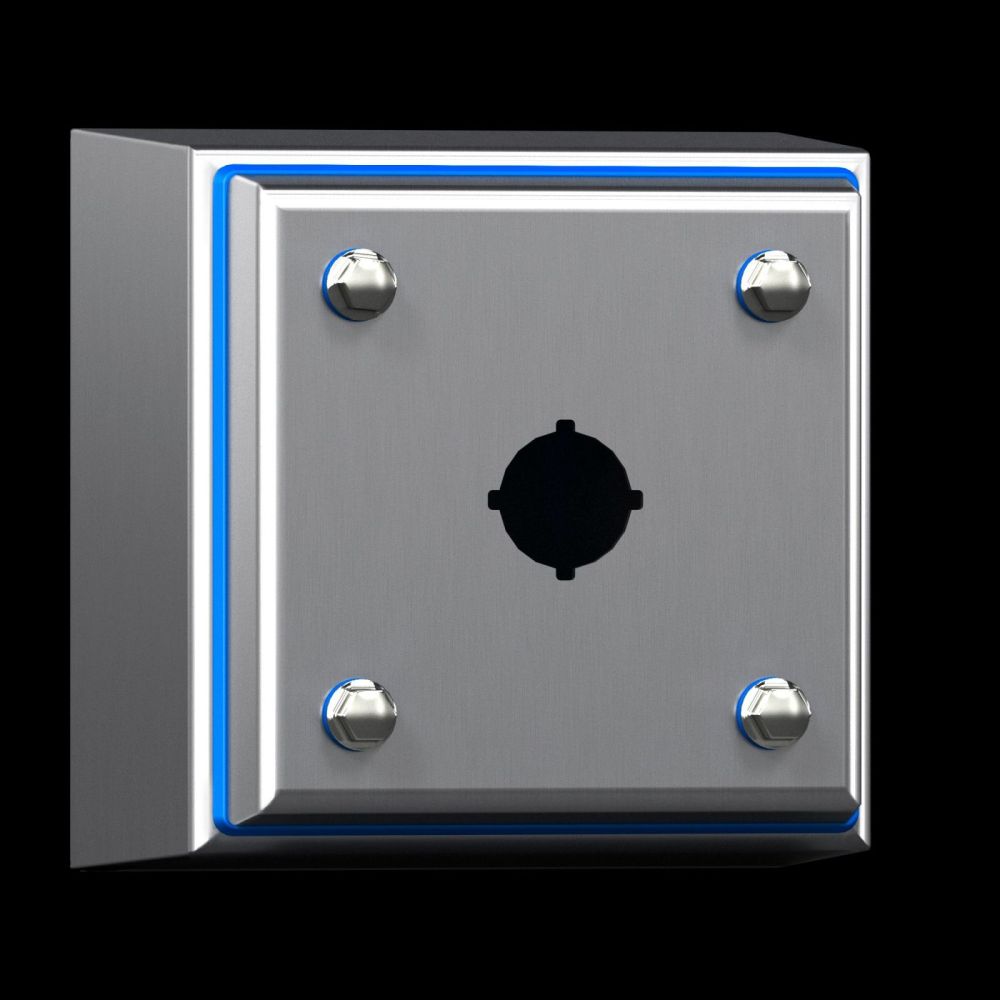

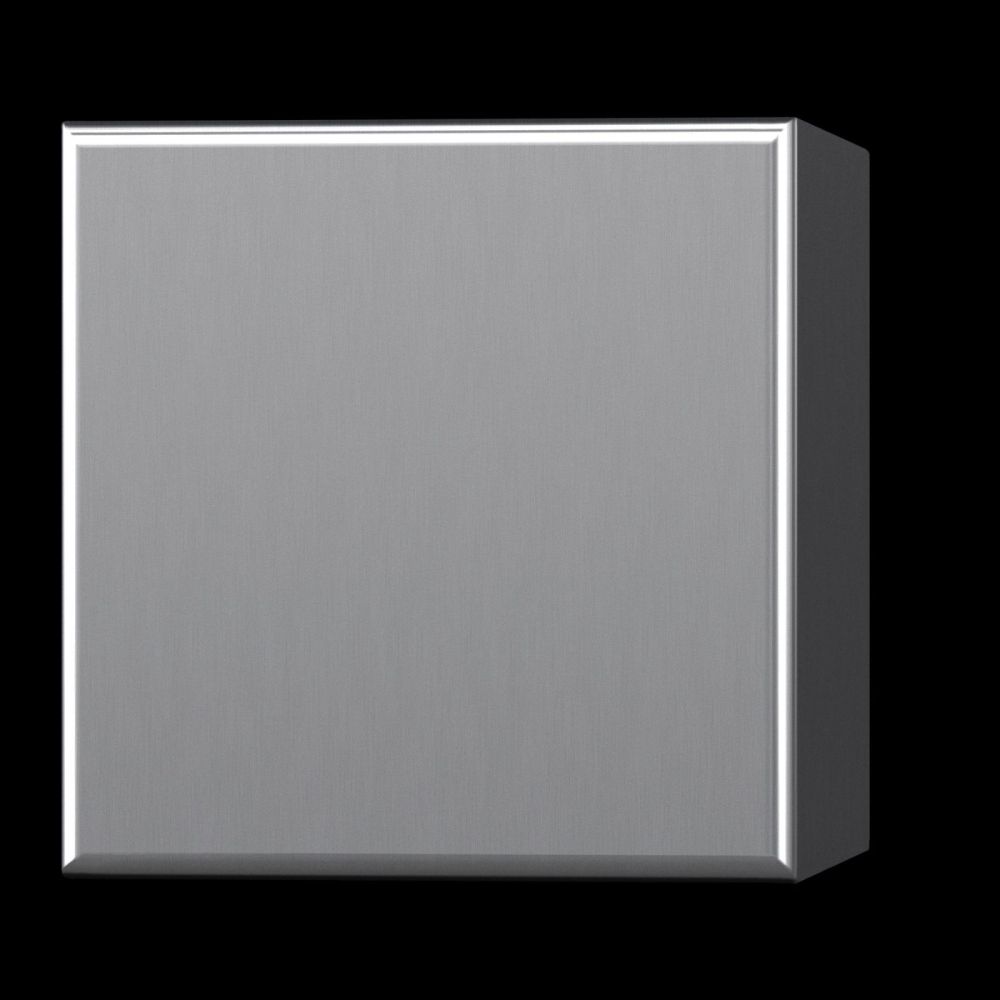

This image may differ from the desired article.
Rittal 1686630Rittal 1686630Rittal 1686630Rittal 1686630Rittal 1686630Rittal 1686630
-10% 186,76 EUR 208,34 EUR
( 222,24 EUR incl. VAT )
≈ £156.32  |  ≈ $205.25
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 1686630 HD pushbutton housing, stainless steel 1.4301, 6 pushbuttons 30.5 mm
Datasheet:file_download Download
Lieske Part No.:603841
Mfg Part No: 1686630
UPC/EAN: 4028177995444
Weight:2.153 kg
Type:HD 1686630

Product information for Rittal 1686630:

The Rittal HD 1686630 is a push-button housing in Hygienic Design, specifically designed for use in the food and beverage industry. It serves as a closed cover for control elements such as push-buttons and switches, with surfaces and construction optimized for easy cleaning and hygiene. The housing is made of stainless steel 1.4301 (AISI 304) with a wall thickness of 1.5 mm, ensuring high corrosion resistance and mechanical stability. The surface is brushed with a grit 400 and a Ra depth under 0.8 µm, creating a smooth, easy-to-clean surface. The silicone seal is blue-coloured (RAL 5010) and compliant with FDA regulation 21 CFR 177.2600, allowing use in food environments.

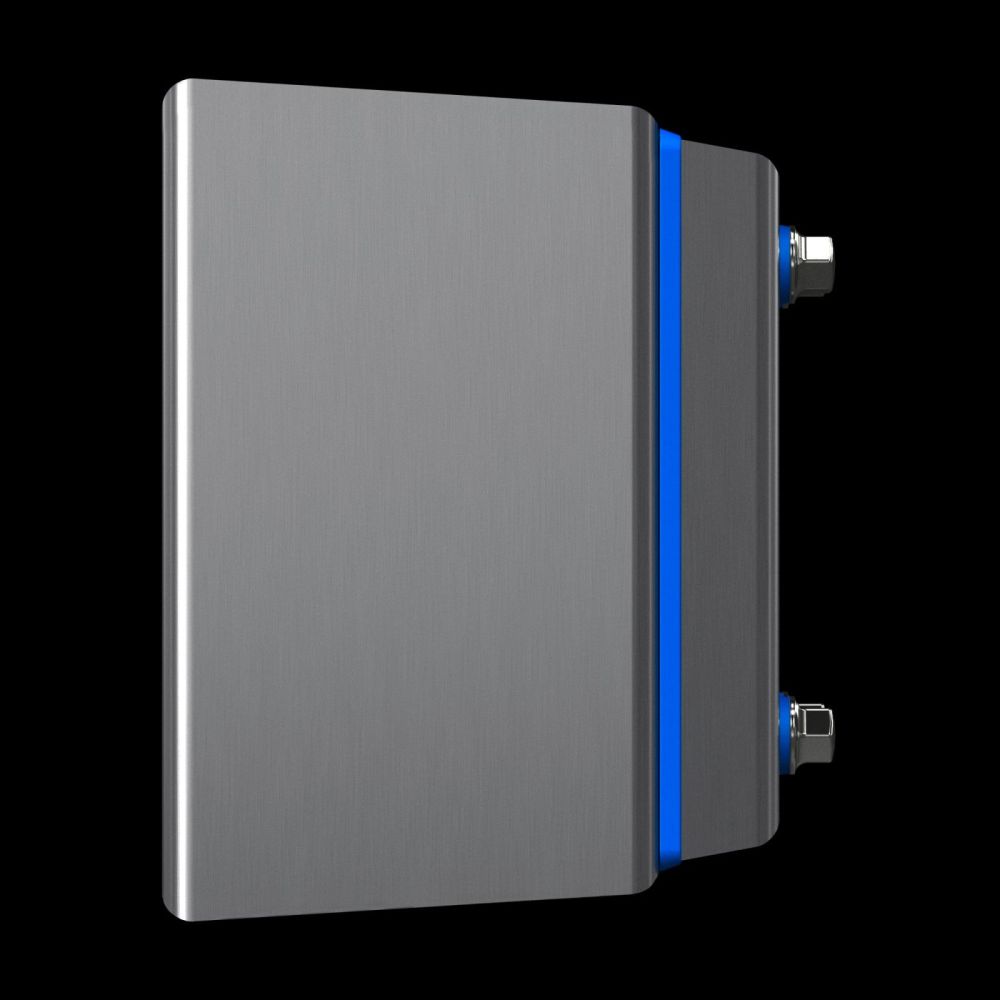

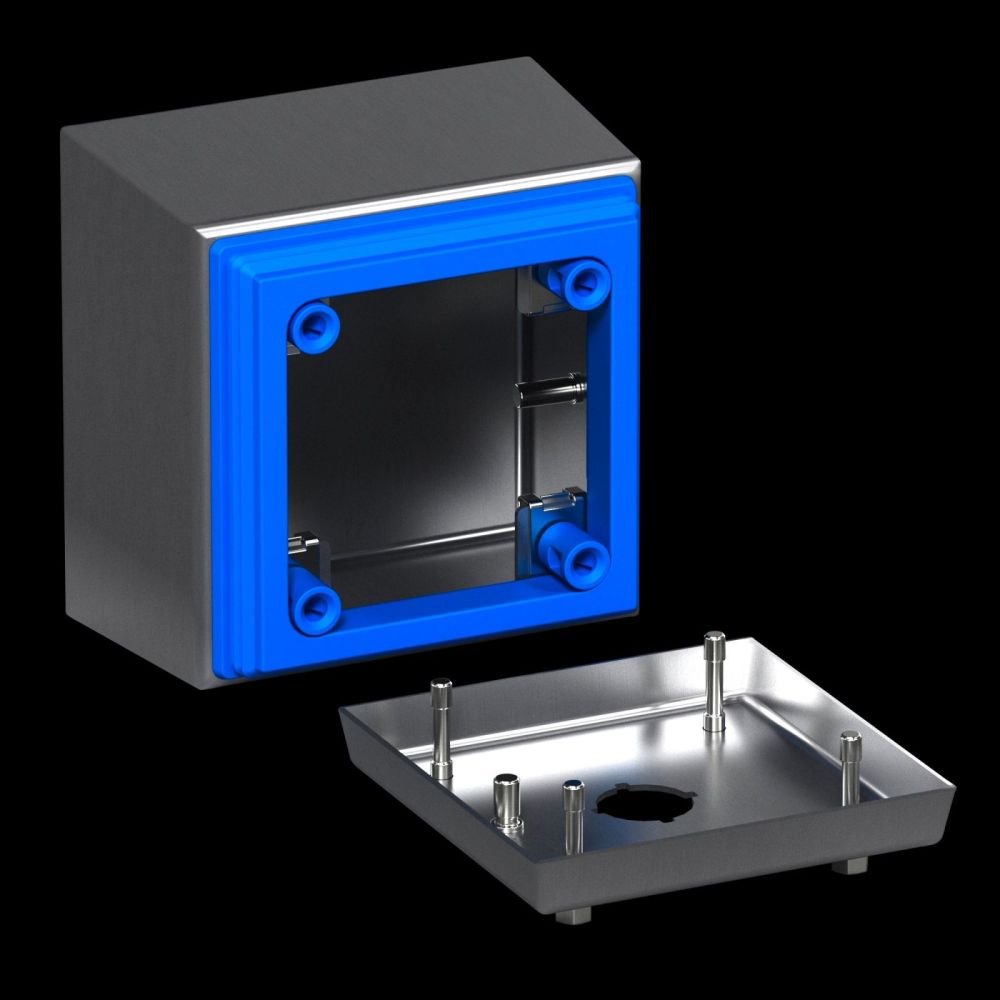

Hygienic Design housing is the central configuration, tailored to the requirements of the food industry. The housing is fully enclosed, preventing any gaps where dirt or moisture could accumulate. The seal fits flush between the housing and lid, ensuring effective sealing against dust and liquids. The housing has a 3° forward tilt, improving liquid runoff and facilitating cleaning.

Protection rating IP 66 and IP X9 according to IEC 60 529, as well as protection ratings NEMA 1, 3, 3X, 4, 4X, 12 and 13, and Type rating according to UL 50E (Type 1, 3, 3X, 4, 4X, 12, 13), provide high protection against dust, water and splashing water. IP 66 means dust-tight and protects against powerful water jets from any direction, while IP X9 ensures resistance to high-pressure cleaning with hot or cold liquids. These protection ratings make the housing suitable for use in damp, dirty or heavily cleaned environments.

IK08 is the built-in protection against mechanical impact, providing resistance to shocks and vibrations up to 5.3 J (equivalent to a drop from 0.5 m height with a 1.0 kg weight). This protects the housing and installed components from damage due to mechanical stress.

Closure is achieved via hygienic hexagon quick-release fasteners, with four fasteners mounted on the housing. These fasteners allow for quick and secure assembly and disassembly of the lid without allowing dirt to enter the connection. The fastener screws are also made of stainless steel to prevent corrosion.

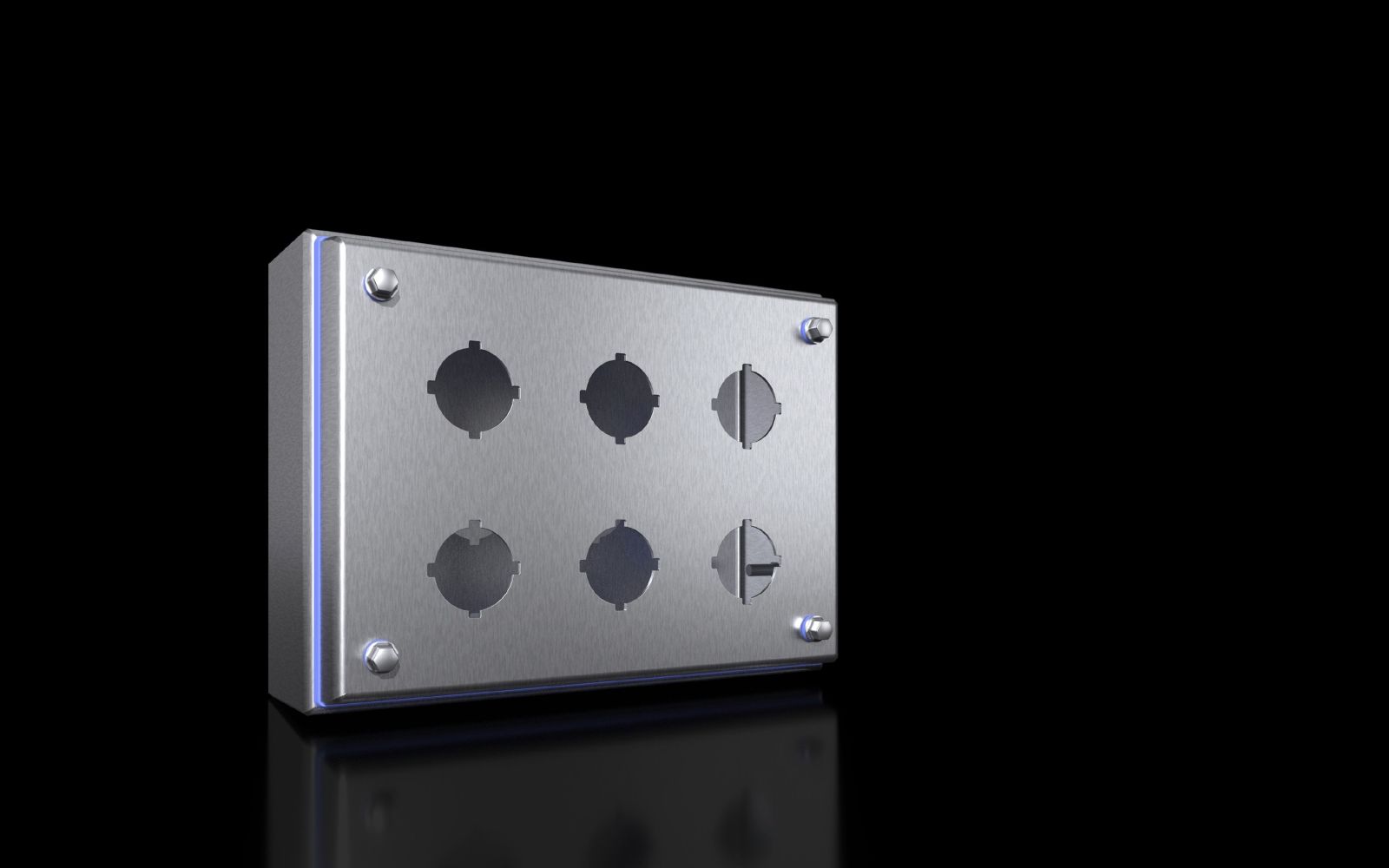

The dimensions are 160 mm (width) × 220 mm (height) × 90 mm (depth) at the front, and 182 mm (width) × 242 mm (height) at the back. The mounting pitch is 60 mm, enabling standardized installation. The housing features six openings with a diameter of 30.5 mm, intended for mounting push-buttons or switches. The delivery includes the housing, lid with push-button cutout, seal, and fastener screws.

Compatibility and accessories include wall spacing brackets HD with a spacing of 50 mm, which improve air circulation and accessibility. Earthing straps M6-M6 with a cross-section of 10 mm² and a length of 200 m, as well as SZ pressure equalization plugs made of stainless steel 1.4305, can be used additionally to ensure electrical safety and pressure equalization within the housing.

The housing is designed for industrial environments where high hygiene requirements, mechanical stress, and moisture protection are necessary. The use of stainless steel and silicone seals ensures long service life and ease of maintenance. Installation is carried out using the provided fasteners and openings, with precise positioning facilitated by the 60 mm mounting pitch. The combination of Hygienic Design, high protection rating, and robust materials makes the Rittal HD 1686630 a reliable solution for demanding applications in food processing and other sensitive industrial sectors.

General
ModelHygienic Design housing
MaterialHousing and cover: stainless steel 1.4301 (AISI 304) 1.5 mm, locking screw: stainless steel, seal: silicone, compliant with FDA regulation 21 CFR 177.2600
Surface protectionEnclosure and cover: brushed finish, grit 400, roughness depth < 0.8 µm, seal: blue tinted (RAL 5010)
Scope of deliveryhousing fully enclosed, cover with push-button cutout, seal and locking screw (included)
Width front160 mm
Width at rear182 mm
Height front220 mm
Height at rear242 mm
Depth90 mm
Modular spacing60 mm
Cutouts (number x Ø)6 x 30,5 mm
IK codeIK08
Base materialStainless steel 1.4301 (AISI 304)
LockClosure type: Hygienic hexagonal quick-release fastener, Number of closures: 4
Degree of protection IP according to IEC 60 529IP 66, IP X9
NEMA degree of protectionNEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type rating according to UL 50EType 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13


Product data sheet
Datasheet for Rittal 1686630, EAN: 4028177995444

Questions & answers

What is the delivery time of Rittal 1686630 HD pushbutton housing, stainless steel 1.4301, 6 pushbuttons 30.5 mm?

The article Rittal 1686630 HD pushbutton housing, stainless steel 1.4301, 6 pushbuttons 30.5 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1686630 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1686630 HD pushbutton housing, stainless steel 1.4301, 6 pushbuttons 30.5 mm always at the best possible price. We can give you a discount of 2% on Rittal 1686630 HD pushbutton housing, stainless steel 1.4301, 6 pushbuttons 30.5 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 1686630 HD pushbutton housing, stainless steel 1.4301, 6 pushbuttons 30.5 mm

Rittal 4000100 Wall clearance holder HD, clearance 50 mm Rittal LogoRittal 4000100 Wall clearance holder HD, clearance 50 mm Benefits: Creates space for cleaning behind the enclosure.
Shorter assembly times by eliminating the need for an all-round seal.
Greater hygiene safety by avoiding an uncontrollable dead space or gap ...

Lieske Part No.: 436787
Mfg Part No: 4000100
Type: HD 4000100
32,20 EUR
Rittal 4000100 plus VAT
≈ £26.95  |  ≈ $35.39
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 2565100 Earthing straps M6-M6, cross-section 10 mm², length 200 m Rittal LogoRittal 2565100 Earthing straps M6-M6, cross-section 10 mm², length 200 m For configuring a reliable earthing connection with perfect contact.
Benefits: With ring terminals in M6 and M8 to match the earthing screws
Length-optimised and ready to install
Packs of: 5 pc(s).

Lieske Part No.: 612555
Mfg Part No: 2565100
Type: SZ 2565100
19,44 EUR
Rittal 2565100 plus VAT
≈ £16.27  |  ≈ $21.36
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 4000300 SZ pressure equalization plug, stainless steel, 1.4305 Rittal LogoRittal 4000300 SZ pressure equalization plug, stainless steel, 1.4305 The Rittal SZ 4000300 is a pressure equalization plug made of stainless steel 1.4305 (AISI 303), specifically designed for use in enclosures and housings exposed to changing climatic conditions. It ...

Lieske Part No.: 1101878
Mfg Part No: 4000300
Type: SZ 4000300
-6% 163,42 EUR 174,72 EUR
Rittal 4000300 plus VAT
≈ £136.78  |  ≈ $179.60
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
