Rittal 1514000 terminal box KX, without gland plate, 150x150x80 mm,

Your rating:
Average rating
product review for Rittal 1514000 terminal box KX, without gland plate, 150x150x80 mm,
( 4.3 / 5 ) 4 ratings

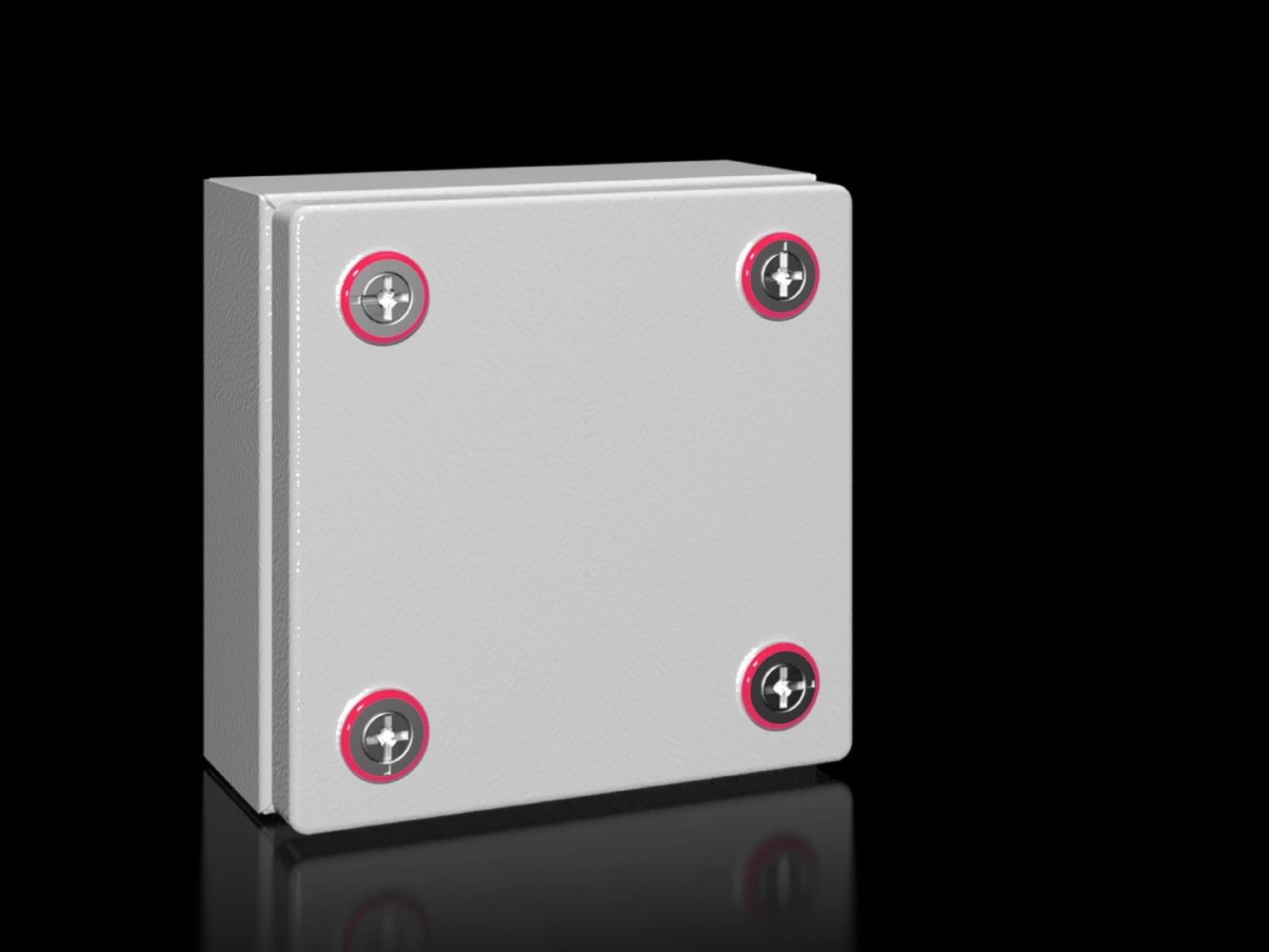

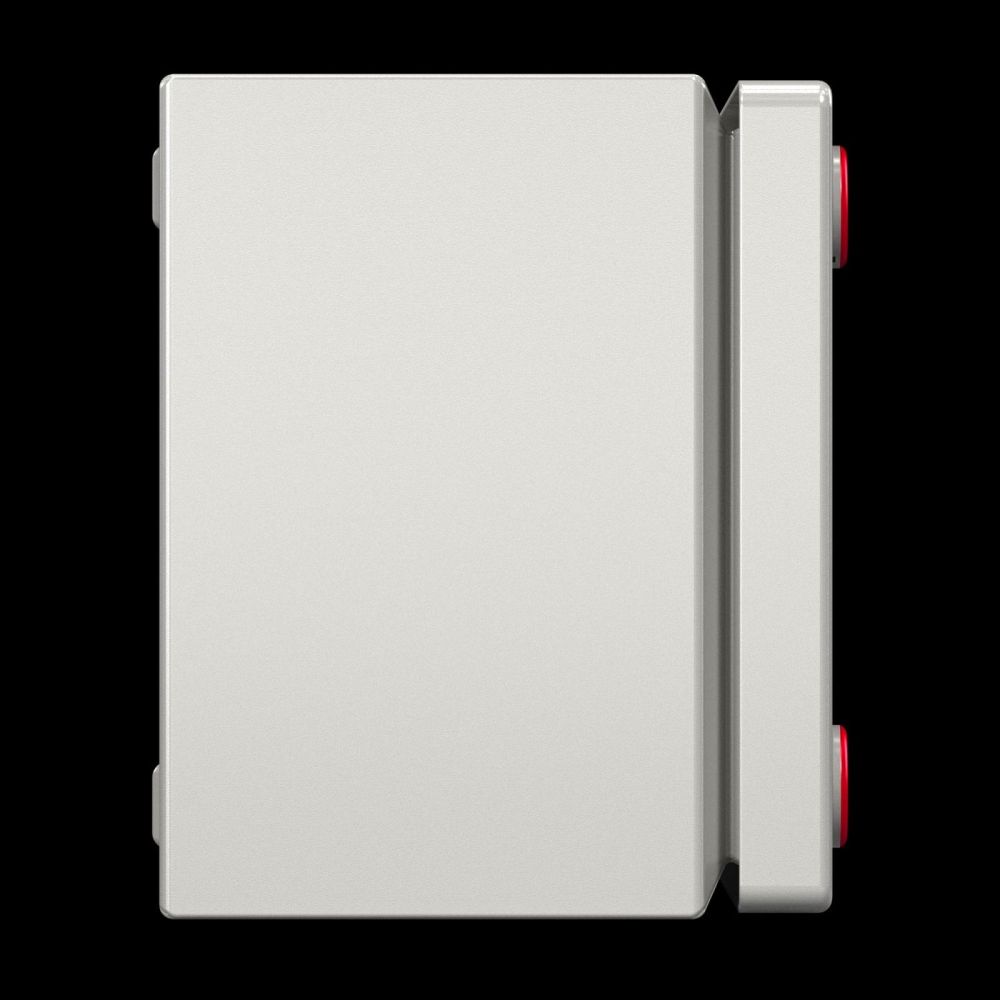

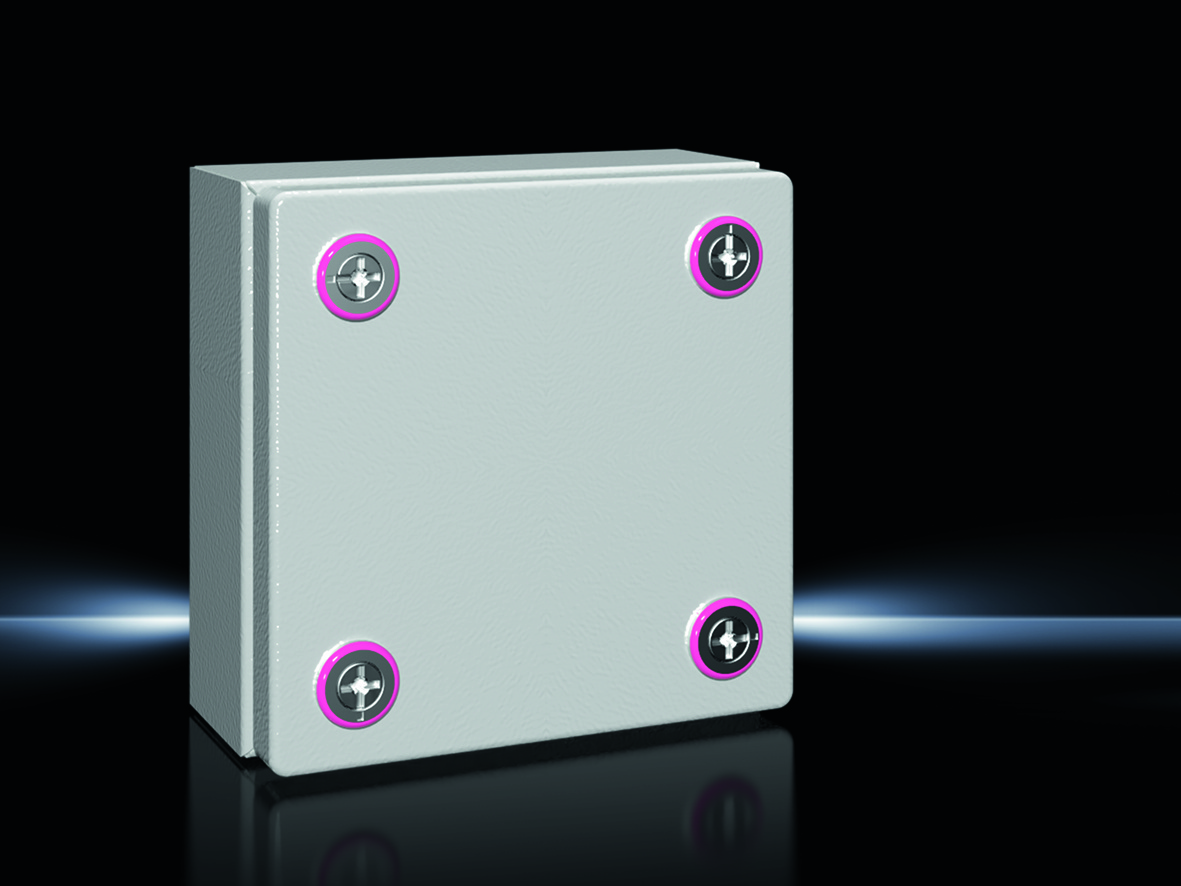

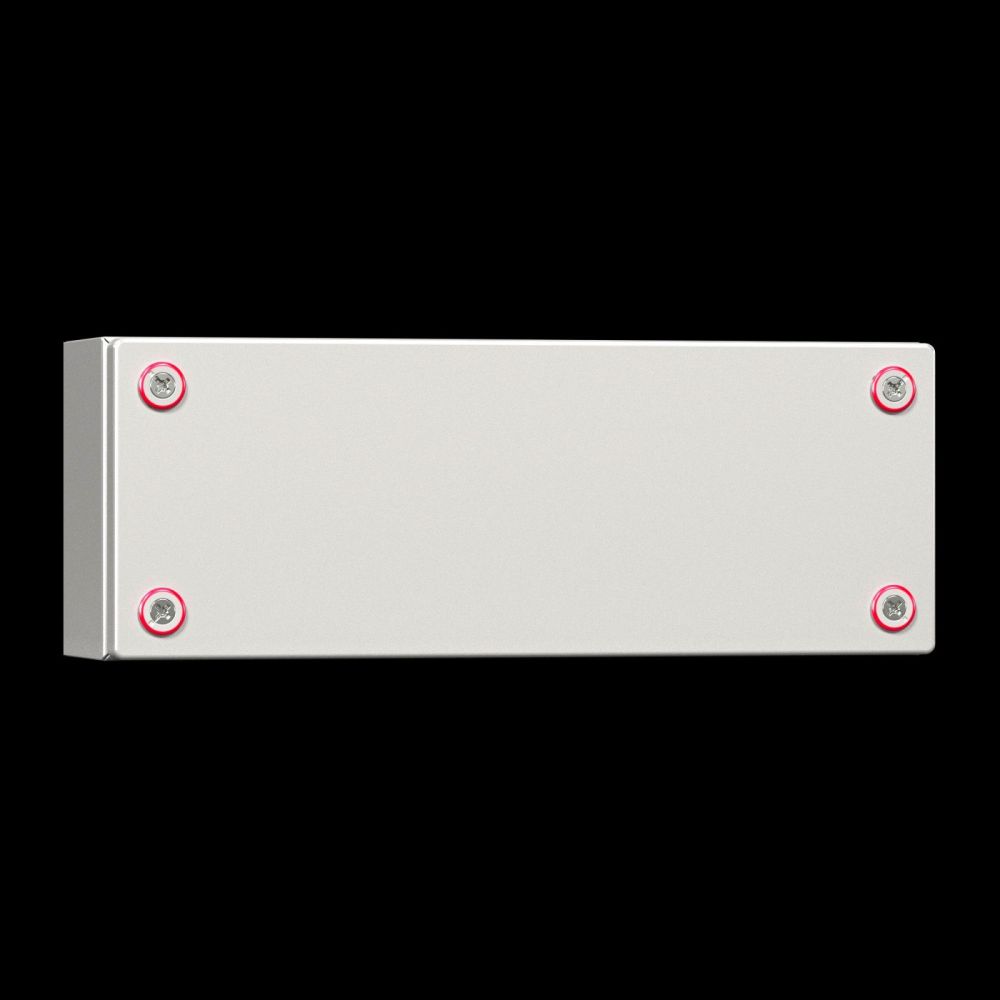

Rittal 1514000
This image may differ from the desired article.
Rittal 1514000Rittal 1514000Rittal 1514000Rittal 1514000Rittal 1514000Rittal 1514000Rittal 1514000
26,04 EUR
( 30,99 EUR incl. VAT )
≈ £21.80  |  ≈ $28.62
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1514000 terminal box KX, without gland plate, 150x150x80 mm,
Datasheet:file_download Download
Lieske Part No.:1598171
Mfg Part No: 1514000
UPC/EAN: 4028177816282
Weight:1.207 kg
Type:KX 1514000

Product information for Rittal 1514000:

The KX 1514000 is an industrial terminal box from the brand Rittal, designed for use in technical installations where a high degree of protection and robust construction are required. The enclosure made of sheet steel offers flexible internal installation and is designed without a gland plate, making it suitable for various mounting requirements. The dimensions are 150 mm width, 150 mm height, and 80 mm depth, making it a compact yet functional small housing. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, ensuring high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents.

Small housing with protection rating IP 66 according to EN 60 529 provides high protection against dust and water, including strong water jets. This protection rating also makes the enclosure suitable for outdoor use. Additionally, it meets protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as type ratings according to UL 50E: Type 1, Type 3R, Type 4, and Type 12. The IK code IK08 ensures mechanical protection against impact and shock, increasing operational safety in industrial environments. The material thickness of 1.25 mm for the enclosure and lid ensures a stable construction that remains intact even under load.

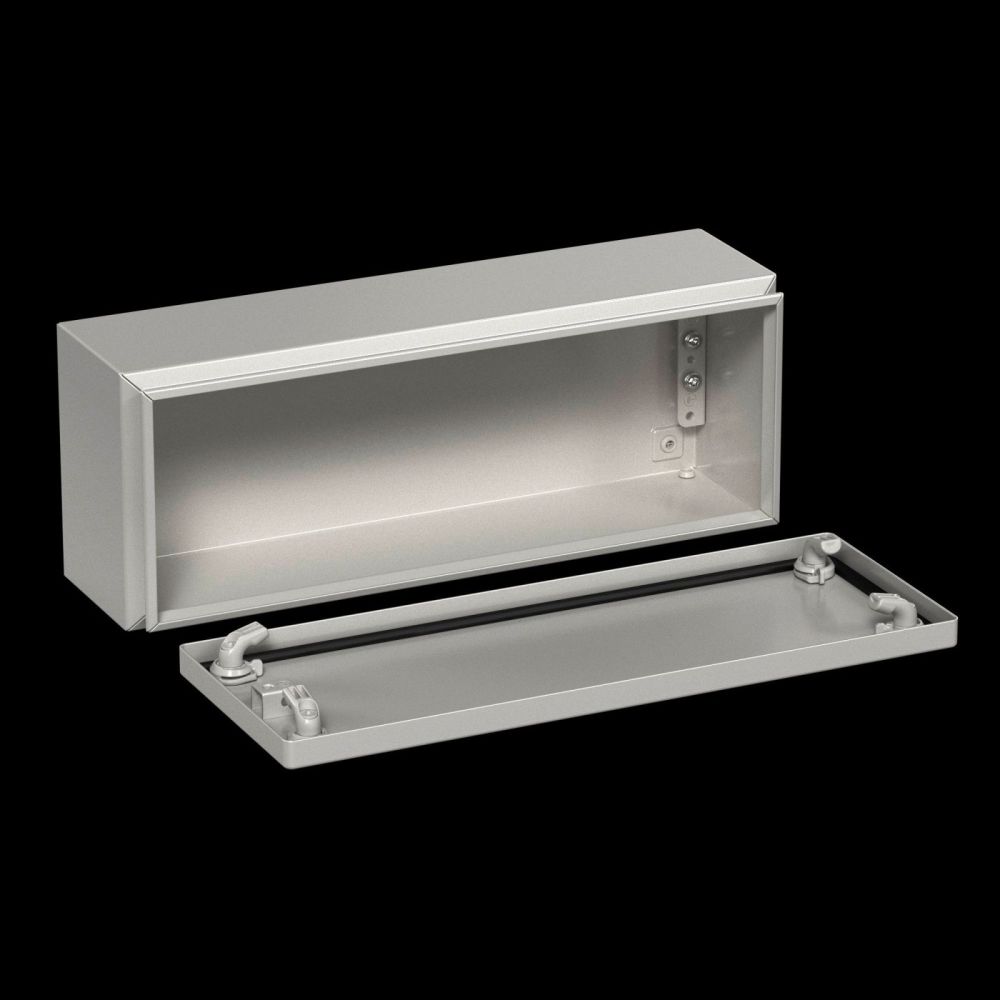

Functions and equipment in detail include an enclosure with a lid, fitted with a continuous foamed PU seal to ensure a tight seal. The mini-latch lock provides secure and quick fastening of the lid. Internally, a protective conductor connection is integrated in the enclosure and via a U-bracket in the lid, enabling simple and reliable earthing. The rear wall features cable entries suitable for wall mounting using brackets.

Technology explained clearly shows that the enclosure is formed and welded in one piece, resulting in a stable and tight construction. The triple surface treatment — nanoceramic coating, electrophoretic dip priming, and external powder coating — ensures long-term corrosion protection. The QR code, printed on the body, lid, and nameplate, enables unique identification and easy access to product information and documentation.

Compatibility and accessories include various supplementary products suitable for use with the KX 1514000. These include support rails (e.g. SZ 2314000), mounting clips, plug-throughs (e.g. SZ 2400500), pressure equalization plugs, mounting angles, condensate drains, earthing straps, drilling screws, mounting brackets, lid hinges, mounting plates, mounting claws for a second mounting level, and wall mounting brackets. These components enable individual and application-specific mounting and equipping of the terminal box.

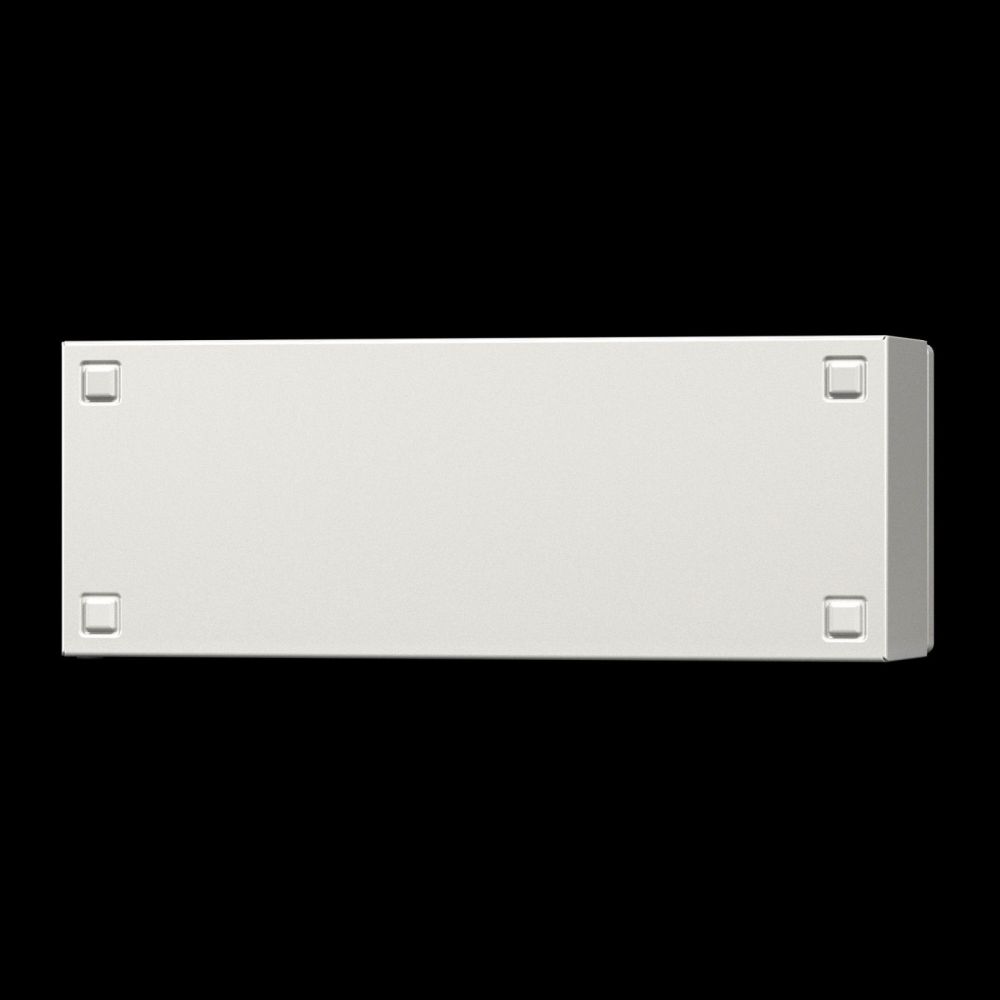

Mounting and installation are carried out via the integrated cable entries on the rear wall, suitable for fastening to walls or other structures. The use of mounting angles or wall mounting brackets expands the mounting options. The provided fastening elements and robust construction facilitate secure and durable installation.

Operational advantages lie in the high protection rating, easy earthing, robust sheet steel construction, and flexible equipping options. The enclosure is designed for use in industrial environments where high demands on protection, stability, and longevity exist. The integrated seal and IP 66 protection rating ensure reliable functionality even under harsh conditions. The surface coating ensures long service life and resistance against aggressive environmental conditions.

The delivery includes the enclosure with lid and a mini-latch lock.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width150 mm
Height150 mm
Depth80 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)24.14 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1514000, EAN: 4028177816282

Questions & answers

What is the delivery time of Rittal 1514000 terminal box KX, without gland plate, 150x150x80 mm, ?

The article Rittal 1514000 terminal box KX, without gland plate, 150x150x80 mm, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1514000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1514000 terminal box KX, without gland plate, 150x150x80 mm, always at the best possible price. We can give you a discount of 2% on Rittal 1514000 terminal box KX, without gland plate, 150x150x80 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
