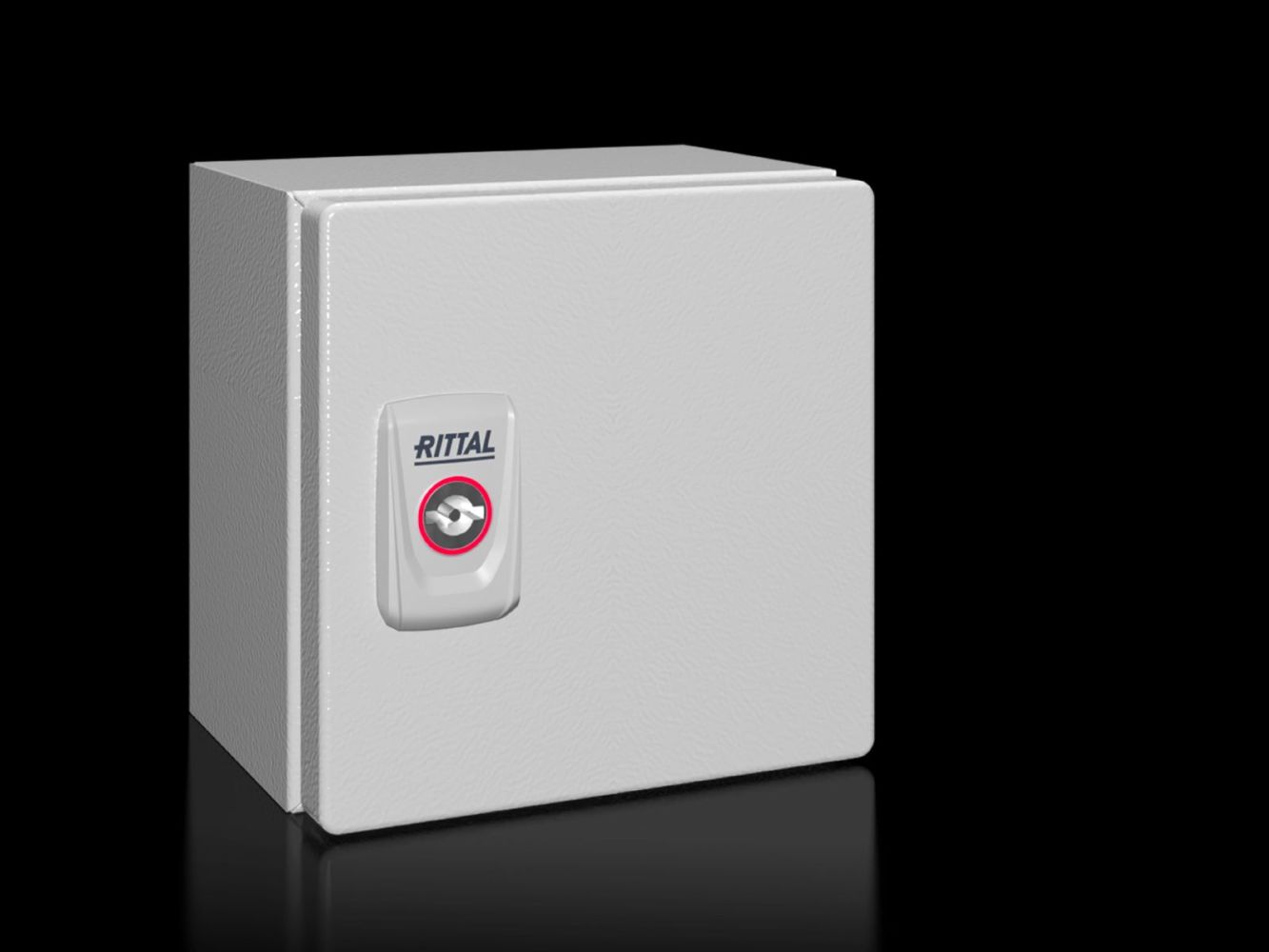

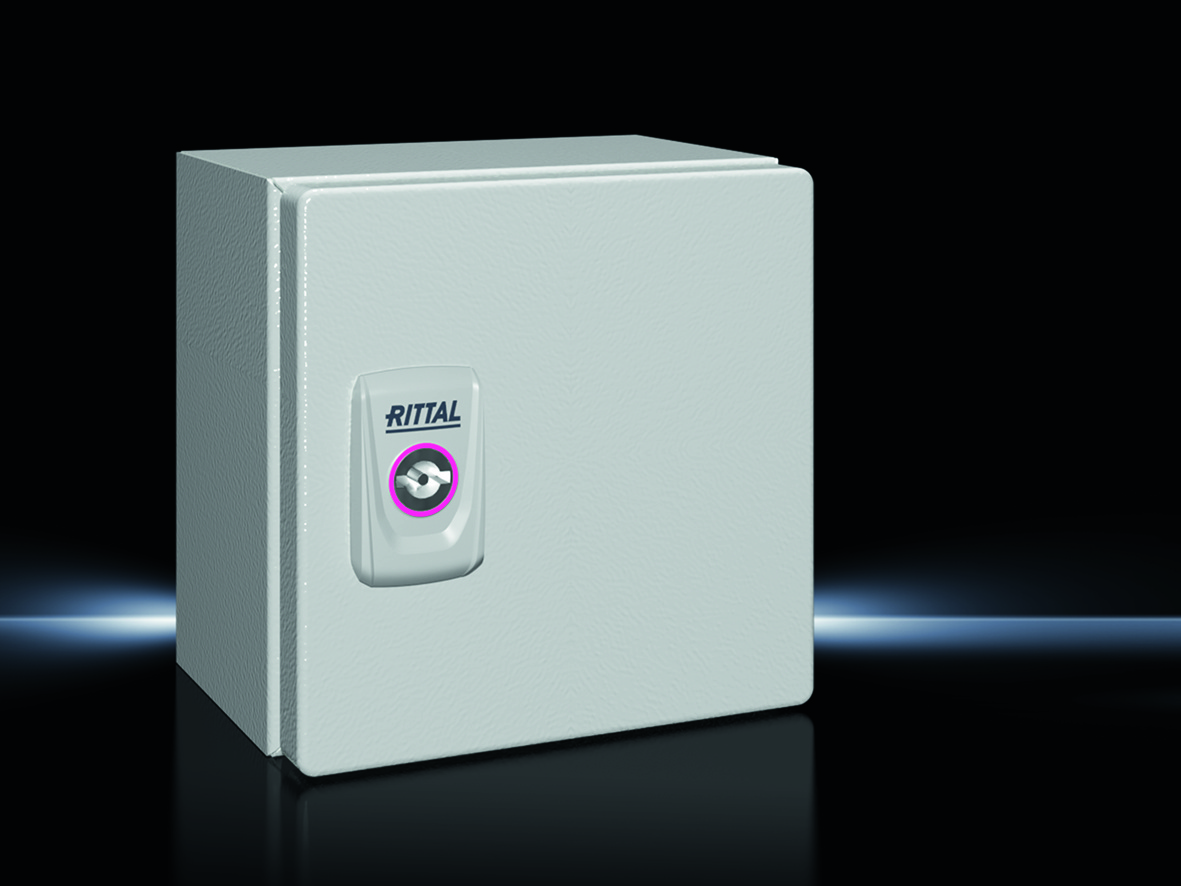

Rittal 1553000 KX E-Box, 150x150x120 mm, sheet metal
|
38,87 EUR 39,03 EUR |
|
|
( 46,26 EUR incl. VAT ) ≈ £32.53 | ≈ $42.72 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598315 |
| Mfg Part No: | 1553000 |
| UPC/EAN: | 4028177816558 |
| Weight: | 1.72 kg |
| Type: | KX 1553000 |
Product information for Rittal 1553000:
Applications
This housing is suitable for use in environments with increased requirements for protection against dust, water and mechanical impacts. It is frequently used in industrial automation, electrical engineering or machine construction, where small but robust enclosures are required. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight sealing, even under heavy spray water conditions. Additionally, the housing meets protection ratings NEMA 1, NEMA 3R, NEMA 4 and NEMA 12, as well as Type ratings according to UL 50E: Type 1, Type 3R, Type 4 and Type 12, enabling broad applicability in various regions and standardisation areas. The IK code IK08 indicates high mechanical strength against impact and shock, which is important for use in harsh operating environments.
Functions and equipment in detail
The housing is supplied with a mounting plate, a door, a latch lock with a 3 mm double bar lock insert and a 180° hinge. The lock complies with DIN 43668 and enables secure and quick locking. The mounting plate is equipped with through-holes, allowing mounting on wall brackets or other mounting elements. Inside the housing and on the door, a protective conductor connection is integrated via a U-bracket, ensuring simple and reliable earthing. The material thickness is 1.25 mm for the housing and door, and 2 mm for the mounting plate, ensuring high strength and durability.
Technology explained simply
The triple surface treatment – consisting of nanoceramic coating, electrophoretic dip priming and powder-coated textured lacquer – ensures high corrosion protection and long service life, even under dirty or moist conditions. The PU seal on the door ensures a tight seal that maintains its function even under temperature fluctuations and vibrations. The protection rating IP 66 means the housing is dust-tight and protected against heavy spray water, making it suitable for outdoor use or in damp indoor areas. The NEMA and UL approvals extend the range of applications, particularly in the USA and other countries with corresponding standards.
Compatibility and accessories
Various accessories are available for this housing to extend its functionality. These include support rails (e.g. SZ 2314000), mounting clips, lock inserts made of zinc die-cast, plug-throughs (e.g. SZ 2400500), lock box covers (e.g. SZ 2493000), pressure equalisation plugs (e.g. SZ pressure equalisation plug M12x1.5), mounting brackets, condensate drains, handles (e.g. SZ 2577000), drill screws (type ST 4.8 L9.5 mm) and mounting brackets. These components allow individual adaptation to specific mounting and operating conditions.
Mounting and installation
Mounting is done via the integrated mounting plate, which can be attached to walls or other surfaces. The holes in the rear wall of the housing allow for secure fastening. The door is attached on the right side via the 180° hinge, allowing full access to the interior. The mounting plate is equipped with through-holes, enabling easy mounting on wall brackets or other mounting elements. Earthing is achieved via the integrated protective conductor connection in the housing and on the door.
Advantages in operation
The housing offers high mounting convenience and flexible selection of locking systems. The robust steel sheet metal construction and the high protection rating IP 66 ensure long service life and reliable operation even under harsh conditions. The integrated earthing and simple mounting reduce installation time. The surface coating ensures high corrosion protection, increasing ease of maintenance. The use of zinc die-cast for lock inserts and other accessories ensures high mechanical stability and corrosion resistance. QR codes on the body, door and type plate enable unique identification and easy access to relevant product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door, mounting plate, latch with 3 mm double bar insert, 180° hinge |
| Width | 150 mm |
| Height | 150 mm |
| Depth | 120 mm |
| Mounting plate dimensions (W x H) | 125 mm x 135 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Plate thickness cabinet | 1,25 mm |
| Door material thickness | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Lock | Number of locks: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 26.66 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
