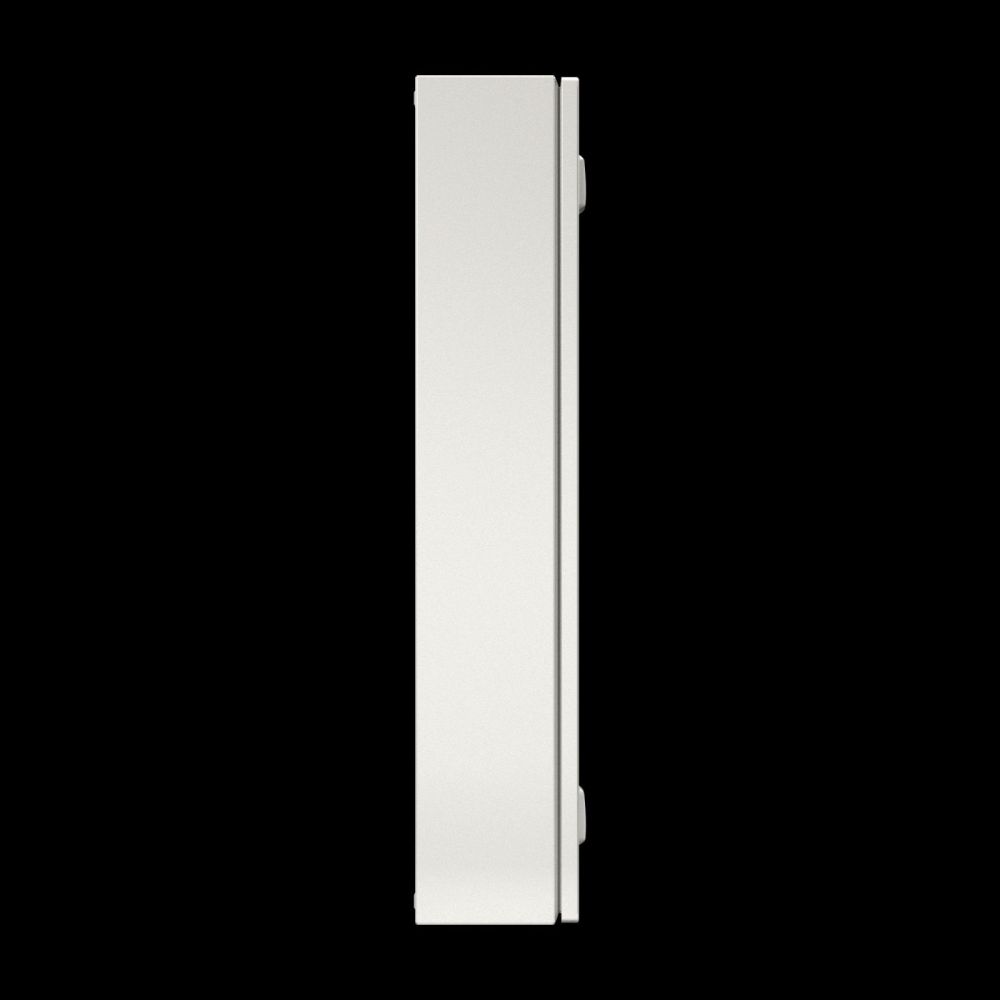

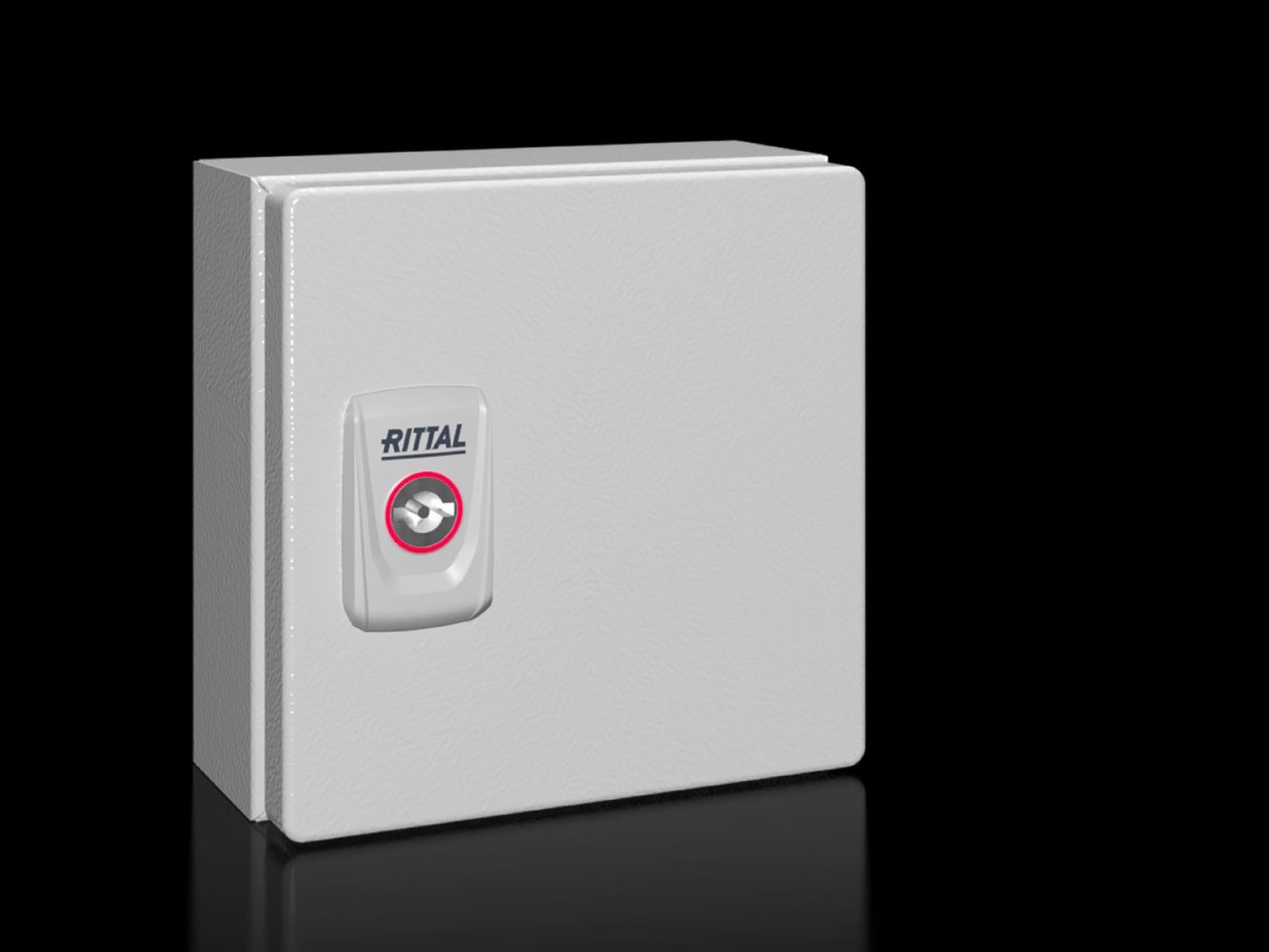

Rittal 1551000 small housing KX E-Box KX, sheet metal 150x150x80 mm
|
38,53 EUR |
|
|
( 45,85 EUR incl. VAT ) ≈ £32.25 | ≈ $42.34 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598317 |
| Mfg Part No: | 1551000 |
| UPC/EAN: | 4028177816534 |
| Weight: | 1.485 kg |
| Type: | KX 1551000 |
Product information for Rittal 1551000:
Applications
The KX 1551000 is designed for use in environments where high protection against dust, water, and mechanical impacts is required. Due to its protection rating IP 66 according to EN 60 529, it is dust- and watertight, and also suitable for outdoor use. The approvals according to NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), make it suitable for use in various industrial and building installations, particularly in areas with increased requirements for environmental resistance. The IK code IK08 guarantees protection against mechanical impacts, such as light shocks or vibrations.
Functions and Equipment in Detail
The housing is made of sheet steel with a material thickness of 1.25 mm for the housing and door, while the mounting plate has a thickness of 2 mm. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, ensuring high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The door is fitted with a continuous foamed PU seal, ensuring a tight seal. The scope of delivery includes the housing with door, a mounting plate, a cam lock with 3 mm double-barrel insert, and a 180° hinge. The door is hinged on the right side, enabling easy mounting and maintenance.
Technology Explained Simply
The housing is constructed from a single piece of sheet steel, which is bent and welded, creating a stable and tight structure. A protective channel is located around the door opening, providing additional protection. The rear wall features cutouts for wall mounting brackets, enabling flexible mounting. The cam lock with double-barrel insert according to DIN 43668 ensures secure locking. Earthing is achieved via a protective conductor connection in the housing and a U-bracket in the door, enabling quick and easy earthing. A QR code is printed on the housing, door, and type plate to enable unique identification and traceability of the parts.
Compatibility and Accessories
The KX 1551000 can be combined with various accessories to extend its functionality. These include support rails (e.g. SZ 2314000), mounting clips, locking inserts made of zinc die-cast, plug-throughs (e.g. SZ 2400500), lock box covers (e.g. SZ 2493000), pressure equalization plugs (e.g. SZ pressure equalization plug M12x1.5), mounting angles, condensate drains, earthing straps (e.g. M6-M6, cross-section 10 mm²), handles (e.g. SZ 2577000), drilling screws (type ST 4.8 L9.5 mm), and mounting brackets for individual mounting requirements.
Mounting and Installation
Mounting is performed via the integrated mounting plate with dimensions 125 mm x 135 mm. The rear wall of the housing features cutouts that allow mounting to walls or other structures. The door is hinged on the right side, ensuring easy accessibility. The provided earthing elements facilitate the electrical connection to earth. The use of support rails and mounting clips enables the integration of modules and components within the housing.
Advantages in Operation
The housing provides reliable protection for installed electrical components due to its robust sheet steel construction and high protection rating IP 66. The powder-coated surface in RAL 7035 ensures long service life and resistance to environmental influences. The integrated mounting plate and provided earthing elements reduce mounting time and increase safety. The flexibility in selecting locking systems and compatibility with various accessories extend the application possibilities of the housing in different application scenarios.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door, mounting plate, latch with 3 mm double bar insert, 180° hinge |
| Width | 150 mm |
| Height | 150 mm |
| Depth | 80 mm |
| Mounting plate dimensions (W x H) | 125 mm x 135 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Plate thickness cabinet | 1,25 mm |
| Door material thickness | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Lock | Number of locks: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 25.09 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
