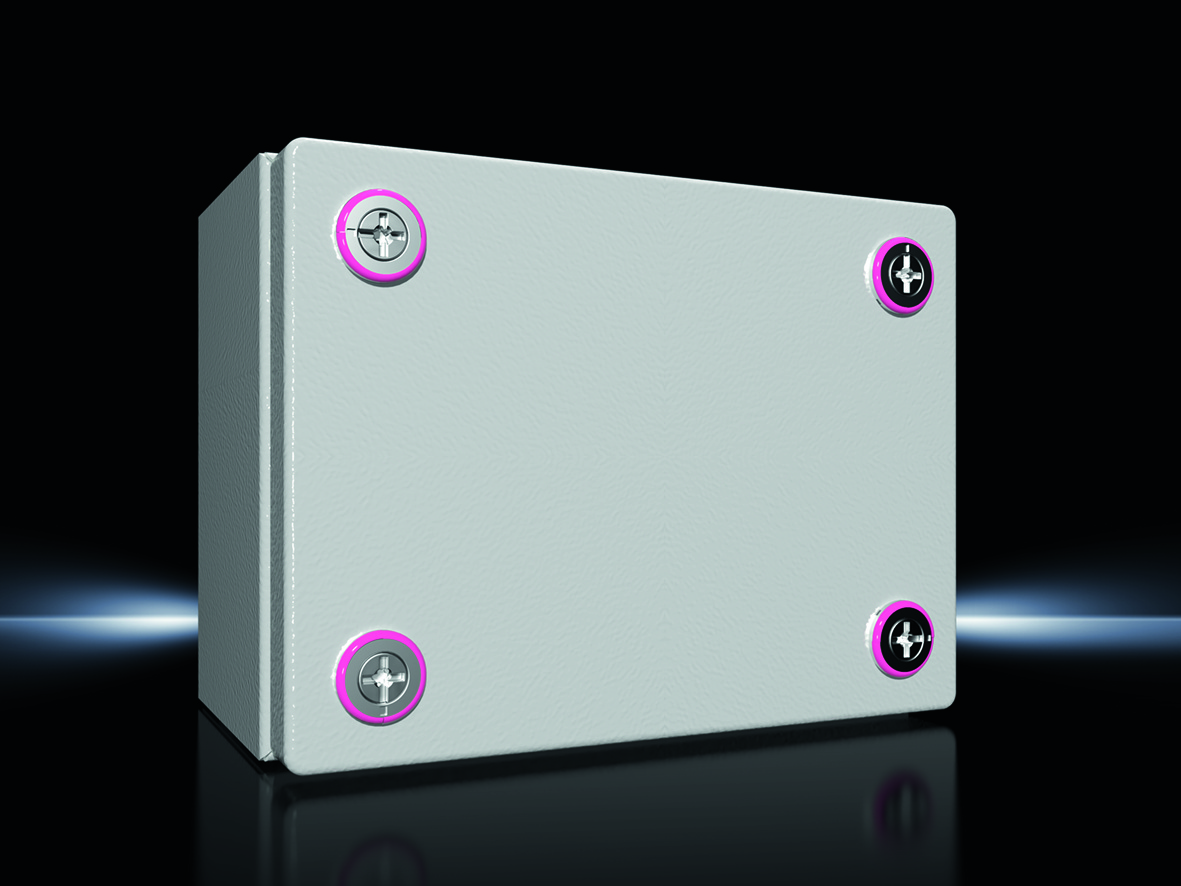

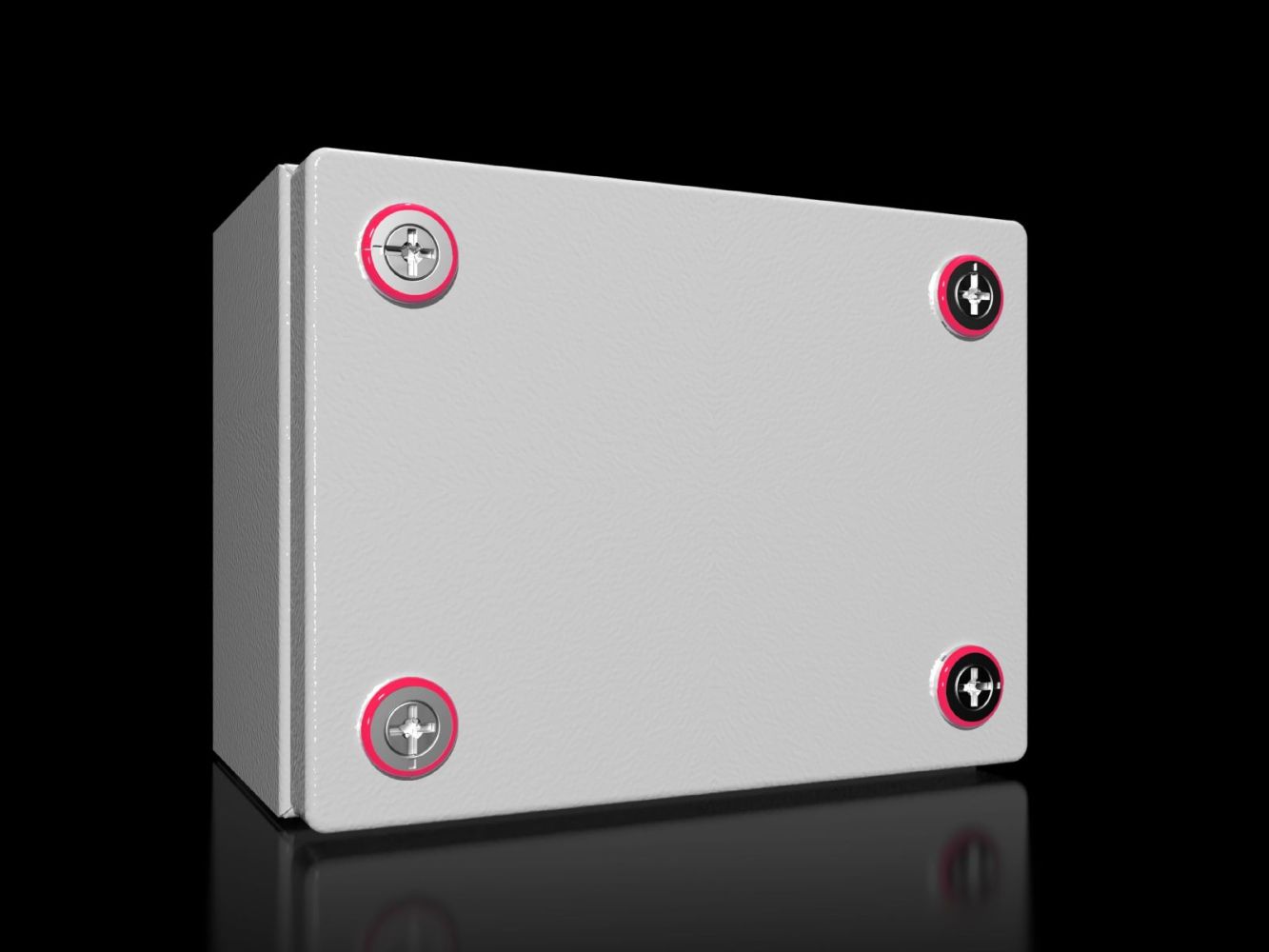

Rittal 1529000 terminal box KX, without gland plate 200x150x120 mm
|
32,08 EUR |
|
|
( 38,18 EUR incl. VAT ) ≈ £26.85 | ≈ $35.26 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598164 |
| Mfg Part No: | 1529000 |
| UPC/EAN: | 4028177816350 |
| Weight: | 1.749 kg |
| Type: | KX 1529000 |
Product information for Rittal 1529000:
Applications
This terminal box is suitable for use in industrial environments, particularly where high mechanical and environmental resistance is required. It is suitable for indoor and outdoor use, as it meets the protection rating IP 66 according to EN 60 529, meaning it is dust-tight and water-tight. The protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), also make it suitable for applications in the USA and other countries with corresponding standards. The IK code IK08 guarantees high protection against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure is made of a single piece of folded and welded sheet steel, creating a stable structure. At the lid opening, there is a continuous protective channel that supports the seal and provides an additional barrier against ingress of foreign objects or liquids. The lid is fitted with a mini-latch lock, enabling secure and quick locking. Both the enclosure and the lid feature an integrated protective conductor connection, which ensures simple and reliable earthing via a U-bracket in the lid. A QR code is printed on the enclosure, lid, and type plate, enabling unique identification, easy access to relevant product information, and traceability of individual components.
Technology Explained Simply
The material thickness of 1.25 mm for both the enclosure and lid ensures sufficient strength and stability, even under mechanical stress. The triple surface treatment—consisting of nanoceramic coating, electrophoretic dip priming, and an external powder-coated texture in RAL 7035—provides high corrosion protection and resistance to aggressive environmental conditions. The protection rating IP 66 means the enclosure is protected against dust and water jets from any direction, making it suitable for outdoor use. The protection ratings NEMA 4 and Type 4 according to UL 50E correspond to a high protection standard, also protecting against splashing water and dirt.
Compatibility and Accessories
The KX 1529000 can be extended with various accessories to meet specific requirements. These include mounting clips for support rails, plug-throughs, support rails TH 35/7.5/TS 35/15, pressure equalization plugs M12x1.5, mounting brackets, condensate drain, baying sets for AX, KX, AE, KL, drill screws type ST 4.8 L9.5 mm, flat mounting brackets, spacing brackets for shock protection covers, zinc die-cast lid hinges, mounting claws for a second mounting plane, and wall mounting brackets. These components enable flexible mounting and adaptation to different installation situations.
Mounting and Installation
The rear wall of the enclosure features pass-throughs designed for securing wall brackets. Mounting is therefore simple and secure to walls or other support structures. The integrated mounting points and use of standard accessories such as support rails or wall mounting brackets simplify installation and enable quick integration into existing systems.
Operational Advantages
The KX 1529000 offers high reliability due to its robust construction and high protection rating. The simple earthing via the integrated protective conductor connection reduces installation time and increases safety. The unique identification via the QR code simplifies maintenance and documentation. The use of standard accessories ensures high compatibility with other products in the system. The surface coating ensures a long service life even in demanding environments.
Scope of Delivery
The product is delivered with enclosure, lid, and mini-latch lock.
| General | |
| Material | Housing: steel sheet, cover: steel sheet, continuously foamed PU seal |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | housing with cover, mini-quick-release latch |
| Width | 200 mm |
| Height | 150 mm |
| Depth | 120 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 26.53 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 1529000 terminal box KX, without gland plate 200x150x120 mm?
The article Rittal 1529000 terminal box KX, without gland plate 200x150x120 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1529000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1529000 terminal box KX, without gland plate 200x150x120 mm always at the best possible price. We can give you a discount of 2% on Rittal 1529000 terminal box KX, without gland plate 200x150x120 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
