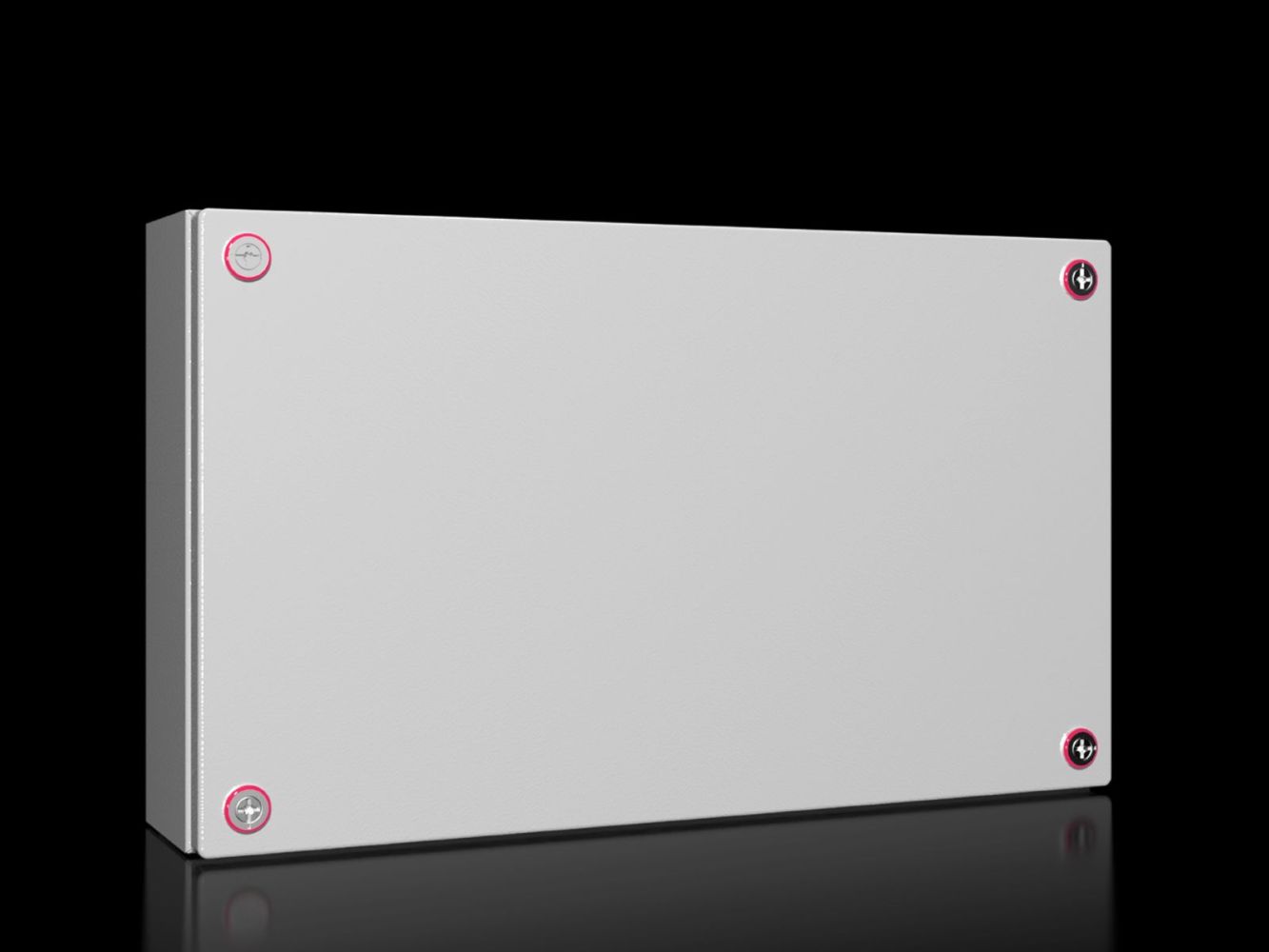

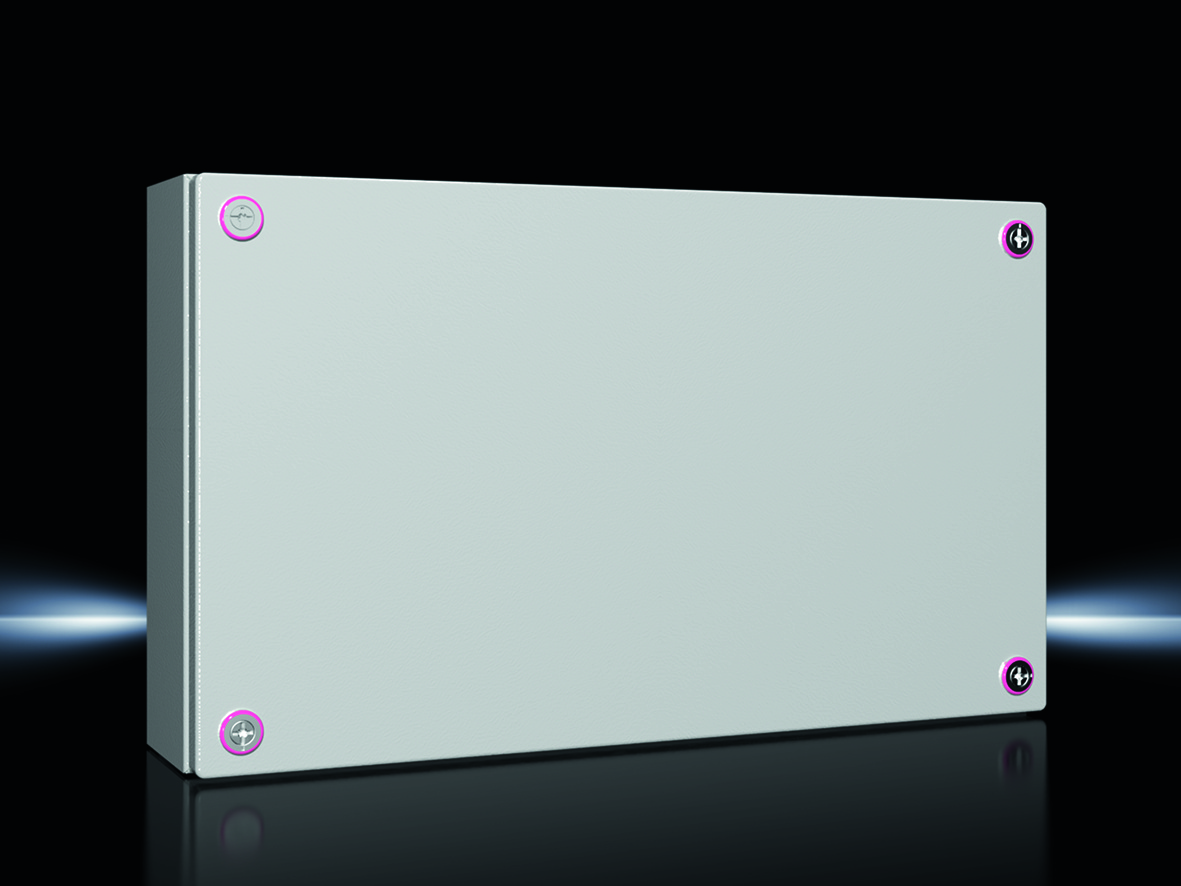

Rittal 1509000 terminal box KX, without gland plate 500x300x120 mm

Your rating:
Average rating
product review for Rittal 1509000 terminal box KX, without gland plate 500x300x120 mm
( 4.5 / 5 ) 4 ratings
Rittal 1509000
This image may differ from the desired article.
Rittal 1509000Rittal 1509000Rittal 1509000Rittal 1509000Rittal 1509000Rittal 1509000Rittal 1509000
55,55 EUR 57,05 EUR
( 66,10 EUR incl. VAT )
≈ £46.50  |  ≈ $61.05
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1509000 terminal box KX, without gland plate 500x300x120 mm
Datasheet:file_download Download
Lieske Part No.:1598176
Mfg Part No: 1509000
UPC/EAN: 4028177816237
Weight:5.57 kg
Type:KX 1509000

Product information for Rittal 1509000:

The KX 1509000 is an industrial terminal box from the brand Rittal, designed as a small housing made of sheet steel. It serves as a protected enclosure for electrical components, terminals, connectors or small switching devices in industrial applications. The housing is designed without a gland plate and without a mounting plate, enabling flexible internal installation. Dimensions are 500 mm width, 300 mm height and 120 mm depth. The box is supplied with a lid featuring a continuously foamed PU seal to ensure a high level of protection.

Applications
The KX 1509000 is suitable for use in industrial environments where a high mechanical and environmental protection class is required. The protection rating IP 66 according to EN 60 529 protects the interior against dust and heavy splashing water, making it suitable for outdoor use or in humid production environments. The NEMA classification includes types 1, 3R, 4 and 12, confirming suitability for dry, humid, dusty and slightly contaminated environments. The type rating according to UL 50E also includes Type 1, 3R, 4 and 12, demonstrating compliance with North American safety standards. The IK code IK08 provides protection against mechanical impacts, such as blows from a tool or heavy object.

Functions and Equipment in Detail
The housing is made of sheet steel with a material thickness of 1.25 mm for both the body and the lid. The surface is dip-primed, powder-coated externally, and finished with a textured paint in RAL 7035, ensuring high corrosion resistance and resistance to mineral oils, lubricants, machining emulsions and solvents. The lid is secured using a mini-latch lock, enabling secure and quick assembly. The housing includes an earth conductor connection, which provides simple and reliable earthing via a U-bracket in the lid.

Technology Explained Simply
The continuously foamed PU seal ensures a tight seal between the housing and the lid, preventing dust and water from entering. The IP 66 protection rating means the housing is dust-tight and protected against heavy splashing water, making it suitable for use in humid or wet environments. The surface treatment with nanoceramic, electrophoretic dip priming and textured powder coating ensures high resistance to corrosion and chemical influences. The material thickness of 1.25 mm ensures sufficient mechanical stability.

Compatibility and Accessories
The KX 1509000 can be extended with various accessories to meet specific requirements. These include mounting clips for support rails, connector entries, pressure equalization plugs, support rails (TH 35/15), mounting angles, condensate drains, baying sets, drill screws, mounting brackets, spacing angles for shock protection covers, zinc die-cast lid hinges, mounting plates, and mounting claws for a second mounting level. These components allow individual adaptation of the box to different mounting and installation conditions.

Mounting and Installation
The rear wall of the housing features pass-throughs suitable for attaching wall brackets. Mounting is therefore done on a wall or other load-bearing surface. The use of mounting plates, support rails or mounting brackets enables flexible and stable installation. The integrated earthing via earth conductor connection and U-bracket in the lid simplifies electrical safety during installation.

Advantages in Operation
The KX 1509000 offers a high protection rating and mechanical stability, making it suitable for demanding industrial applications. The flexible internal configuration allows individual adaptation to specific requirements. The robust construction from sheet steel and the high-quality surface treatment ensure long service life and low maintenance. The integrated earthing and easy mounting via the mini-latch lock reduce installation time and increase safety. The QR code on the body, lid and type plate enables unique identification and easy access to product information and documentation.

The delivery includes the housing with lid and a mini-latch lock.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width500 mm
Height300 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)37.13 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1509000, EAN: 4028177816237
