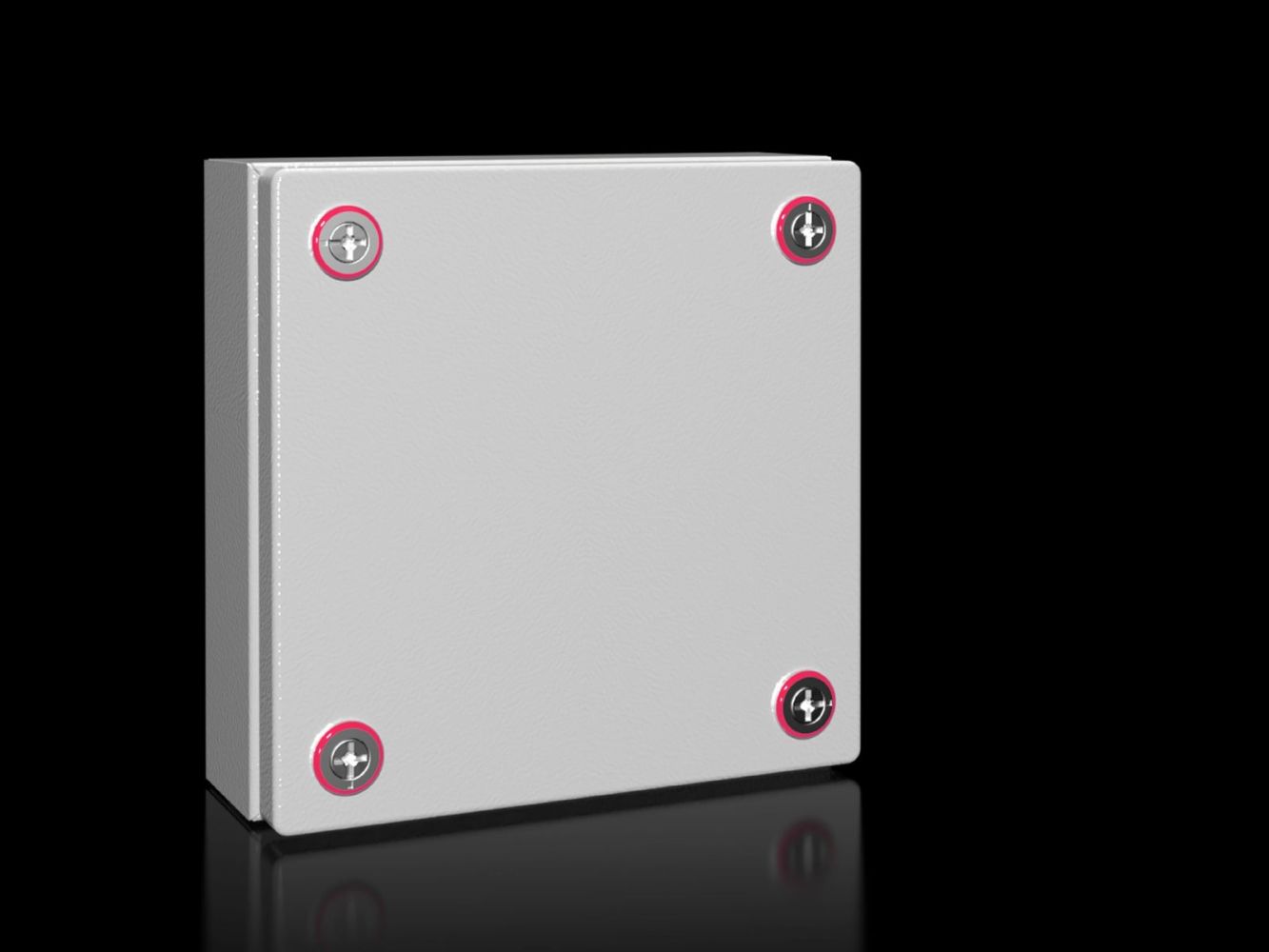

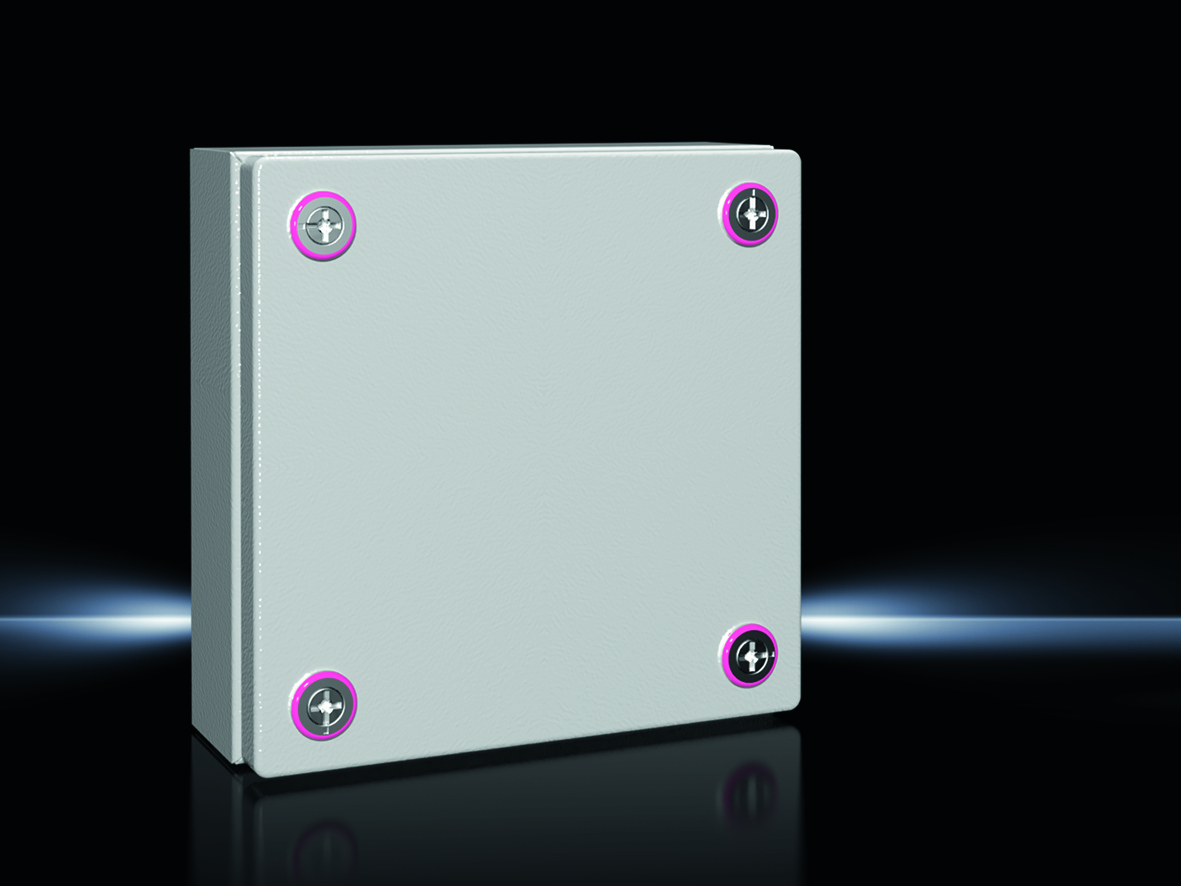

Rittal 1516000 terminal box KX, without gland plate, 200x200x80 mm,

Your rating:
Average rating
product review for Rittal 1516000 terminal box KX, without gland plate, 200x200x80 mm,
( 4.3 / 5 ) 4 ratings
Rittal 1516000
This image may differ from the desired article.
Rittal 1516000Rittal 1516000Rittal 1516000Rittal 1516000Rittal 1516000Rittal 1516000Rittal 1516000
30,25 EUR 31,10 EUR
( 36,00 EUR incl. VAT )
≈ £25.32  |  ≈ $33.24
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1516000 terminal box KX, without gland plate, 200x200x80 mm,
Datasheet:file_download Download
Lieske Part No.:1598169
Mfg Part No: 1516000
UPC/EAN: 4028177816305
Weight:1.795 kg
Type:KX 1516000

Product information for Rittal 1516000:

The KX 1516000 is an industrial terminal box from manufacturer Rittal, designed as a small housing made of sheet metal. It serves as a protected enclosure and mounting container for electrical components such as terminals, switches, or small control devices, particularly in environments with high requirements for mechanical and environmental protection class. The housing has dimensions of 200 mm width, 200 mm height, and 80 mm depth, and is supplied without a mounting plate and without a gland plate, allowing flexible use in various installation scenarios.

Applications
This terminal box is designed for use in industrial plants, machine building, manufacturing technology, and electrical installations. It is especially suitable for applications in outdoor environments or in damp, dusty, or contaminated areas, due to its high degree of protection. It is commonly used in automation technology, for controls, drives, or as a protective housing for sensors and small electrical modules.

Functions and Equipment in Detail
The housing is made of a single piece of sheet metal, folded and welded, creating a stable, rigid structure. The lid is fitted with a continuous foamed PU seal, ensuring a tight seal. Fastening is achieved via a mini-latch lock, enabling secure and quick installation. Inside, there is a rear panel with knockouts for wall mounting brackets, allowing flexible mounting on walls or other structures. The protective earth connection is integrated in the housing and also via a U-bracket in the lid, ensuring simple and reliable earthing.

Technology Explained Simply
The surface of the housing and lid is treated in three stages: first dip-primed, then coated with a nano-ceramic layer, and finally powder-coated externally in RAL 7035 textured paint. This treatment provides high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The protection rating IP 66 according to EN 60 529 means the housing is dust-tight and protected against strong splashing water, making it suitable for outdoor or wet environments. Additionally, the housing meets protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as Type ratings according to UL 50E: Type 1, Type 3R, Type 4, and Type 12. The IK code IK08 indicates high mechanical stability against mechanical impacts such as shocks or vibrations.

Compatibility and Accessories
The housing is compatible with various accessories that enable use in different application scenarios. These include mounting clips for support rails, plug-throughs, support rails in standards TH 35/7,5 and TS 35/15, pressure equalization plugs, mounting brackets, condensate drains, earthing straps, drilling screws, mounting brackets, lid hinges, mounting plates, and mounting claws for a second mounting plane. These components extend functionality and allow individual adaptation to specific mounting and installation requirements.

Mounting and Installation
Mounting is done via the integrated knockouts in the housing for wall mounting brackets. Alternatively, the housing can be mounted using mounting brackets or wall mounting flanges. The use of support rails enables mounting of standard components such as terminals, switches, or plug connectors. The seal ensures a tight closure, which remains intact even after frequent opening and closing.

Advantages in Operation
The KX 1516000 offers a high mechanical and environmental protection class, ensuring long service life and low maintenance frequency. The robust sheet metal construction and triple surface treatment provide high resistance to corrosion and chemical influences. The integrated earthing and simple mounting via mini-latch lock reduce installation time. The clear identification via QR codes on the housing, lid, and nameplate enables easy traceability and quick access to relevant product information.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width200 mm
Height200 mm
Depth80 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)25.78 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1516000, EAN: 4028177816305
