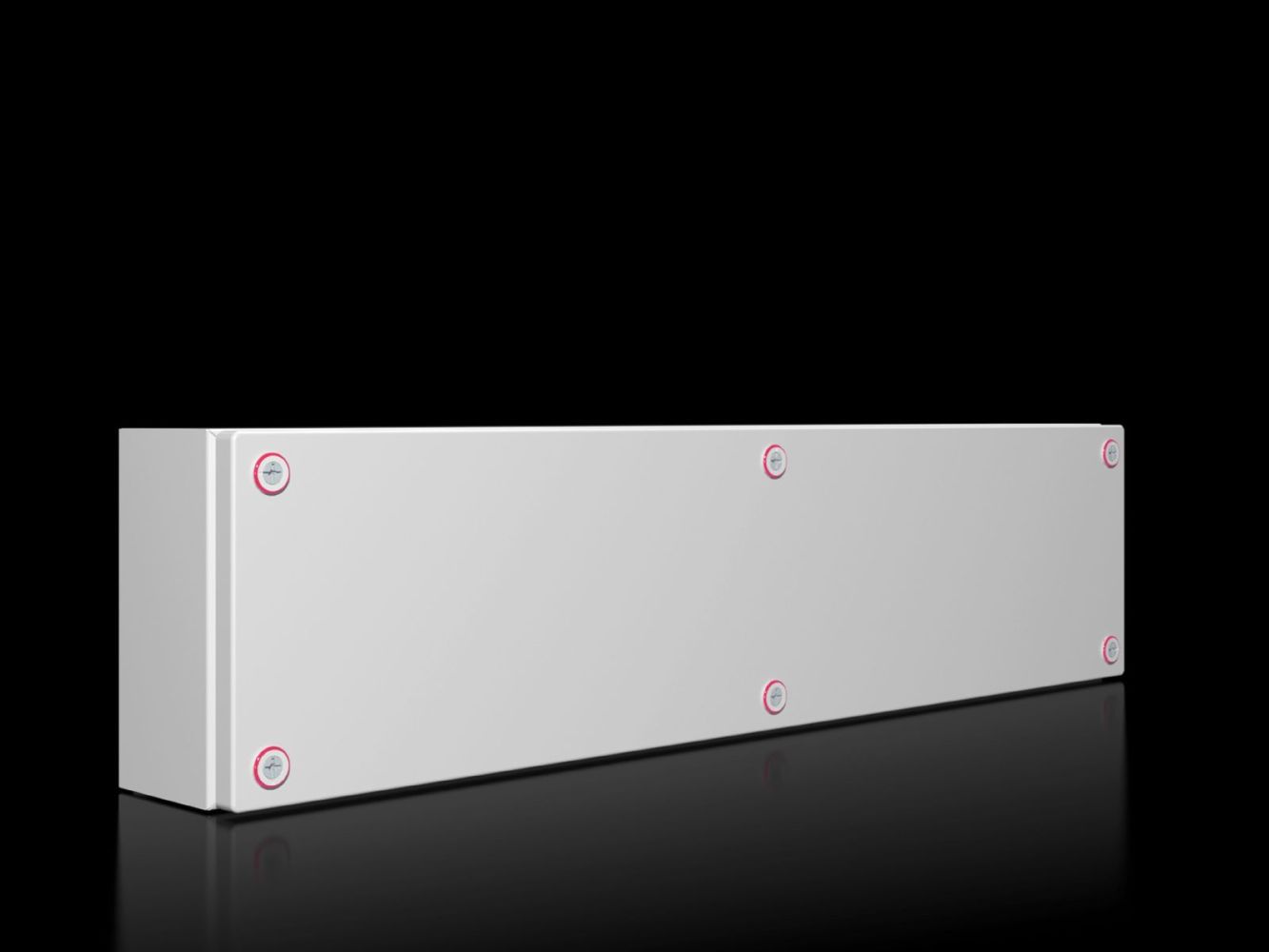

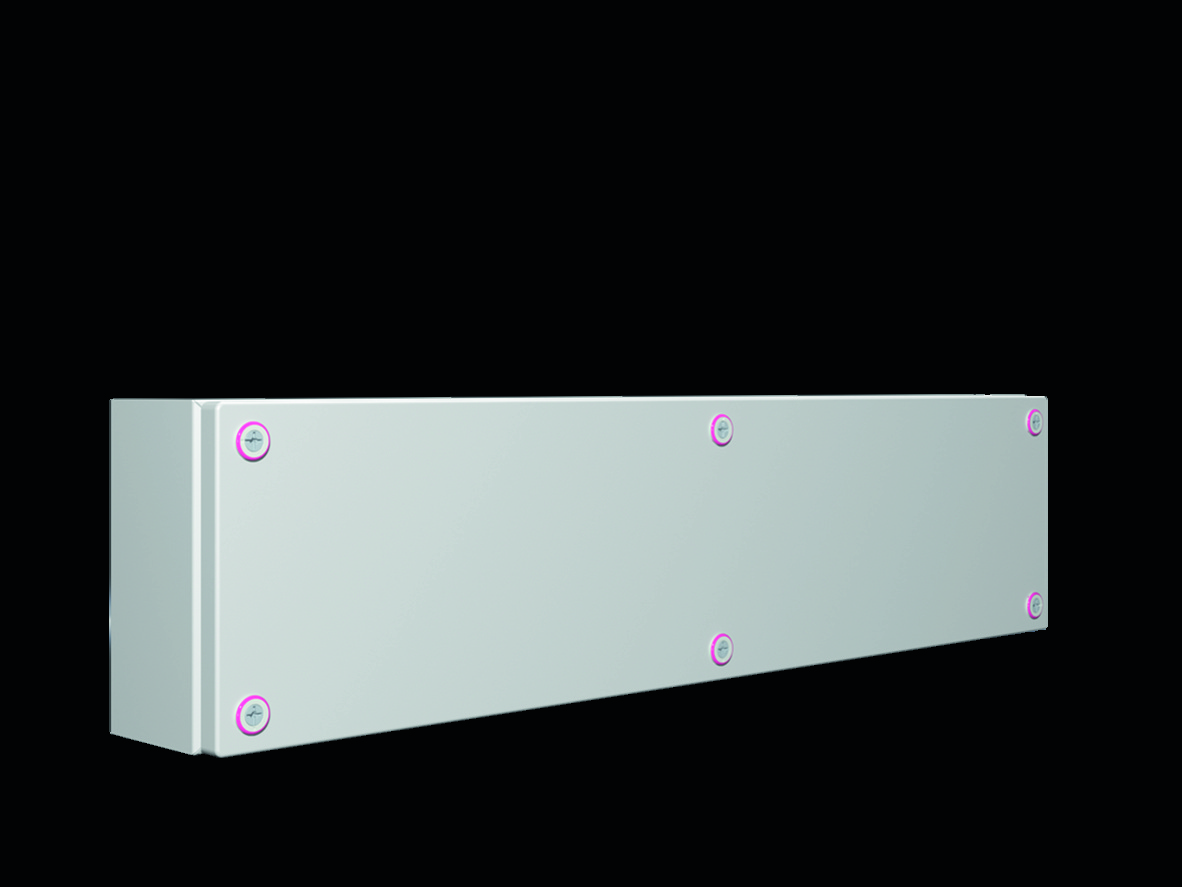

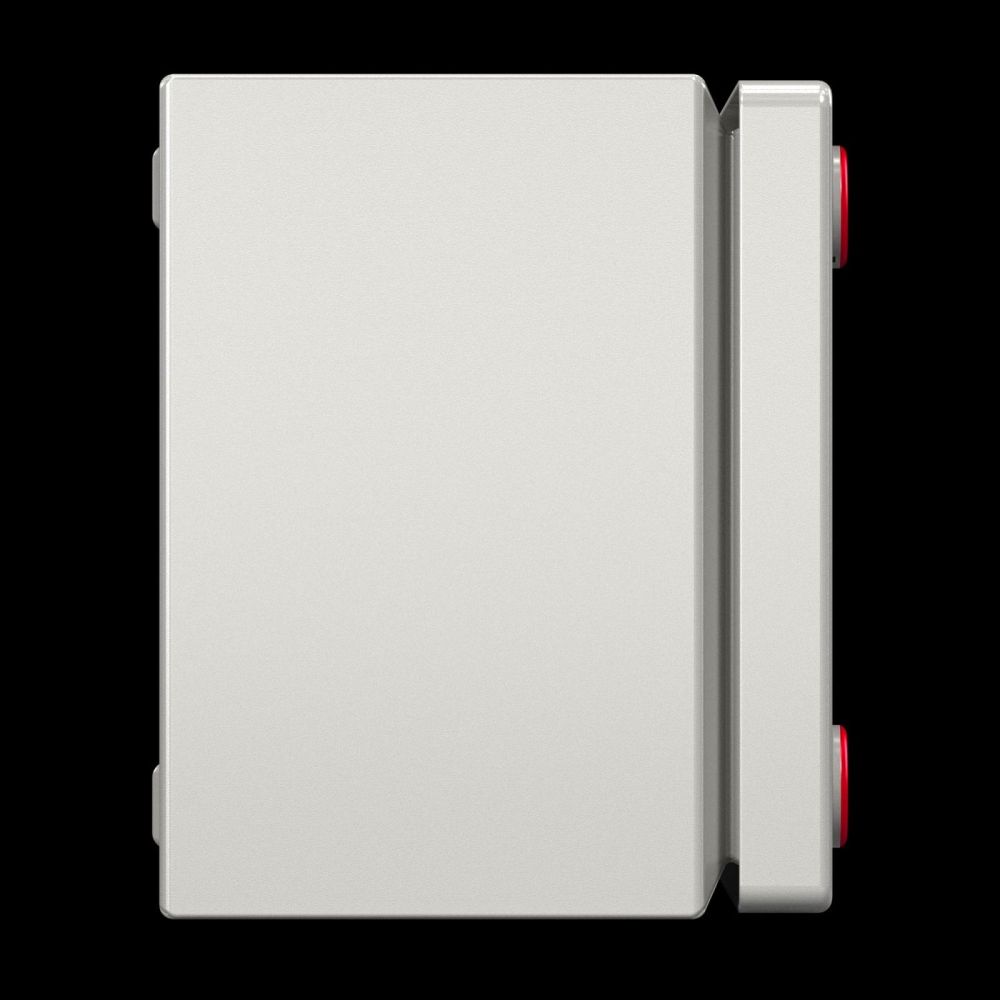

Rittal 1527000 terminal box KX, without gland plate 800x200x120 mm

Your rating:
Average rating
product review for Rittal 1527000 terminal box KX, without gland plate 800x200x120 mm
( 4.7 / 5 ) 3 ratings
Rittal 1527000
This image may differ from the desired article.
Rittal 1527000Rittal 1527000Rittal 1527000Rittal 1527000Rittal 1527000Rittal 1527000Rittal 1527000
-10% 70,38 EUR 78,50 EUR
( 83,75 EUR incl. VAT )
≈ £58.91  |  ≈ $77.35
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 1527000 terminal box KX, without gland plate 800x200x120 mm
Datasheet:file_download Download
Lieske Part No.:1598153
Mfg Part No: 1527000
UPC/EAN: 4028177816336
Weight:6.454 kg
Type:KX 1527000

Product information for Rittal 1527000:

The KX terminal box from Rittal, type 1527000, is a robust small housing made of sheet steel, designed for use in industrial plants where high protection rating and flexible internal equipment are required. The housing has dimensions of 800 mm width, 200 mm height and 120 mm depth and is delivered without mounting plate and without gland plate. It features a lid with a continuously foamed PU sealing, ensuring a tight seal. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, providing high resistance against corrosion and chemical influences such as mineral oils, lubricants, machining emulsions and solvents. The material thickness is 1.25 mm for both the housing and the lid, enabling a stable construction.

Applications

The KX terminal box is suitable for use in industrial environments, particularly where high mechanical and environmental protection classes are required. It is suitable for indoor and outdoor use, as it meets the protection rating IP 66 according to EN 60 529, meaning dust-tight and water-tight. The protection ratings NEMA 1, NEMA 3R, NEMA 4 and NEMA 12 as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12) make it suitable for various applications in manufacturing, power supply and automation technology. The IK08 rating protects the housing against mechanical impacts, such as blows or vibrations.

Functions and equipment in detail

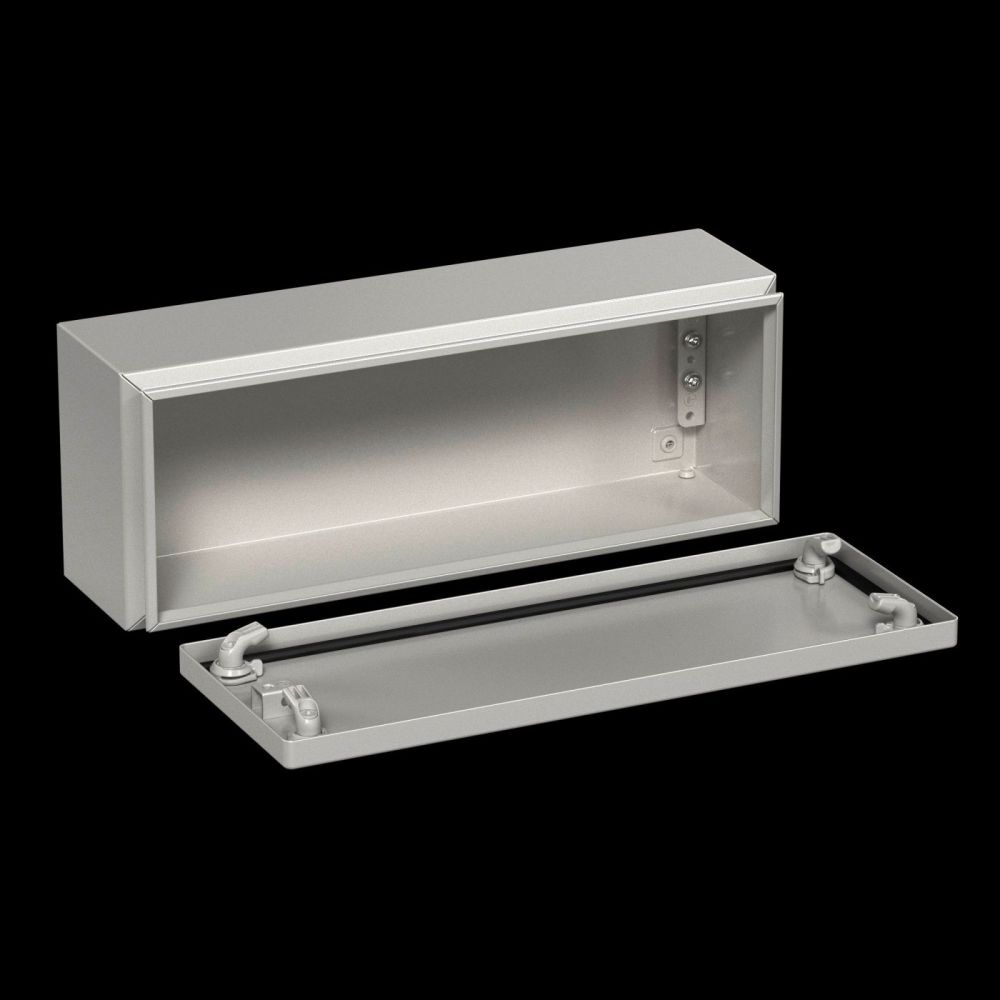

The housing is formed and welded in one piece, creating a stable and tight construction. At the lid opening, there is a continuous protective channel providing additional protection. The rear wall is equipped with knockouts for mounting wall brackets. The lid is fitted with a foamed PU sealing, ensuring a tight seal. Integrated within the housing and via a U-bracket in the lid is a protective conductor connection, enabling quick and easy earthing. Mounting is done using mini-quick-release fasteners, ensuring secure and rapid installation. A QR code is printed on the housing, lid and type plate, enabling unique identification and easy access to relevant product information as well as traceability of individual parts.

Technology explained simply

The triple surface treatment – consisting of nanoceramic coating, electrophoretic dip priming and an external powder coating in RAL 7035 textured finish – ensures high corrosion protection and resistance against aggressive chemicals. The protection rating IP 66 means the housing is dust-tight and protected against water jets from all directions, making it suitable for outdoor use. The IK08 rating protects the housing against mechanical impacts, such as blows with a tool or vibrations. The material thickness of 1.25 mm ensures high mechanical stability.

Compatibility and accessories

The housing can be extended with various accessories to meet specific requirements. These include mounting clips for support rails, plug-throughs, pressure equalization plugs, mounting angles, condensate drains, baying sets for AX, KX, AE, KL, drill screws, mounting brackets, spacing angles for shock protection covers, lid hinges, mounting plates, mounting claws for a second mounting level and wall mounting brackets. These components enable flexible and application-specific mounting and integration into existing systems.

Mounting and installation

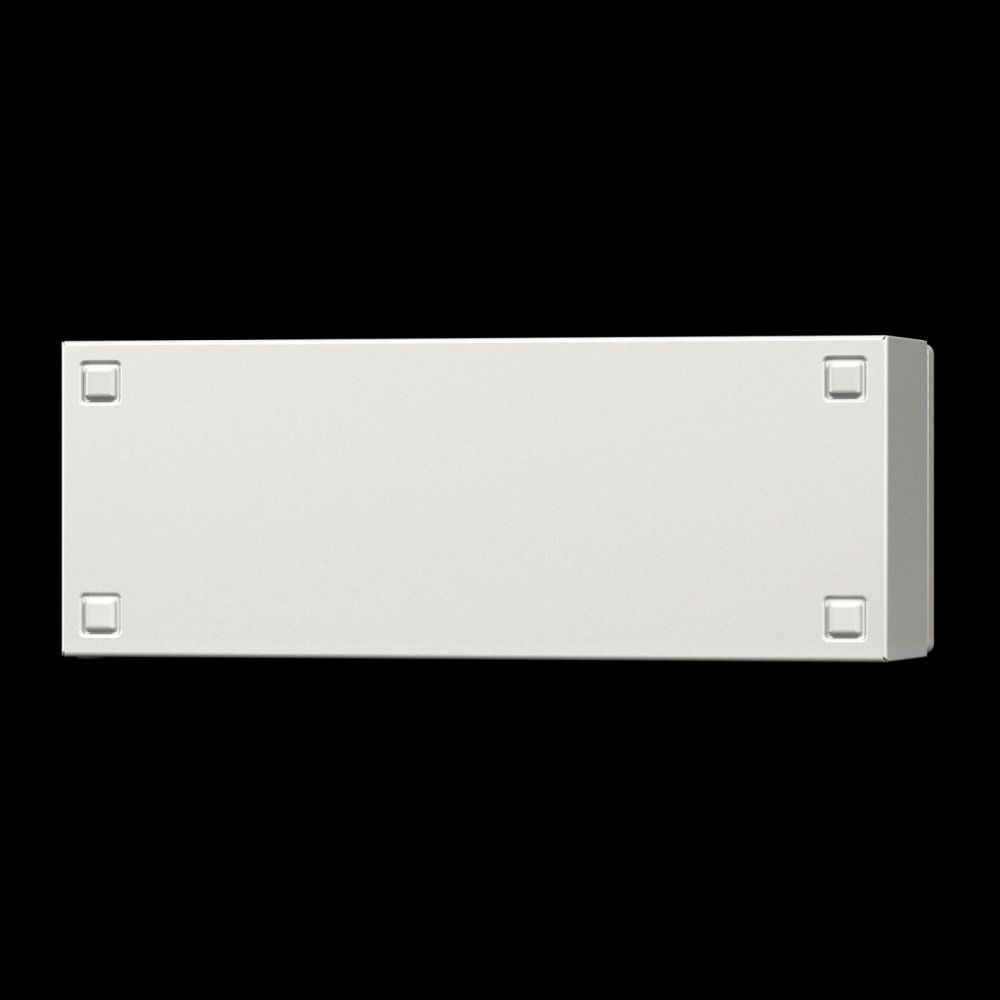

Mounting is done via the designated knockouts on the rear wall, designed for wall mounting brackets. Fastening is done using mini-quick-release fasteners, enabling secure and rapid installation. The use of mounting plates, mounting brackets or wall mounting brackets allows flexible installation on various substrates. The integrated protective conductor connections facilitate earthing and ensure a safe electrical connection.

Advantages in operation

The KX terminal box offers a high protection rating, ensuring safe and reliable operation in demanding environments. The robust construction from sheet steel with a material thickness of 1.25 mm ensures a long service life. The integrated protective conductor connections and quick mounting via mini-quick-release fasteners reduce installation time. The QR codes on the housing, lid and type plate enable easy identification and documentation, simplifying maintenance and traceability. Compatibility with various accessories allows flexible adaptation to specific requirements.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width800 mm
Height200 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)39.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1527000, EAN: 4028177816336
