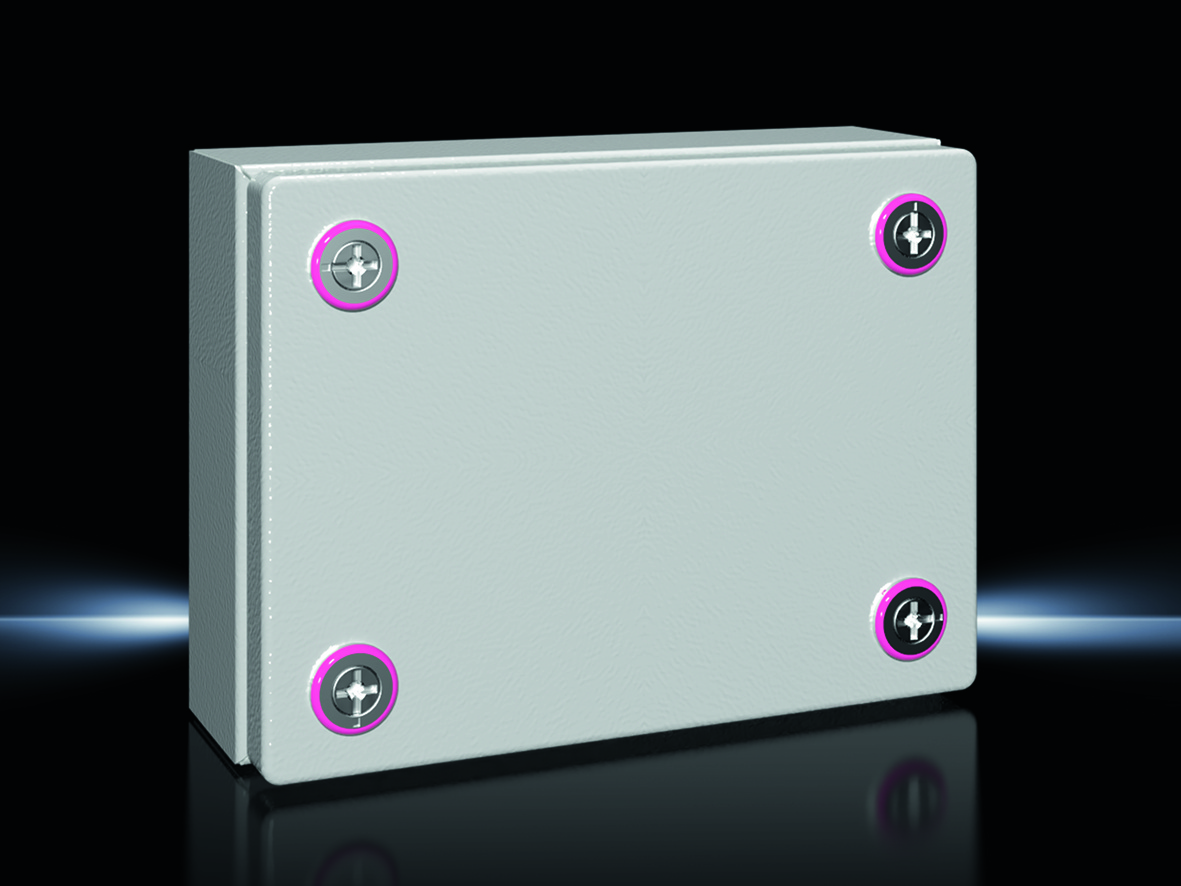

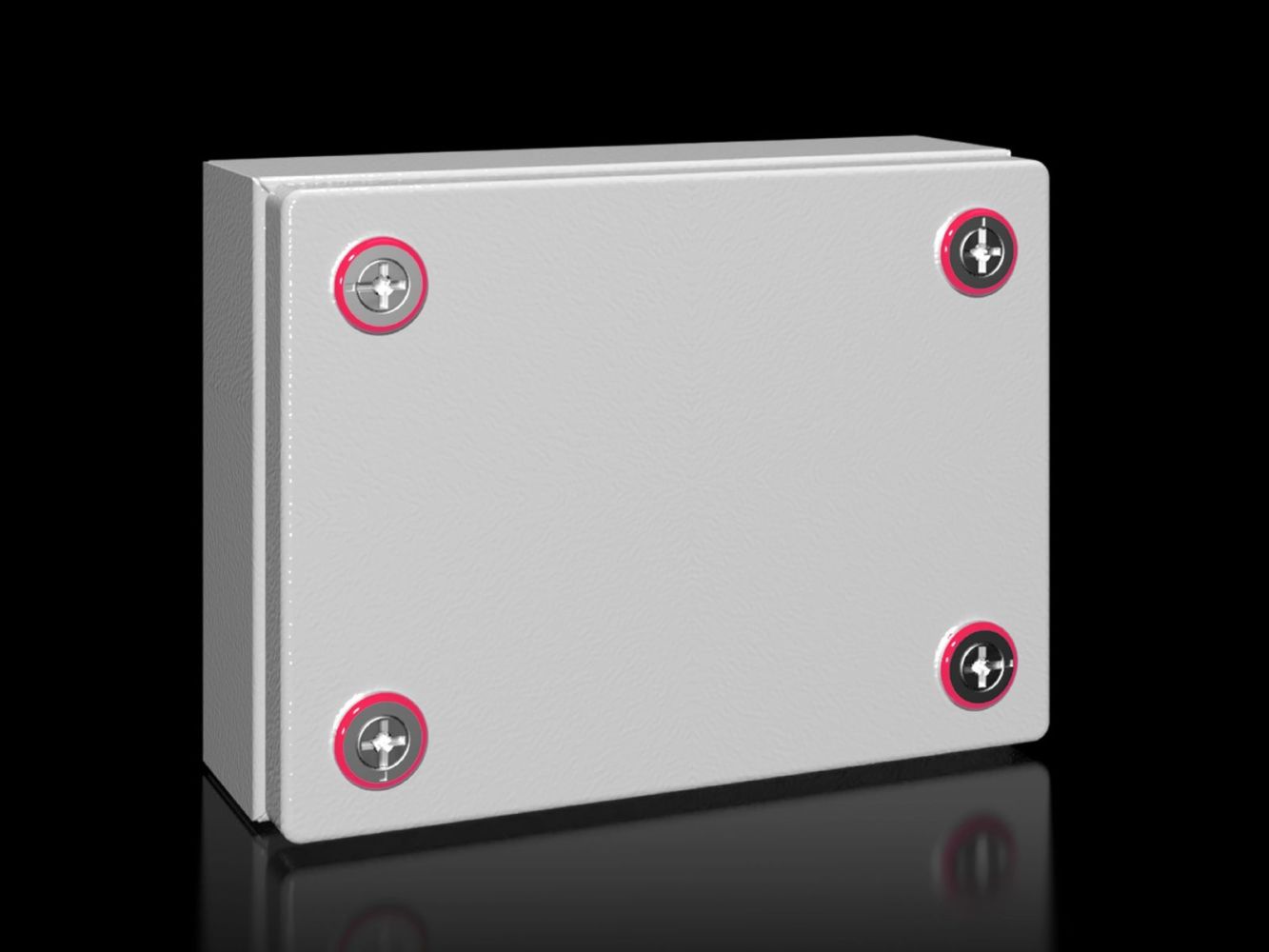

Rittal 1528000 terminal box KX, without gland plate, 200x150x80 mm
|
29,79 EUR 29,81 EUR |
|
|
( 35,45 EUR incl. VAT ) ≈ £24.93 | ≈ $32.74 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598165 |
| Mfg Part No: | 1528000 |
| UPC/EAN: | 4028177816343 |
| Weight: | 1.425 kg |
| Type: | KX 1528000 |
Product information for Rittal 1528000:
Applications
This terminal box is designed for use in industrial plants, machine building, manufacturing technology, and electrical installations. Its high degree of protection makes it suitable for outdoor use, humid rooms, or environments with splashing water, dust, or slight mechanical stress. It can be installed, for example, on machines, in enclosures, or at wall mounting points.
Functions and Equipment in Detail
The housing is made of sheet steel with a material thickness of 1.25 mm for both the body and the lid. The surface is dip-primed and externally powder-coated with a textured lacquer in the color RAL 7035, ensuring high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The lid is fitted with a continuous foamed PU seal, ensuring a tight seal. The delivery includes the housing with lid and a mini-latch lock, enabling secure and quick locking.
Technical Explanation
The protection rating IP 66 according to EN 60 529 means that the housing is dust-tight and protected against strong splashing water from all directions, making it suitable for outdoor use as well. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type ratings according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm its suitability for various industrial environments, including humid or dusty rooms. The IK code IK08 indicates that the housing is protected against mechanical impacts such as shocks or vibrations with an energy of up to 2 J. The rear wall of the housing features knockouts for wall mounting brackets, enabling flexible installation.
Compatibility and Accessories
Various accessories are available to extend and adapt the terminal box, including mounting clips for support rails, plug-throughs, support rails (TH 35/7.5/TS 35/15), pressure equalization plugs, mounting brackets, condensate drains, earthing straps, drilling screws, mounting brackets, lid hinges, mounting claws for a second mounting plane, and wall mounting brackets. These components allow for individual adaptation to specific mounting and installation requirements.
Mounting and Installation
Mounting is done via the designated knockouts on the rear wall, designed for wall mounting brackets. Alternatively, mounting brackets or wall mounting brackets can be used. The use of support rails enables integration into existing enclosure systems. The seal ensures a tight closure, while the mini-latch lock provides secure locking.
Operational Advantages
The KX 1528000 offers a robust, weather-resistant, and dust-tight cover for electrical components. The powder-coated surface in RAL 7035 ensures long service life and resistance to environmental influences. Integrated earthing via U-brackets in the lid and housing enables quick and secure earthing. The single-piece construction from sheet steel ensures high stability. The QR code on the body, lid, and type plate enables unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: steel sheet, cover: steel sheet, continuously foamed PU seal |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | housing with cover, mini-quick-release latch |
| Width | 200 mm |
| Height | 150 mm |
| Depth | 80 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 24.85 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 1528000 terminal box KX, without gland plate, 200x150x80 mm?
The article Rittal 1528000 terminal box KX, without gland plate, 200x150x80 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1528000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1528000 terminal box KX, without gland plate, 200x150x80 mm always at the best possible price. We can give you a discount of 2% on Rittal 1528000 terminal box KX, without gland plate, 200x150x80 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
