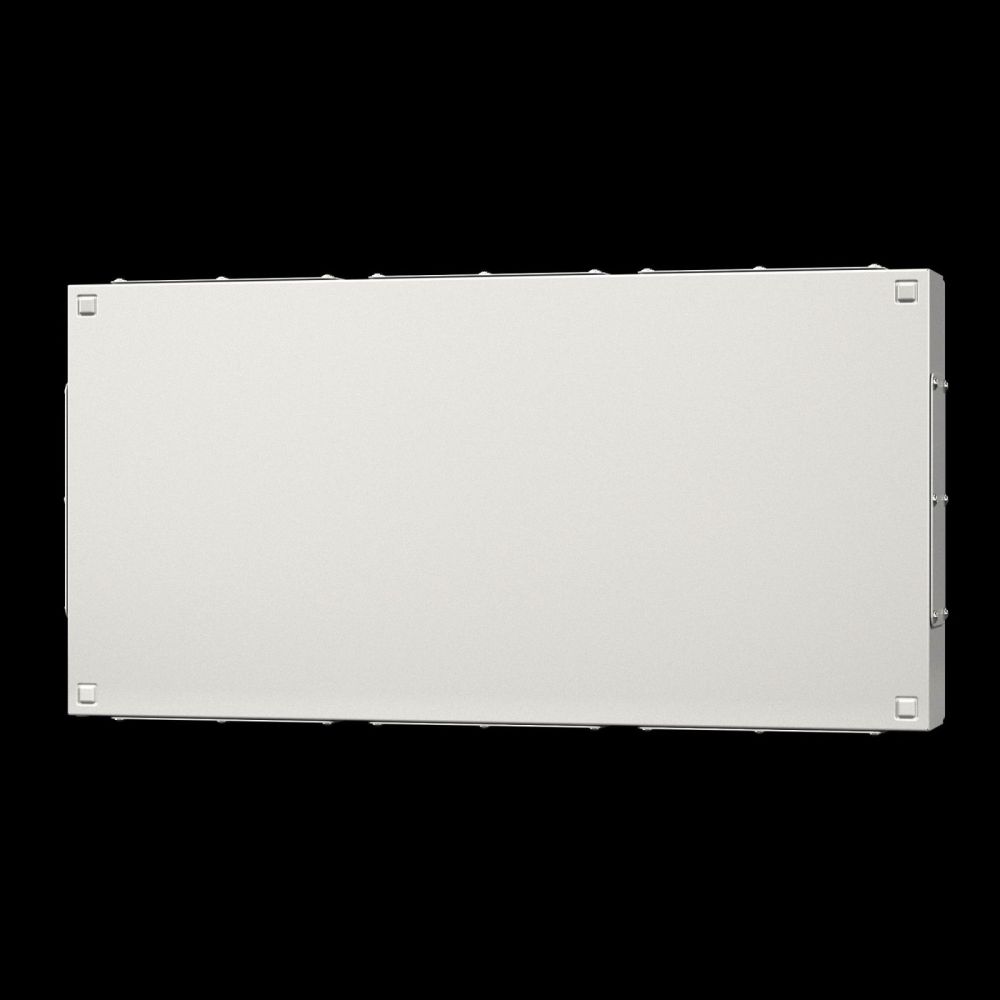

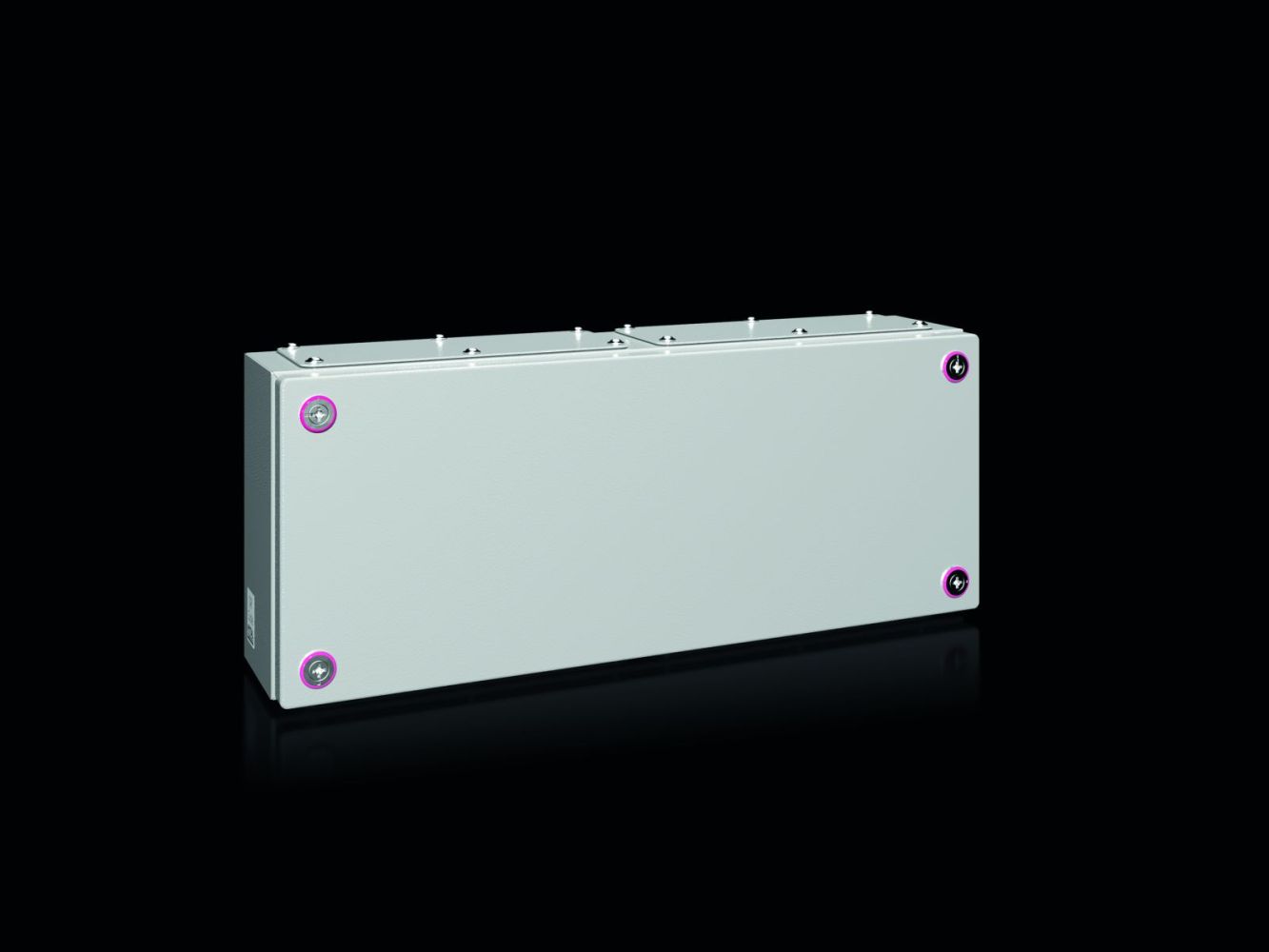

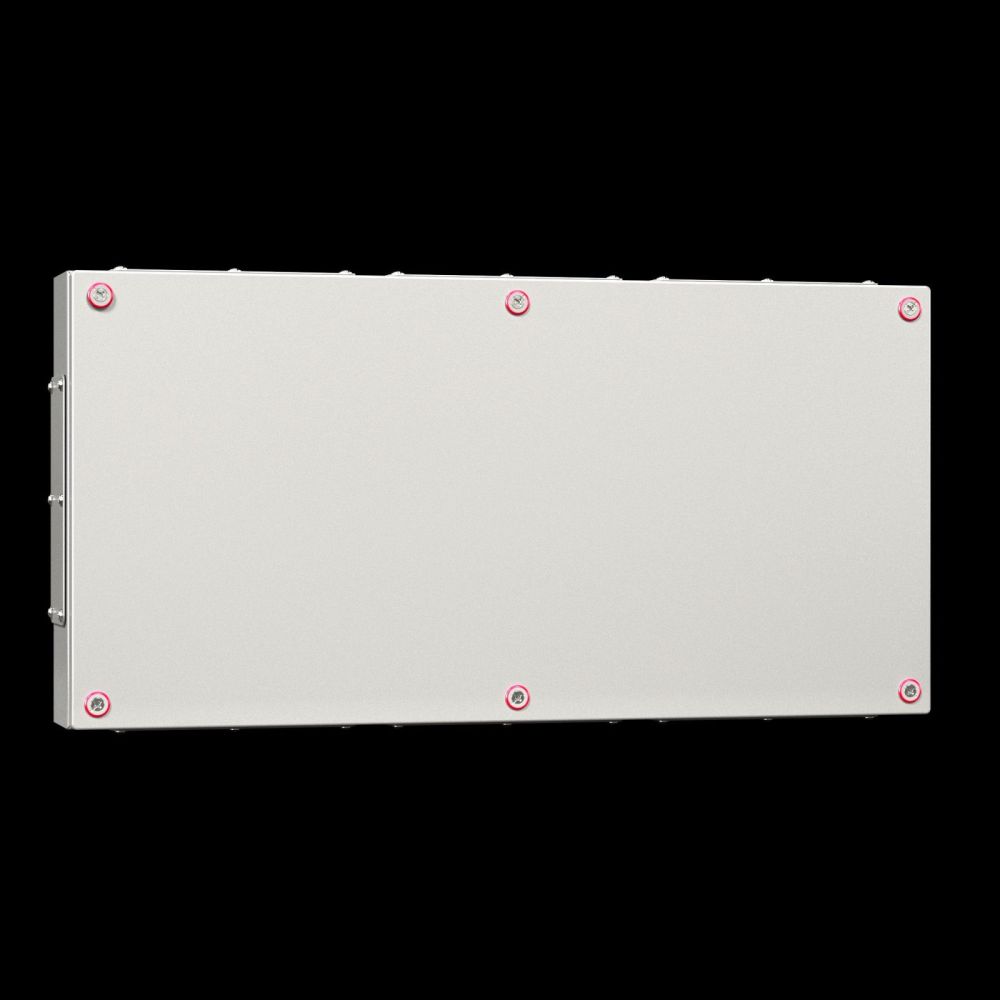

Rittal 1533000 terminal box KX, with gland plate, 500x200x120 mm
|
60,03 EUR 62,19 EUR |
|
|
( 71,44 EUR incl. VAT ) ≈ £50.25 | ≈ $65.97 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598160 |
| Mfg Part No: | 1533000 |
| UPC/EAN: | 4028177816398 |
| Weight: | 4.891 kg |
| Type: | KX 1533000 |
Product information for Rittal 1533000:
Applications
This terminal box is suitable for use in production plants, machine building, automation technology and other industrial environments where a compact, impact-resistant and dust- and splash-water-protected enclosure for electrical components is required. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water from any direction, making it suitable for outdoor use or humid indoor areas. The NEMA classification includes NEMA 1 and NEMA 12, allowing use in dry indoor environments as well as in environments with slight contamination risk. The IK code IK08 guarantees protection against mechanical impacts, such as blows with a tool, making the housing suitable for applications in industrial operating environments.
Functions and Equipment in Detail

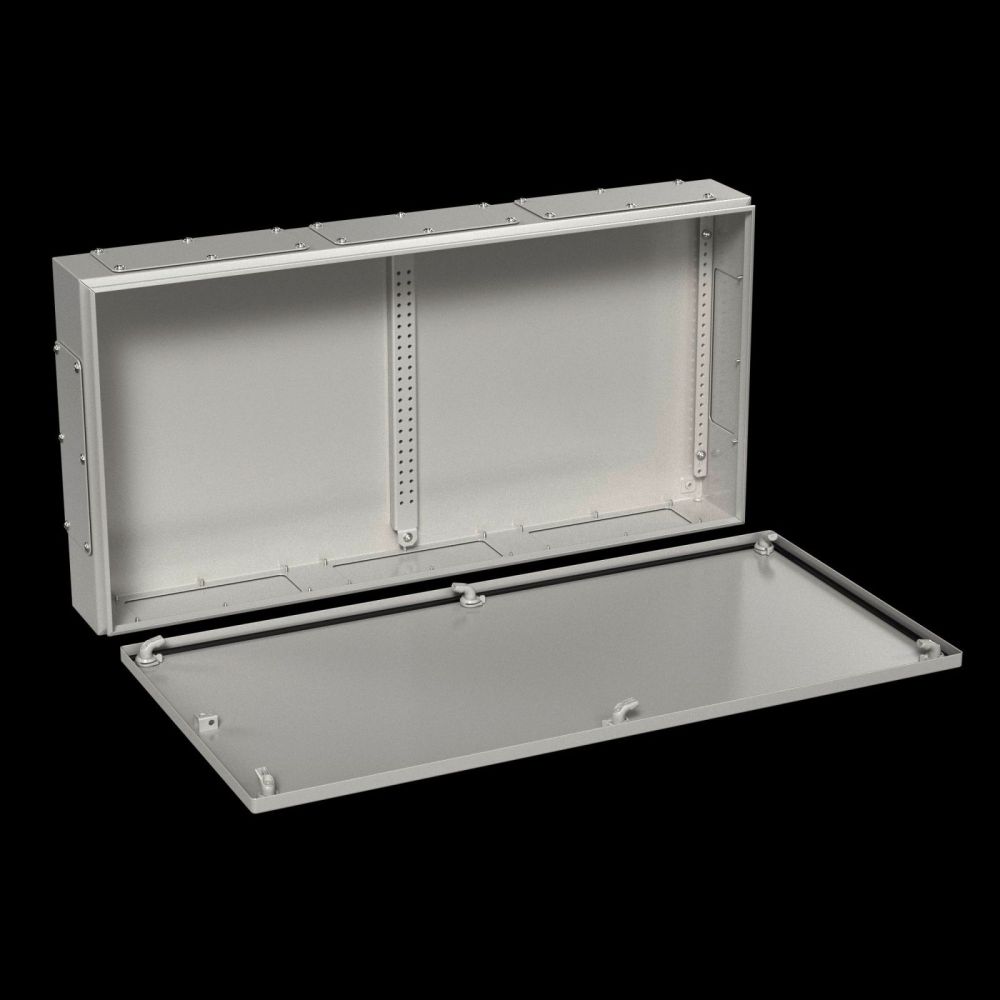

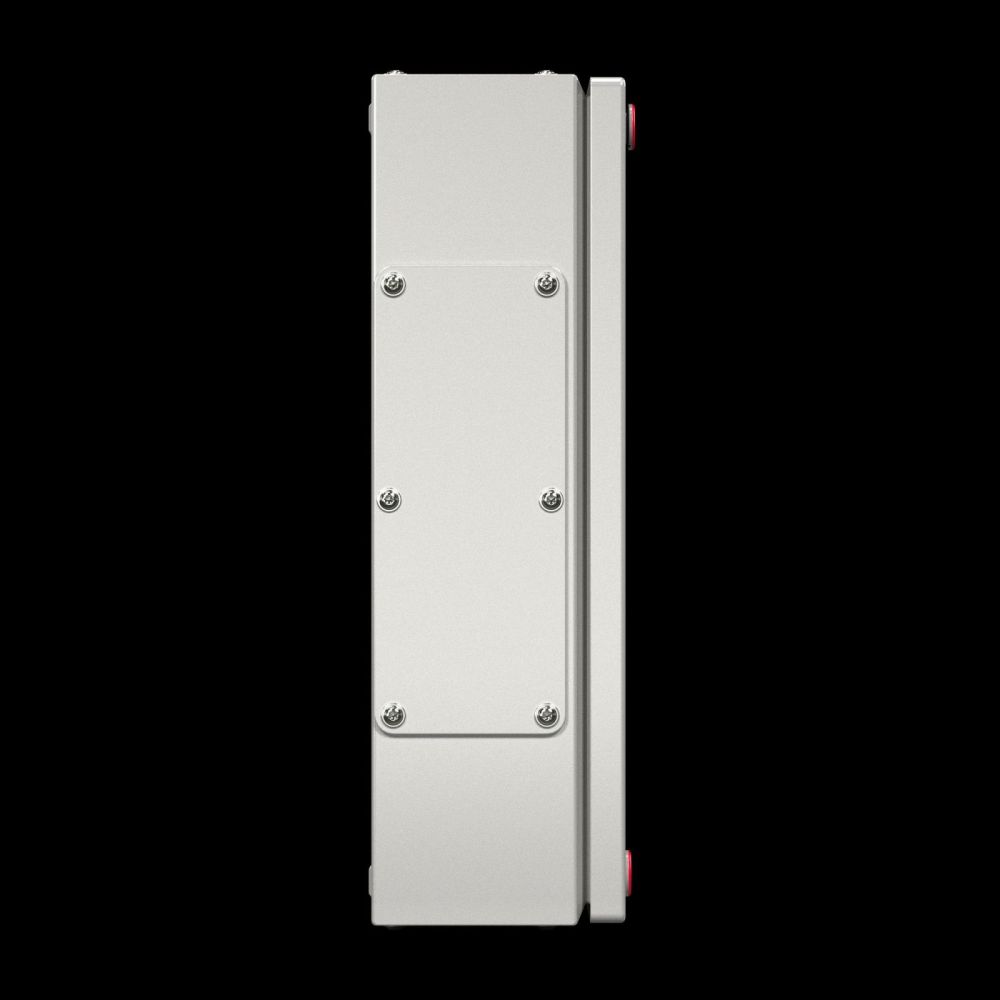

The housing is fitted with a continuous foamed PU seal, ensuring a tight seal between housing and lid. Fastening is achieved via mini-latch locks, enabling quick and secure locking. The integrated sheet steel gland plates at the bottom and top edge of the housing (two each) allow easy mounting on walls or other structures. The rear wall of the housing features pass-throughs for mounting wall brackets. An earth conductor connection inside the housing and via a U-bracket in the lid enables quick and secure earthing.
Technology Explained Simply
The triple surface treatment – consisting of nanoceramic coating, electrophoretic dip priming and powder-coated textured lacquer – ensures high resistance against corrosion and chemical influences. The protection rating IP 55 means the housing is dust-tight and protected against splashing water from any direction, making it suitable for industrial applications with increased contamination or moisture risk. The NEMA classification NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry indoor environments and environments with slight contamination. The IK code IK08 guarantees protection against mechanical impacts, such as blows with a tool.
Compatibility and Accessories
The terminal box is compatible with various accessories that allow individual adaptation to specific requirements. These include mounting clips for support rails, plug-throughs (e.g. SZ 2400500), pressure equalization plugs M12x1.5, mounting angles, condensate drains, baying sets for AX, KX, AE, KL, drill screws type ST 4.8 L9.5 mm, mounting brackets, spacing angles for shock protection covers, zinc die-cast lid hinges, mast mounting fixtures, mounting plates, mounting claws for a second mounting plane, and wall mounting brackets. These components allow flexible and modular integration into existing systems.
Mounting and Installation
Mounting is done via the integrated gland plates at the bottom and top of the housing, supplied with fastening material. The gland plates allow secure fastening to walls or other structures. The rear wall of the housing features pass-throughs for wall mounting brackets, providing an additional mounting option. The mini-latch locks ensure quick and secure locking of the lid.
Operational Advantages
The KX terminal box offers optimal space utilization due to its compact design and allows flexible internal equipment. The integrated gland plates and robust sheet steel construction ensure easy and secure mounting. The high protection rating IP 55 and IK code IK08 guarantee reliable performance in demanding industrial environments. The surface treatment ensures long service life and resistance against aggressive environmental conditions. A QR code on the housing, lid and type plate enables unique identification and easy access to relevant product information as well as traceability of individual parts.
| General | |
| Material | Housing: steel sheet, cover: steel sheet, continuously foamed PU seal |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with cover, mini-recessed latches, steel sheet flange plates with seals and mounting hardware |
| Width | 500 mm |
| Height | 200 mm |
| Depth | 120 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Flange plates | Flange plate (top + bottom) quantity: 2 + 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 35.62 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
