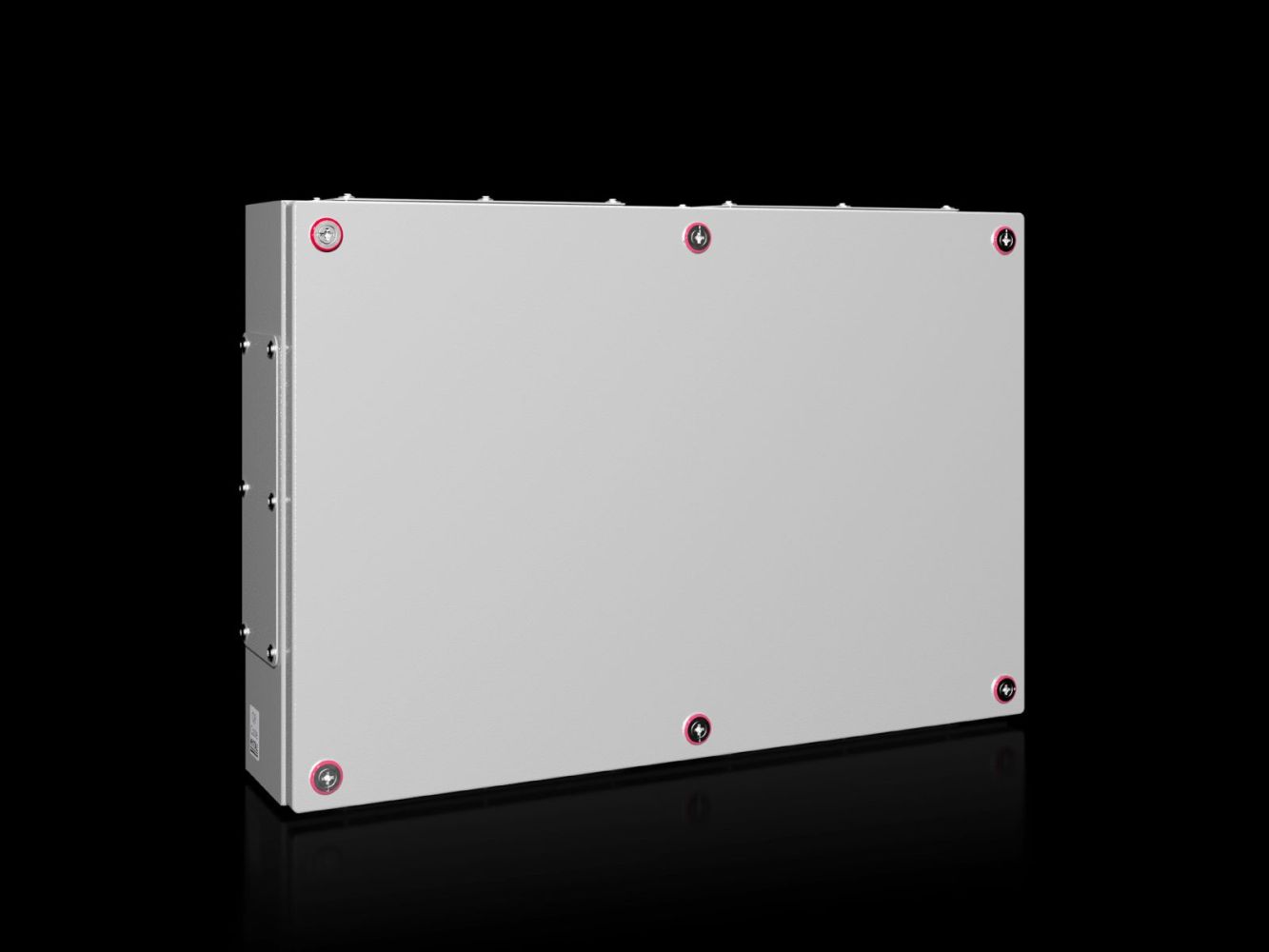

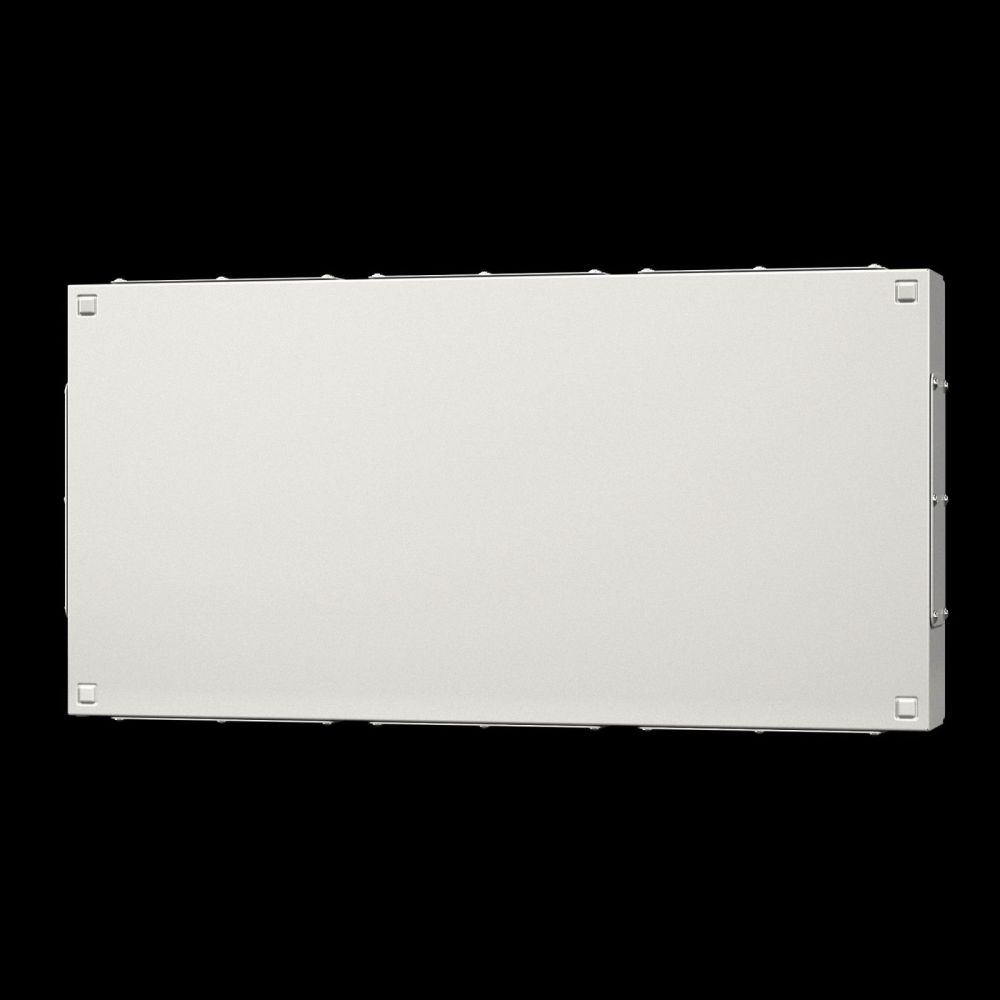

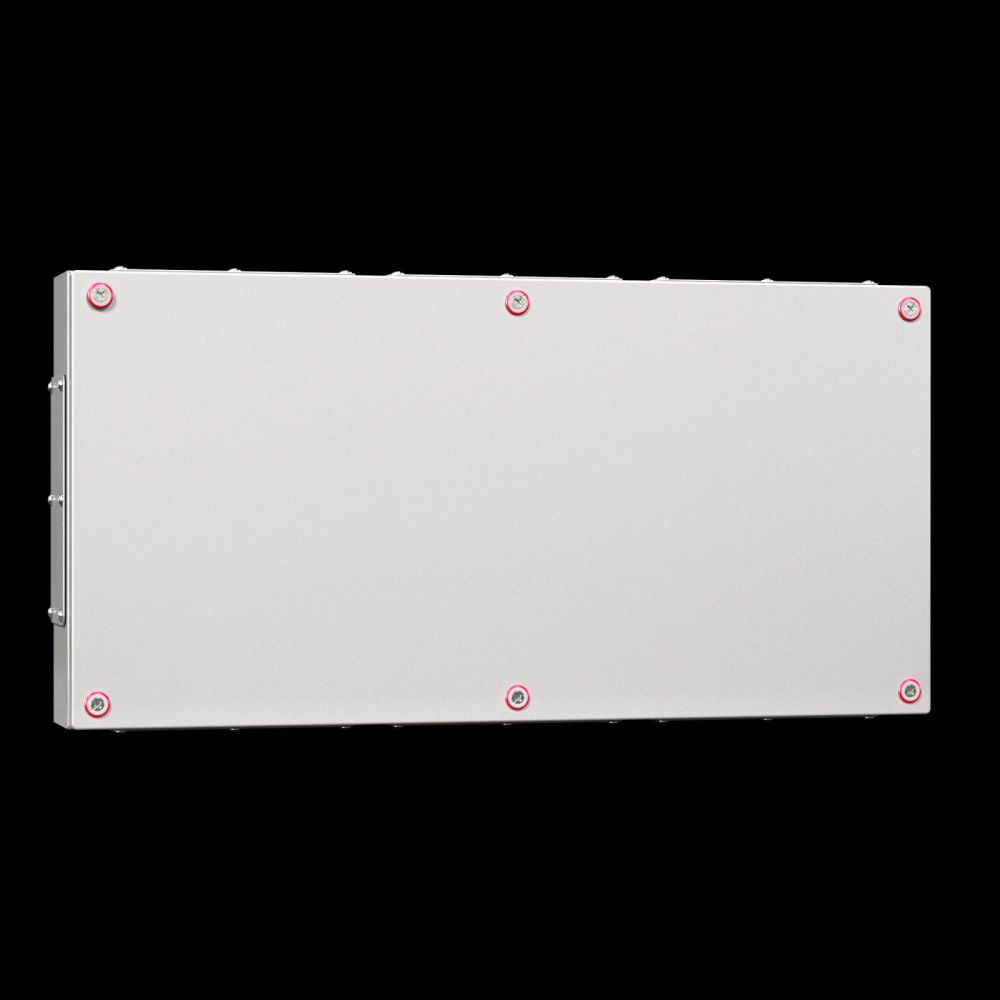

Rittal 1540000 terminal box KX, with gland plate, 600x400x120 mm

Your rating:
Average rating
product review for Rittal 1540000 terminal box KX, with gland plate, 600x400x120 mm
( 4.3 / 5 ) 7 ratings
Rittal 1540000
This image may differ from the desired article.
Rittal 1540000Rittal 1540000Rittal 1540000Rittal 1540000Rittal 1540000Rittal 1540000
83,38 EUR
( 99,22 EUR incl. VAT )
≈ £69.79  |  ≈ $91.63
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1540000 terminal box KX, with gland plate, 600x400x120 mm
Datasheet:file_download Download
Lieske Part No.:1598239
Mfg Part No: 1540000
UPC/EAN: 4028177816459
Weight:8.7 kg
Type:KX 1540000

Product information for Rittal 1540000:

The Rittal KX 1540000 is an industrial terminal box made of sheet steel, designed for use in electrical and electronic installations. With dimensions of width 600 mm, height 400 mm, and depth 120 mm, it offers a compact yet functional installation space for mounting terminals, connectors, or small switching devices. The enclosure is formed and welded in one piece, creating a stable construction suitable for industrial environments. The surface is dip-primed, powder-coated externally, and finished with a textured lacquer in RAL 7035, ensuring high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents.

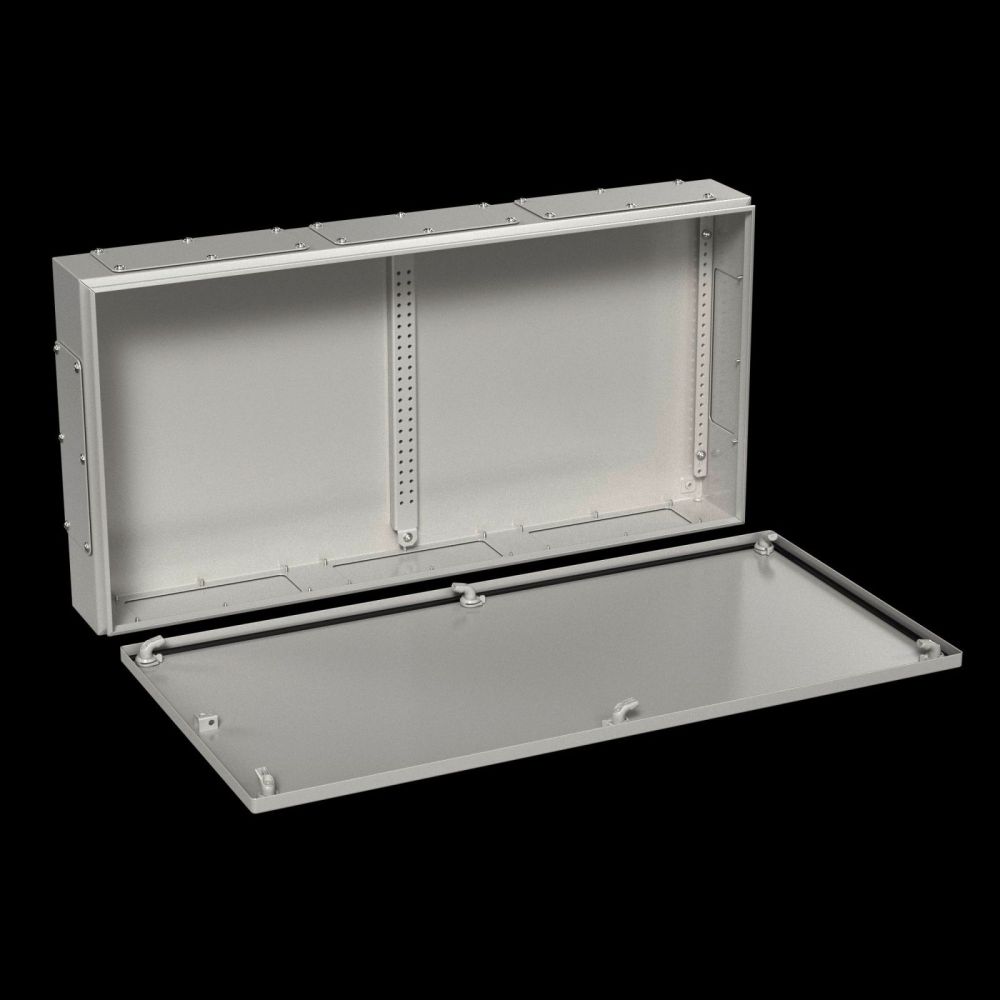

Small housing with integrated flange enables flexible internal fitting and simple cable entry. The continuously foamed PU sealing ensures a tight seal between the enclosure and the lid. The lid is equipped with mini-latch locks, providing secure and quick locking. The material thickness of 1.25 mm for both the enclosure and lid ensures sufficient mechanical stability. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, enabling use in indoor environments and slightly damp conditions. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for industrial applications in dry and damp indoor areas. The IK code IK08 provides protection against mechanical impacts, such as blows from a tool.

Flange plates are integrated on the sides and along the upper and lower edges of the enclosure, allowing for simple and secure mounting to walls or other structures. The flange plates are equipped with seals and mounting hardware, enabling direct mounting without additional components. The rear wall of the enclosure features knockouts suitable for mounting wall brackets. Earthing is achieved via a protective conductor connection in the enclosure and a U-bracket in the lid, enabling quick and reliable earthing.

Accessories and compatibility include various expansion options, such as mounting clips for support rails, plug-throughs, pressure equalization plugs, mounting angles, condensate drains, baying sets, drill screws, mounting brackets, spacing angles, lid hinges, mast mounting fixtures, mounting plates, earthing straps, mounting claws for a second mounting plane, and wall mounting brackets. These components allow for individual adaptation of the terminal box to specific requirements and installation situations.

Mounting and installation are performed using the integrated flange plates and wall mounting brackets on the rear wall. Cable entry is achieved through the flange plates, with additional cable entries or plug-throughs optionally available. The surface is marked with a QR code printed on the enclosure, lid, and nameplate, enabling unique identification and easy access to product information and documentation.

Operational benefits include robust construction, easy mounting, and high protection rating. The enclosure is designed for industrial environments where high mechanical and chemical resistance is required. The integrated flange plates and mounting options on the rear wall enable flexible and quick installation. Earthing via U-bracket and protective conductor connection ensures a safe electrical connection. The surface coating with nanoceramic, dip priming, and textured lacquer ensures long service life and resistance to environmental influences.

The KX 1540000 is thus a reliable and flexible small housing for use in electrical and electronic installations, impressing with its robust construction, high protection rating, and easy mounting. The integrated flange plates and the wide range of accessory components enable individual adaptation to specific requirements.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryEnclosure with cover, mini-recessed latches, steel sheet flange plates with seals and mounting hardware
Width600 mm
Height400 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Flange platesFlange plate (left + right) quantity: 1 + 1, flange plate (top + bottom) quantity: 2 + 2
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)47.45 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1540000, EAN: 4028177816459

Questions & answers

What is the delivery time of Rittal 1540000 terminal box KX, with gland plate, 600x400x120 mm?

The article Rittal 1540000 terminal box KX, with gland plate, 600x400x120 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1540000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1540000 terminal box KX, with gland plate, 600x400x120 mm always at the best possible price. We can give you a discount of 2% on Rittal 1540000 terminal box KX, with gland plate, 600x400x120 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
