Rittal 9791045 Outdoor enclosure CS wall-mounted enclosure, outside 630x780x380 mm

Your rating:
Average rating
product review for Rittal 9791045 Outdoor enclosure CS wall-mounted enclosure, outside 630x780x380 mm
( 4.4 / 5 ) 68 ratings
Rittal 9791045
This image may differ from the desired article.
Rittal 9791045Rittal 9791045Rittal 9791045Rittal 9791045Rittal 9791045Rittal 9791045
-8% 939,55 EUR 1.017,56 EUR
( 1.118,06 EUR incl. VAT )
≈ £786.40  |  ≈ $1,032.57
plus delivery charges: 235,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9791045 Outdoor enclosure CS wall-mounted enclosure, outside 630x780x380 mm
Datasheet:file_download Download
Lieske Part No.:956367
Mfg Part No: 9791045
UPC/EAN: 4028177193727
Weight:23.425 kg
Type:CS 9791045

Product information for Rittal 9791045:

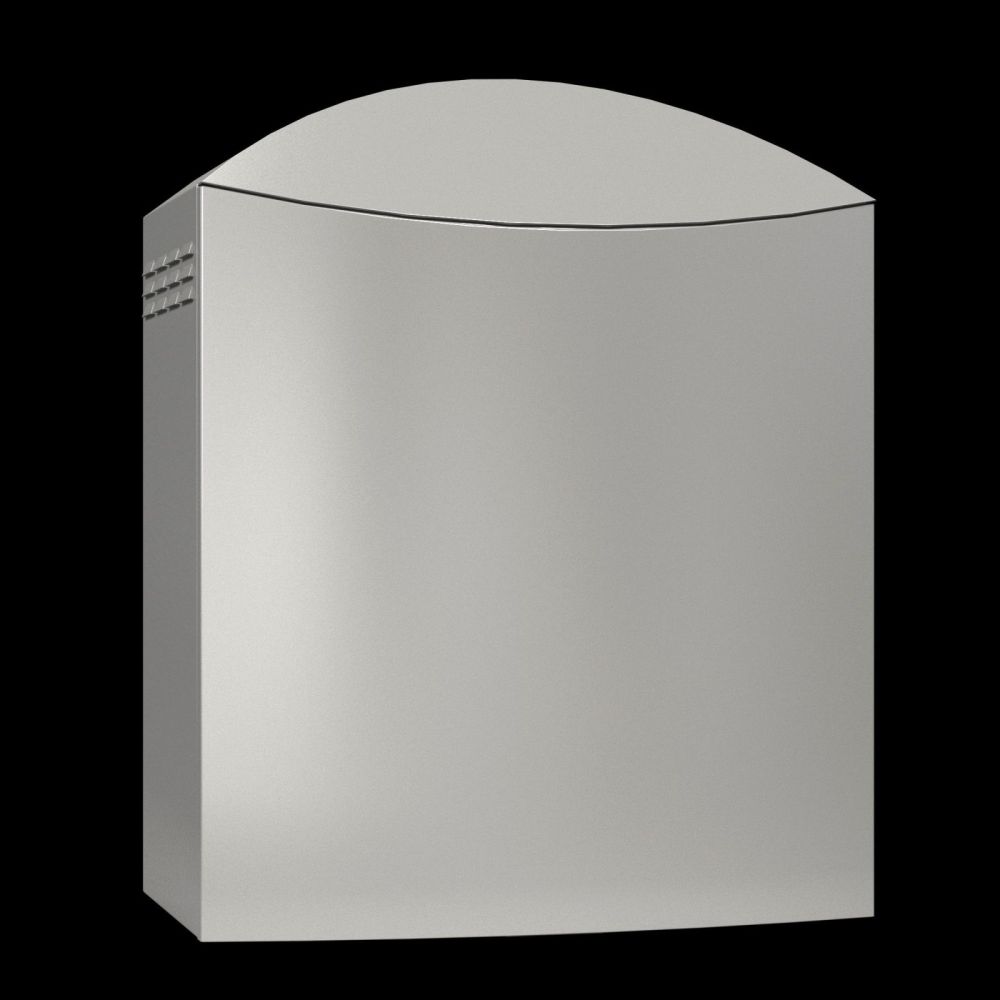

The Rittal outdoor enclosure CS 9791045 is a double-walled wall-mounted enclosure made of aluminium, designed for mounting on walls or poles in outdoor environments. It features a housing-in-housing concept, where an inner enclosure is integrated within an outer protective housing. The outer housing provides protection against environmental influences and is equipped with ventilation louvres on the rear wall and side walls, as well as a vent at the bottom, to ensure efficient ventilation. Dimensions are 630 mm width, 780 mm height, and 380 mm depth. The enclosure is powder-coated in RAL 7035, making it UV-resistant and suitable for outdoor use.

Applications
This enclosure is designed for use in industrial and technical installations outdoors, for example in energy supply, transportation infrastructure, or communication systems. The IP 55 protection rating according to IEC 60 529 ensures high protection against dust and splashing water, making it suitable for weather-exposed locations. The double-walled construction provides thermal separation between the interior and exterior, helping to maintain a stable internal temperature.

Functions and Equipment in Detail

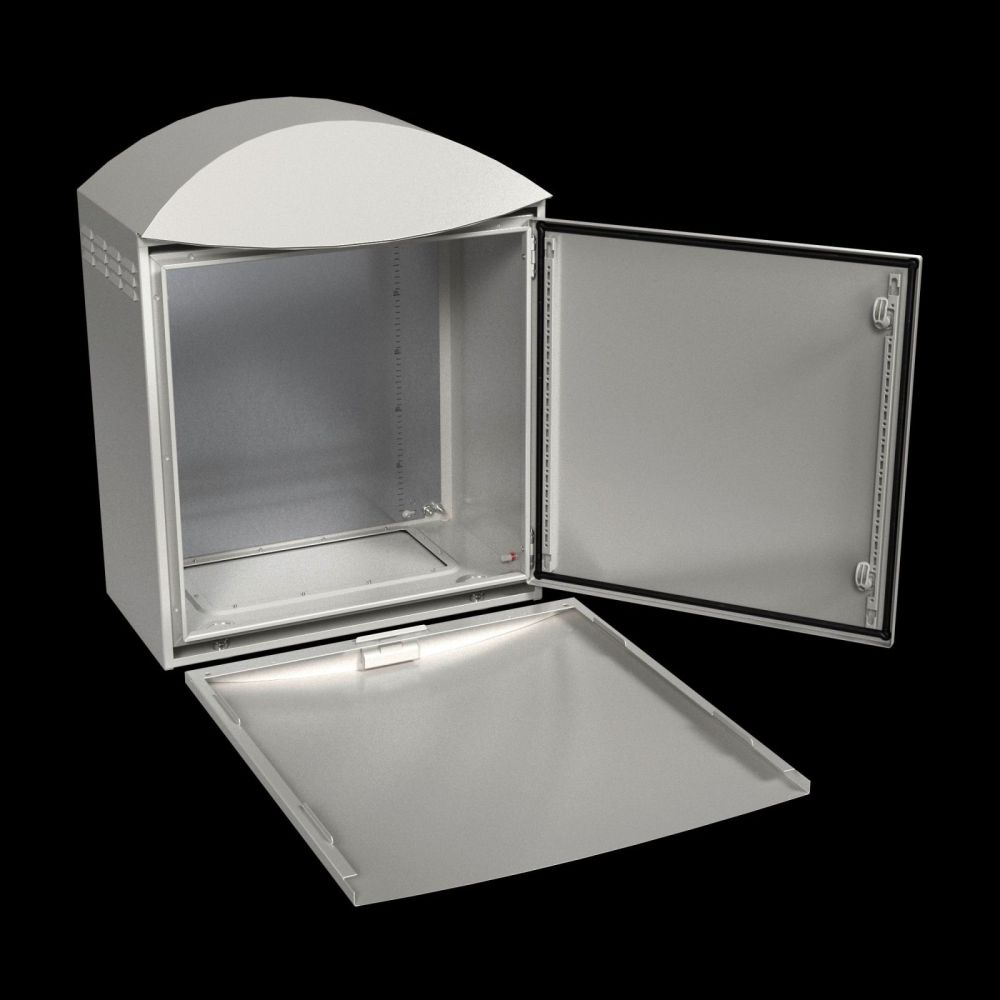

The inner enclosure consists of stainless steel 1.4301 (AISI 304) for the door and aluminium AIMg3 for the housing body. It is equipped with a mounting plate (550 mm × 550 mm) intended for securing components. Two C-profile rails are mounted on the rear wall, suitable for installing devices. A mounting bracket allows for the installation of an enclosure internal temperature regulator or a hygrostat. The inner enclosure door features a deadbolt lock combined with two safety latches to ensure secure access.

Technology Explained Simply

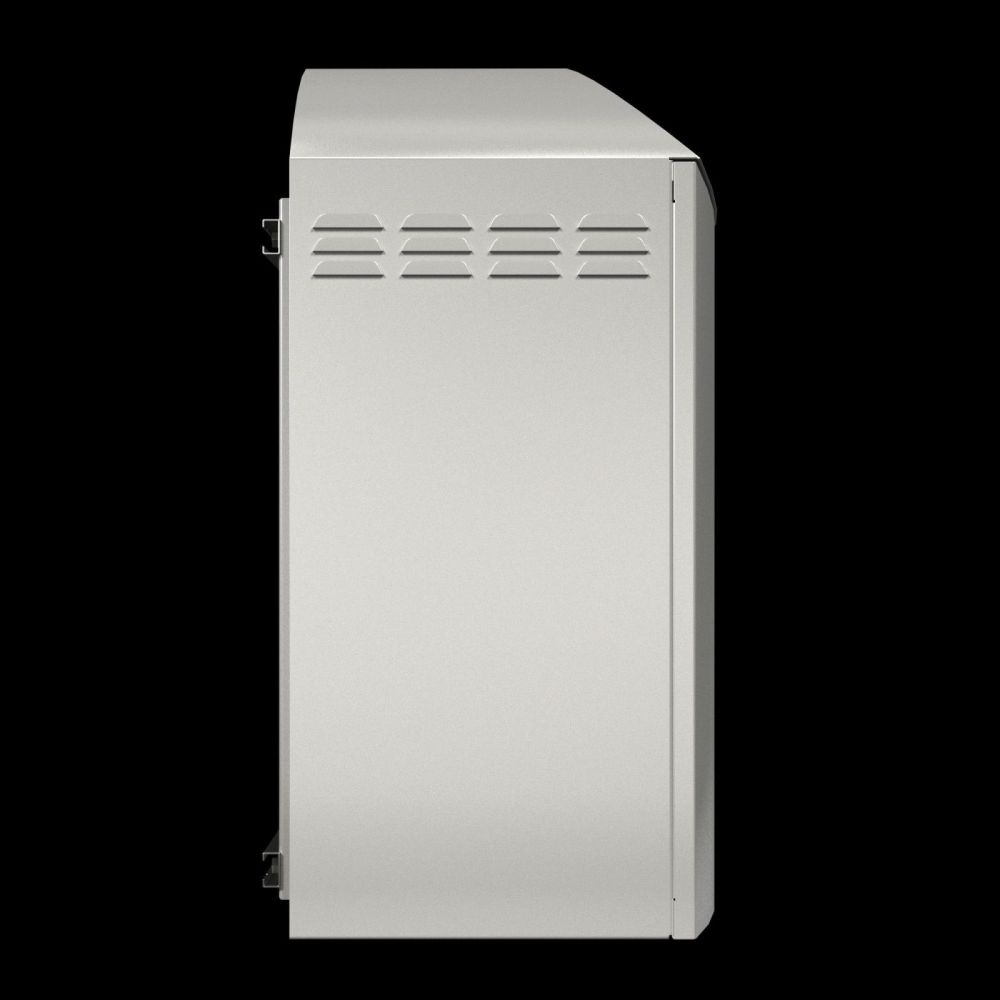

The housing-in-housing concept ensures that sensitive electronic components inside are protected from external influences such as weather, dust, and moisture. The outer housing acts as a weather and protective shell, while the inner housing contains the actual mounting surface and electrical installation. Ventilation louvres on the sides and rear wall, along with a vent at the bottom, enable natural air circulation, regulating the internal temperature. The powder-coated surface in RAL 7035 is resistant to UV radiation and prevents premature ageing of the enclosure.

Compatibility and Accessories
The enclosure can be expanded with various accessories, including an enclosure heater (23–30 W, 110–240 V AC), a power supply adapter for an LED system light, a pole mounting (AX pole mounting 2584100), connection accessories for an LED system light, a hygrostat, and a thermostat for internal temperature control. These components can be used to optimise operating conditions within the enclosure, for example to prevent condensation or to regulate temperature.

Mounting and Installation

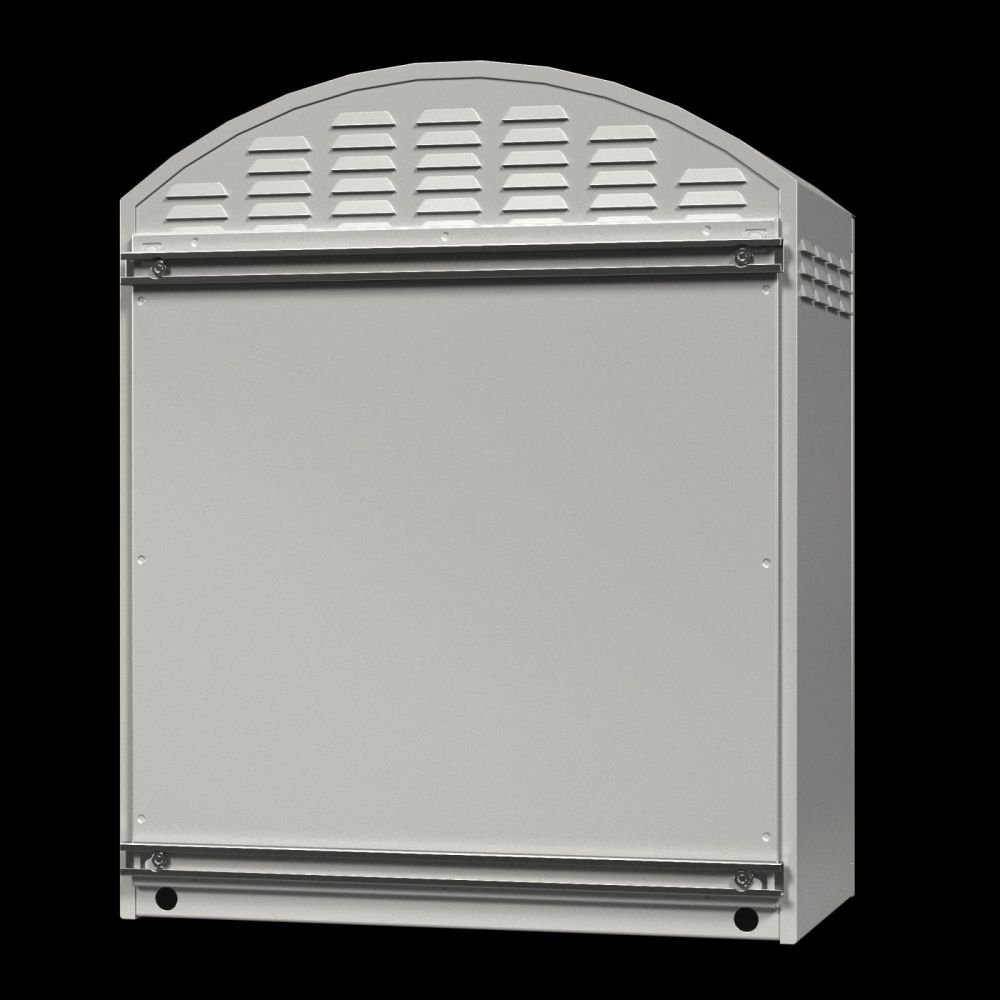

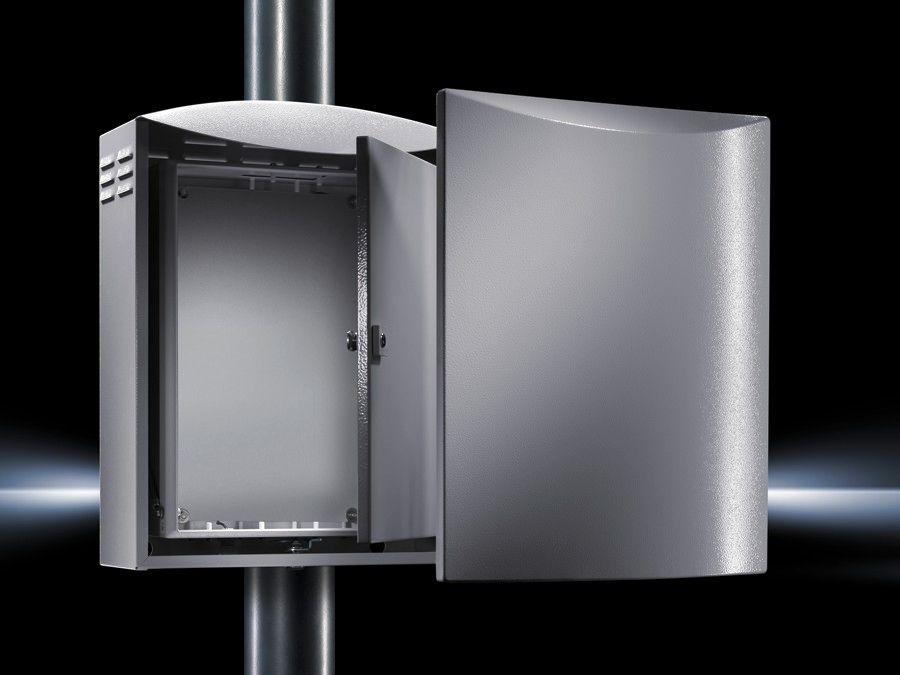

The enclosure is fully pre-assembled and can be directly mounted on a wall or pole. Installation is carried out using the designated mounting points on the outer housing. The C-profile rails on the rear wall of the inner enclosure allow for easy device mounting. The safety latches and deadbolt lock ensure secure access, protected against unauthorised access.

Operational Advantages
The combination of double-walled construction, IP 55 protection rating, and integrated ventilation ensures reliable operation even under challenging environmental conditions. The pre-assembled design reduces installation time, and the integrated mounting elements simplify setup. The use of aluminium AIMg3 and stainless steel 1.4301 ensures high corrosion resistance and long service life of the enclosure. The RAL 7035 colour is neutral and blends well into most industrial environments.

General
MaterialEnclosure and mounting plate: aluminium AIMg3, door inner enclosure: stainless steel 1.4301 (AISI 304)
Surface protectionHousing: powder-coated, UV-resistant pure polyester
ColourRAL 7035
Scope of deliveryDouble-walled outdoor enclosure, fully pre-assembled, inner enclosure with mounting plate, flange plate and security lock, mounting brackets for control cabinet internal temperature controller or hygrostat, outer enclosure with design hood and security lock 3524 E, 2 C-profile rails on rear wall, 2 security locks
Width630 mm
Height780 mm
Depth380 mm
Light dimensionsClear width: 560 mm, clear height: 560 mm, clear depth: 308 mm
Mounting plate dimensions (W x H)550 mm x 550 mm
Internal housingWidth: 580 mm, height: 580 mm, depth: 333 mm
LockClosure type: latch, number of closures: 2
Degree of protection IP according to IEC 60 529IP 55
Notelead time on request
Base materialAluminium


Product data sheet
Datasheet for Rittal 9791045, EAN: 4028177193727

Questions & answers

What is the delivery time of Rittal 9791045 Outdoor enclosure CS wall-mounted enclosure, outside 630x780x380 mm?

The article Rittal 9791045 Outdoor enclosure CS wall-mounted enclosure, outside 630x780x380 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9791045 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9791045 Outdoor enclosure CS wall-mounted enclosure, outside 630x780x380 mm always at the best possible price. We can give you a discount of 2% on Rittal 9791045 Outdoor enclosure CS wall-mounted enclosure, outside 630x780x380 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
