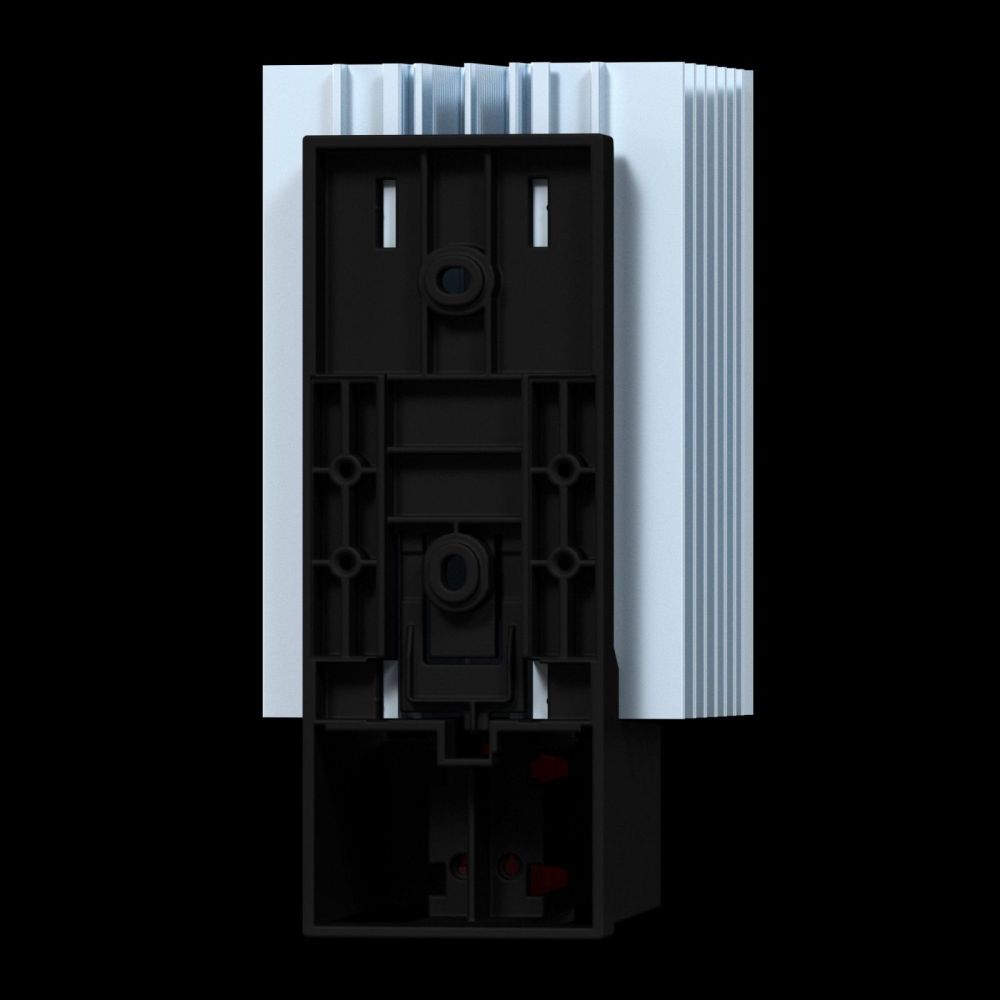

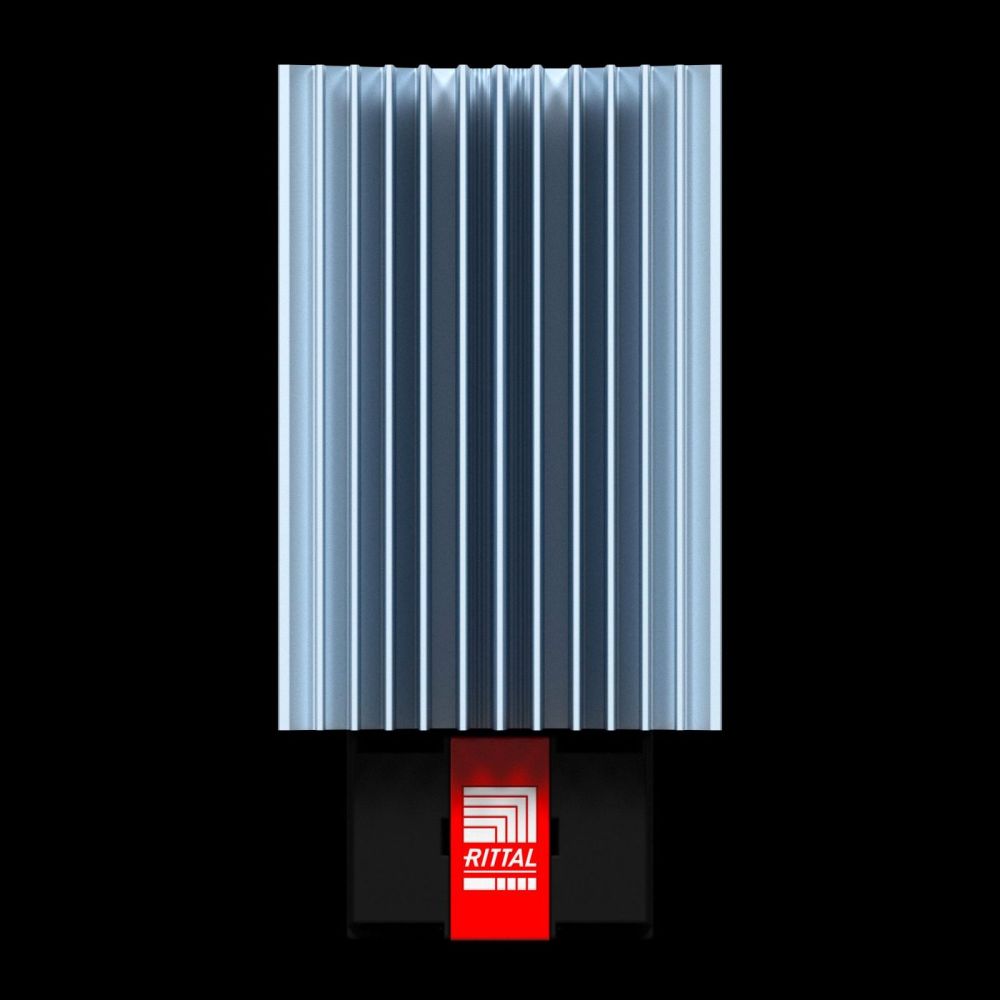

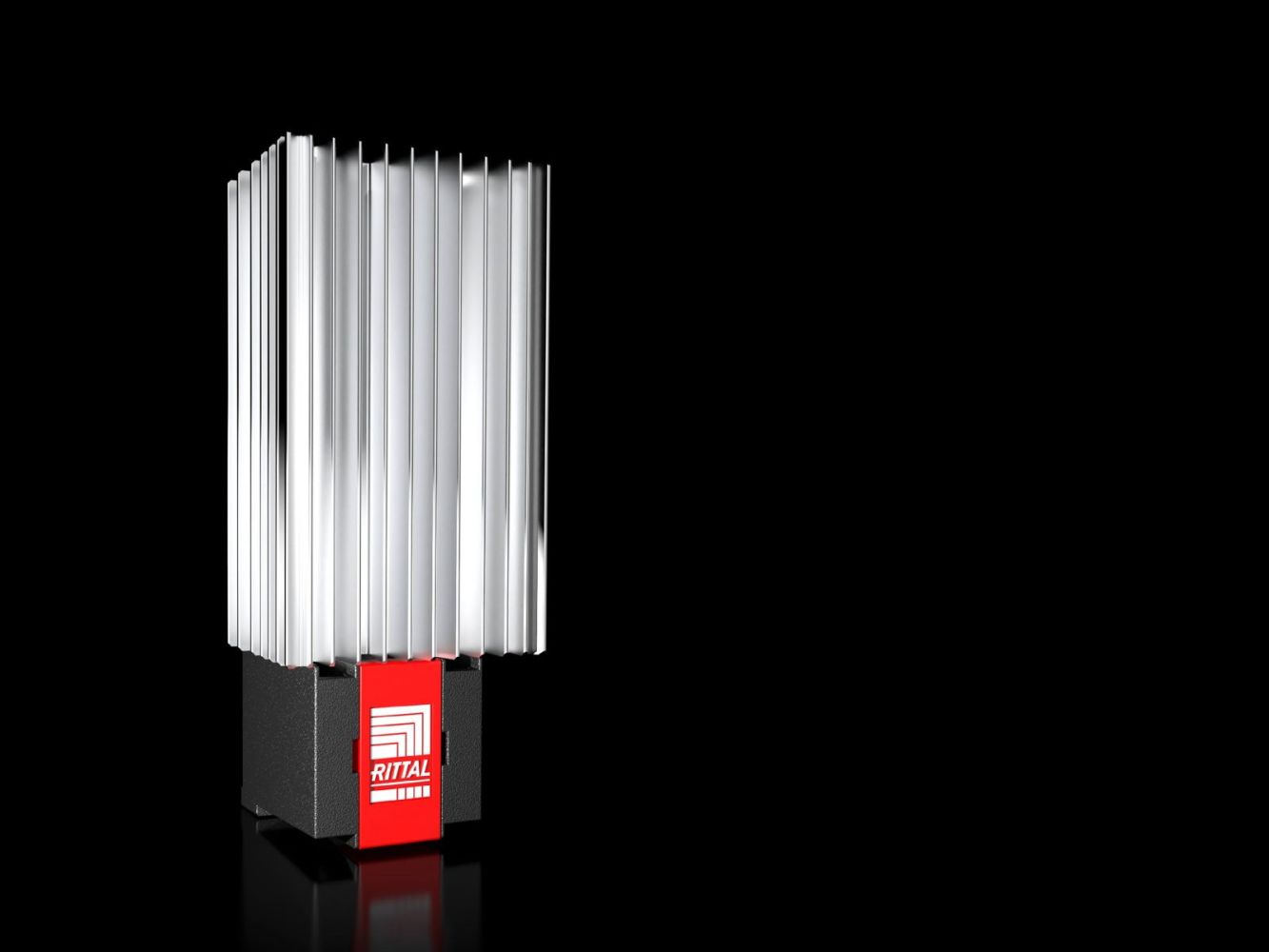

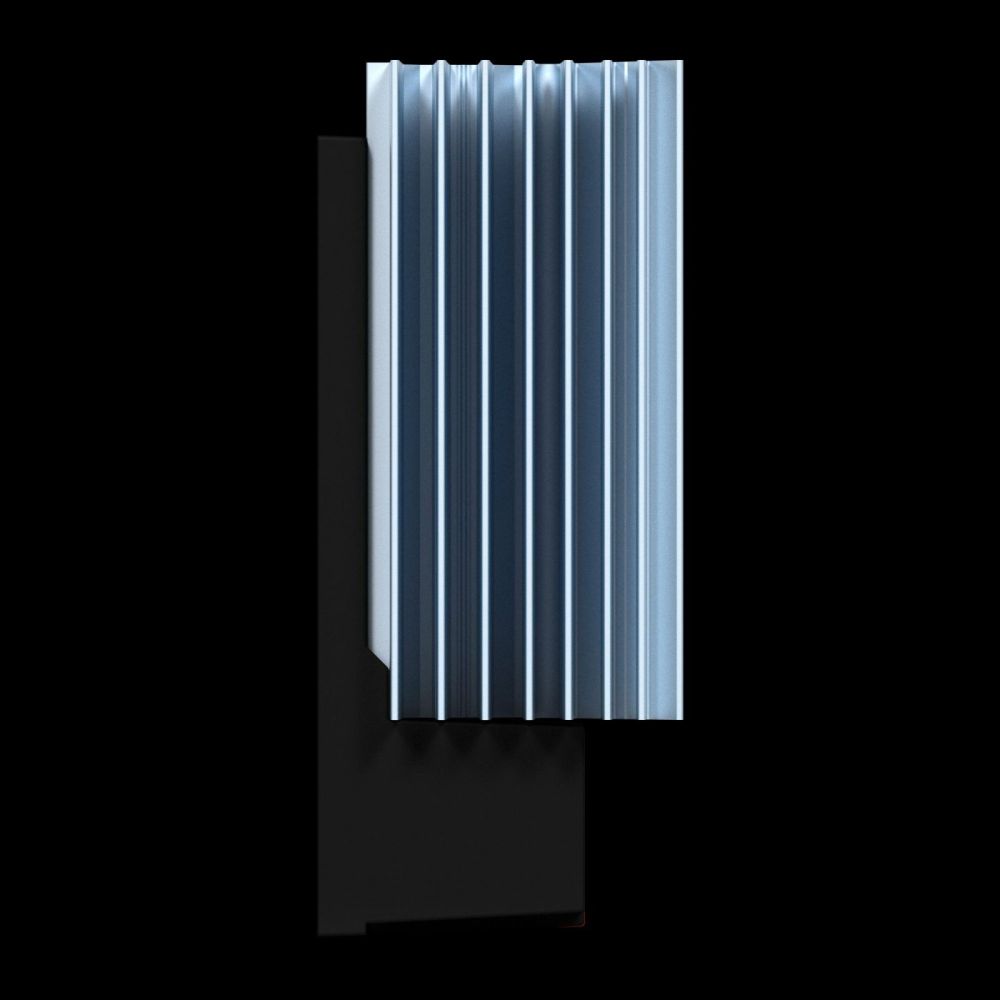

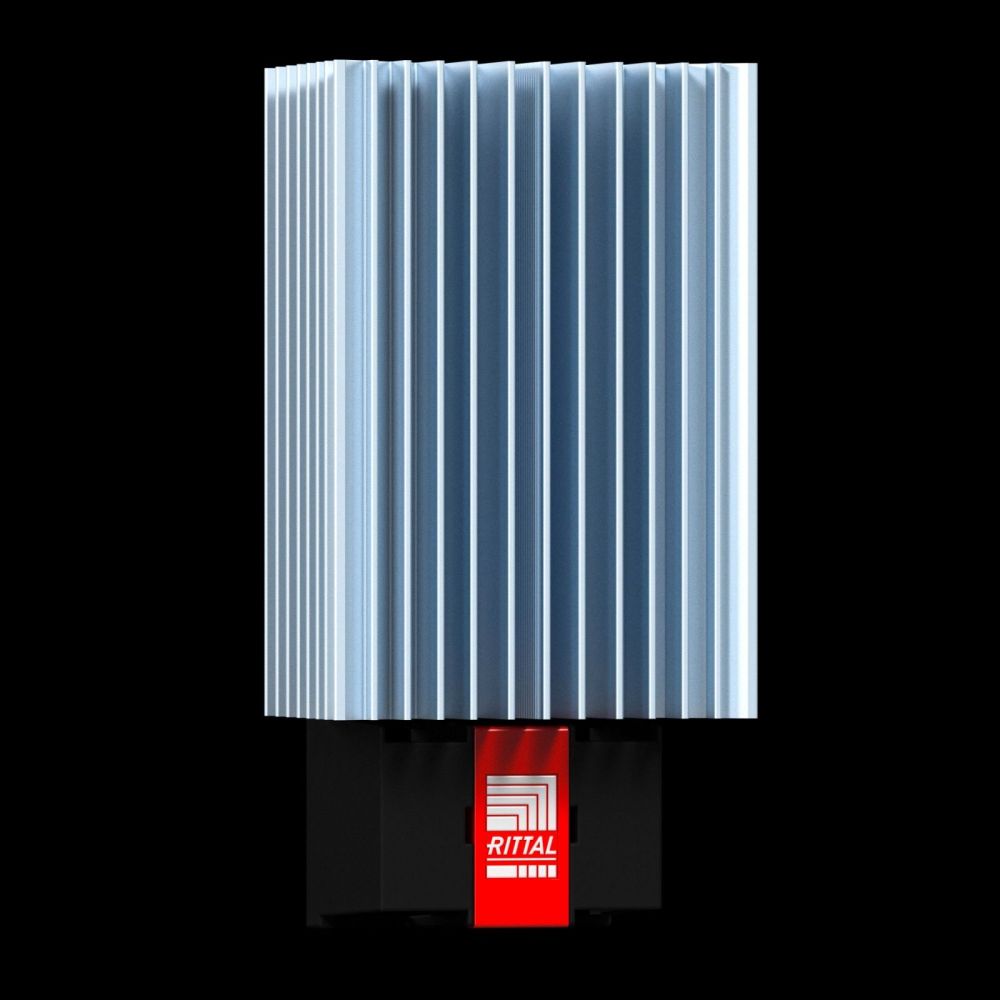

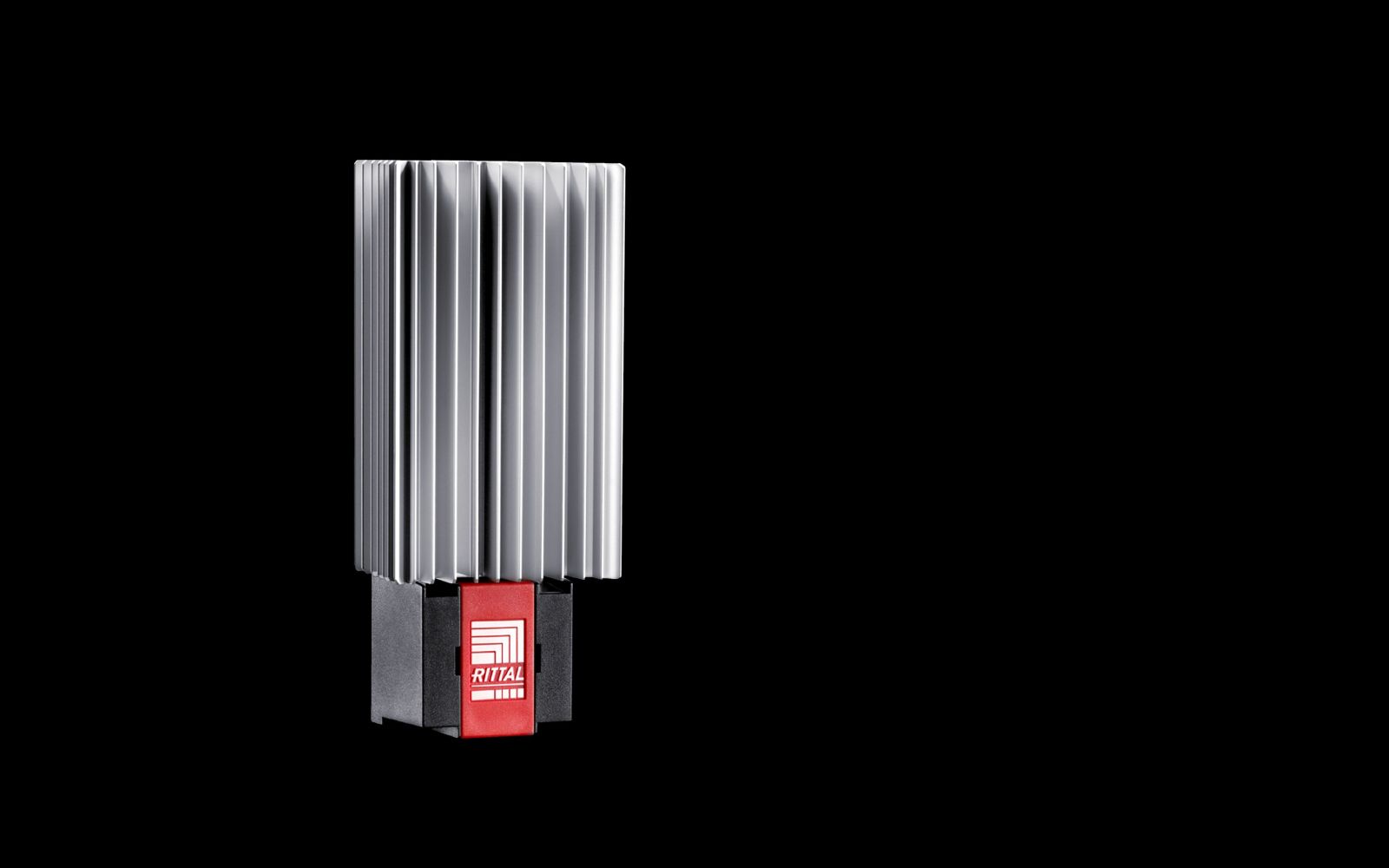

Rittal 3105330 RTT enclosure heater 23-30 W, 110-240 V AC
|
57,69 EUR |
|
|
( 68,65 EUR incl. VAT ) ≈ £48.98 | ≈ $65.02 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 998970 |
| Mfg Part No: | 3105330 |
| UPC/EAN: | 4028177638631 |
| Weight: | 0.395 kg |
| Type: | SK 3105330 |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3105330:
Supply includes: PTC heater
Quick-connection terminal
Assembly parts
Note: For precise temperature control inside the enclosure, we recommend the enclosure internal thermostat or the digital enclosure internal temperature display and thermostat.
In order to prevent condensation on assemblies, a hygrostat is recommended to regulate heating.
In larger enclosures, even heat distribution is best achieved by installing several low-output heaters.
The installation of heaters is generally advisable, in order to prevent condensation.
Note on Model No.: Special voltages available on request. We reserve the right to make technical modifications.
Packs of: 1 pc(s).
EAN: 4028177638631
Customs tariff number: 85162999
eCl@ss 5.1: 27180710
eCl@ss 7.0: 27180710
ETIM 6.0: EC000737
Continuous thermal output at 10°C: 23 W - 30 W
Rated operating voltage: 110 V - 240 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 64 mm
Height: 155 mm
Depth: 56 mm
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Weight/pack: 0.38 kg
Quick-connection terminal
Assembly parts
Note: For precise temperature control inside the enclosure, we recommend the enclosure internal thermostat or the digital enclosure internal temperature display and thermostat.
In order to prevent condensation on assemblies, a hygrostat is recommended to regulate heating.
In larger enclosures, even heat distribution is best achieved by installing several low-output heaters.
The installation of heaters is generally advisable, in order to prevent condensation.
Note on Model No.: Special voltages available on request. We reserve the right to make technical modifications.
Packs of: 1 pc(s).
EAN: 4028177638631
Customs tariff number: 85162999
eCl@ss 5.1: 27180710
eCl@ss 7.0: 27180710
ETIM 6.0: EC000737
Continuous thermal output at 10°C: 23 W - 30 W
Rated operating voltage: 110 V - 240 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 64 mm
Height: 155 mm
Depth: 56 mm
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Weight/pack: 0.38 kg
