Rittal 9791035 Outdoor enclosure CS wall-mounted enclosure, outside 530x700x265 mm

Your rating:
Average rating
product review for Rittal 9791035 Outdoor enclosure CS wall-mounted enclosure, outside 530x700x265 mm
( 4.6 / 5 ) 27 ratings
Rittal 9791035
This image may differ from the desired article.
Rittal 9791035Rittal 9791035Rittal 9791035Rittal 9791035Rittal 9791035Rittal 9791035
800,29 EUR
( 952,35 EUR incl. VAT )
≈ £669.84  |  ≈ $879.52
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9791035 Outdoor enclosure CS wall-mounted enclosure, outside 530x700x265 mm
Datasheet:file_download Download
Lieske Part No.:1425122
Mfg Part No: 9791035
UPC/EAN: 4028177193710
Weight:17.5 kg
Type:CS 9791035

Product information for Rittal 9791035:

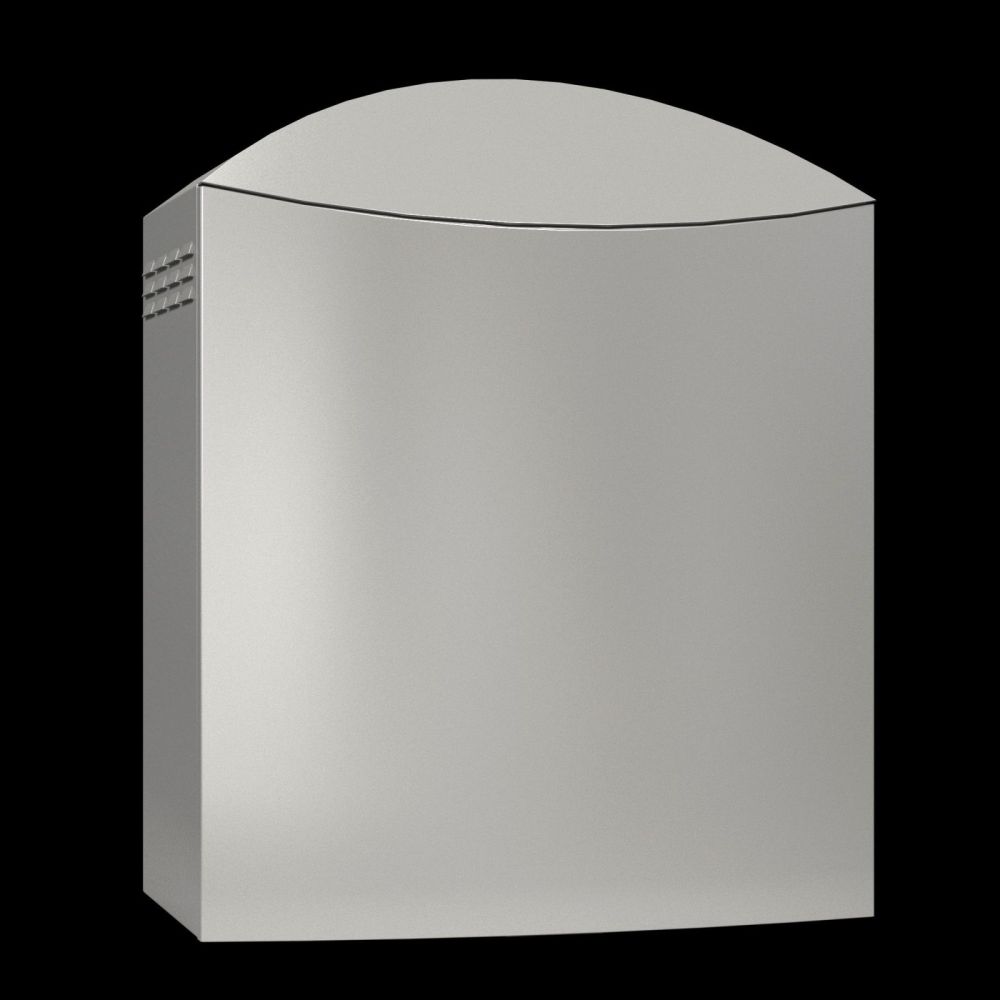

The Rittal Outdoor wall-mounted enclosure CS 9791035 is a double-walled enclosure for mounting on walls or poles, designed for outdoor use. It features a housing-in-housing concept, where an inner housing made of stainless steel 1.4301 (AISI 304) is integrated within an outer aluminium housing made of AIMg3. The outer housing is powder-coated in the colour RAL 7035, providing a UV-resistant and weatherproof surface. Dimensions are 530 mm width, 700 mm height, and 265 mm depth, with clear internal dimensions for equipment installation of 440 mm width, 545 mm height, and 195 mm depth. The inner housing itself measures 460 mm width, 565 mm height, and 220 mm depth. The aluminium mounting plate (2 mm thickness) measures 430 mm × 535 mm and allows for component mounting.

Applications
This enclosure is designed for industrial applications outdoors, where protection against dust, splashing water, and mechanical impacts is required. The protection rating IP 55 according to IEC 60 529 ensures a high level of protection against dust and splashing water from all directions, making it suitable for outdoor installations. The construction with fin embossing on the rear wall and side panels, as well as a cutout at the lower housing base, ensures efficient ventilation to prevent overheating of installed components.

Functions and Equipment in Detail

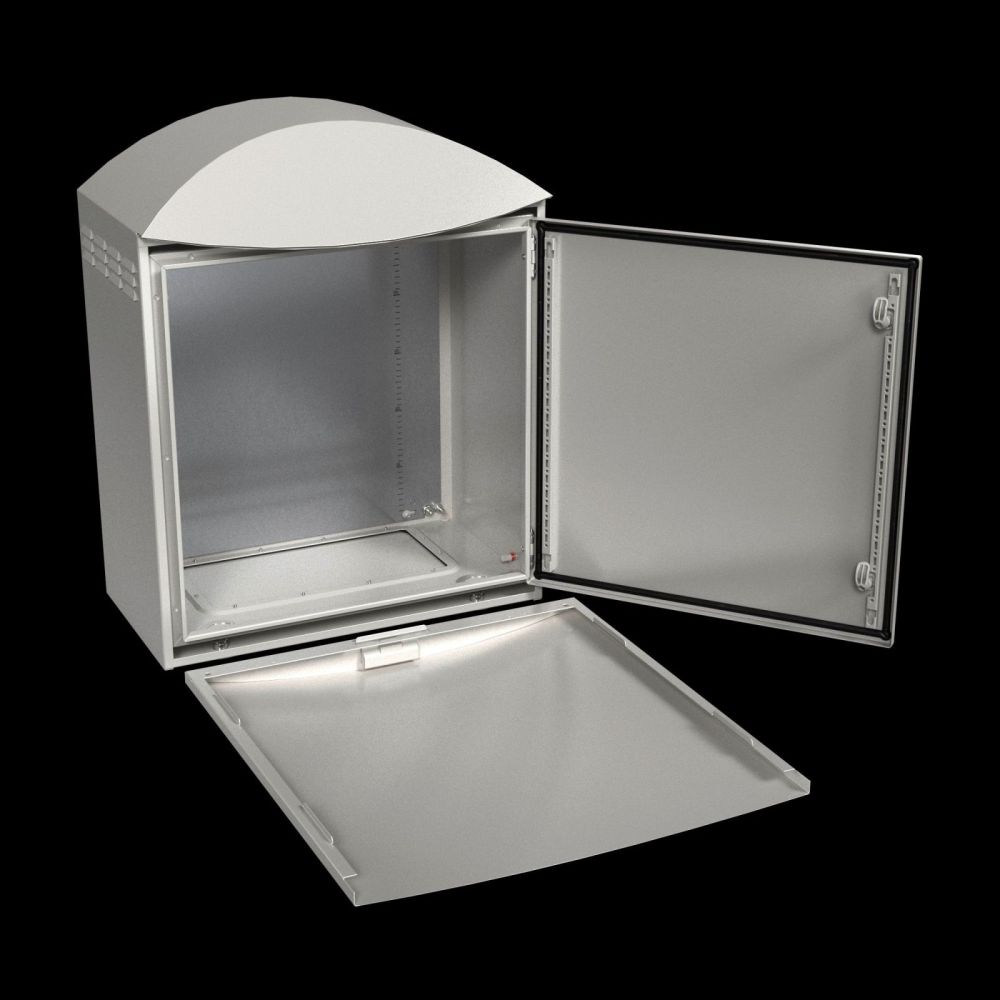

The enclosure is fully pre-assembled and includes an inner housing with mounting plate, gland plate, and safety locking. The inner housing door is made of stainless steel 1.4301 and features a foamed-in seal and bolted hinges, enabling an opening angle of 180°. The locking system uses a cam lock with safety locking, with two locks provided. The outer housing features a removable design hood with a grip recess access. Two C-profile rails are mounted on the rear wall, allowing attachment of pole mounting brackets or other components.

Technology Explained Simply

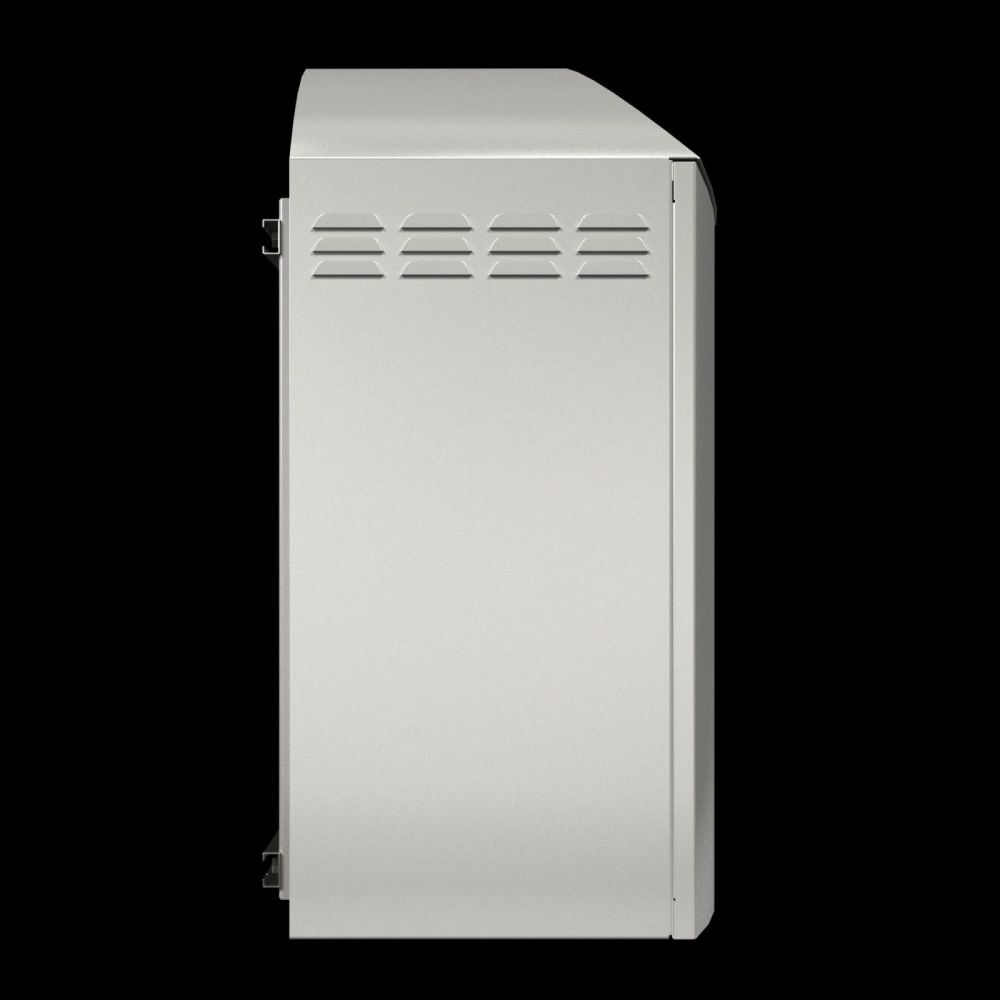

The housing-in-housing concept provides double protection: the outer housing protects against environmental influences, while the inner housing shields electrical or electronic components from direct weather and mechanical stress. The fin embossing and air openings at the base enable natural convection ventilation, maintaining stable internal temperature. The powder-coated surface made of UV-resistant pure polyester ensures long service life even under intense sunlight. The aluminium mounting plate provides a stable base for mounting enclosure internal temperature controllers, hygrostats, or other control elements.

Compatibility and Accessories
Various accessories are available for use with this enclosure, including an enclosure internal temperature controller, a hygrostat, an RTT enclosure heater (23–30 W, 110–240 V AC), a compact LED system light with associated connection accessories and a power adapter (100–230 V), and an AX pole mounting bracket 2584100. These components can be used for temperature control, lighting, or pole mounting, enhancing the enclosure’s functionality.

Mounting and Installation

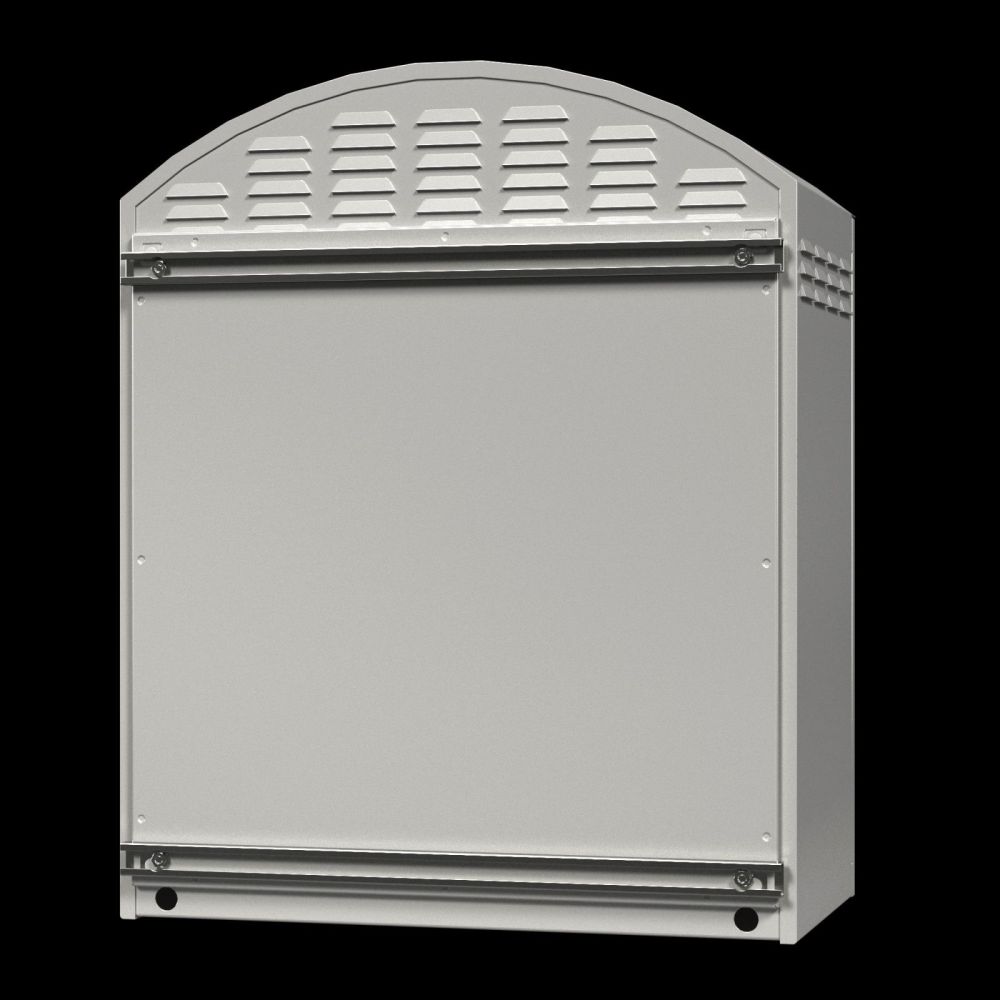

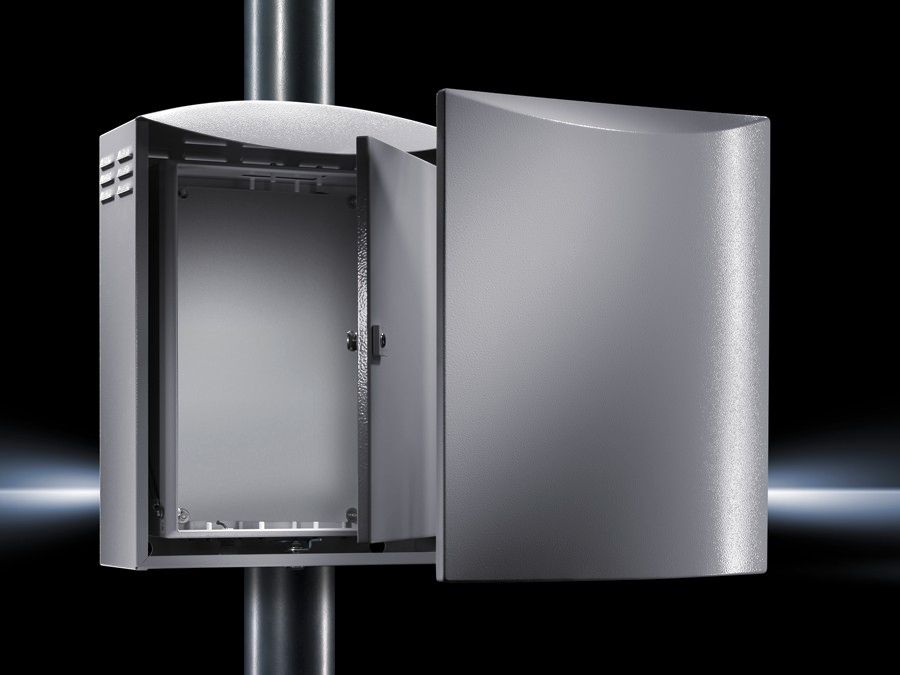

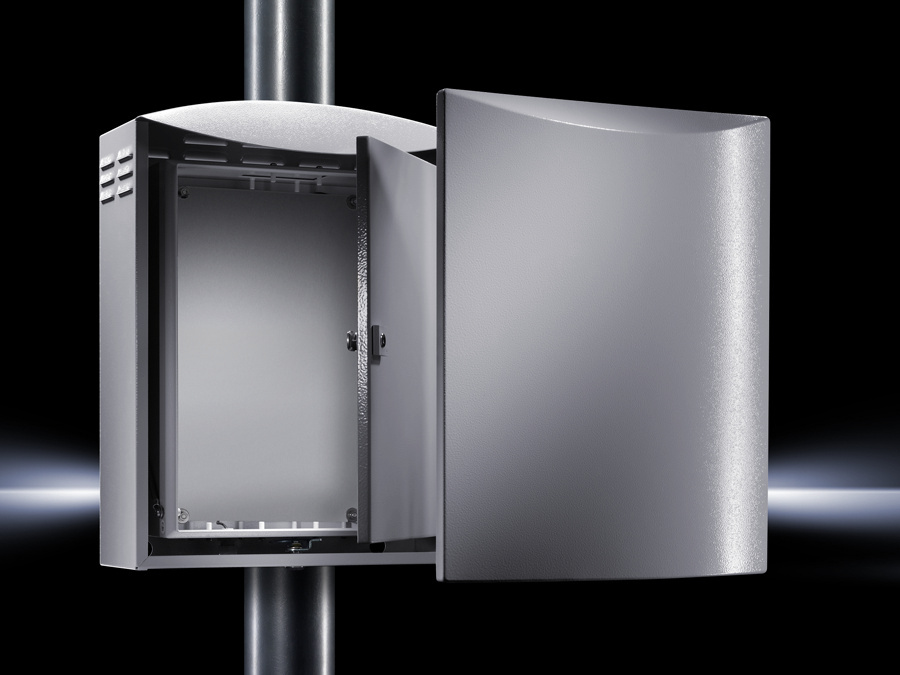

Mounting is done on a wall or pole, with the C-profile rails on the rear wall of the outer housing used for attaching pole mounting brackets. The mounting plate inside the inner housing allows for securing electrical components. The pre-assembled construction reduces installation effort, as no additional assembly work is required on the housing components. The safety locking and cam lock closure system ensure secure access and prevent unauthorized openings.

Operational Advantages
The enclosure offers a high protection rating IP 55) against dust and splashing water, making it suitable for outdoor use. The integrated ventilation via fin embossing and base openings maintains stable internal temperature, extending the service life of installed components. The powder-coated surface made of UV-resistant pure polyester ensures high resistance to weathering. The pre-assembled design reduces installation time and minimizes errors during assembly. The integrated mounting plate and C-profile rails allow flexible and secure mounting of additional components.

General
MaterialEnclosure and mounting plate: aluminium AIMg3, door inner enclosure: stainless steel 1.4301 (AISI 304)
Surface protectionHousing: powder-coated, UV-resistant pure polyester
ColourRAL 7035
Scope of deliveryDouble-walled outdoor enclosure, fully pre-assembled, inner enclosure with mounting plate, flange plate and safety lock, mounting brackets for cabinet internal temperature controller or hygrostat, outer enclosure with design hood and safety lock 3524 E, 2 C-profile rails on rear wall
Width530 mm
Height700 mm
Depth265 mm
Light dimensionsClear width: 440 mm, clear height: 545 mm, clear depth: 195 mm
Mounting plate dimensions (W x H)430 mm x 535 mm
Internal housingWidth: 460 mm, height: 565 mm, depth: 220 mm
LockClosure type: latch, number of closures: 2
Degree of protection IP according to IEC 60 529IP 55
Notelead time on request
Base materialAluminium


Product data sheet
Datasheet for Rittal 9791035, EAN: 4028177193710
