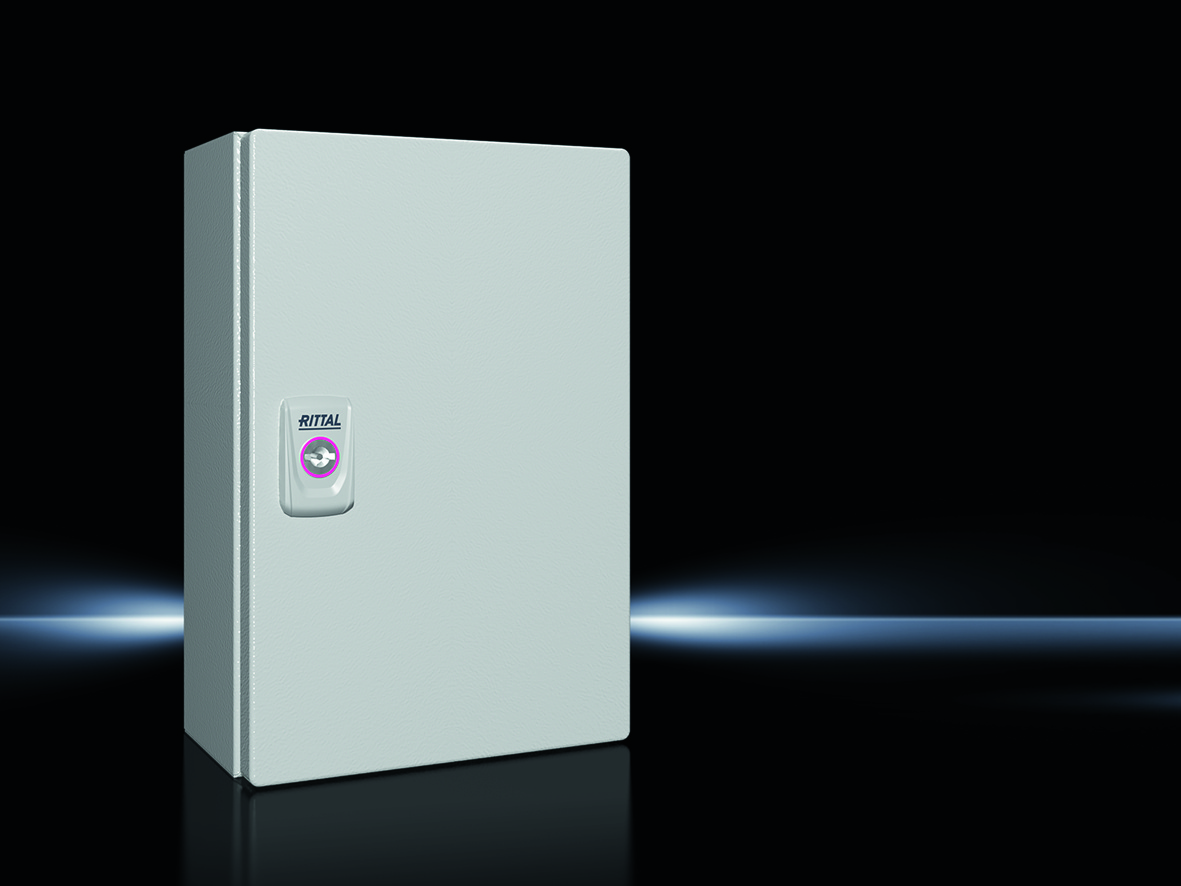

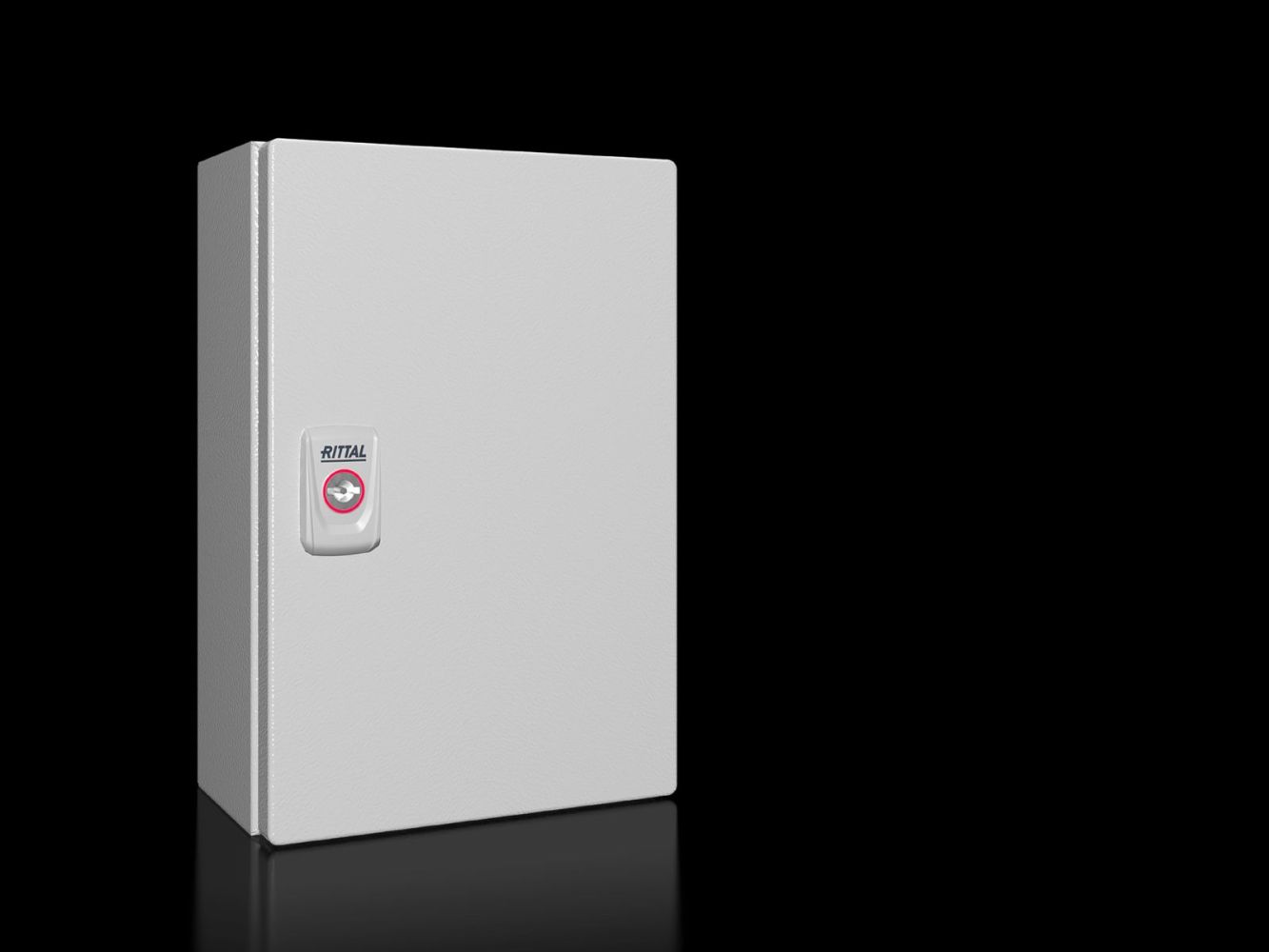

Rittal 1554000 KX E-Box W x H x D 200x300x120 mm sheet metal mounting plate
|
46,89 EUR |
|
|
( 55,80 EUR incl. VAT ) ≈ £39.25 | ≈ $51.53 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598314 |
| Mfg Part No: | 1554000 |
| UPC/EAN: | 4028177816565 |
| Weight: | 3.626 kg |
| Type: | KX 1554000 |
Product information for Rittal 1554000:
Applications
The KX 1554000 is suitable for use in industrial control and enclosure cabinets, where a compact yet robust cover is required for electrical components, connectors, or small control devices. The protection rating IP 66 makes it suitable for outdoor use, as it is dust-tight and protected against water jets from all directions. The approvals according to NEMA 1, 3R, 4 and 12, as well as UL Type 1, 3R, 4 and 12, enable use in various regions and industries, particularly in manufacturing, power supply, and machine building.
Functions and Equipment in Detail
The housing is made of a single piece of bent and welded sheet steel with a material thickness of 1.25 mm for both the housing and door. The mounting plate has a thickness of 2 mm and is zinc-coated to prevent corrosion. The surface of the housing and door is dip-primed, powder-coated, and finished with a textured paint in RAL 7035, ensuring high resistance against mineral oils, lubricants, machining emulsions, and solvents. The continuously foamed PU sealing gasket ensures a tight seal and prevents ingress of dust and moisture.
Technology Explained Simply
The protection rating IP 66 means the housing is dust-tight and protected against water jets from all directions, making it suitable for outdoor or humid environments. The IK code IK08 indicates that the housing is protected against mechanical impacts such as shocks or vibrations with an energy of up to 20 Joules. The triple surface treatment — nanoceramic coating, electrophoretic dip priming, and powder-coated textured paint — ensures high corrosion resistance and long service life.
Compatibility and Accessories

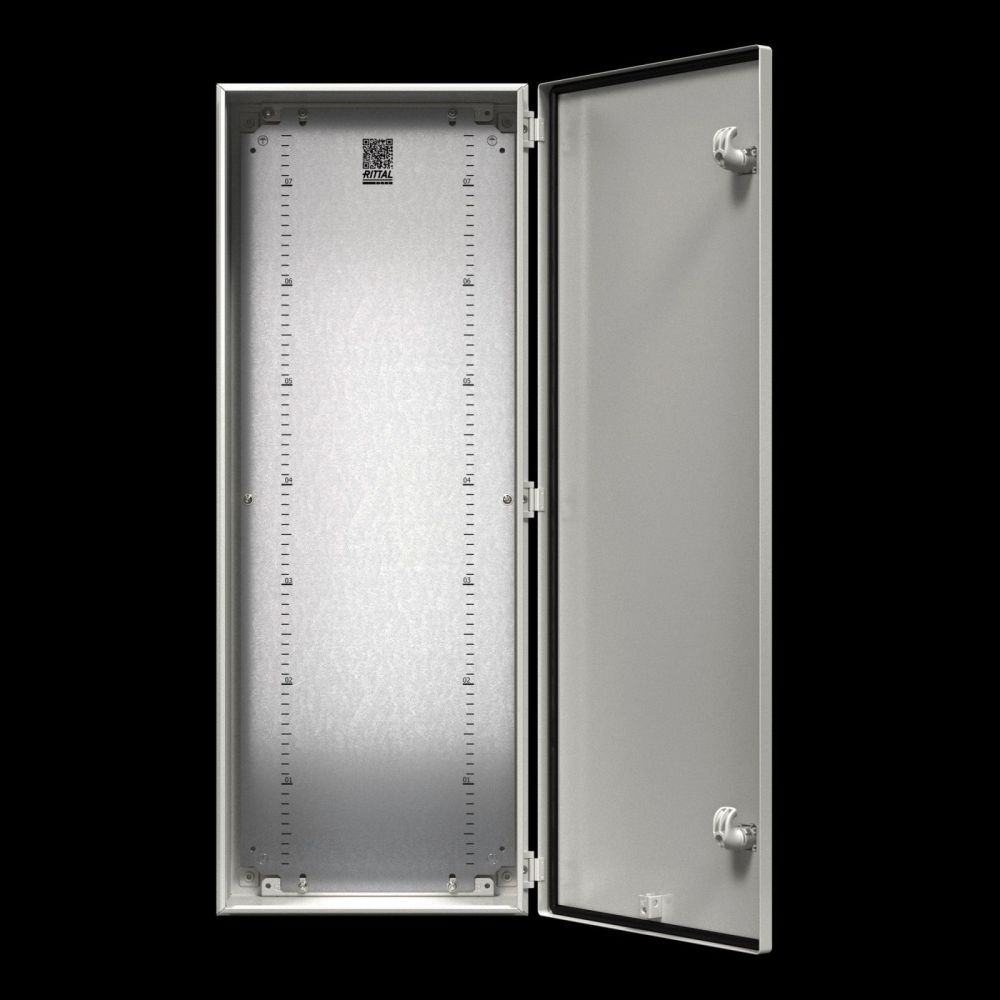

The housing is equipped with a mounting plate that allows easy attachment to walls or other structures. Compatible accessories include mounting clips for support rails, various lock inserts made of zinc die-cast, connector pass-throughs, lock box covers, support rails TH 35/7.5/TS 35/15, pressure equalization plugs, mounting brackets, condensate drains, plastic handles, and drill screws. These components allow for individual adaptation to specific mounting and safety requirements.
Mounting and Installation
Mounting is performed via the integrated mounting plate, which features through-holes for wall mounting brackets. The door is hinged on the right side and can be secured with the supplied cam lock. The grounding connections in the housing and door via U-brackets enable quick and secure earthing. The surface is marked with a QR code, printed on the housing, door, and type plate, ensuring unique identification and traceability of individual parts.
Operational Advantages
The KX 1554000 offers high mounting convenience thanks to the integrated mounting plate and flexible selection of locking systems. The robust sheet steel construction and high protection rating IP 66 ensure long service life and reliability in demanding environments. The surface treatment protects against corrosion and chemical influences, reducing maintenance and increasing operational safety. The combination of compact design and high protection requirements makes the housing a reliable solution for a wide range of industrial applications.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door, mounting plate, latch with 3 mm double bar insert, 180° hinge |
| Width | 200 mm |
| Height | 300 mm |
| Depth | 120 mm |
| Mounting plate dimensions (W x H) | 175 mm x 285 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Plate thickness cabinet | 1,25 mm |
| Door material thickness | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Lock | Number of locks: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 31.21 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
