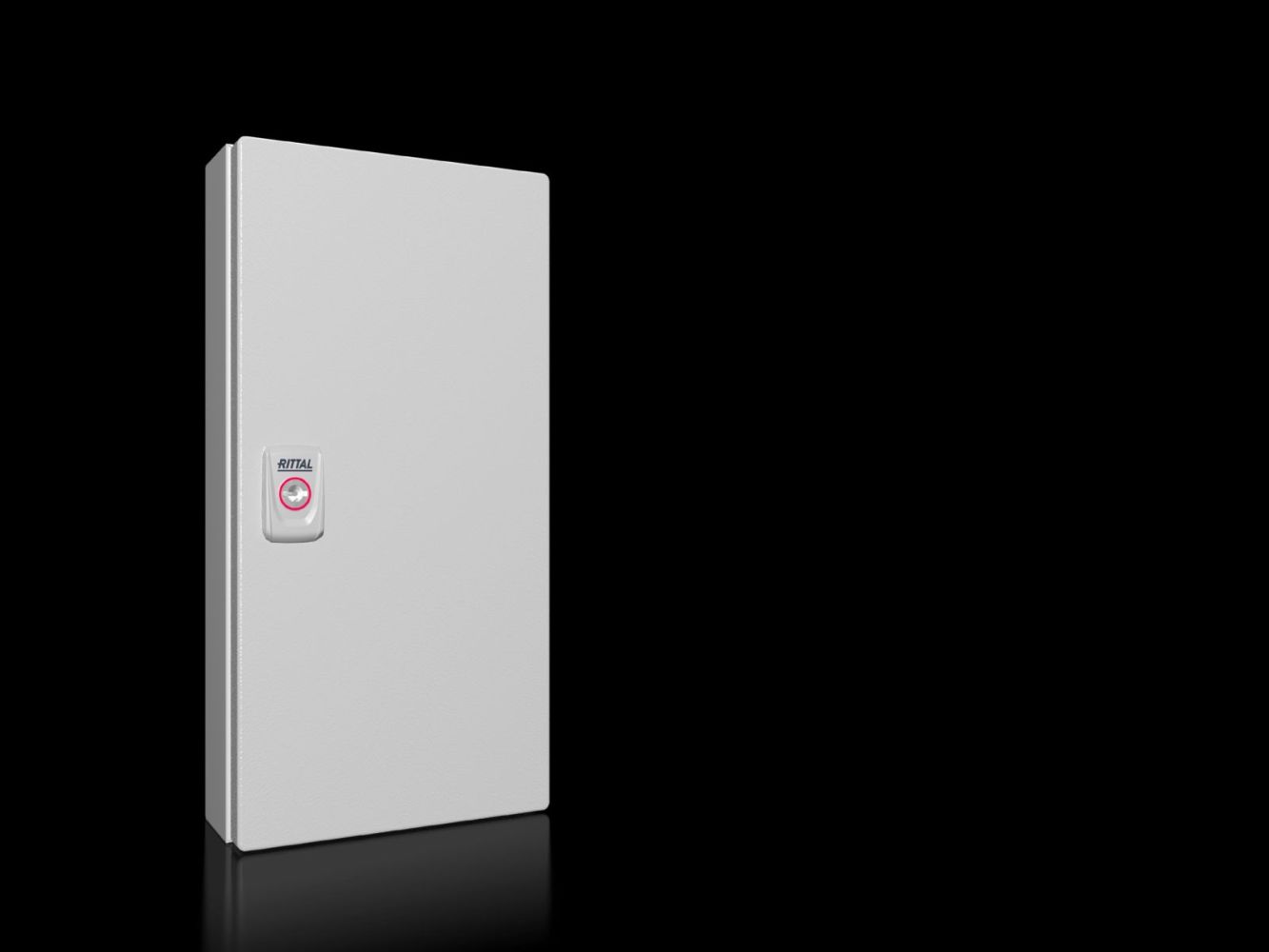

Rittal 1547000 KX E-Box 200x400x80 mm steel sheet
|
51,41 EUR |
|
|
( 61,18 EUR incl. VAT ) ≈ £43.03 | ≈ $56.50 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598321 |
| Mfg Part No: | 1547000 |
| UPC/EAN: | 4028177816497 |
| Weight: | 4.153 kg |
| Type: | KX 1547000 |
Product information for Rittal 1547000:
Applications
The KX 1547000 is suitable for use in industrial plants, for the installation of control and switching devices, and in electrical engineering. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight shielding, making it suitable for outdoor use as well. The approvals according to NEMA (NEMA 1, 3R, 4, 12) and UL 50E (Type 1, 3R, 4, 12) highlight its suitability for various environmental conditions, including humid or dusty rooms. The IK code IK08 indicates high mechanical resistance against impact and shock.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a material thickness of 1.25 mm for the enclosure and door, while the mounting plate has a thickness of 2 mm. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, ensuring high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The door is fitted with a continuously foamed PU sealing gasket, ensuring a tight seal. The delivery includes the enclosure with door, the mounting plate, a cam lock with 3 mm double-barrel lock insert, and a 180° hinge. The mounting plate has dimensions of 175 mm (W) × 385 mm (H) and enables secure mounting to walls or other substructures.
Technology Explained Simply
The triple surface treatment – nanoceramic coating, electrophoretic dip priming, and external powder coating – ensures long service life and high resistance to environmental influences. The protection rating IP 66 means the enclosure is dust-tight and protected against water jets from any direction. The integrated earthing via a protective conductor connection in the enclosure and via a U-bracket in the door enables quick and secure earthing. The cam lock with double-barrel lock insert according to DIN 43668 ensures a secure lock that is easy to operate.
Compatibility and Accessories
The KX 1547000 can be extended with various accessories to meet specific requirements. These include mounting clips for support rails, lock inserts made of zinc die-cast, plug-throughs (e.g. SZ 2400500), lock box covers, support rails (TH 35/7,5/TS 35/15), pressure equalization plugs, mounting brackets, condensate drains, earthing straps (M6-M6, cross-section 10 mm²), handles (e.g. SZ 2577000), drilling screws (type ST 4,8 L9,5 mm), and mounting brackets for individual mounting requirements. These components enable application-specific adaptation of the enclosure.
Mounting and Installation
Mounting is done via the included mounting plate, which is attached to the rear wall of the enclosure. The holes in the mounting plate allow for fastening to walls or other support structures. The door is hinged on the right and can be secured with the included cam lock. The integrated earthing simplifies installation and meets electrical safety requirements. The dimensions and construction of the enclosure are designed to allow quick and secure mounting.
Advantages in Operation
The KX 1547000 offers high mounting comfort and high reliability in operation. The robust sheet steel construction and high protection rating ensure long service life even under demanding conditions. The integrated earthing and easy mounting reduce installation time. The availability of various accessories enables flexible adaptation to different applications. The surface coating protects the enclosure against corrosion and chemical influences, increasing ease of maintenance. A QR code on the enclosure, door, and nameplate enables unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door, mounting plate, latch with 3 mm double bar insert, 180° hinge |
| Width | 200 mm |
| Height | 400 mm |
| Depth | 80 mm |
| Mounting plate dimensions (W x H) | 175 mm x 385 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Plate thickness cabinet | 1,25 mm |
| Door material thickness | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Lock | Number of locks: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 31.29 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
