Rittal 1552000 KX E-Box, 200x300x80 mm, sheet metal

Your rating:
Average rating
product review for Rittal 1552000 KX E-Box, 200x300x80 mm, sheet metal
( 4.5 / 5 ) 4 ratings

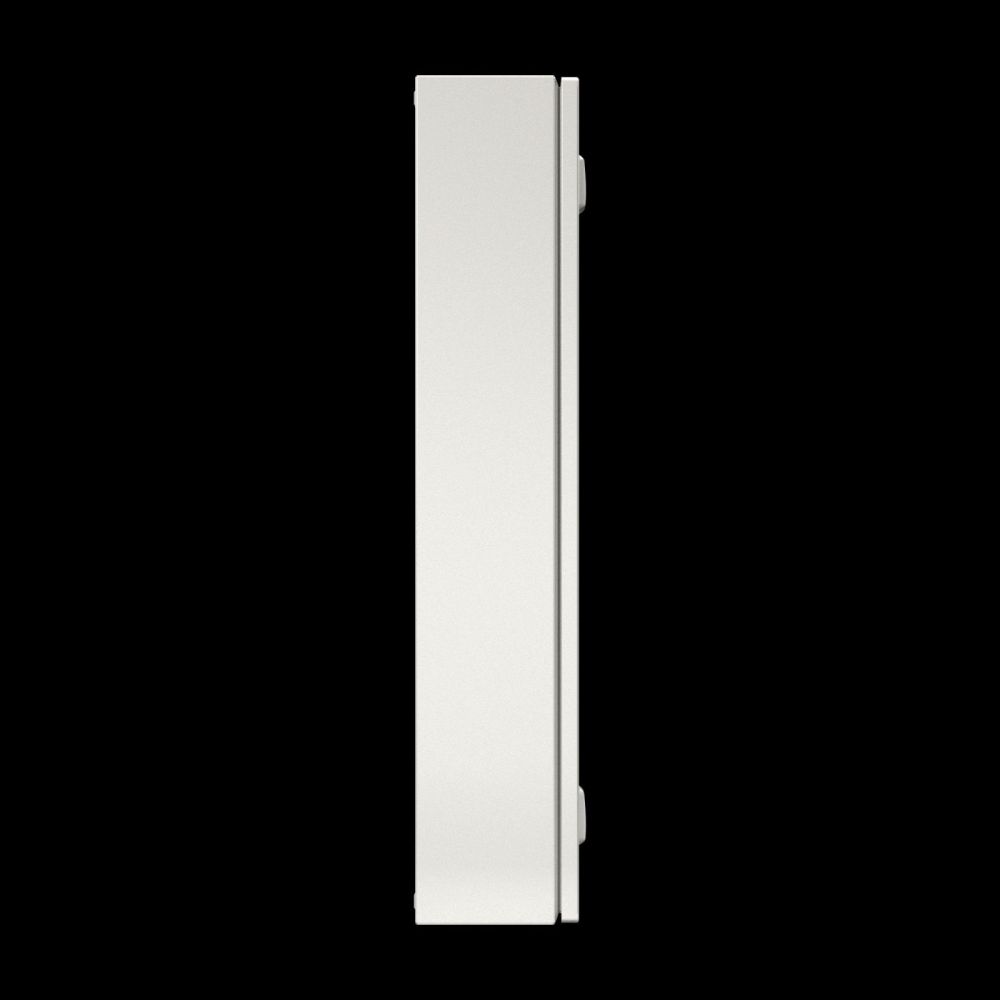

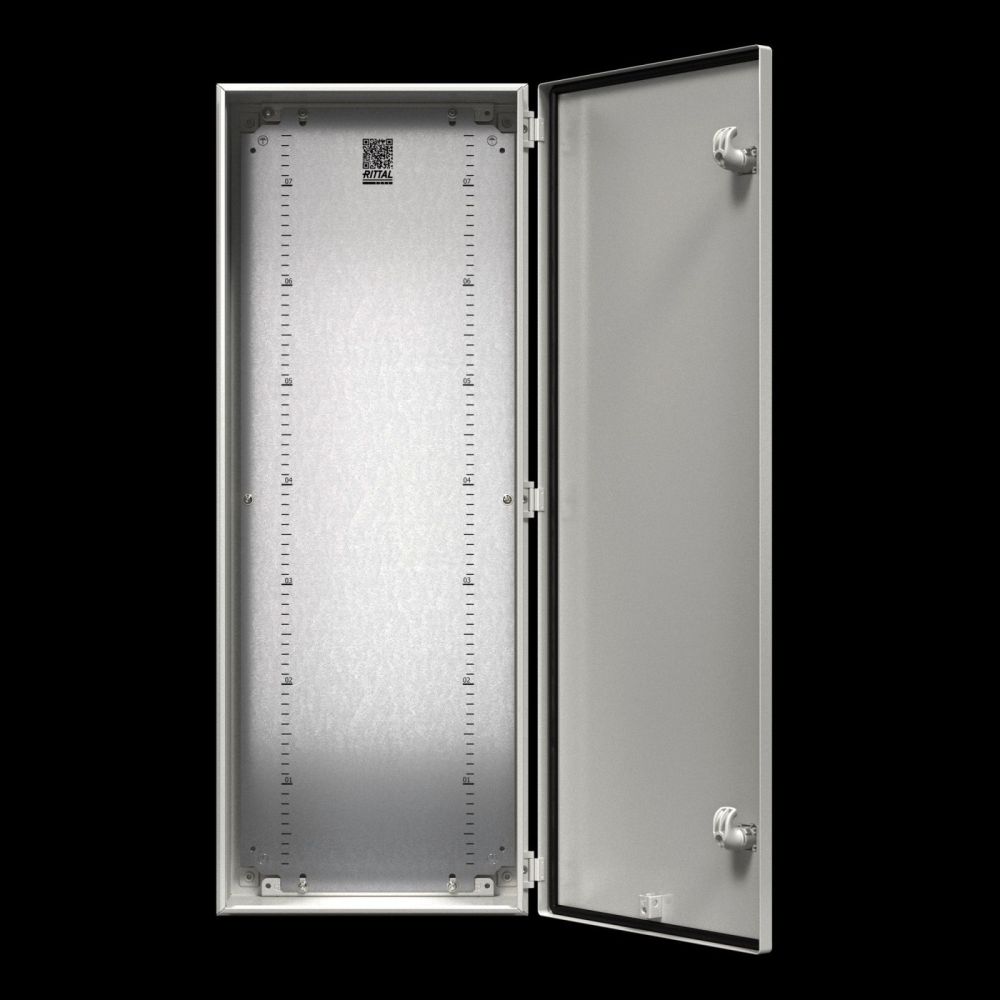

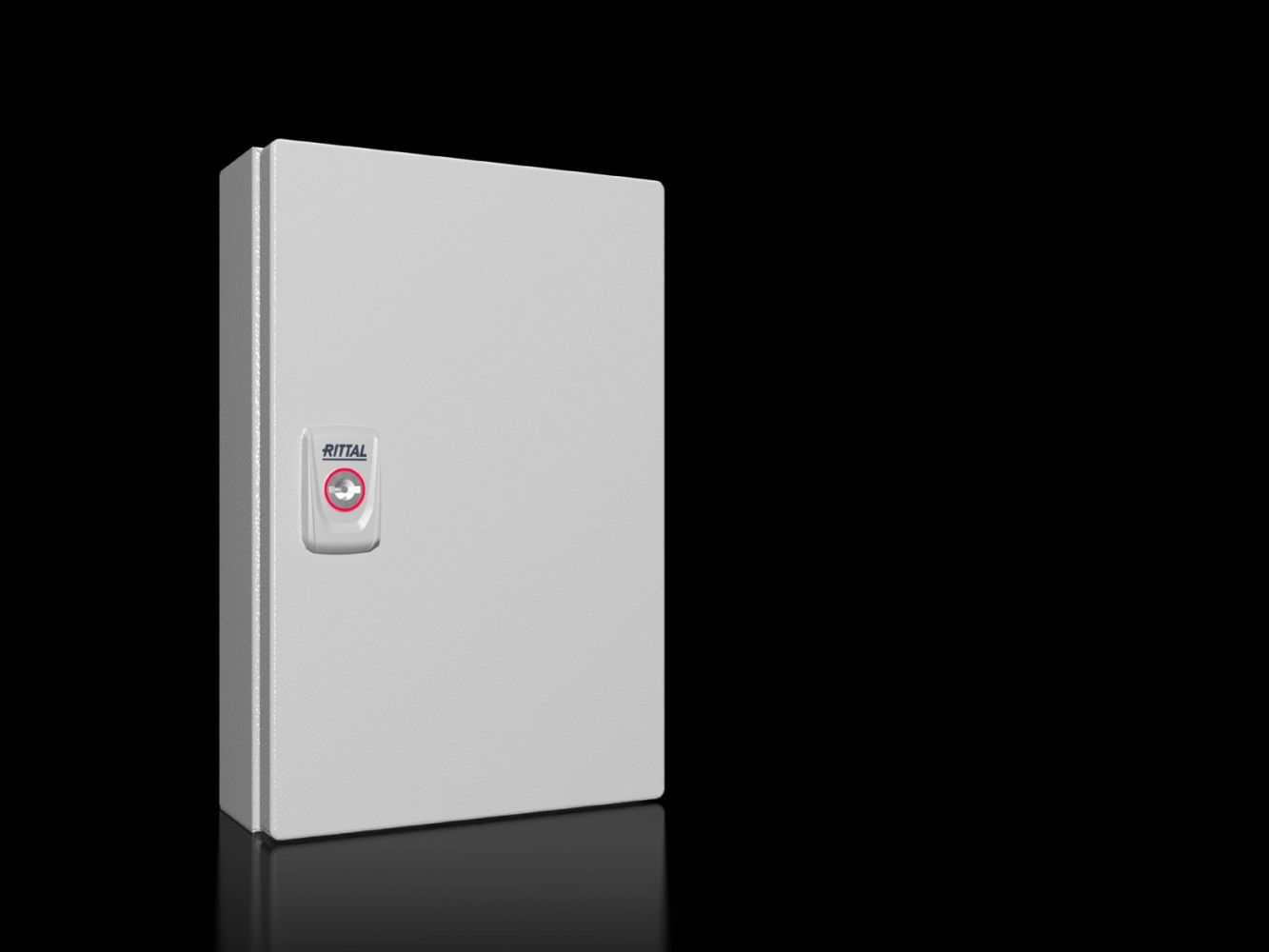

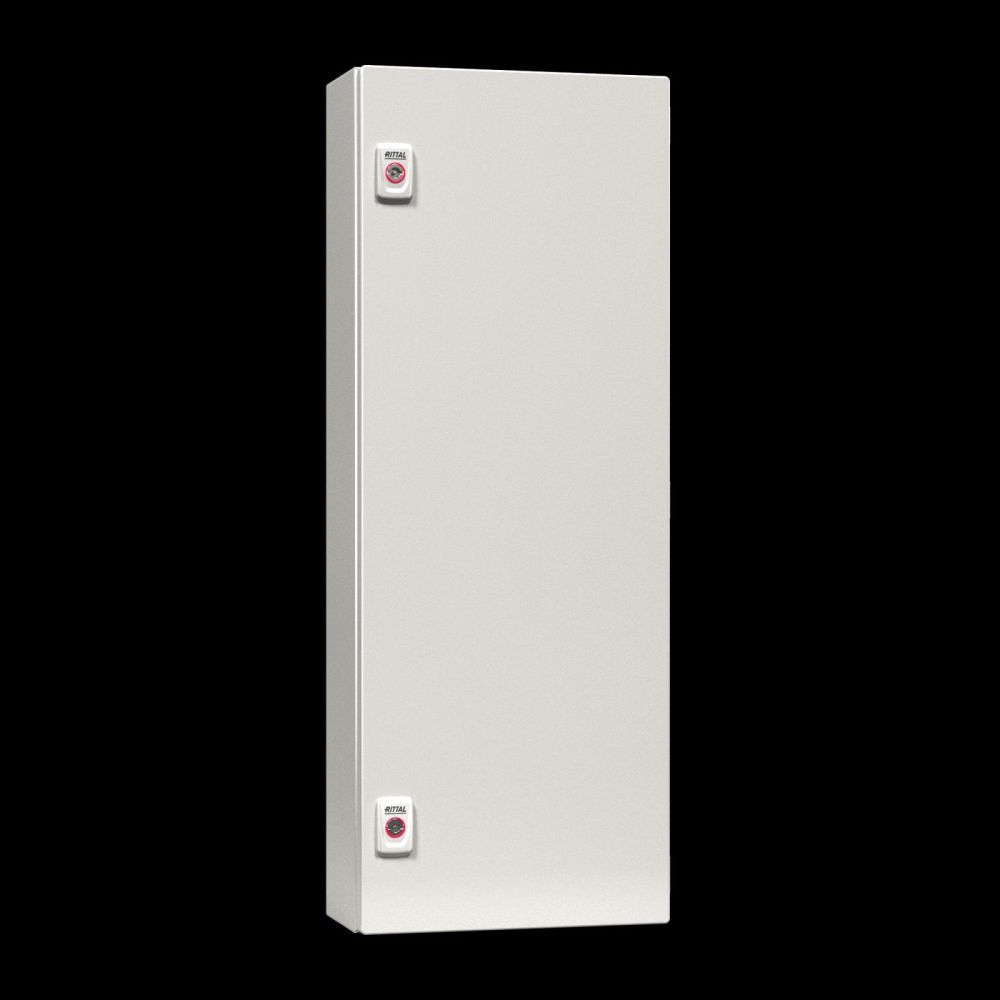

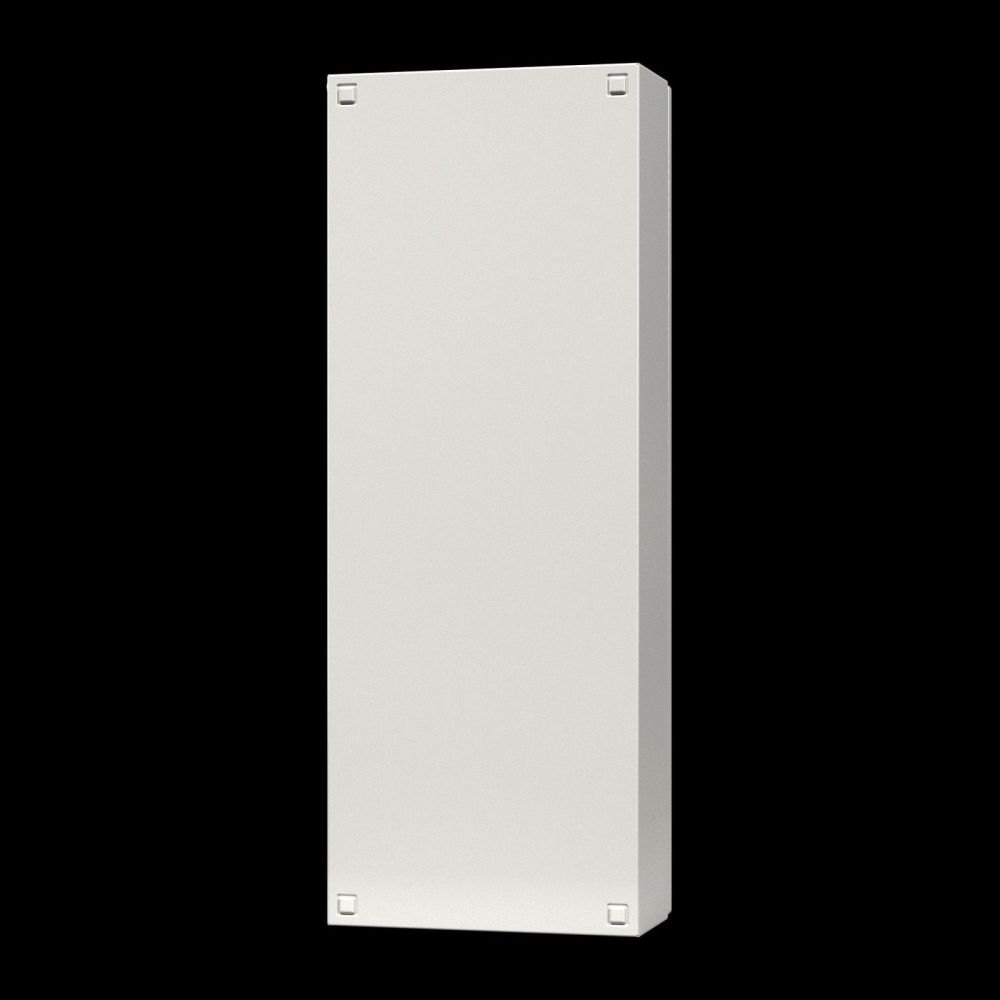

Rittal 1552000
This image may differ from the desired article.
Rittal 1552000Rittal 1552000Rittal 1552000Rittal 1552000Rittal 1552000Rittal 1552000Rittal 1552000
45,77 EUR 47,61 EUR
( 54,47 EUR incl. VAT )
≈ £38.31  |  ≈ $50.30
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1552000 KX E-Box, 200x300x80 mm, sheet metal
Datasheet:file_download Download
Lieske Part No.:1598316
Mfg Part No: 1552000
UPC/EAN: 4028177816541
Weight:3.18 kg
Type:KX 1552000

Product information for Rittal 1552000:

The small housing KX 1552000 from Rittal is a robust, compact enclosure made of steel sheet, designed for use in industrial and technical installations. It features dimensions of 200 mm width, 300 mm height, and 80 mm depth, and is equipped with a mounting plate and a door. The construction from a single piece of bent and welded steel sheet ensures high mechanical stability and enables easy installation. The door is hinged on the right side with a 180° hinge and features a continuous foamed PU seal, ensuring a tight closure. The enclosure is designed for use in environments with increased requirements for protection against dust, water, and mechanical impacts.

Applications
This enclosure is suitable for use in industrial environments where a high protection class is required. It can be used in automation technology, power supply, or process control systems. The protection rating IP 66 according to EN 60 529 means that the enclosure is dust-tight and protected against water jets from any direction, making it suitable for outdoor use as well. The approvals according to NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), expand the range of applications in various regions and industries. The IK code IK08 indicates that the enclosure is protected against mechanical impacts such as shocks and vibrations up to a certain intensity.

Functions and Equipment in Detail
The enclosure is supplied with a mounting plate made of galvanized steel sheet, enabling secure fastening to walls or other surfaces. The dimensions of the mounting plate are 175 mm width and 285 mm height. The locking system consists of a cam lock with a 3 mm double-barrel lock insert, standardized according to DIN 43668, ensuring secure locking. The surface of the enclosure and door is treated in three layers: dip-primed, coated with a nanoceramic coating, and externally powder-coated with a textured paint. The color is RAL 7035, a gray-beige tone that blends well in industrial environments. The mounting plate is galvanized to prevent corrosion.

Technology Explained Simply
The construction from steel sheet with a material thickness of 1.25 mm for the enclosure and door, and 2 mm for the mounting plate, ensures high strength. The continuous PU seal on the door prevents dust and moisture from entering. The protection rating IP 66 means the enclosure is completely dust-tight and protected against water jets from any direction. The NEMA approvals (NEMA 1, 3R, 4, 12) and UL type ratings (Type 1, 3R, 4, 12) confirm suitability for various environments, including damp or dusty rooms. The IK code IK08 indicates that the enclosure is protected against mechanical impacts such as shocks and vibrations up to a certain intensity.

Compatibility and Accessories
The enclosure is compatible with various accessories that allow for individual customization. These include mounting clips for support rails, lock inserts made of zinc die-cast, plug-throughs (e.g. SZ 2400500), lock box covers (e.g. SZ 2493000), support rails (e.g. TH 35/7,5/TS 35/15), pressure equalization plugs (e.g. SZ pressure equalization plug M12x1.5), mounting brackets, condensate drains, earthing straps (e.g. M6-M6, cross-section 10 mm²), handles (e.g. SZ 2577000), drill screws (type ST 4,8 L9,5 mm), and mounting brackets. These components enable flexible and application-specific installation and integration into existing systems.

Mounting and Installation
Installation is carried out via the included mounting plate, which is attached to the rear wall of the enclosure. The holes in the mounting plate allow for secure fastening to walls or other surfaces. The door is hinged on the right side with a 180° hinge, enabling easy opening and maintenance. The cam lock with double-barrel insert ensures secure locking. Integrated earthing via a protective conductor connection in the enclosure and via a U-bracket in the door enables quick and easy earthing.

Advantages in Operation
The enclosure offers high mounting convenience and flexible selection of locking systems. The robust steel sheet construction and high protection rating IP 66 ensure long service life and reliability in demanding environments. The integrated earthing and continuous seal enhance safety and functionality. The surface treatment with nanoceramic, dip-priming, and textured paint provides high corrosion protection and resistance against mineral oils, lubricants, machining emulsions, and solvents. The clear identification via a QR code on the enclosure, door, and nameplate enables easy traceability and quick access to relevant product information.

General
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure with door, mounting plate, latch with 3 mm double bar insert, 180° hinge
Width200 mm
Height300 mm
Depth80 mm
Mounting plate dimensions (W x H)175 mm x 285 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Plate thickness cabinet1,25 mm
Door material thickness1,25 mm
Mounting plate material thickness2 mm
LockNumber of locks: 1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)29.19 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1552000, EAN: 4028177816541
