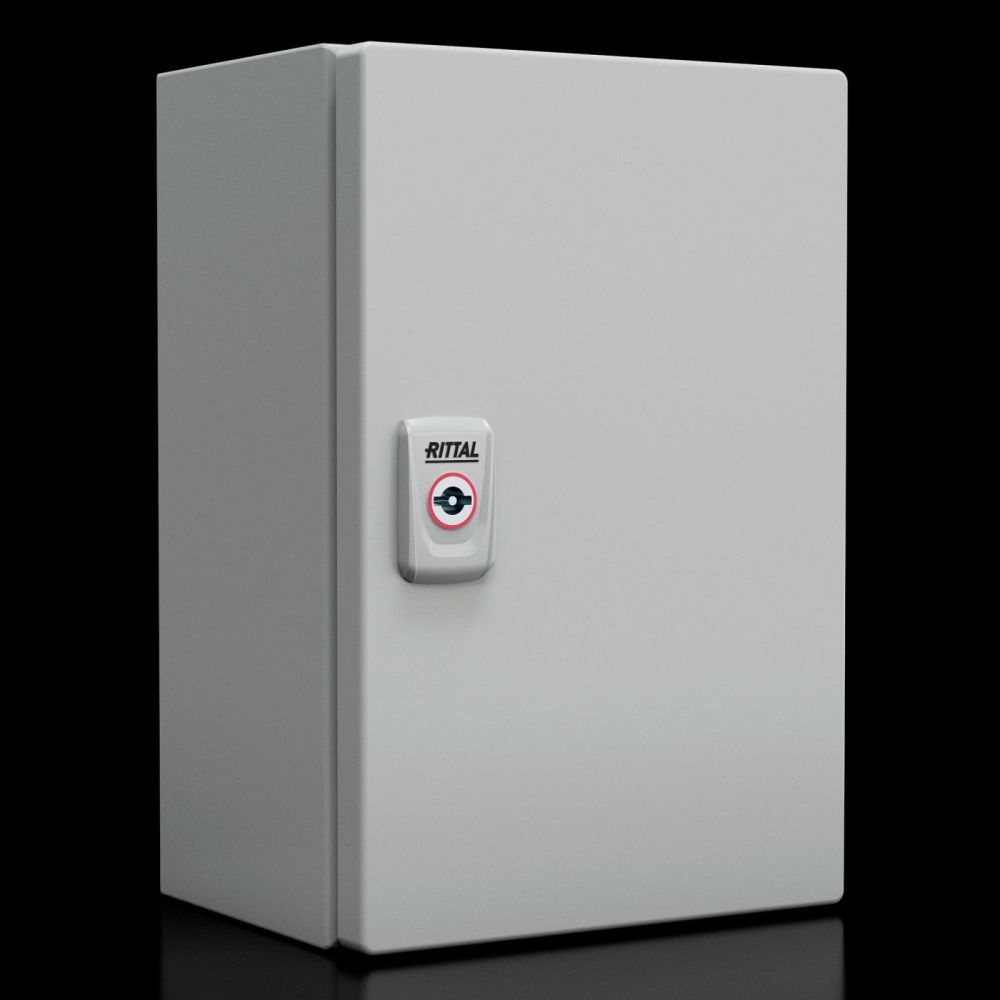

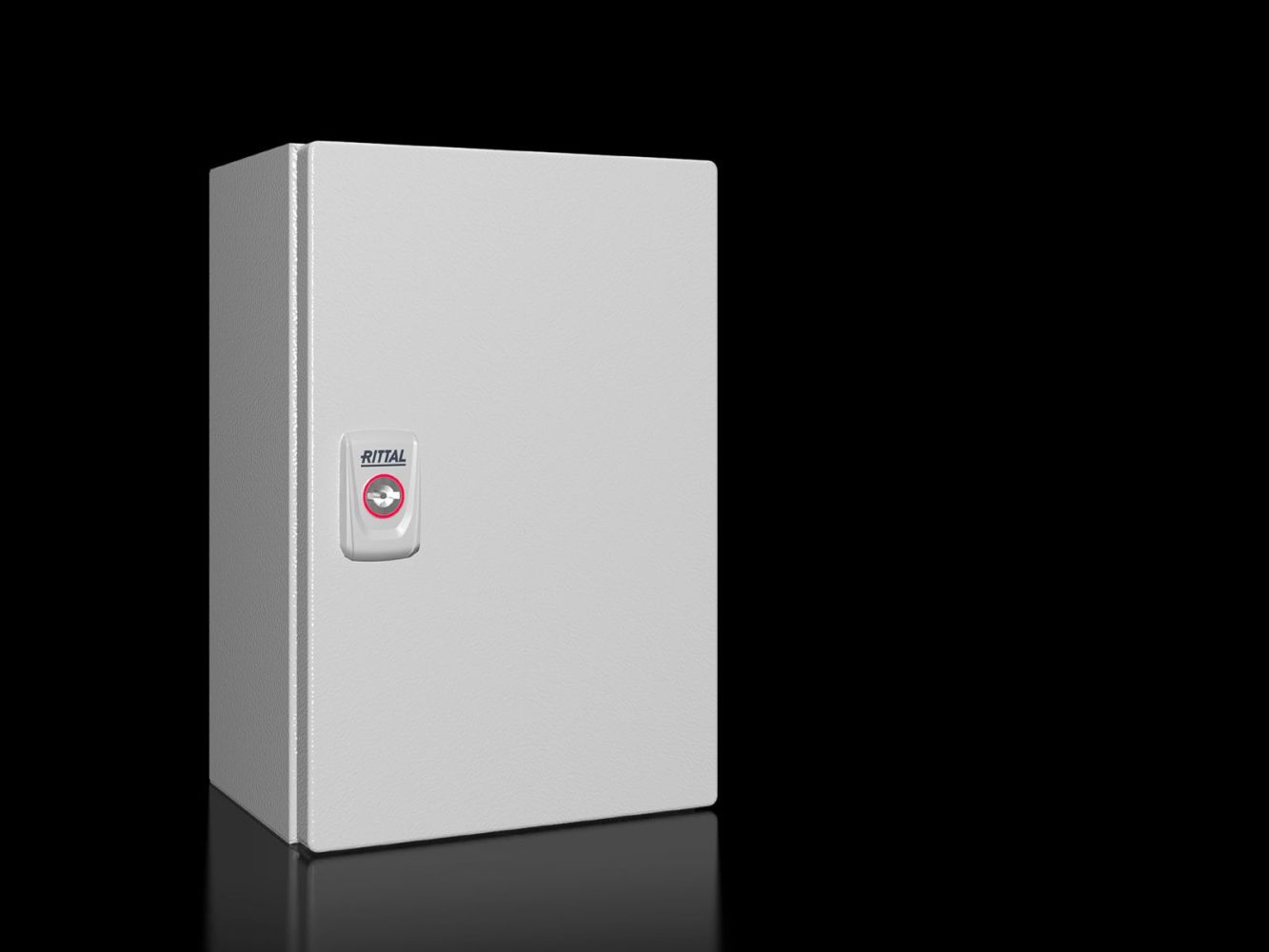

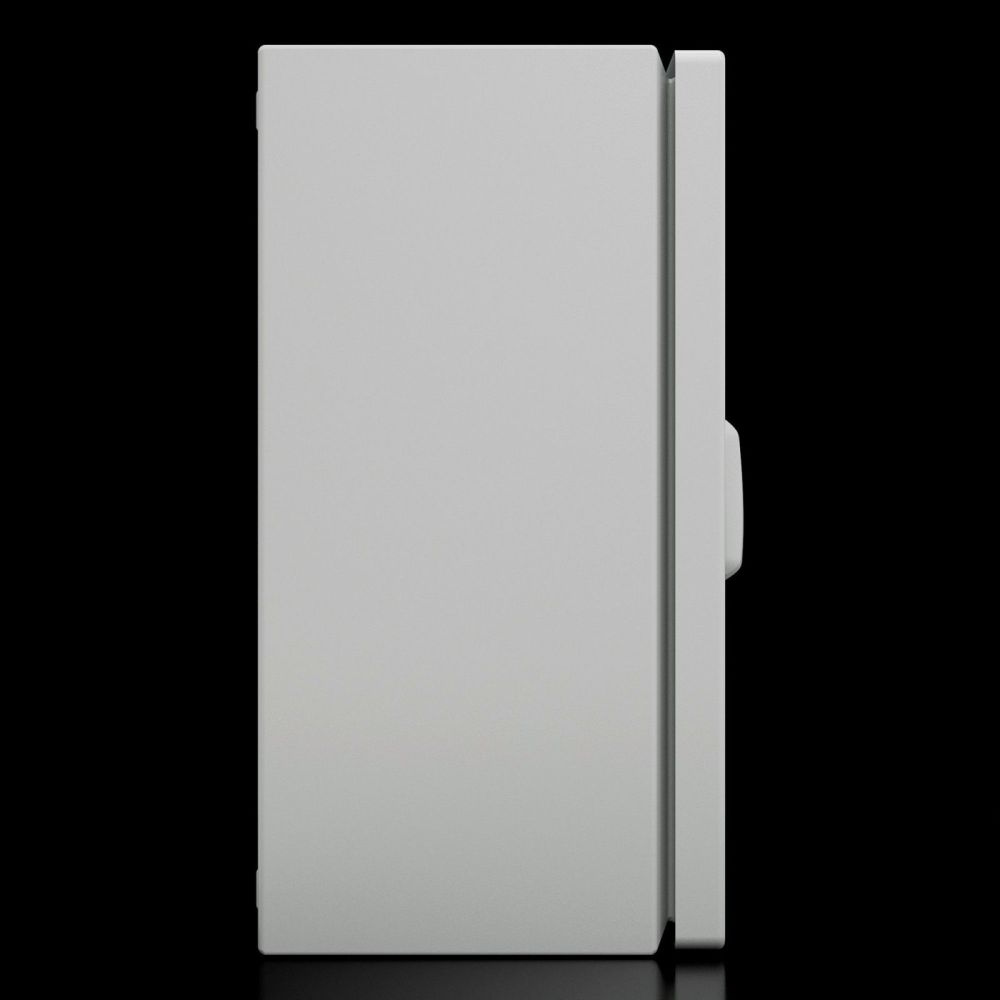

Rittal 1574000 KX E-Box, 200x300x155 mm, sheet metal, with mounting plate,
|
50,14 EUR 52,14 EUR |
|
|
( 59,67 EUR incl. VAT ) ≈ £41.97 | ≈ $55.10 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598337 |
| Mfg Part No: | 1574000 |
| UPC/EAN: | 4028177816602 |
| Weight: | 3.984 kg |
| Type: | KX 1574000 |
Product information for Rittal 1574000:
Applications
The KX 1574000 is suitable for use in industrial electrical engineering, machine building, automation technology, as well as in building and process control. The protection rating IP 66 according to EN 60 529 makes it suitable for outdoor use or in damp, dusty environments, as it is dust-tight and protected against water jets from all directions. The NEMA approvals NEMA 1, NEMA 3R, NEMA 4 and NEMA 12, as well as the type ratings according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm its suitability for various industrial requirements, particularly in environments with splashing water, dust or light dirt. The IK code IK08 guarantees protection against mechanical impacts, such as light shocks or vibrations.
Functions and Equipment in Detail
The housing is made of sheet metal with a material thickness of 1.25 mm for the housing and door, ensuring high strength and durability. The mounting plate has a material thickness of 2 mm and is galvanized to prevent corrosion. The surface of the housing and door is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, providing high resistance against corrosion, mineral oils, lubricants, machining emulsions and solvents. The door is fitted with a continuously foamed PU seal, ensuring a tight seal and supporting the IP 66 protection rating. The delivery includes the housing with door, the mounting plate, a cam lock with 3 mm double-barrel lock insert, and a 180° hinge.
Technology Explained Simply
The triple surface treatment – consisting of nanoceramic coating, electrophoretic dip priming and powder-coated textured lacquer – ensures high corrosion resistance and durability. The IP 66 protection rating means the housing is dust-tight and protected against water jets from all directions, making it suitable for outdoor use or in damp indoor environments. The NEMA and UL approvals confirm suitability for various industrial environments. The IK08 protection code protects the housing against mechanical impacts such as shocks or vibrations. The mounting plate enables easy fixation of components inside the housing.
Compatibility and Accessories
The KX 1574000 is compatible with various accessories that extend its use in different application scenarios. These include mounting clips for support rails, lock inserts made of zinc die-cast, plug-throughs (e.g. SZ 2400500), lock box covers (e.g. SZ 2493000), support rails (e.g. TH 35/7,5/TS 35/15), pressure equalizing plugs (e.g. SZ pressure equalizing plug M12x1.5), mounting brackets, condensate drains, handles (e.g. SZ 2577000, AX 2533100), drilling screws (type ST 4,8 L9,5 mm) and mounting brackets. These components allow individual adaptation to specific mounting and protection requirements.
Mounting and Installation

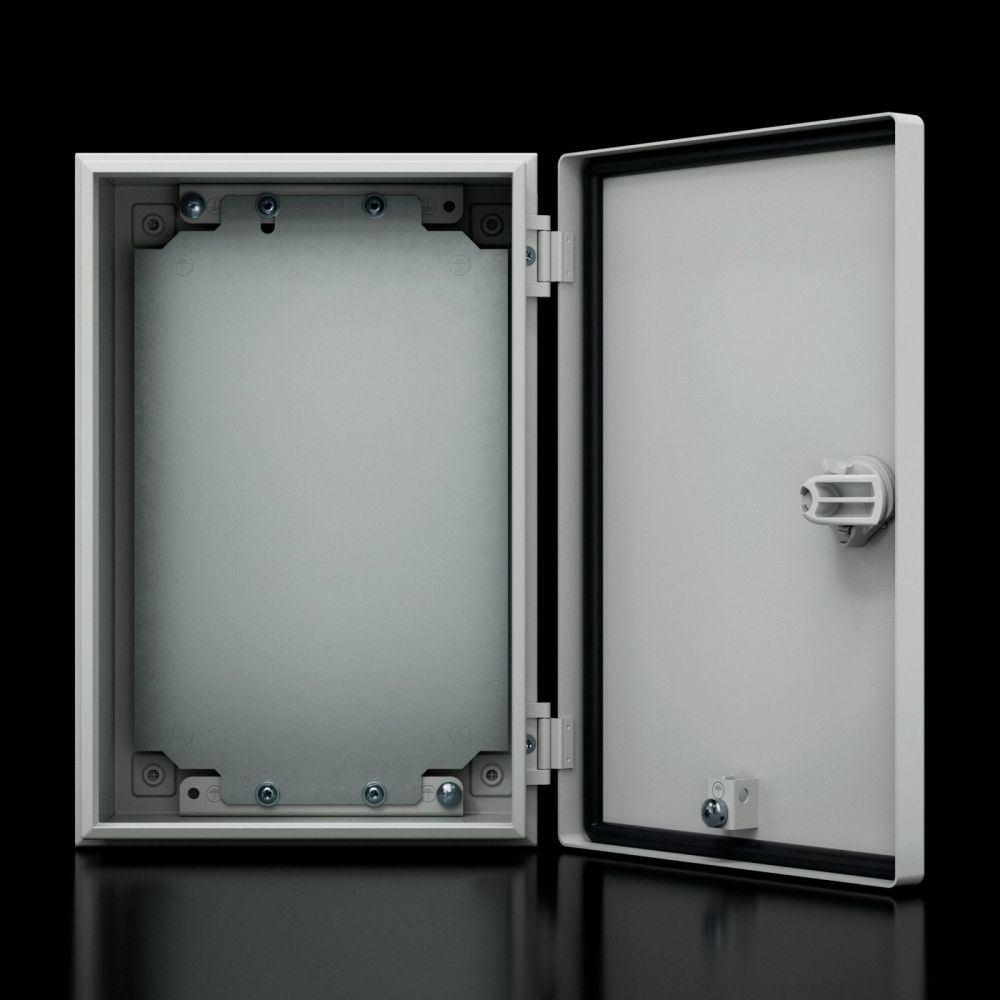

Mounting is done via the integrated mounting plate, which is equipped with through-holes for wall mounting brackets. The door is hinged on the right and can be secured with the provided cam lock. The mounting plate allows easy fixation of components inside. The earth conductor connections in the housing and door via U-brackets ensure quick and secure earthing. A QR code on the housing, door and nameplate enables unique identification and easy access to product information and documentation.
Advantages in Operation
The KX 1574000 offers high mounting convenience and flexible selection of locking systems. The robust sheet metal construction and high protection rating IP 66 ensure long service life and reliability in demanding environments. The integrated mounting plate and pre-installed fastening elements simplify installation and maintenance. The surface treatment protects against corrosion and chemical influences, increasing operational safety. Compatibility with various accessories extends application possibilities and enables a customized solution for specific requirements.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door, mounting plate, latch with 3 mm double bar insert, 180° hinge |
| Width | 200 mm |
| Height | 300 mm |
| Depth | 155 mm |
| Mounting plate dimensions (W x H) | 175 mm x 285 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Plate thickness cabinet | 1,25 mm |
| Door material thickness | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Lock | Number of locks: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 33.24 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
