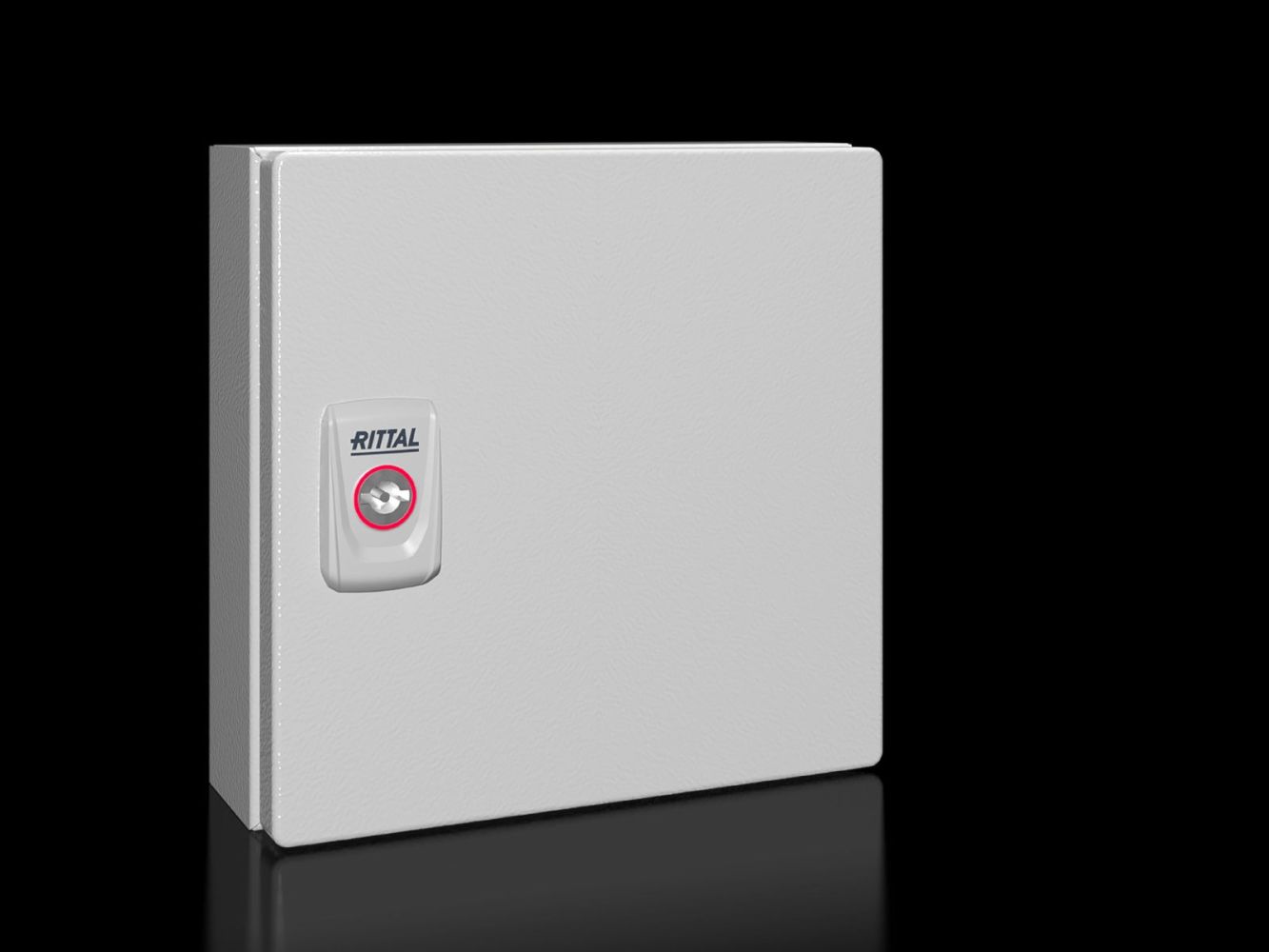

Rittal 1546000 KX E-Box, 200x200x80 mm, sheet metal
|
40,02 EUR 40,79 EUR |
|
|
( 47,62 EUR incl. VAT ) ≈ £33.50 | ≈ $43.98 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598322 |
| Mfg Part No: | 1546000 |
| UPC/EAN: | 4028177816480 |
| Weight: | 2.33 kg |
| Type: | KX 1546000 |
Product information for Rittal 1546000:
Applications
The housing is suitable for use in indoor and outdoor environments, particularly in areas with increased requirements for protection against dust, water and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures complete protection against dust and heavy splashing water, making it suitable for use in damp or dusty environments. The approvals according to NEMA 1, NEMA 3R, NEMA 4 and NEMA 12, as well as Type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various industrial and commercial applications. The IK code IK08 indicates high mechanical strength against impact loads.
Functions and equipment in detail

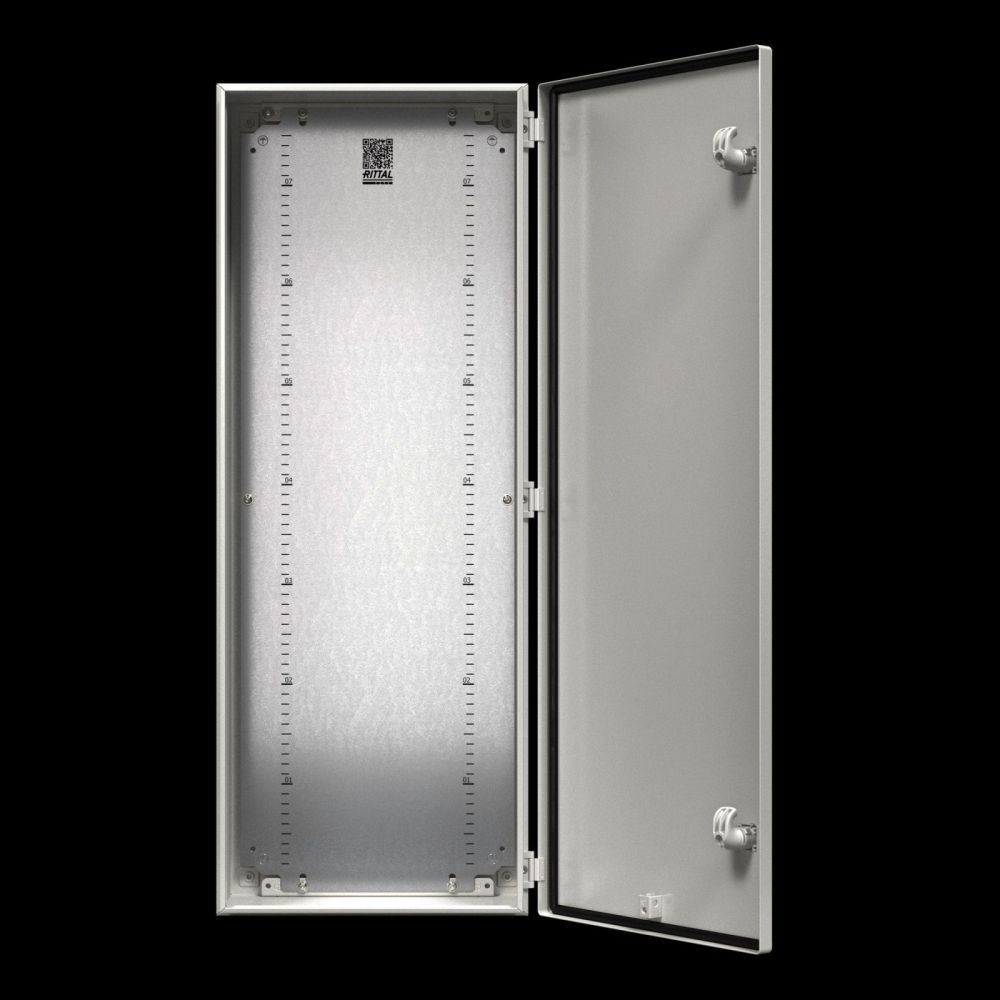

The housing is supplied with a door fitted with a 180° hinge on the right side. The door is equipped with a continuous foamed PU seal, ensuring a tight seal. The closure is achieved via a cam lock with a 3 mm double-barrel lock insert, manufactured according to DIN 43668. The mounting plate made of galvanised sheet metal allows secure fixation of assemblies inside. A protective earth conductor connection in the housing and via a U-bracket in the door ensures quick and easy earthing.
Technology explained simply
The triple surface treatment – consisting of nanoceramic coating, electrophoretic dip priming and powder-coated textured lacquer – ensures high resistance to corrosion and chemical influences. The IP protection rating 66 means the housing is dust-tight and protected against heavy splashing water, making it suitable for outdoor use as well. The NEMA and UL approvals confirm suitability for various environments, including damp or dusty industrial facilities. The IK08 code guarantees that the housing is resistant to mechanical impacts such as shocks or impacts from objects up to a certain energy level.
Compatibility and accessories
The housing can be extended with various accessories to meet specific requirements. These include mounting clips for support rails, lock inserts made of zinc die-cast, plug-throughs, lock box covers, support rails (TH 35/7.5/TS 35/15), pressure equalisation plugs, mounting brackets, condensate drains, earthing straps, handles with security cylinder, drill screws, and mounting brackets. These components allow flexible adaptation to different mounting and operating conditions.
Mounting and installation
Mounting is done via the integrated mounting plate, which is equipped with through-holes for wall mounting brackets. The door is hinged on the right, ensuring easy accessibility. The use of drill screws and mounting brackets allows flexible fixation on various substrates. The integrated earthing via U-brackets in the door and in the housing simplifies the electrical connection to the protective earth conductor.
Advantages in operation
The housing offers high mechanical stability and reliable protection for installed components. The robust construction from sheet metal and the tight seal provided by the PU seal ensure a long service life even under demanding conditions. The integrated mounting plate and simple earthing reduce installation time. The approvals according to IP, NEMA and UL enable use in a wide range of applications, from industry to building automation. The surface coating in RAL 7035 provides good visual integration in industrial environments.
A QR code is printed on the housing, door and nameplate to enable unique identification and easy access to product information and documentation. This supports traceability and maintenance of the device.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door, mounting plate, latch with 3 mm double bar insert, 180° hinge |
| Width | 200 mm |
| Height | 200 mm |
| Depth | 80 mm |
| Mounting plate dimensions (W x H) | 175 mm x 185 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Plate thickness cabinet | 1,25 mm |
| Door material thickness | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Lock | Number of locks: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 27.13 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
