Rittal 1549000 KX E-Box, 200x200x120 mm, sheet metal

Your rating:
Average rating
product review for Rittal 1549000 KX E-Box, 200x200x120 mm, sheet metal
( 4.7 / 5 ) 10 ratings

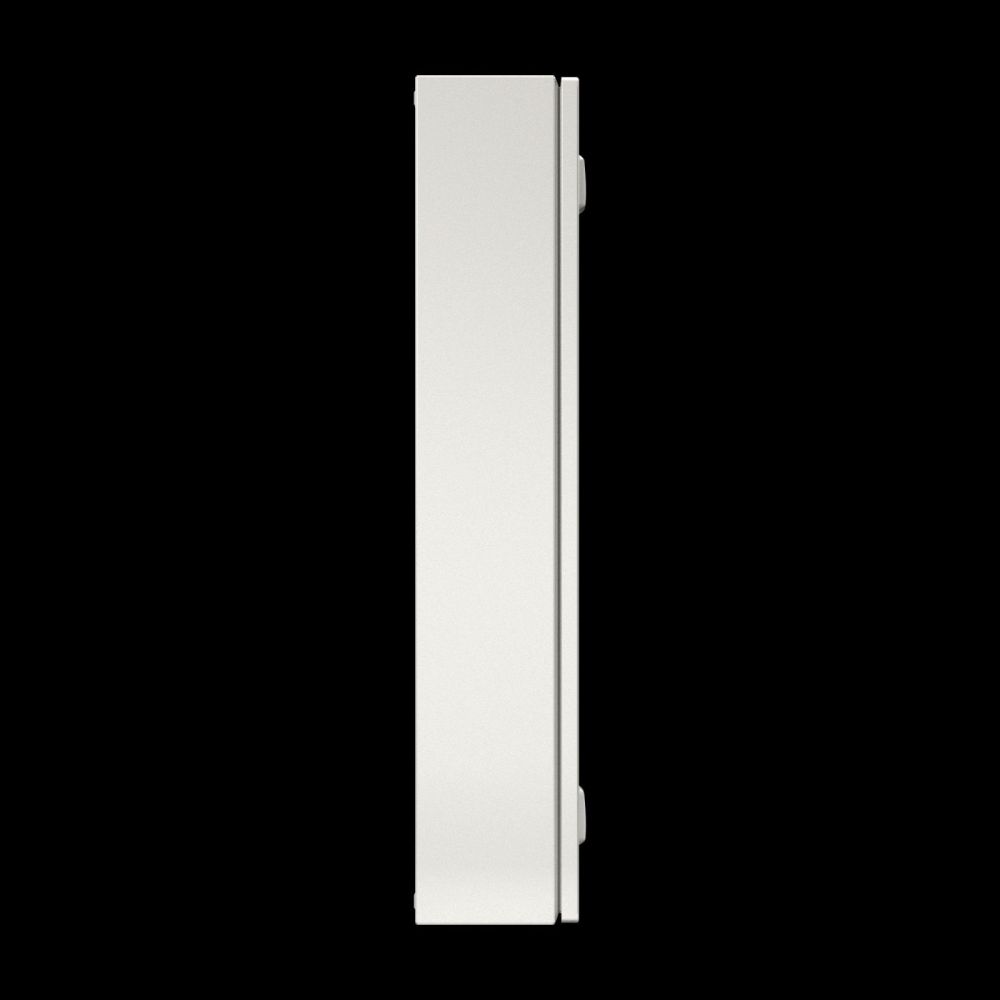

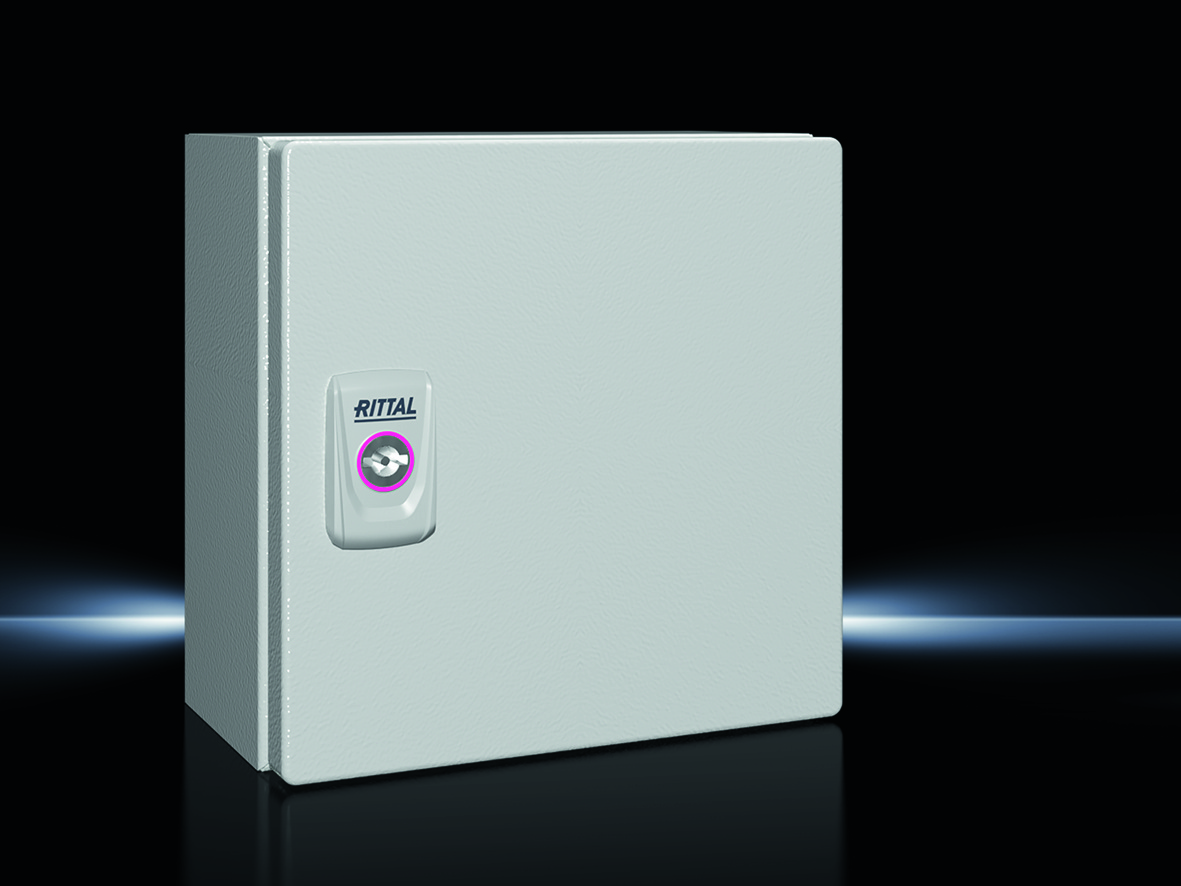

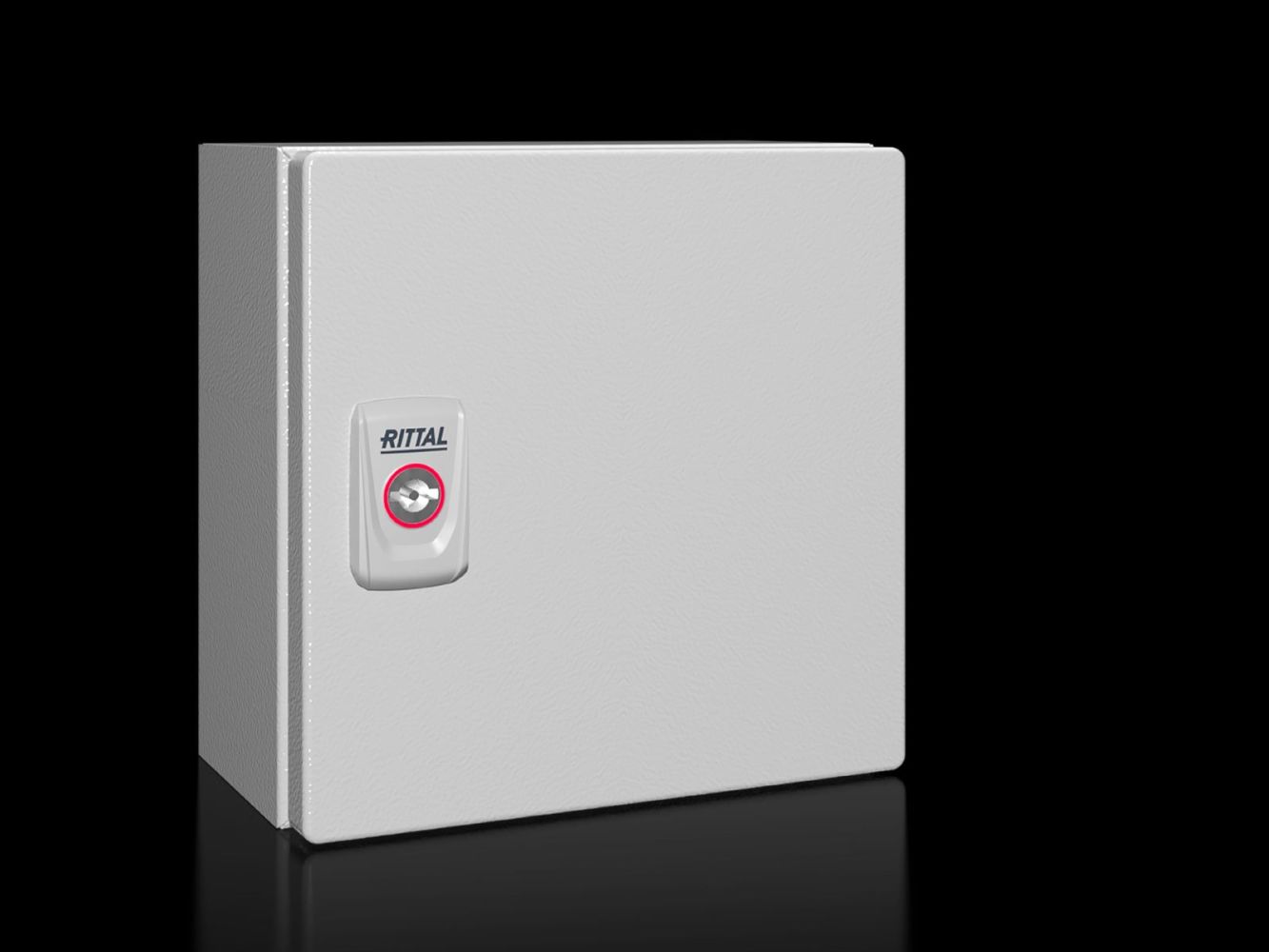

Rittal 1549000

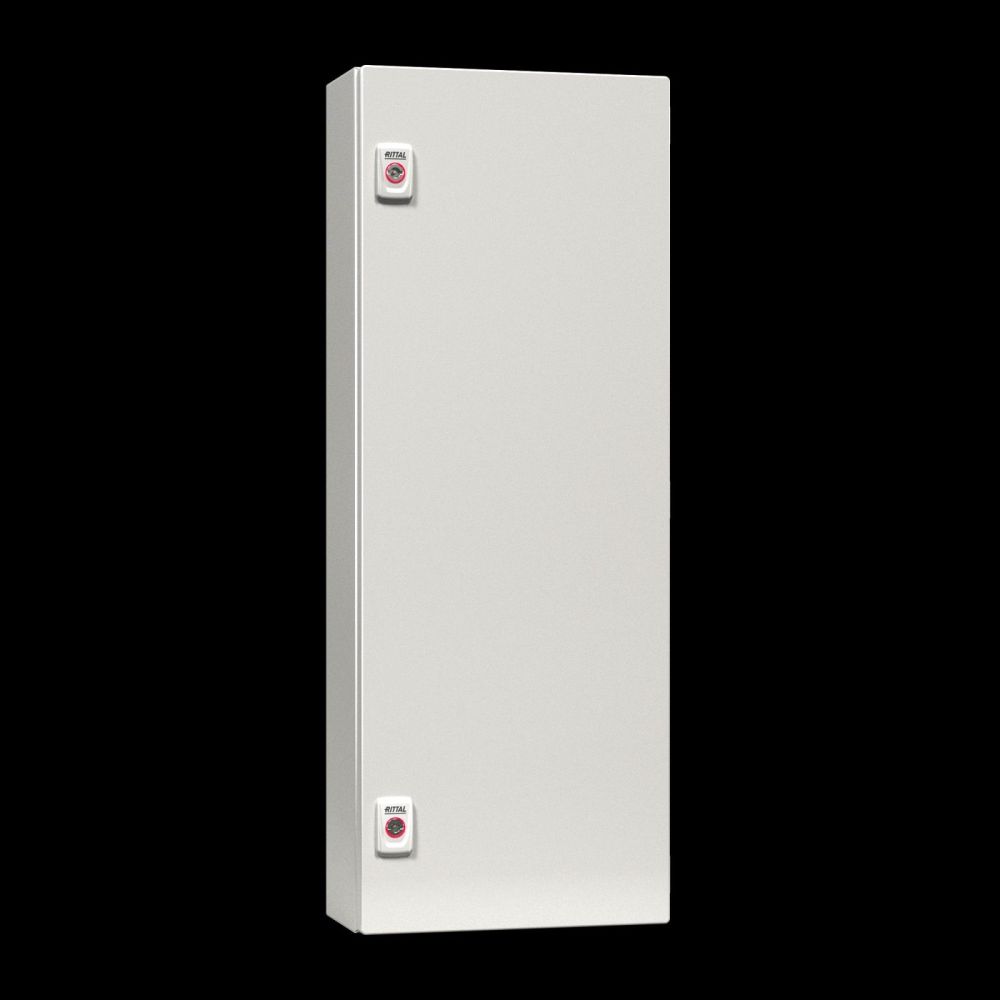

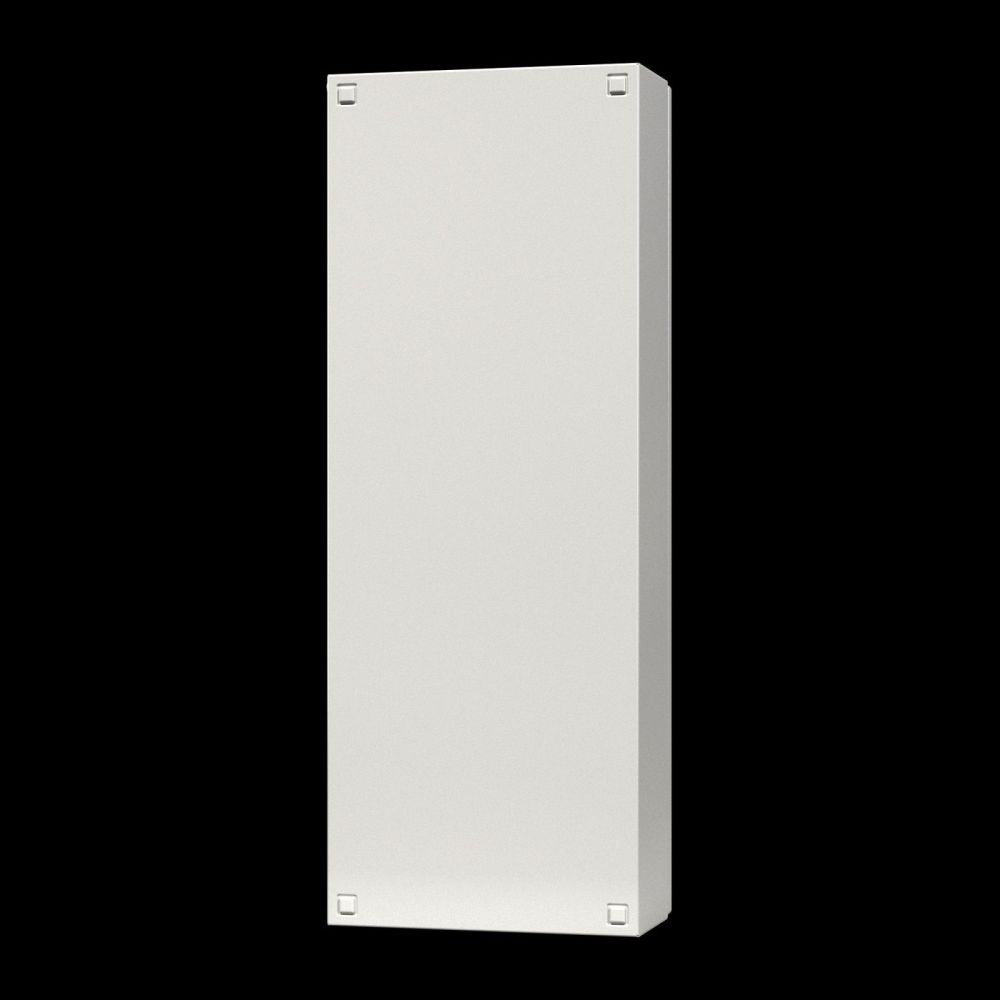

This image may differ from the desired article.
Rittal 1549000Rittal 1549000Rittal 1549000Rittal 1549000Rittal 1549000Rittal 1549000Rittal 1549000
40,95 EUR
( 48,73 EUR incl. VAT )
≈ £34.28  |  ≈ $45.00
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1549000 KX E-Box, 200x200x120 mm, sheet metal
Datasheet:file_download Download
Lieske Part No.:1598319
Mfg Part No: 1549000
UPC/EAN: 4028177816510
Weight:2.637 kg
Type:KX 1549000

Product information for Rittal 1549000:

The small housing KX 1549000 from Rittal is a robust E-Box housing made of sheet steel, designed for use in industrial and technical applications where high mechanical and environmental resistance is required. The housing has dimensions of width 200 mm, height 200 mm, and depth 120 mm, and is equipped with a mounting plate and a door. The construction from a single piece of bent and welded sheet steel ensures a stable and tight design, suitable for use in harsh environments. The door is hinged on the right side with a 180° hinge and features a continuously foamed PU seal, providing effective protection against dust and moisture.

Applications
This housing is suitable for use in indoor and outdoor environments, particularly in areas with increased mechanical stress, such as manufacturing, automation technology, or machine building. The protection rating IP 66 according to EN 60 529 ensures complete protection against dust and heavy splashing water, making it suitable for outdoor use as well. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the Type ratings according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various industrial requirements, including humid or dusty environments. The IK code IK08 guarantees high protection against mechanical impacts, such as shocks or vibrations.

Functions and Equipment in Detail

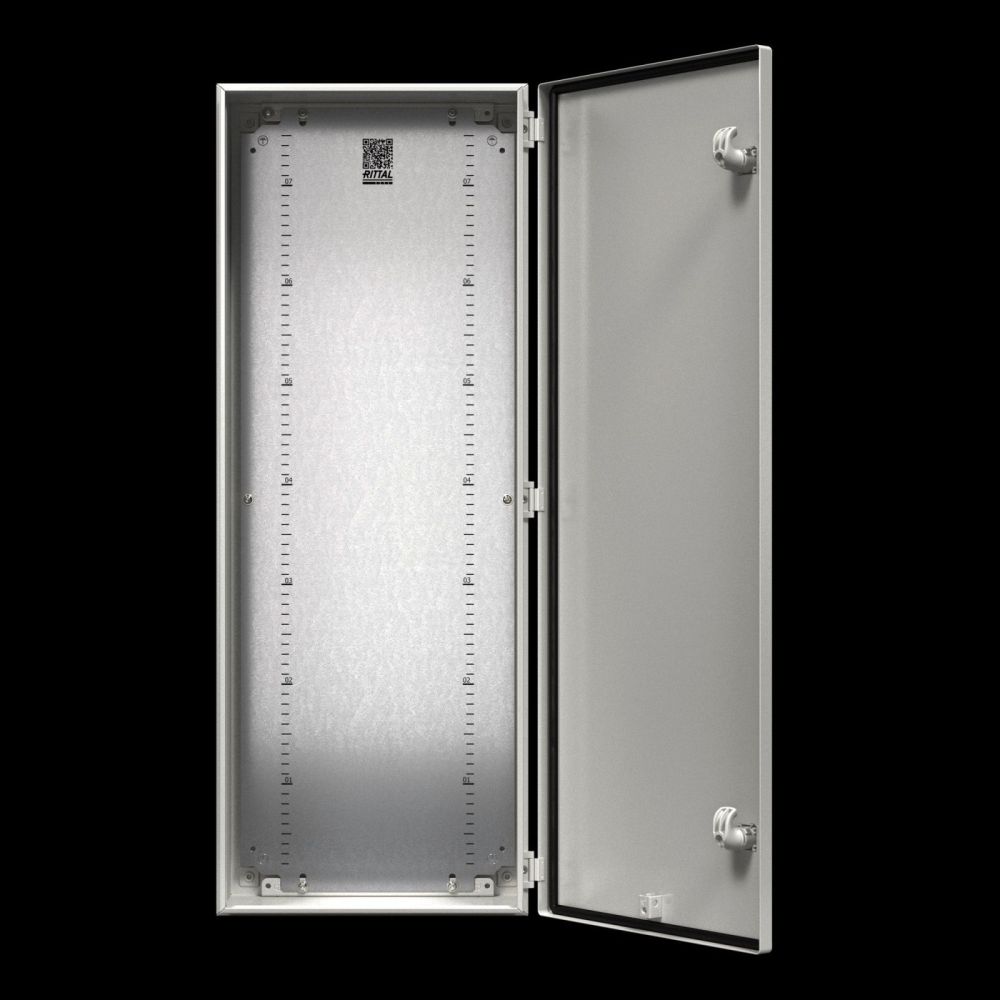

The housing is supplied with a mounting plate made of galvanized sheet steel, enabling secure mounting on walls or other substructures. The dimensions of the mounting plate are 175 mm (W) × 185 mm (H). The locking mechanism consists of a cam lock with a 3 mm double-barrel lock insert, manufactured according to DIN 43668, ensuring secure and easy operation. The surface of the housing and door is triple-treated: dip-primed, coated with a nano-ceramic coating, and externally powder-coated in textured finish in the colour RAL 7035. This surface treatment provides high corrosion resistance and is resistant to mineral oils, lubricants, machining emulsions, and solvents.

Technology Explained Simply
The material thickness of the housing and door is 1.25 mm each, while the mounting plate has a thickness of 2 mm. These material thicknesses ensure sufficient strength and stability under load. The continuous PU seal on the door provides a tight seal, preventing dust and moisture from entering. The protection rating IP 66 means the housing is dust-tight and protected against heavy splashing water, making it suitable for outdoor use. The NEMA 4 and Type 4 ratings according to UL 50E confirm suitability for use in humid or dusty environments, including outdoor mounting.

Compatibility and Accessories
The housing is compatible with various accessories that enable use in different application scenarios. These include mounting clips for support rails, lock inserts made of zinc die-cast, plug-throughs (e.g. SZ 2400500), lock box covers (e.g. SZ 2493000), support rails (TH 35/7,5/TS 35/15), pressure equalization plugs (e.g. SZ pressure equalization plug M12x1.5), mounting brackets, condensate drains, handles (e.g. SZ 2577000, AX 2533100), tapping screws (type ST 4,8 L9,5 mm), and mounting brackets. These accessories allow individual adaptation of the housing to specific mounting and operating conditions.

Mounting and Installation
Mounting is done via the included mounting plate, which is equipped with through-holes for wall mounting brackets. The door is hinged on the right side, allowing easy access. The cam lock with double-barrel insert is easy to operate and ensures secure locking. Grounding is achieved via a protective conductor connection in the housing and a U-bracket in the door, enabling quick and easy grounding. A QR code is printed on the housing body, door, and type plate to enable unique identification and traceability of individual components.

Advantages in Operation
The housing offers high mounting comfort and flexibility in choosing locking systems. The robust sheet steel construction and high-quality surface treatment ensure long service life and high reliability. The integrated mounting plate and pre-installed locks reduce mounting time and simplify installation. The IP 66 protection rating and NEMA and UL certifications ensure safe operation in demanding environments. The use of sheet steel and the special surface treatment provide high resistance to corrosion and chemical influences.

General
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure with door, mounting plate, latch with 3 mm double bar insert, 180° hinge
Width200 mm
Height200 mm
Depth120 mm
Mounting plate dimensions (W x H)175 mm x 185 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Plate thickness cabinet1,25 mm
Door material thickness1,25 mm
Mounting plate material thickness2 mm
LockNumber of locks: 1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)28.88 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1549000, EAN: 4028177816510
