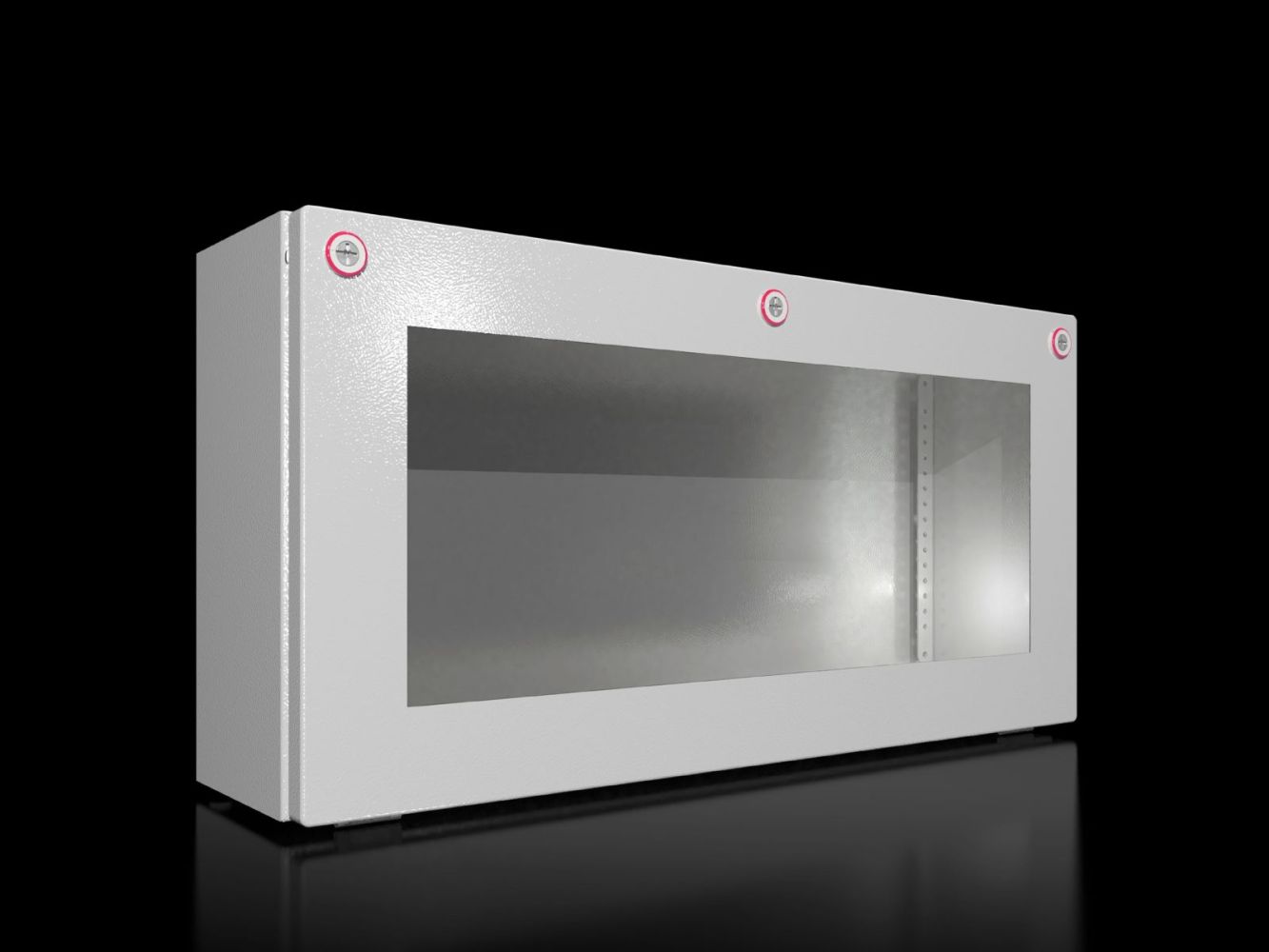

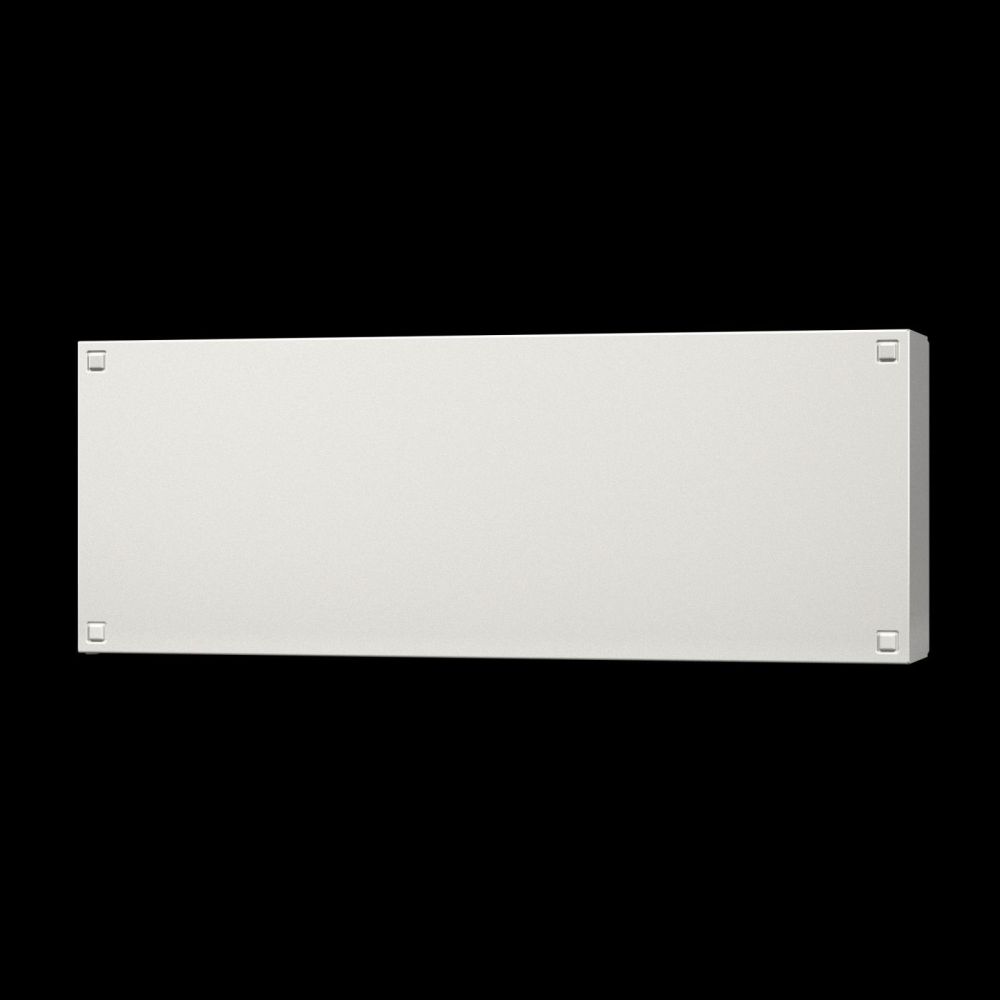

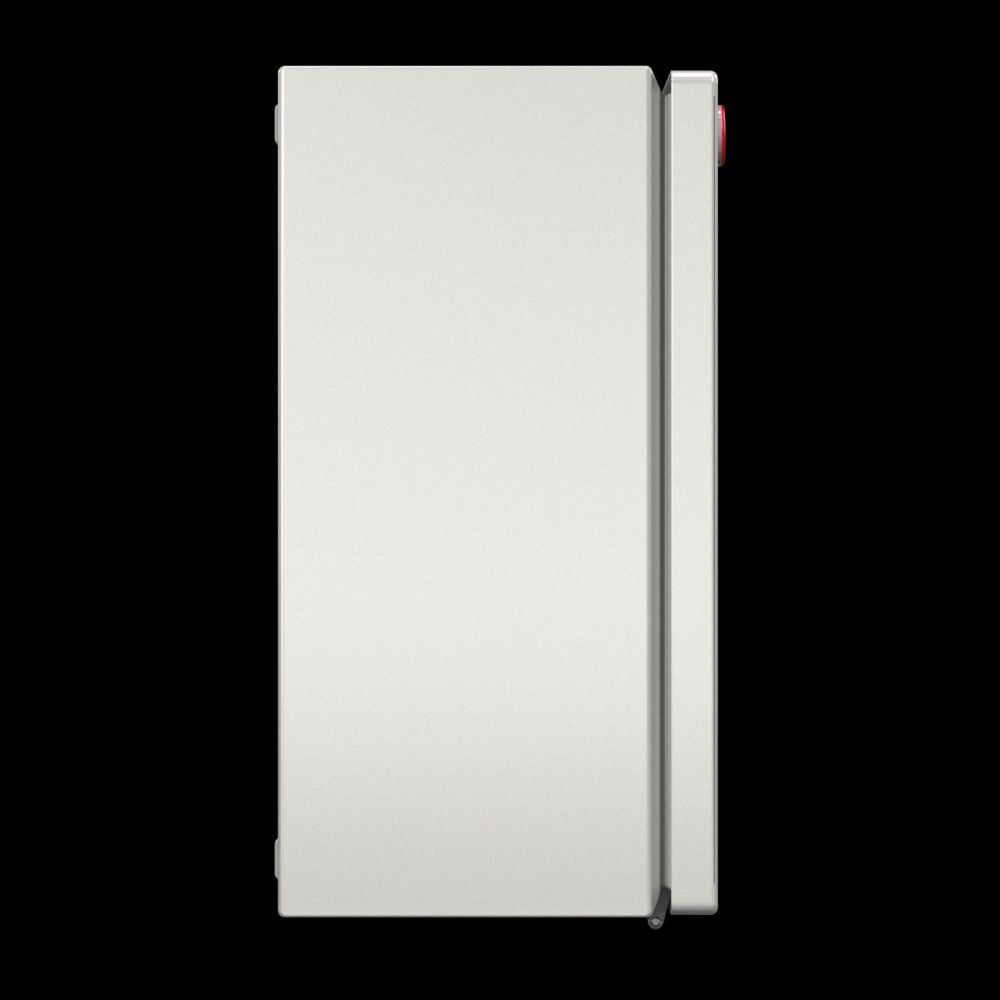

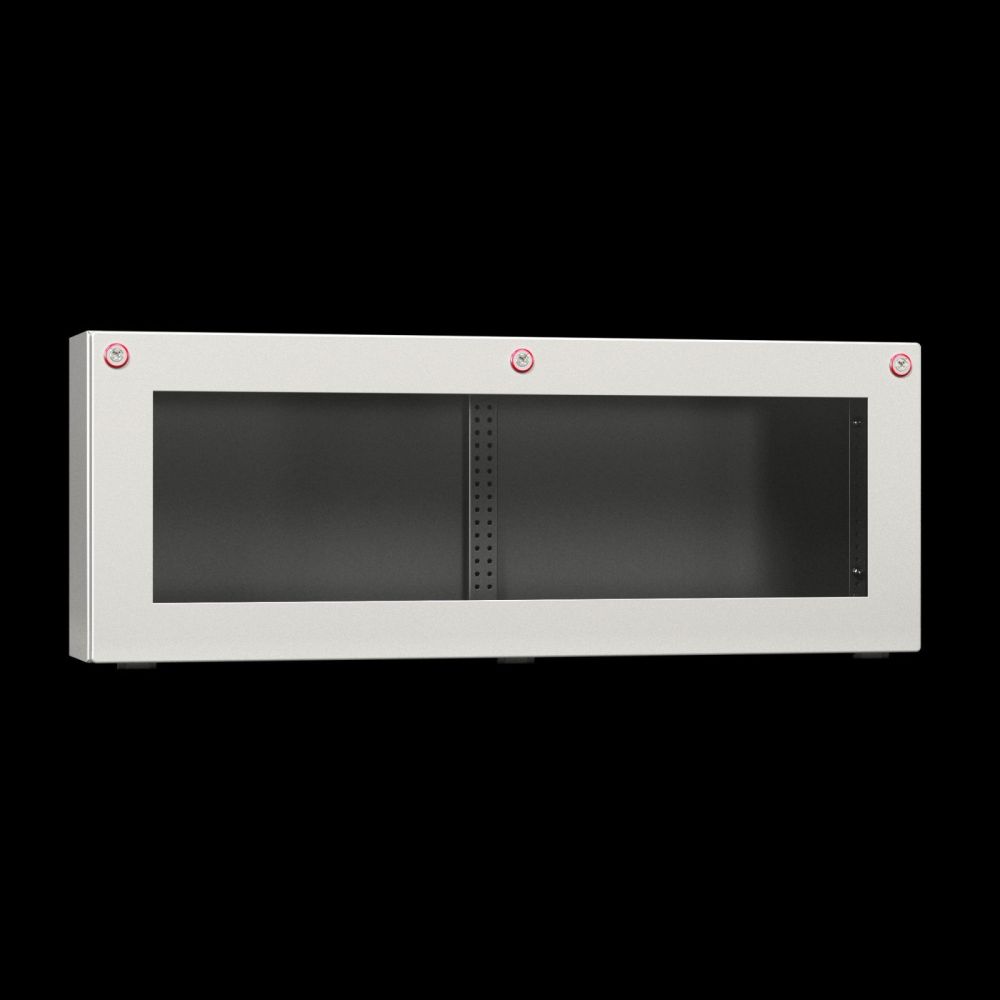

Rittal 1612000 Bus enclosure KX, sheet metal, with viewing window, 600x300x100 mm,

Your rating:
Average rating
product review for Rittal 1612000 Bus enclosure KX, sheet metal, with viewing window, 600x300x100 mm,
( 4.3 / 5 ) 9 ratings
Rittal 1612000
This image may differ from the desired article.
Rittal 1612000Rittal 1612000Rittal 1612000Rittal 1612000Rittal 1612000Rittal 1612000Rittal 1612000
133,49 EUR 133,63 EUR
( 158,85 EUR incl. VAT )
≈ £111.73  |  ≈ $146.71
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 1612000 Bus enclosure KX, sheet metal, with viewing window, 600x300x100 mm,
Datasheet:file_download Download
Lieske Part No.:1598336
Mfg Part No: 1612000
UPC/EAN: 4028177816695
Weight:6.9 kg
Type:KX 1612000

Product information for Rittal 1612000:

The Rittal KX 1612000 is an industrial-grade bus enclosure made of sheet steel, designed for use in systems with bus modules and sensors from various manufacturers. The enclosure features a stable construction with a closed base, a hinged lid, and an integrated viewing window made of polycarbonate with a thickness of 4 mm. The dimensions are 600 mm width, 300 mm height, and 155 mm depth, making it suitable for compact mounting requirements. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, ensuring high resistance against corrosion and chemical influences such as mineral oils, lubricants, machining emulsions, and solvents.

Applications
This enclosure is designed for use in industrial environments, particularly in systems where bus modules, sensors, or small control units are mounted. The protection rating IP 65 according to EN 60 529, as well as the NEMA classification NEMA 1 and NEMA 12, makes it suitable for indoor and outdoor applications with increased contamination risk or humid environments. The IK code classification IK08 provides protection against mechanical impacts such as shocks and vibrations.

Functions and Equipment in Detail

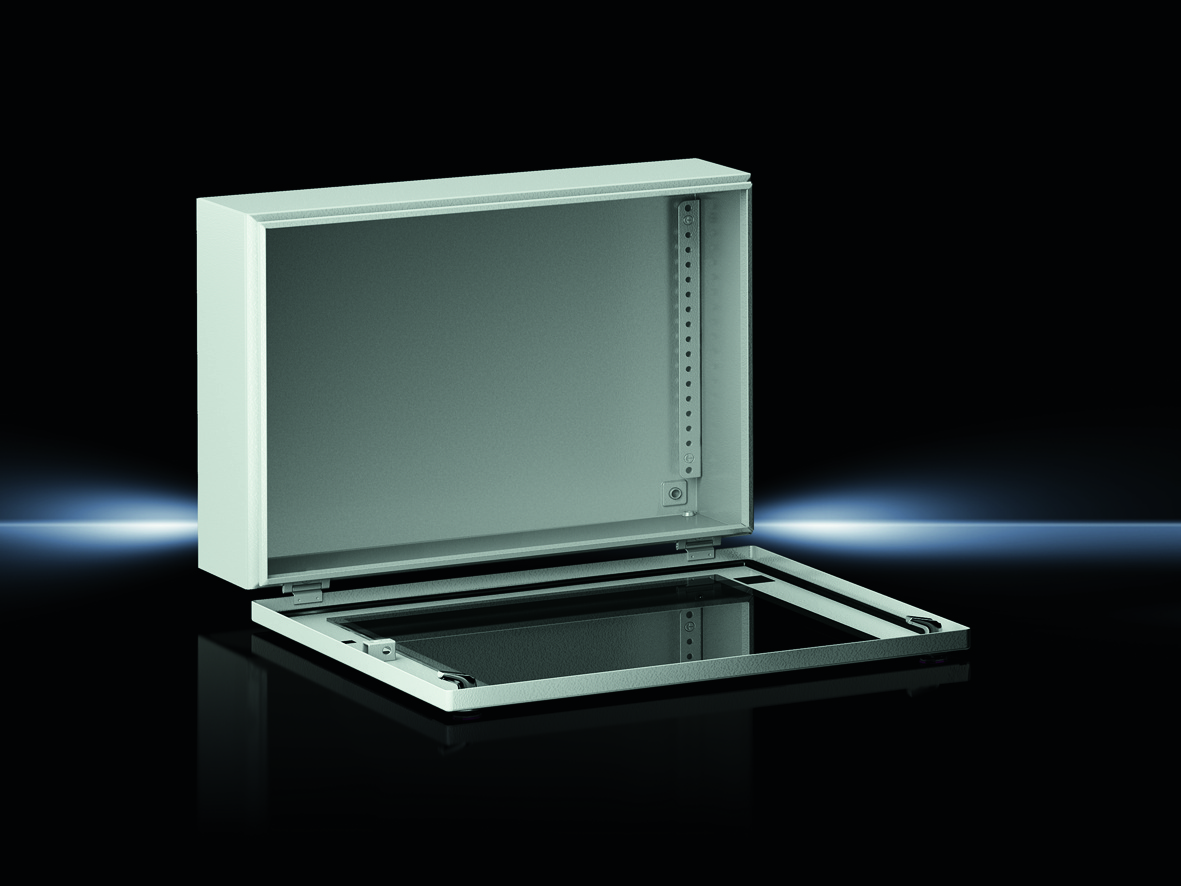

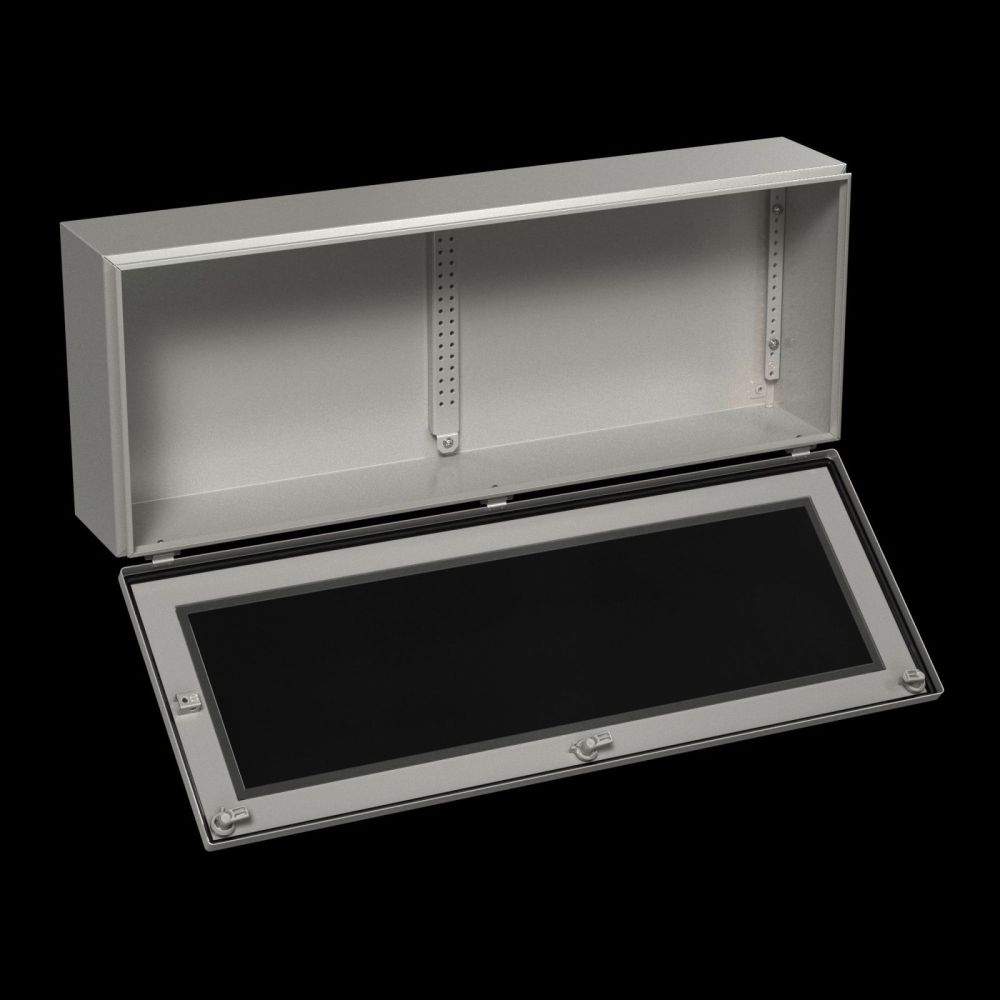

The enclosure is supplied with a hinged lid secured by mini-latch locks. The all-round foamed PU sealing ensures a tight seal and supports the IP 65 protection rating. The polycarbonate viewing window allows visual inspection of installed components without opening the enclosure. The rear panel is equipped with mounting holes for wall mounting brackets, enabling secure installation on walls or other structures.

Technology Explained Simply
The construction from sheet steel with a material thickness of 1.25 mm for both the enclosure and lid provides high mechanical stability. The triple surface treatment – nanoceramic coating, electrophoretic dip priming, and powder-coated textured lacquer – ensures long-term corrosion protection. The IP 65 protection rating means the enclosure is dust-tight and protected against water jets from all directions, making it suitable for outdoor use as well. The NEMA 12 classification corresponds to protection against dust, splashing water, and light spray, which is typical for industrial indoor environments.

Compatibility and Accessories
The enclosure is designed for mounting bus modules and sensors from various manufacturers. Compatible accessories include mounting clips for support rails, plug-throughs, pressure equalization plugs, mounting brackets, condensate drains, baying sets, drill screws, mounting brackets, earthing straps, mounting plates, mounting claws for a second mounting level, and wall mounting brackets. These components enable flexible and secure integration into existing systems.

Mounting and Installation
Mounting is carried out on a wall or support structure using the pre-drilled holes on the rear panel. The hinged lid design with mini-latch locks allows secure and quick access to the interior. The integrated earthing via U-brackets in the lid and enclosure ensures a reliable electrical connection to the protective conductor.

Operational Advantages
The combination of robust sheet steel, high protection rating, and integrated viewing window provides a reliable and low-maintenance solution for industrial applications. The powder-coated surface in RAL 7035 ensures an attractive appearance and simultaneous durability. The integrated earthing and simple mounting reduce installation time and increase operational safety. The QR code on the enclosure, lid, and nameplate enables unique identification and easy access to product information and documentation.

General
Modelwith viewing window
MaterialHousing: sheet steel, cover: sheet steel, continuously foamed PU seal, vision window: polycarbonate, 4 mm
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryHousing with hinged cover, viewing window in cover, mini cam locks
Width600 mm
Height300 mm
Depth155 mm
Degree of protection IP according to EN 60 529IP 65
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)43.93 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1612000, EAN: 4028177816695
