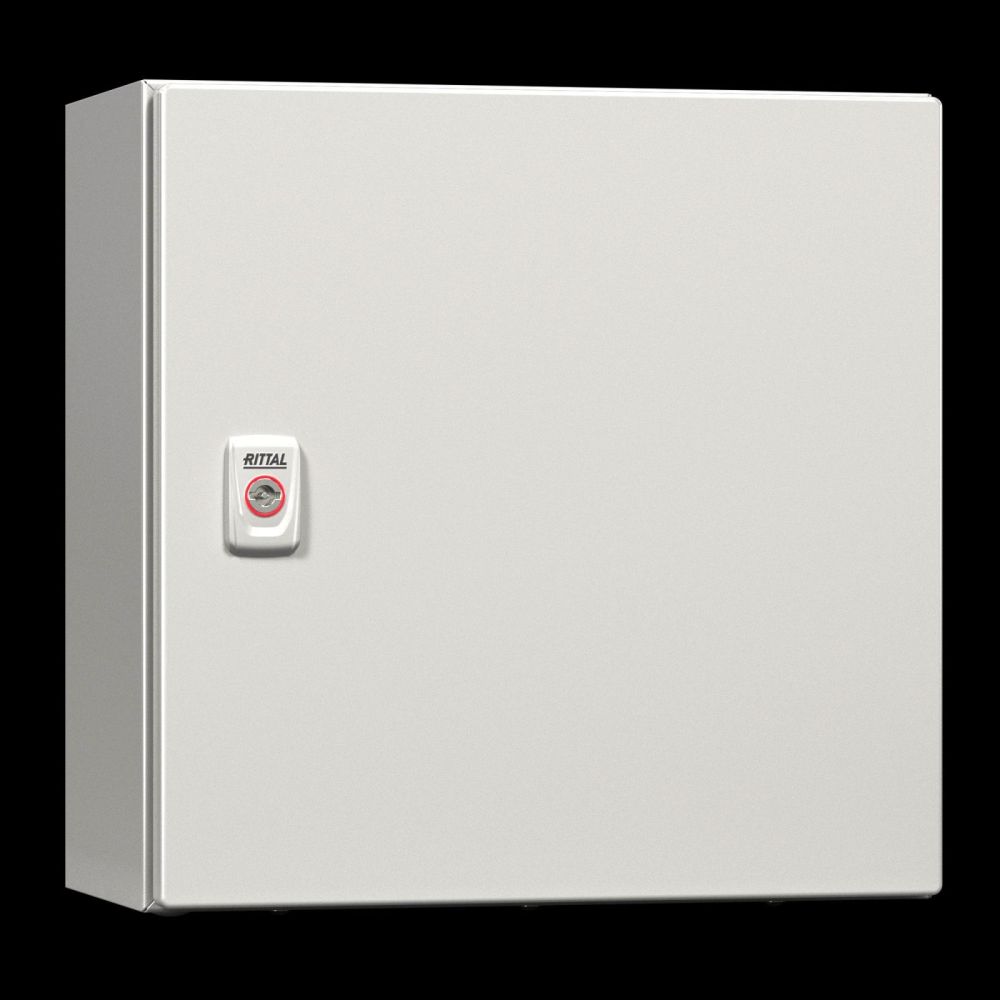

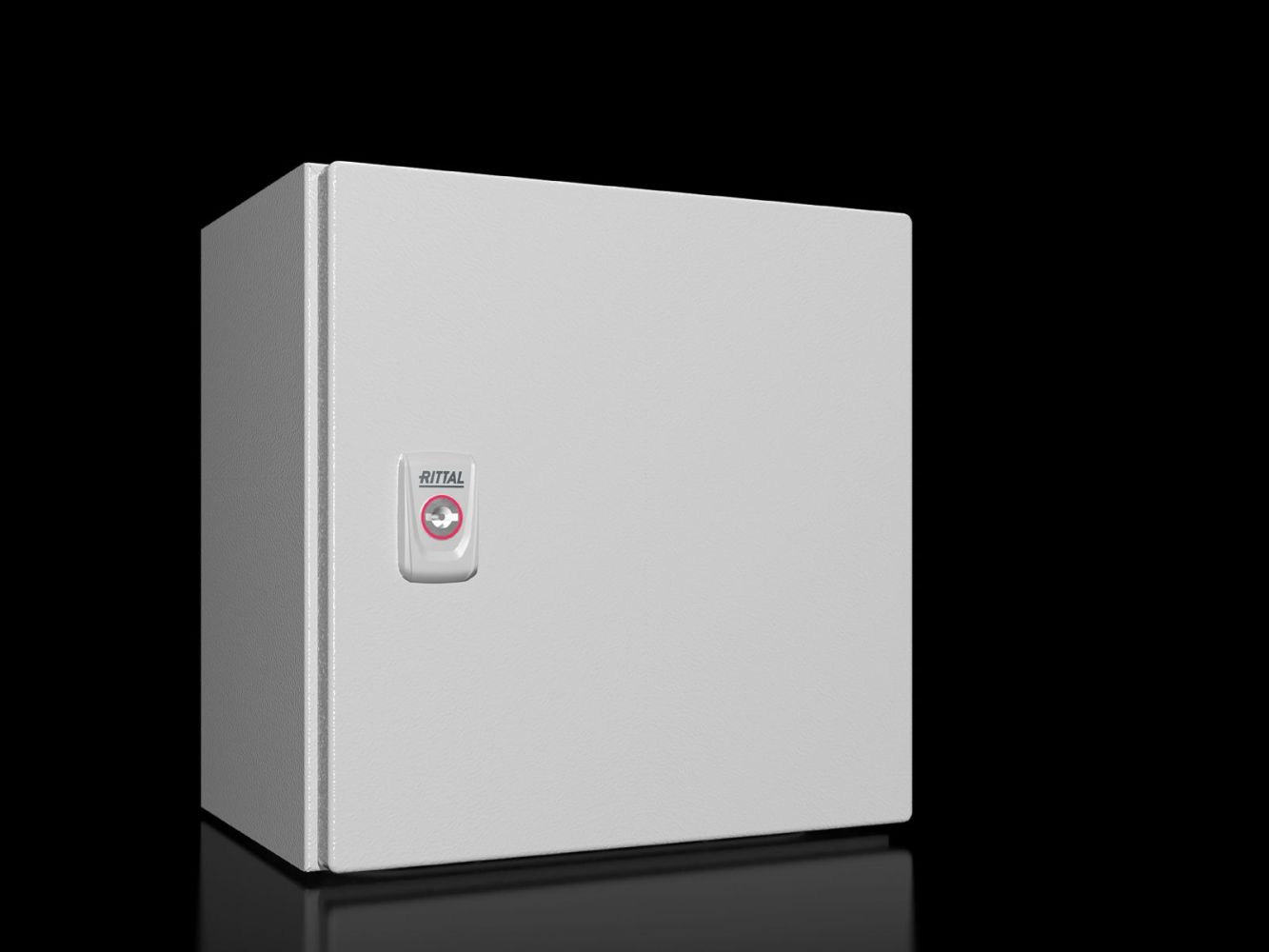

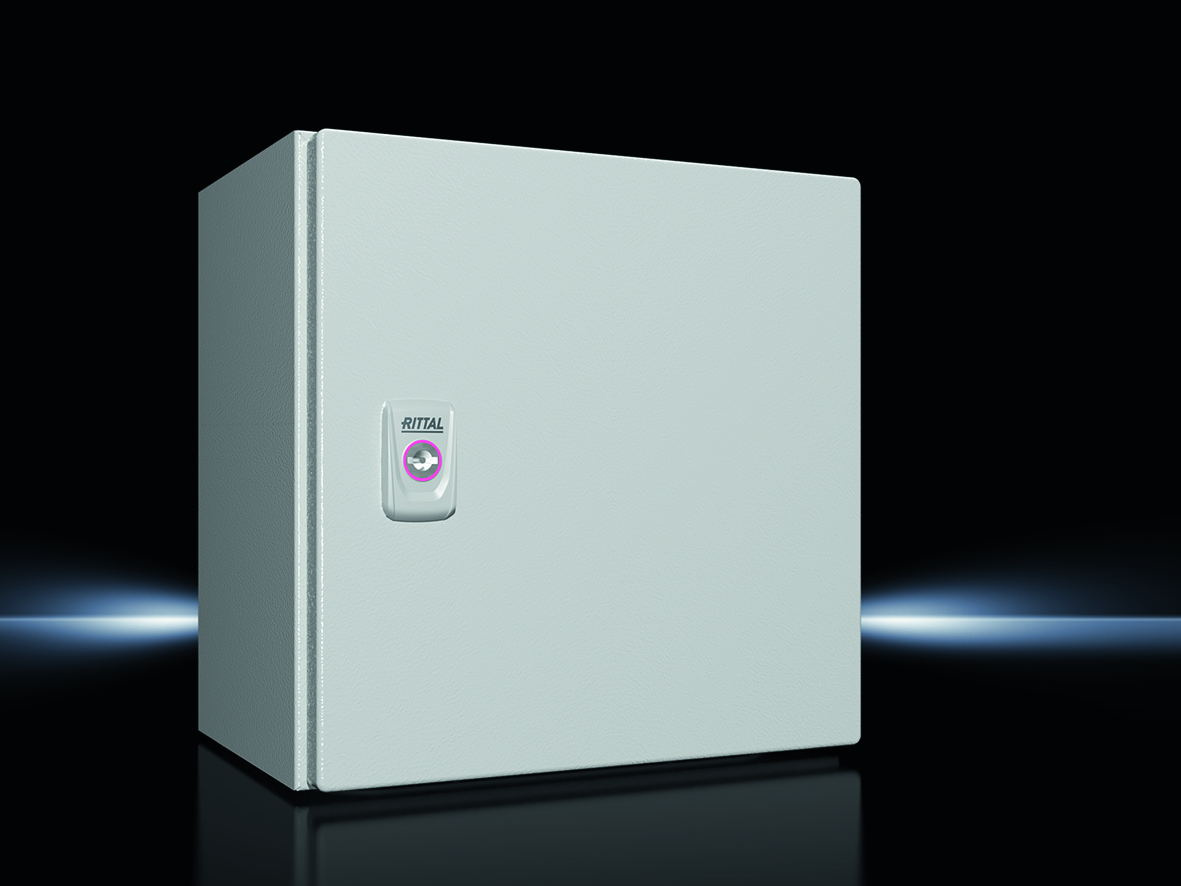

Rittal 1033000 Compact enclosure AX W x H x D 300x300x210 mm IP66
|
64,22 EUR |
|
|
( 76,42 EUR incl. VAT ) ≈ £53.75 | ≈ $70.58 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598229 |
| Mfg Part No: | 1033000 |
| UPC/EAN: | 4028177813458 |
| Weight: | 6.7 kg |
| Type: | AX 1033000 |
Product information for Rittal 1033000:
Applications
The enclosure is suitable for use in indoor and outdoor environments, particularly in areas with increased mechanical stress or humid conditions. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight shielding, even under heavy splashing water. The protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), make it suitable for a wide range of industrial applications. The IK code IK10 indicates high mechanical resistance against impact and shock. The integrated enclosure lugs in the 25 mm system grid allow for flexible interior fitting without drilling, facilitating the installation of rails and accessories.
Functions and Equipment in Detail

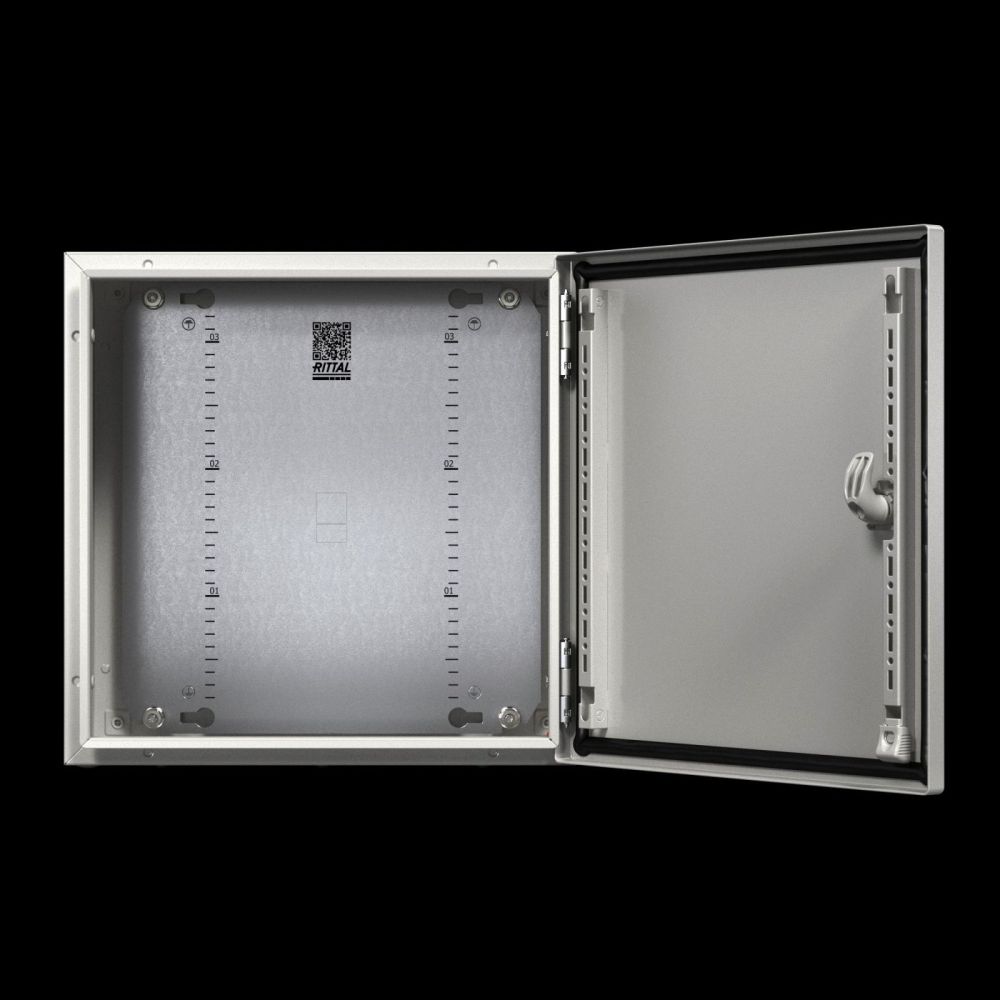

The enclosure is designed with a single door, featuring interchangeable door hinge direction (right or left hinge). The door opens up to 130° according to VDI, with the option to retrofit to 180°. The locking mechanism consists of a latch lock with a 3 mm double-barrel lock insert according to DIN 43668. The delivery includes the enclosure with door, a gland plate in the enclosure base, the mounting plate, a door hole strip, and the lock. The gland plate enables secure fastening to walls or foundations. The mounting plate provides additional mounting options for interior equipment.
Technology Explained Simply
The integrated enclosure lugs in the 25 mm grid allow for the installation of interior mounting rails and system accessories without drilling, thereby maintaining the protection rating (UL approval). The base mounting rail provides an additional mounting level and increases load capacity. The PU seal ensures a tight seal of the door, remaining stable even under temperature fluctuations and humidity. The surface treatment with dip priming and powder coating provides long-term corrosion protection.
Compatibility and Accessories
The enclosure is compatible with the Rittal configurator RiPanel for easy planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, KL, lock box covers, knob handles, hand grips, mounting brackets, metal gland plates, stainless steel rain hoods, multitools, and plastic hand grips. These components extend the functionality and customization options of the enclosure.
Mounting and Installation
Mounting is performed via the integrated gland plate in the enclosure base, enabling secure fastening to walls or foundations. The internal mounting plate provides additional mounting options for interior equipment. The door can be installed on the right or left side as required. Interior fitting is done using the 25 mm system grid with rails and accessories, avoiding drilling to maintain the protection rating.
Advantages in Operation
The enclosure offers a high mechanical and climatic protection class, making it suitable for demanding environments. The modular interior fitting allows flexible adaptation to different requirements. The integrated lugs and drilling-free installation speed up installation and reduce mounting effort. The surface treatment ensures long service life and ease of maintenance. The use of sheet steel and robust construction ensure high stability and safety in operation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 300 mm |
| Height | 300 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Mounting plate dimensions (W x H) | 250 mm x 275 mm |
| Number of doors | 1 |
| Number of locks | 1 |
| Lock | Locking mechanism type: latch, number of locks: 1, lock insert: 3 mm double barb |
| Flange plate | Size: 1, Quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 43.37 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
