Rittal 2561300 SZ plastic gland plates, for AX, with membranes,

Your rating:
Average rating
product review for Rittal 2561300 SZ plastic gland plates, for AX, with membranes,
( 4.4 / 5 ) 5 ratings
Rittal 2561300
This image may differ from the desired article.
Rittal 2561300Rittal 2561300Rittal 2561300
21,97 EUR 22,85 EUR
( 26,14 EUR incl. VAT )
≈ £18.39  |  ≈ $24.15
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces

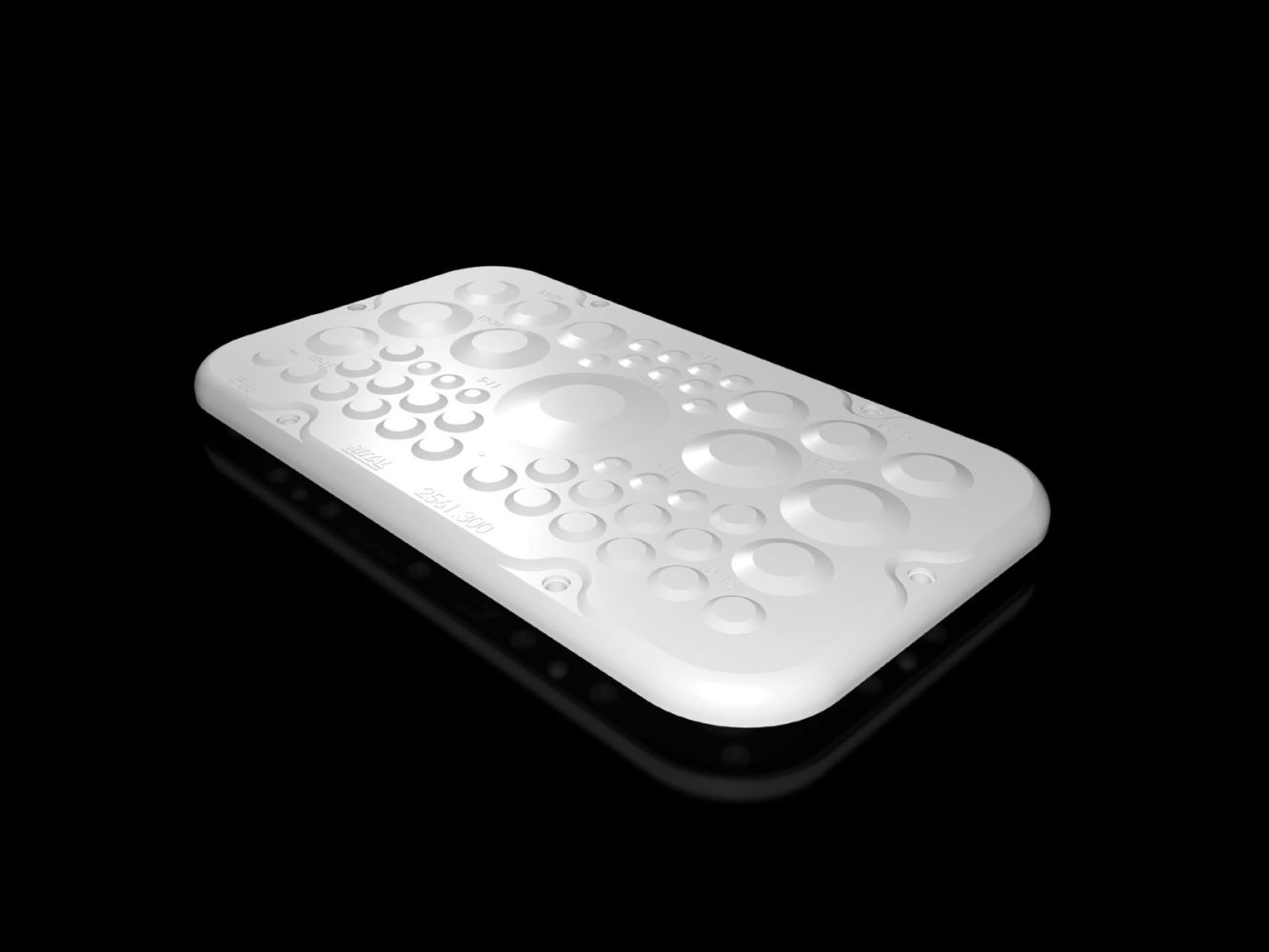

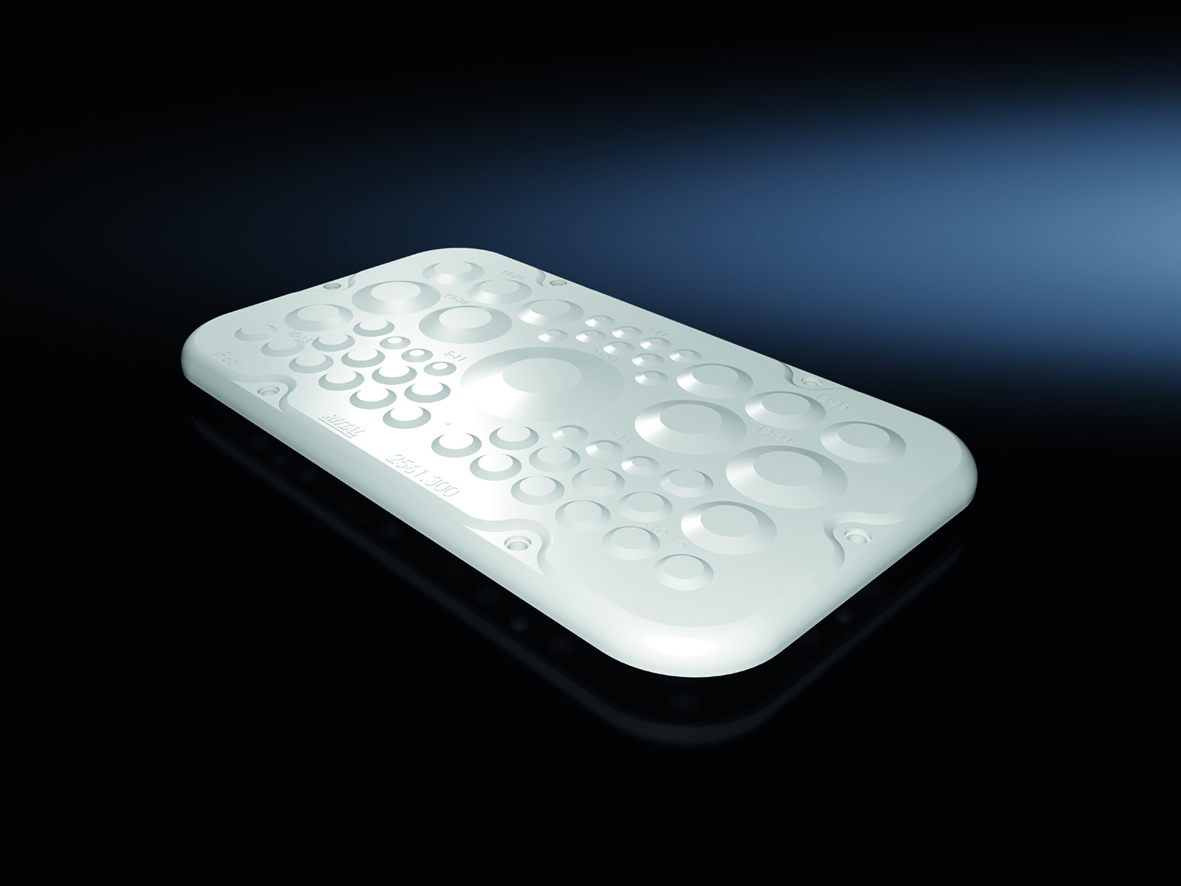

1x Rittal 2561300 SZ plastic gland plates, for AX, with membranes,
Datasheet:file_download Download
Lieske Part No.:1598249
Mfg Part No: 2561300
UPC/EAN: 4028177935693
Weight:0.365 kg
Type:AX 2561300

Product information for Rittal 2561300:

The Rittal AX 2561300 is a plastic gland plate for enclosures of type AX, specifically designed for secure and weather-resistant cable entry. The component serves as a gland plate size 1 and is mounted on the front side of AX enclosures to route cables through the enclosure wall, with the integrated membranes ensuring a tight seal. The gland plate has a width of 256 mm and a depth of 149 mm, making it suitable for standard applications in industrial environments.

Applications
The gland plate is used in industrial electrical installations where an IP 66 protection rating is required when properly installed. This means the component is dust-tight and protected against water jets from any angle, making it suitable for outdoor use or in damp environments. The type rating according to UL 50E includes categories Type 1 and Type 12, indicating suitability for indoor use with protection against dust and splashing water. The gland plate is specifically designed for enclosures of type AX, with the assignment of gland plate size described in the respective enclosure manual.

Functions and Equipment in Detail
The gland plate is made of plastic according to UL 94-V0, a flame-retardant material that is difficult to ignite at high temperatures and enhances operational safety. The color corresponds to similar to RAL 7035, a gray tone that integrates well visually in industrial environments. The integrated membranes allow for simple and tight cable entry: cables are pierced through the plastic material using a pointed pliers or similar tool and pulled through, causing the membrane to elastically close around the cable and ensure a watertight seal.

Technology Explained Simply
The gland plate offers multiple cable entries in various diameters to flexibly accommodate different cable sizes. The number and permissible diameters are as follows: 15 entries for cables with a diameter of 5 to 11 mm, 22 entries for 10 to 15 mm, 8 entries for 15 to 25 mm, 4 entries for 19 to 34 mm, and 1 entry for 26 to 54 mm. This variety allows optimal adaptation to the respective installation. The IP 66 protection rating is only achieved when properly installed, meaning the gland plate must be correctly fitted into the enclosure and the membranes must be properly sealed.

Compatibility and Accessories
The gland plate is exclusively designed for enclosures of type AX and fits into gland plate size 1. The exact assignment is based on the information provided in the respective enclosure manual.

Installation and Mounting
Mounting is carried out on the front side of the AX enclosure. The gland plate is inserted into the designated openings and secured. Cables are pierced through the membranes and pulled through, with the membranes automatically closing around the cable.

Operational Advantages
The gland plate provides a secure and tight cable entry, protecting the integrity of the control system. The UL 94-V0 approval ensures enhanced fire safety. The IP 66 protection rating enables use in harsh environments, and the flexible adaptation to various cable diameters increases versatility. The simple installation and permanent sealing provided by the membranes reduce maintenance requirements and enhance operational reliability.

General
MaterialPlastic according to UL 94-V0
ColourSimilar to RAL 7035
NoteThe assignment of flange plate size can be found with the respective enclosures
Width256 mm
Depth149 mm
Suitable forHousing type: AX
Flange plateSize: 1
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12
Number of cable entries and Ø (mm) min.-max.15 x 5-11, 22 x 10-15, 8 x 15-25, 4 x 19-34, 1 x 26-54


Product data sheet
Datasheet for Rittal 2561300, EAN: 4028177935693
