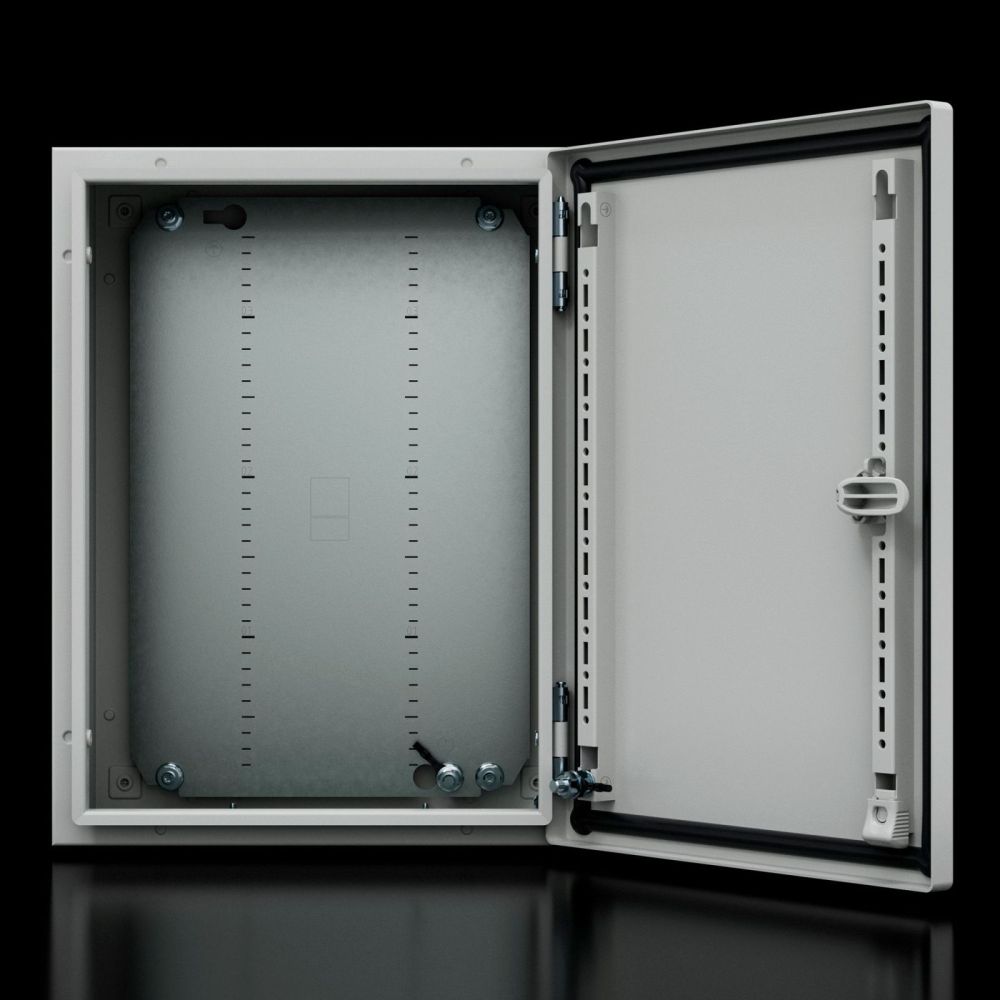

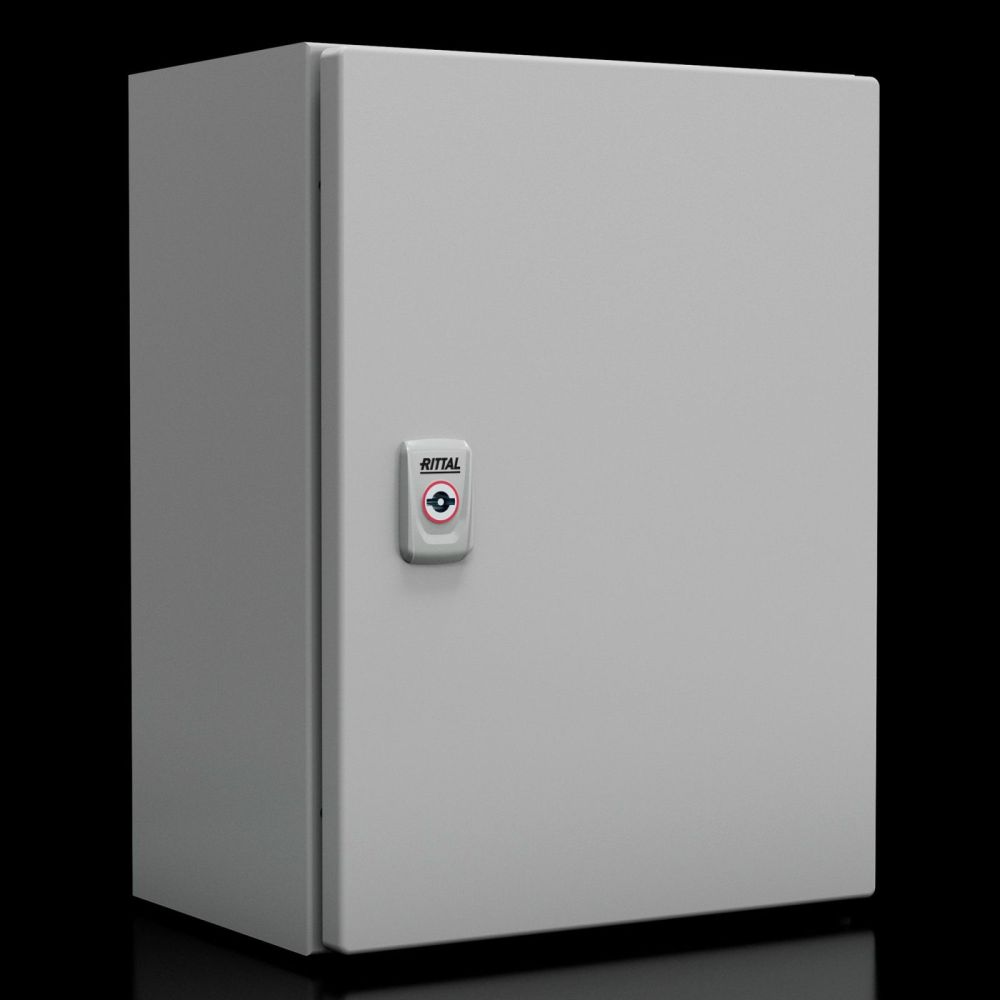

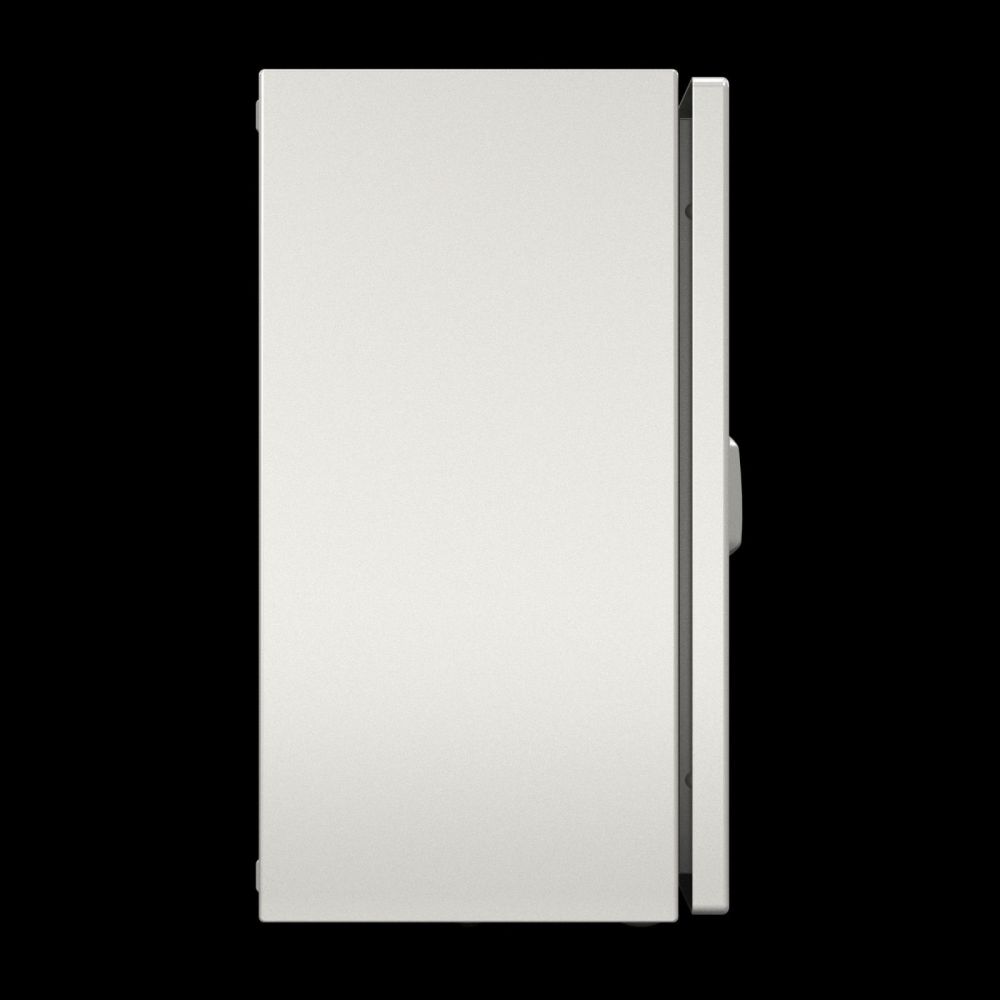

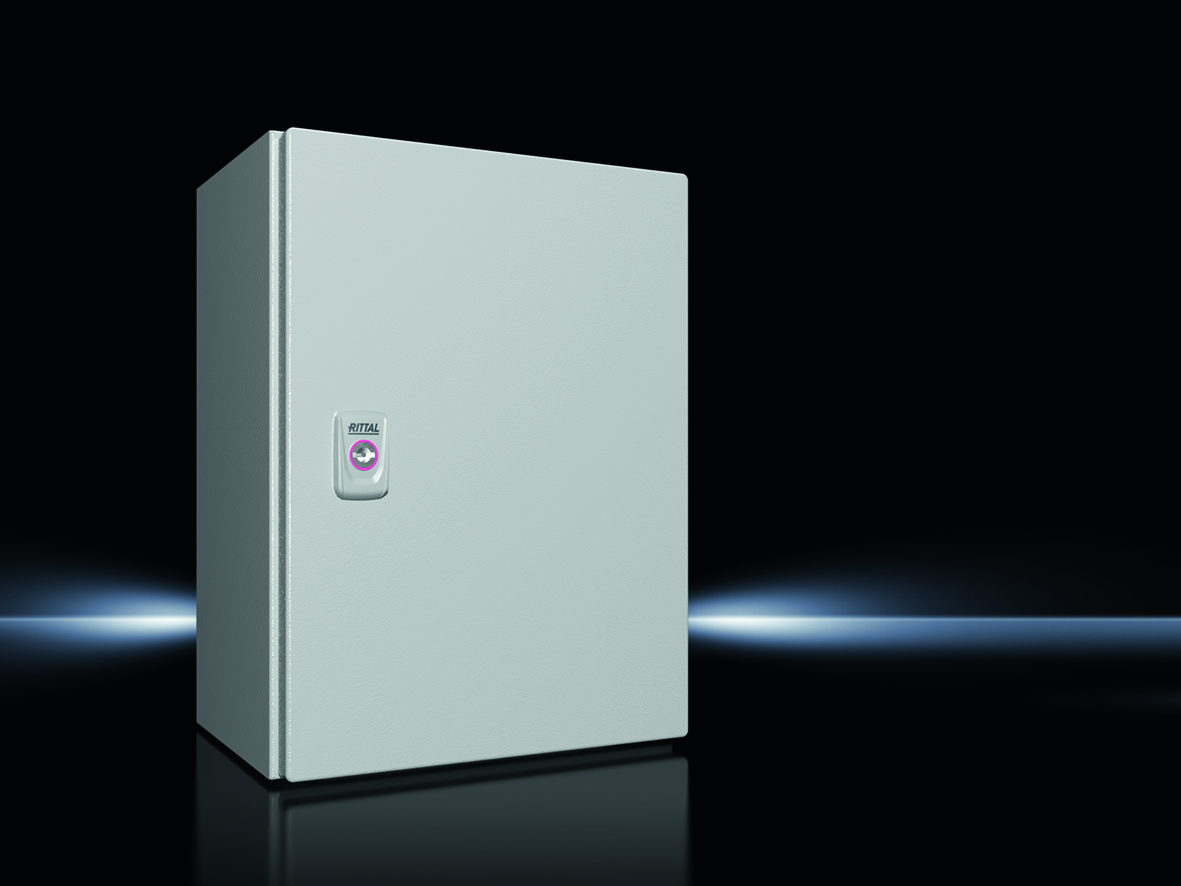

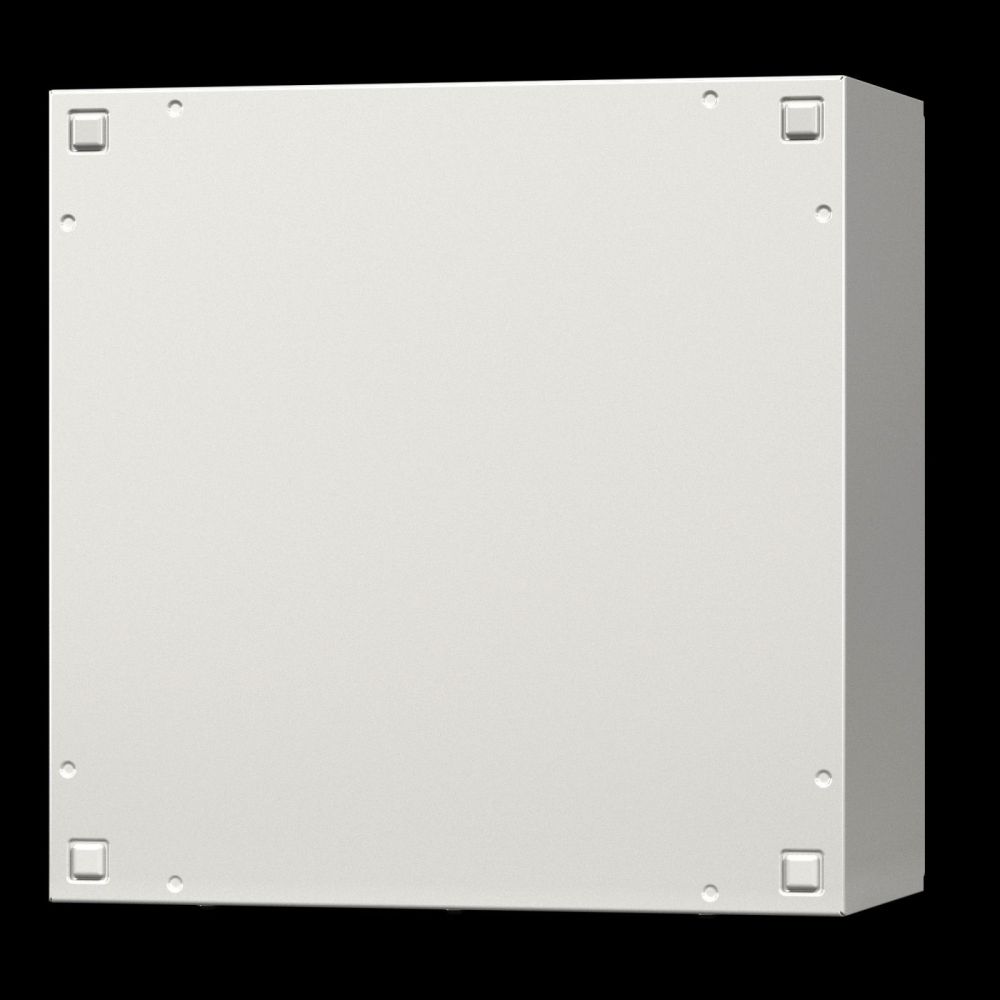

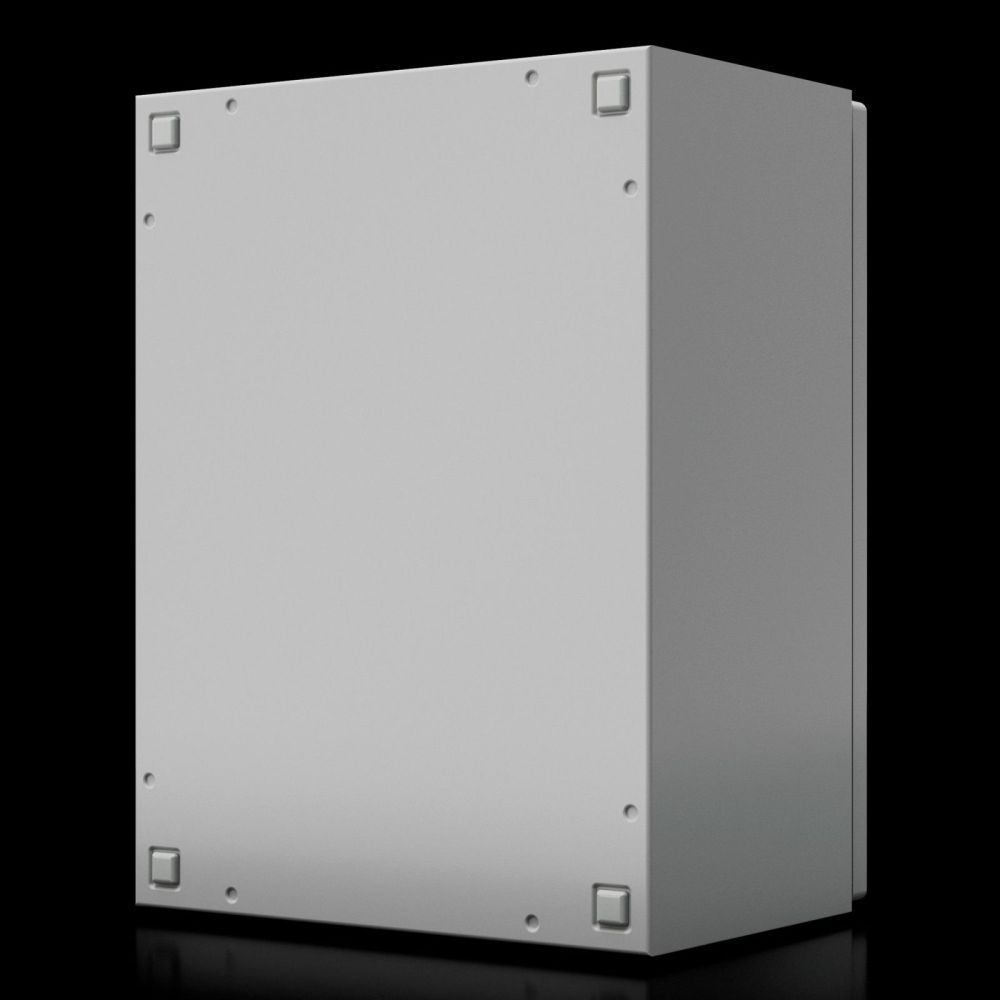

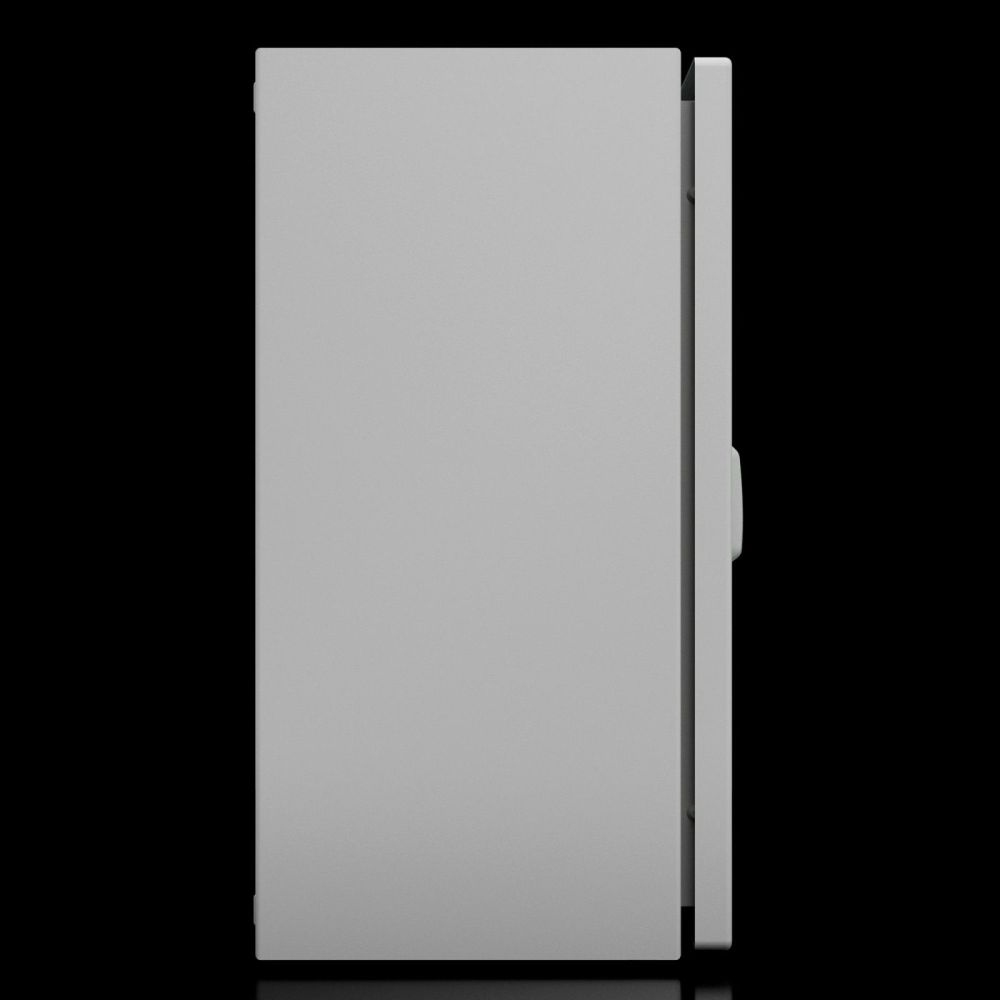

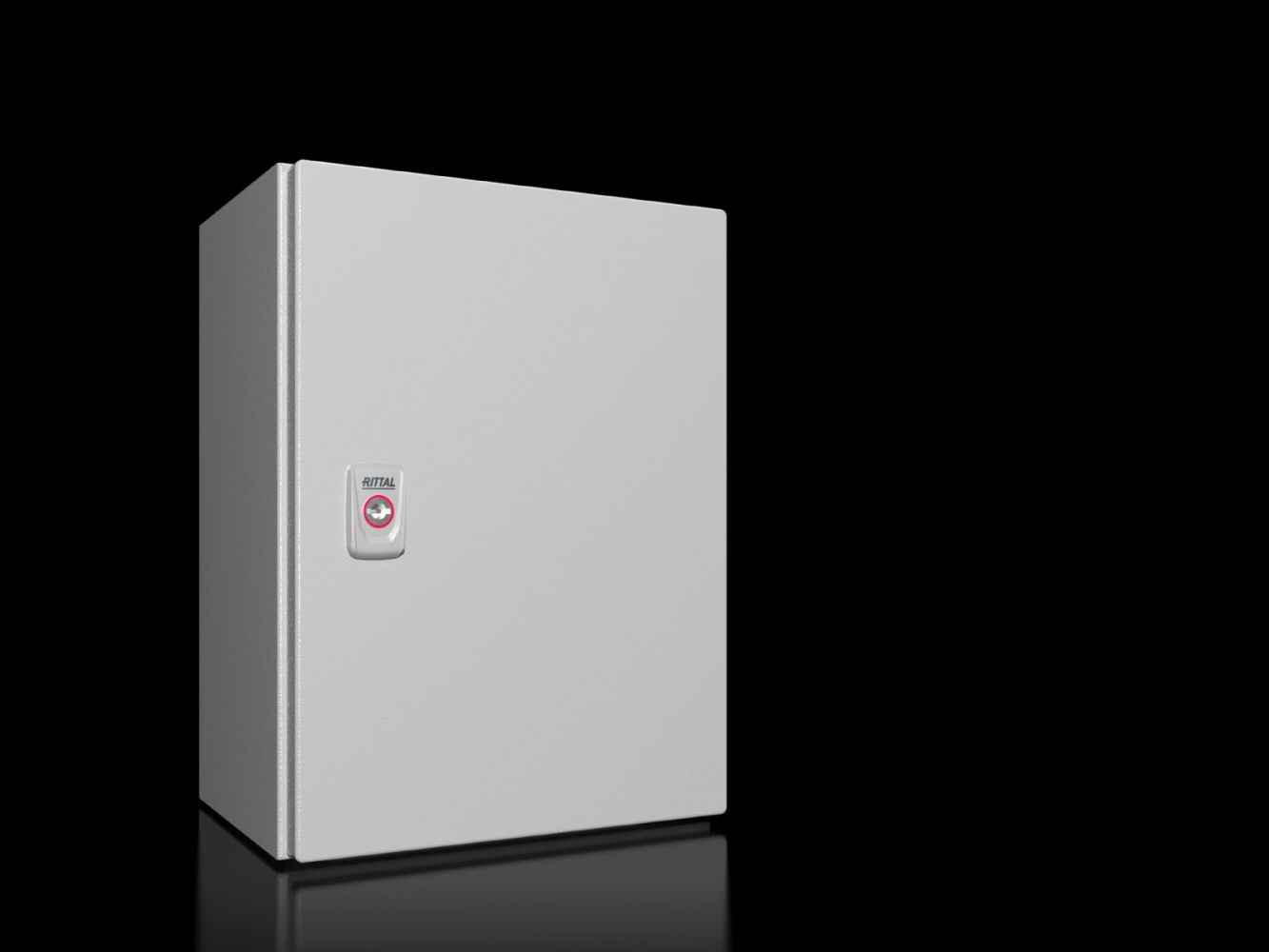

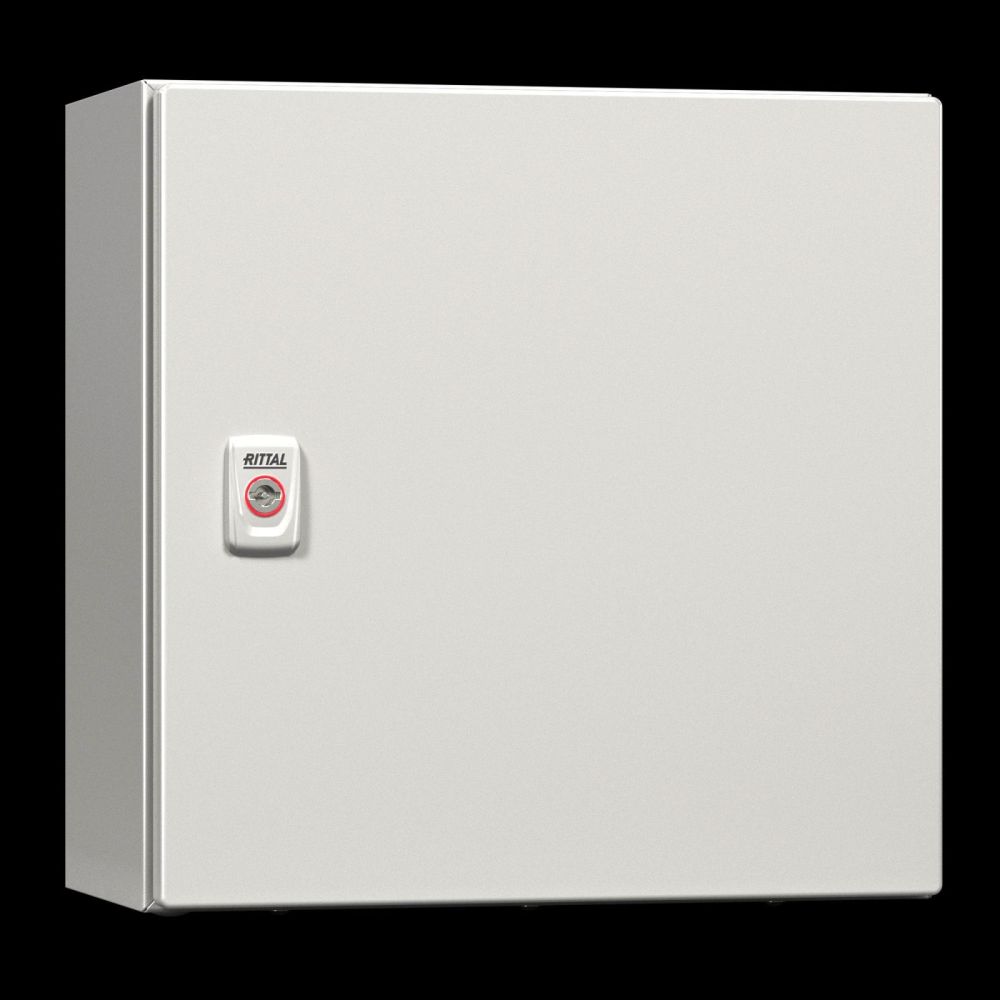

Rittal 1034000 Compact enclosure AX, 1-door, W x H x D: 300x400x210 mm
|
71,48 EUR |
|
|
( 85,06 EUR incl. VAT ) ≈ £59.83 | ≈ $78.56 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598228 |
| Mfg Part No: | 1034000 |
| UPC/EAN: | 4028177813441 |
| Weight: | 8.38 kg |
| Type: | AX 1034000 |
Product information for Rittal 1034000:
Applications
The enclosure is suitable for use in indoor and outdoor environments, particularly in areas with increased requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight sealing, even under heavy spray water conditions. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type ratings according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various environmental conditions, including humid or dusty rooms. The IK code IK10 indicates high mechanical resistance against impact and shock.
Functions and Equipment in Detail

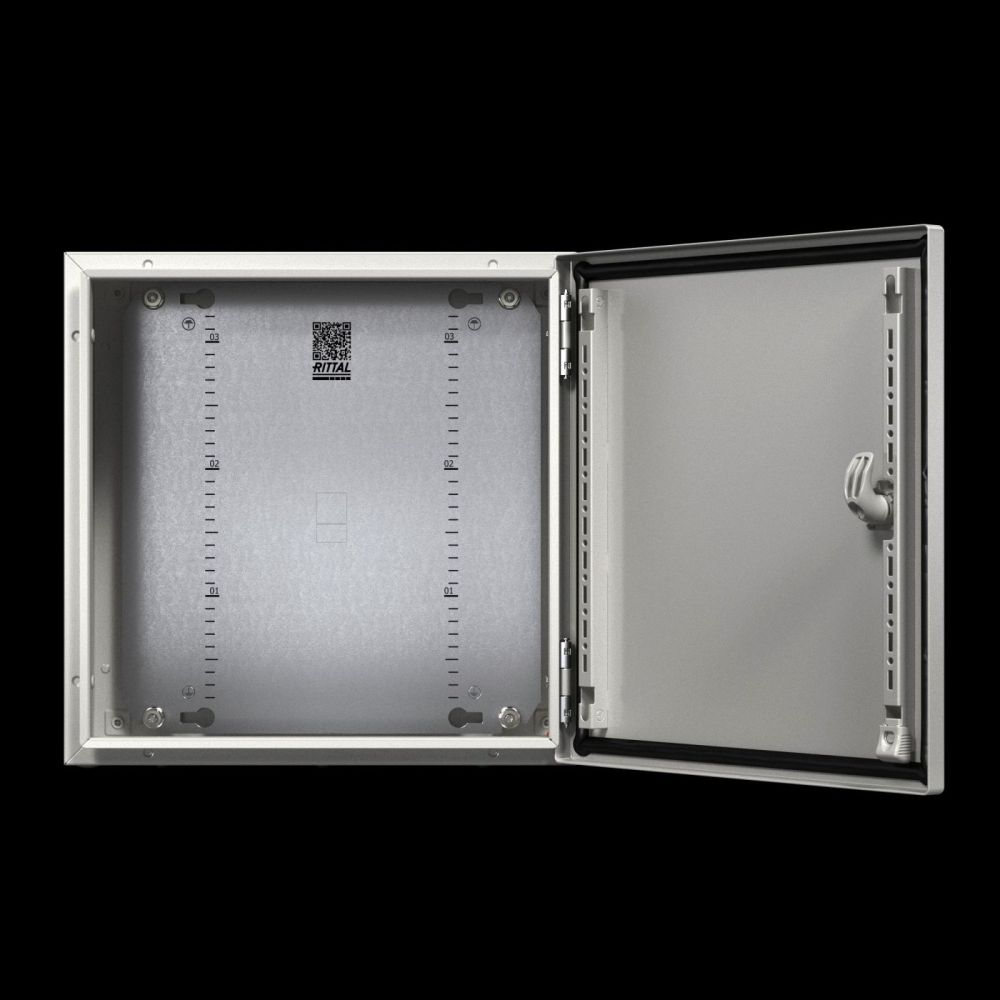

The enclosure features integrated enclosure lugs in a 25 mm system grid on the roof, base, and sides, mirroring the system of VX25 large enclosures. These lugs enable easy and drill-free mounting of internal mounting rails and other system accessories. The door is single-door, with interchangeable door hinge (right- or left-hand pivot) and an opening angle of 130° according to VDI, which can be retrofitted to 180°. The locking mechanism is a deadbolt lock with a 3 mm double-barrel lock insert according to DIN 43668, ensuring secure and robust latching. The delivery includes the enclosure with door, a gland plate in the enclosure base, the mounting plate, a door hole strip, and the lock.
Technology Explained Simply
The integrated enclosure lugs in the 25 mm grid allow for modular internal equipment without drilling, thus maintaining the protection rating (UL approval). The base mounting rail provides an additional mounting level and increases load capacity. The PU seal ensures a tight seal, supporting the IP 66 protection rating. The powder-coated surface in RAL 7035 offers high resistance to corrosion and mechanical stress. The mounting plate with keyhole slots and dimension markings simplifies installation and earthing.
Compatibility and Accessories
The enclosure is compatible with the Rittal configurator RiPanel, simplifying planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, KL, knob handles, hand grips, gland plates, stainless steel rain hoods, multitools, as well as various plastic and metal hand grips. These components extend the functionality and adaptability of the enclosure.
Mounting and Installation
Mounting is carried out via the integrated enclosure lugs and the base mounting rail. The mounting plate with keyhole slots enables secure earthing. The door can be mounted on the right or left side as required. The gland plate in the enclosure base facilitates fastening to wall or floor surfaces. The drill-free mounting of internal mounting rails and accessories ensures a clean and protection rating-compliant installation.
Advantages in Operation
The enclosure offers high mechanical and chemical resistance due to the sheet steel construction and the powder-coated surface. The integrated lugs enable flexible and quick internal equipment without drilling, reducing mounting time and maintaining the protection rating. The IP 66 protection rating and IK10 rating ensure reliable operation in demanding environments. The interchangeable door hinge direction and the robust deadbolt lock increase flexibility and safety during use.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 300 mm |
| Height | 400 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Mounting plate dimensions (W x H) | 250 mm x 375 mm |
| Number of doors | 1 |
| Number of locks | 1 |
| Lock | Locking mechanism type: latch, number of locks: 1, lock insert: 3 mm double barb |
| Flange plate | Size: 1, Quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 47.64 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
