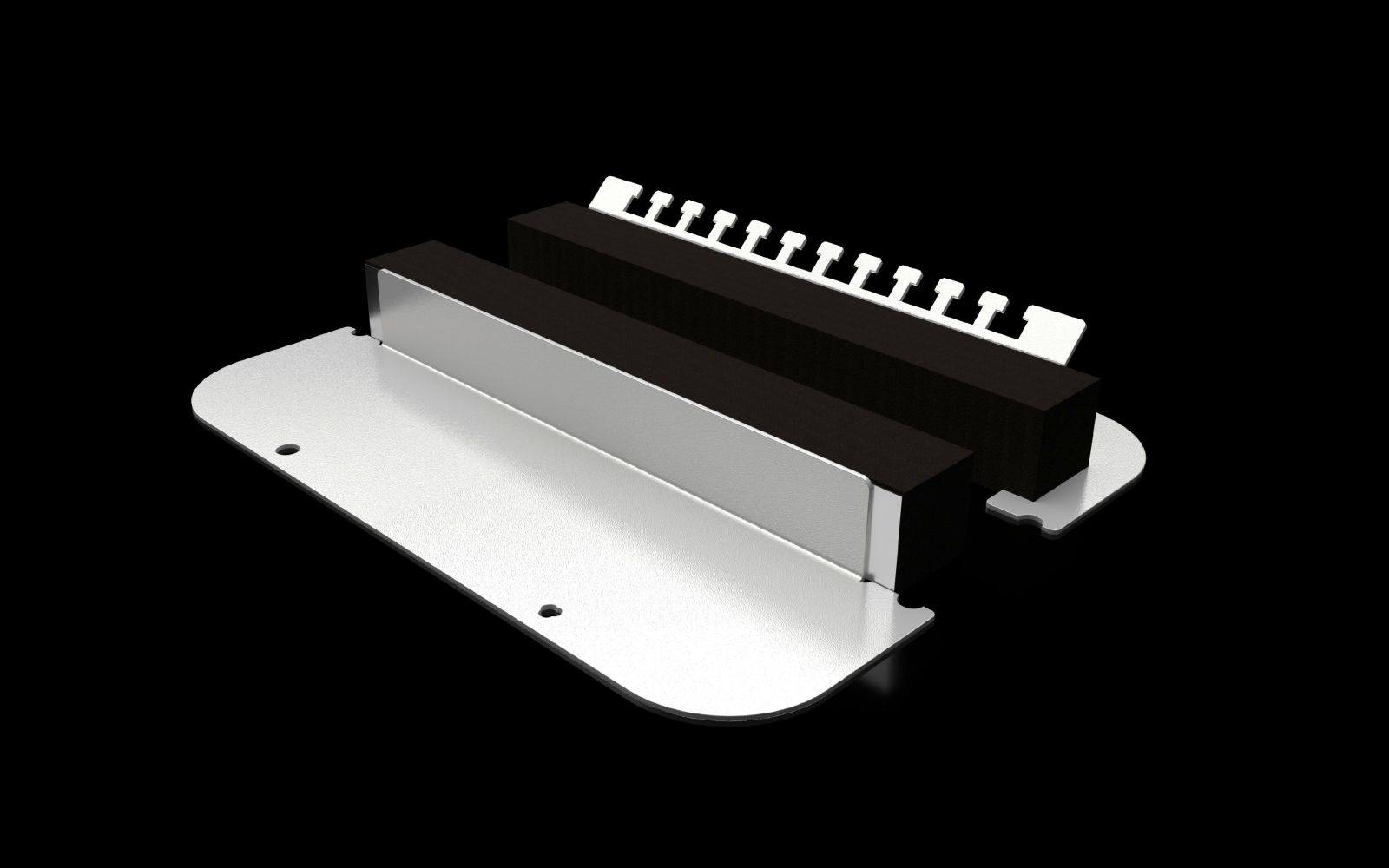

Rittal 2561450 SZ metal gland plate two-piece for AX with elastic

Your rating:
Average rating
product review for Rittal 2561450 SZ metal gland plate two-piece for AX with elastic
( 0 / 5 ) 0 ratings
Rittal 2561450
This image may differ from the desired article.
36,02 EUR 37,58 EUR
( 42,86 EUR incl. VAT )
≈ £30.15  |  ≈ $39.59
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2561450 SZ metal gland plate two-piece for AX with elastic
Datasheet:file_download Download
Lieske Part No.:895248
Mfg Part No: 2561450
UPC/EAN: 4069196011784
Weight:0.601 kg
Type:SZ 2561450

Product information for Rittal 2561450:

The Rittal SZ 2561450 is a metal gland plate two-piece, specifically developed for enclosures of the housing type AX. It serves as a mounting and cable routing element on the enclosure, with the two-piece design enabling flexible and easy installation. The gland plate is equipped with an elastic clamping profile that facilitates cable insertion – regardless of whether the cables are fitted with connectors or not. The dimensions are 256 mm in width and 149 mm in depth, corresponding to size 1 for gland plates. The product is delivered in the colour RAL 7035 and is made of sheet steel, a robust material for industrial environments.

Applications
The gland plate is intended for use on enclosures of type AX, particularly for models with article numbers 1033000 and 1034000. It is used for secure cable fixation and structured cable routing on the housing. For enclosure widths exceeding 760 mm, two packaging units are required to cover the entire width. The special holes in the gland plate ensure automatic equipotential bonding when screwed, eliminating the need for additional earthing cables, bolts, or terminals.

Functions and Equipment in Detail
The two-piece construction of the gland plate allows for easy mounting on the enclosure housing. The integrated elastic clamping profile serves as a cable holder and ensures secure cable guidance without requiring additional fastening elements. The gland plate is supplied with mounting hardware sufficient for installation on the housing. The colour RAL 7035 is a grey-beige standard design that integrates well in industrial environments.

Technology Explained Simply
The gland plate is made of sheet steel, ensuring high mechanical stability and durability. The two-piece design allows precise adaptation to the enclosure front and simplifies installation. The elastic clamping profile is designed to securely hold cables of various diameters without damaging them. The holes in the plate are arranged to enable automatic equipotential bonding when screwed – meaning the gland plate is electrically connected to the housing without requiring additional earthing measures.

Compatibility and Accessories
The gland plate is specifically developed for enclosures of type AX and fits models with article numbers 1033000 and 1034000. As suitable accessories, an elastic clamping profile IP55 length 3m is offered, suitable for cable routing in similar applications. The gland plate is designed for size 1, which represents the standard size for smaller to medium enclosure fronts.

Mounting and Installation
Mounting is done directly on the enclosure housing using the included mounting hardware. The two-piece construction allows precise adaptation to the enclosure front. For enclosure widths exceeding 760 mm, two units are required to cover the entire width. The holes in the gland plate ensure automatic equipotential bonding when screwed, eliminating the need for additional earthing cables or terminals.

Advantages in Operation
The gland plate offers simple and secure mounting on enclosures of type AX. The integrated elastic clamping profile simplifies cable routing and reduces installation time. The automatic equipotential bonding when screwed ensures a safe electrical connection without additional measures. The use of sheet steel ensures high mechanical strength and durability in industrial applications. The colour RAL 7035 is a standard design that integrates well in many industrial environments.

General
Modeltwo-piece
Materialsteel sheet
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
NoteThe assignment of flange plate size can be found in the respective housings. For installation in cabinet width >760 mm, 2 units are required.
Width256 mm
Depth149 mm
Suitable forHousing type: AX
Suitable for part no.1033000, 1034000
Flange plateSize: 1


Product data sheet
Datasheet for Rittal 2561450, EAN: 4069196011784

Questions & answers

What is the delivery time of Rittal 2561450 SZ metal gland plate two-piece for AX with elastic?

The article Rittal 2561450 SZ metal gland plate two-piece for AX with elastic is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2561450 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2561450 SZ metal gland plate two-piece for AX with elastic always at the best possible price. We can give you a discount of 2% on Rittal 2561450 SZ metal gland plate two-piece for AX with elastic if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
