Rittal 2561200 Plastic gland plate modular metric pre-punched

Your rating:
Average rating
product review for Rittal 2561200 Plastic gland plate modular metric pre-punched
( 4.3 / 5 ) 7 ratings
Rittal 2561200
This image may differ from the desired article.
Rittal 2561200Rittal 2561200Rittal 2561200Rittal 2561200Rittal 2561200Rittal 2561200Rittal 2561200
15,87 EUR
( 18,89 EUR incl. VAT )
≈ £13.28  |  ≈ $17.44
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2561200 Plastic gland plate modular metric pre-punched
Datasheet:file_download Download
Lieske Part No.:1598250
Mfg Part No: 2561200
UPC/EAN: 4028177938397
Weight:0.25 kg
Type:AX 2561200

Product information for Rittal 2561200:

The Rittal AX 2561200 is a plastic gland plate for use in industrial enclosures of type AX. It serves as a modular component for secure and structured cable gland installation and enables direct mounting of cable entries. The gland plate is specifically designed for size 1 and fits enclosures of the AX series. Its material consists of plastic according to UL 94-V0, a flame-retardant plastic suitable for use in electrical and electronic devices. The color is RAL 7035, a gray-beige standard design that integrates well in industrial environments.

Applications
The gland plate is used in industrial electrical engineering where structured and secure cable gland installation on the front of enclosures is required. It is particularly suitable for applications where cables must be routed through the front panel of the enclosure without requiring additional mounting elements. The modular design allows for flexible adaptation to different cable entries.

Functions and Equipment in Detail

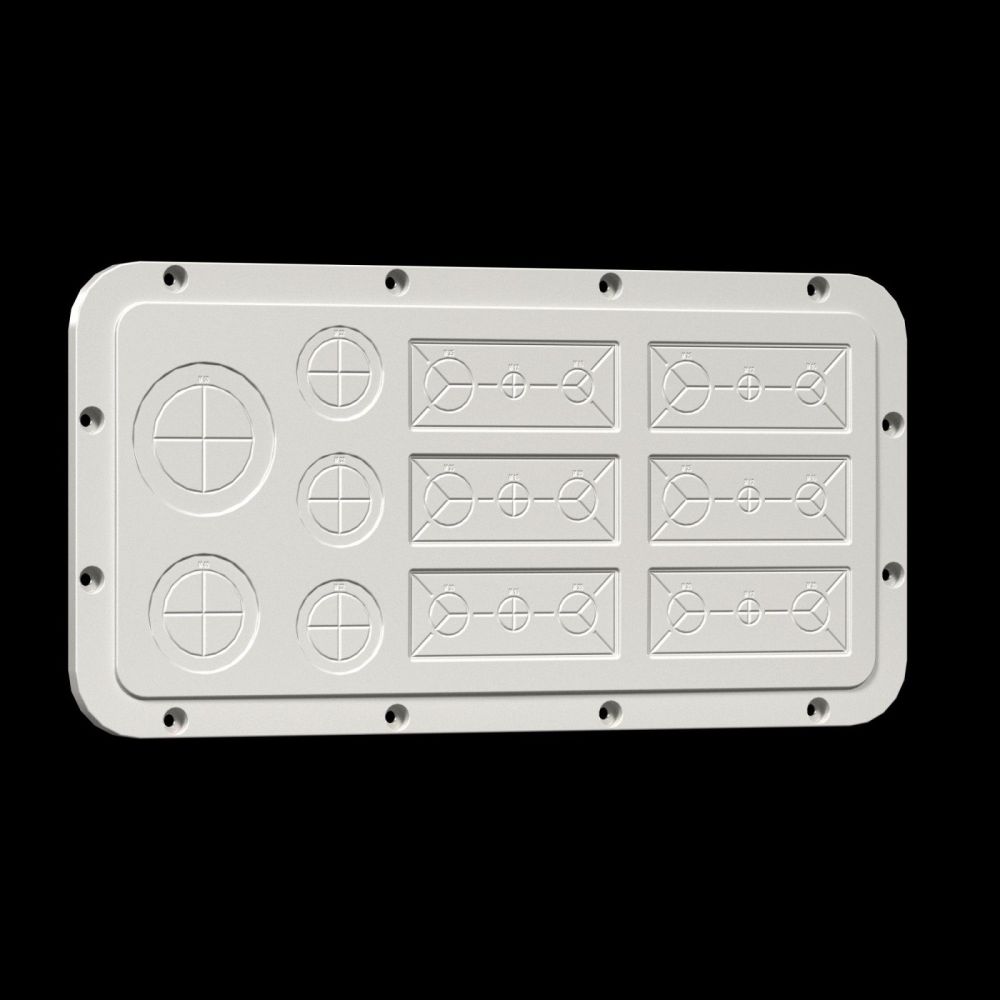

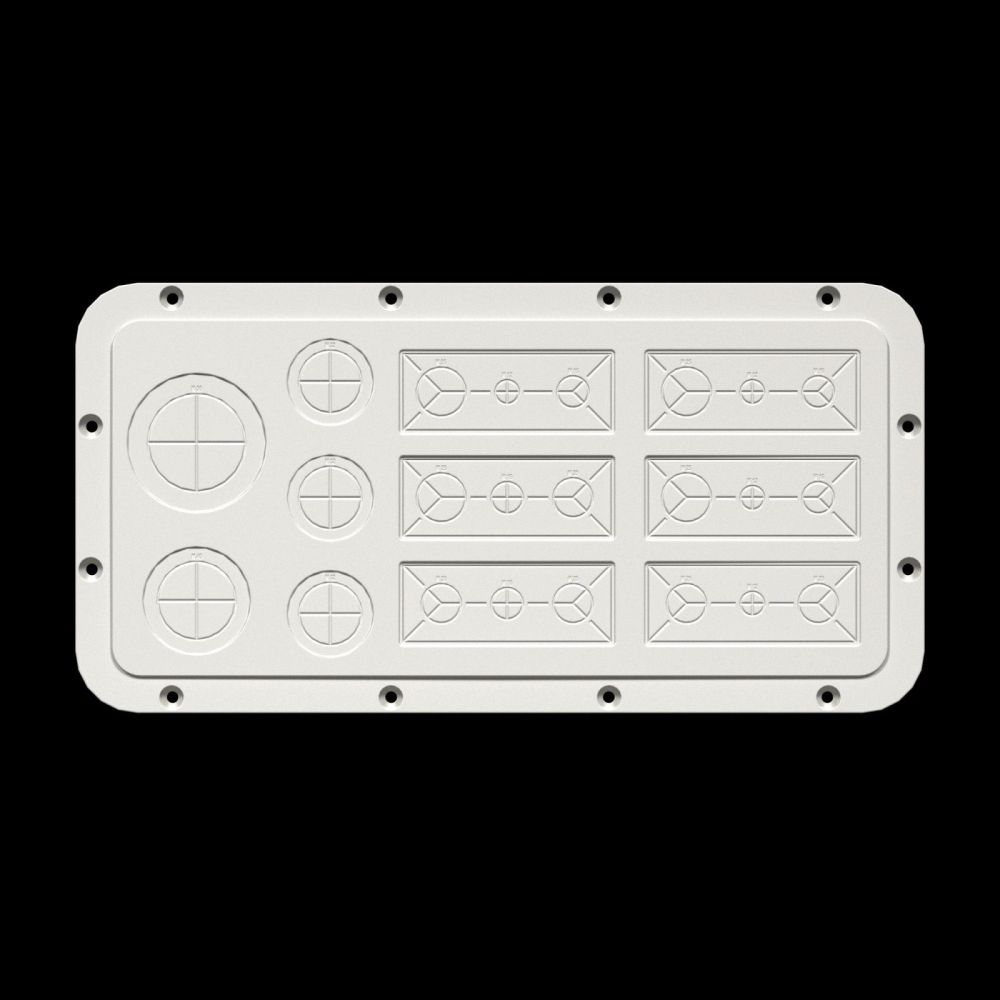

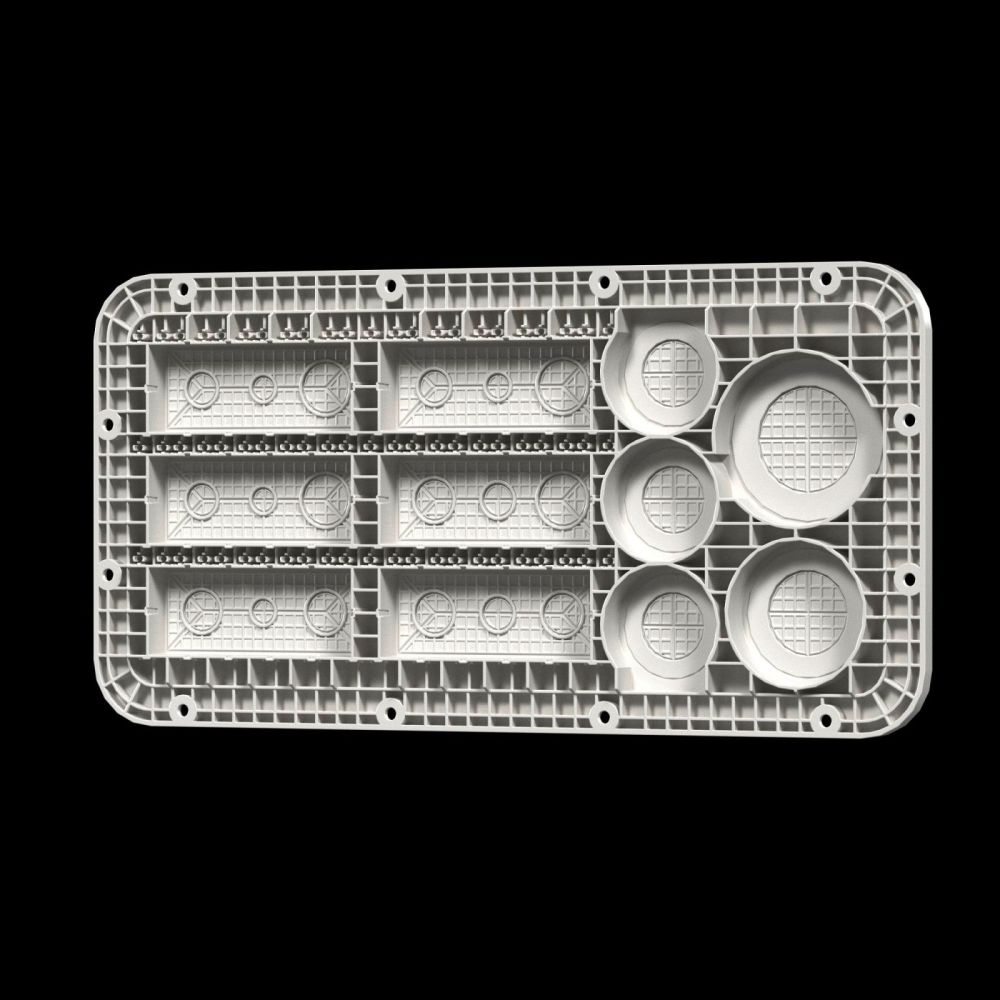

The gland plate features metric pre-punched holes in sizes 2 x M12, 1 x M16, 2 x M20, 1 x M25, and 2 x M32. These pre-punched holes can be easily broken through to install cable glands. Additionally, two rectangular cutouts are integrated, with each cutout providing space for ten small sealing inserts. These cutouts facilitate direct installation of cable entries and reduce installation time. A reinforcement frame provides additional stability and prevents deformation during installation.

Technology Explained Simply
The gland plate is made of flame-retardant plastic that meets the requirements of UL 94-V0 standard. This means the material does not easily ignite at high temperatures and does not propagate flame. The protection rating IP 66 is achieved with proper installation, ensuring dust-tight and water-tight conditions even under heavy spray water exposure. This makes the gland plate suitable for outdoor use or in humid industrial facilities. The operating temperature ranges between -40 °C and +80 °C, enabling use in extreme environments. The type rating according to UL 50E includes Type 1 and Type 12, indicating a protection class for indoor and outdoor applications with limited spray water exposure.

Compatibility and Accessories
The gland plate is specifically designed for enclosures of type AX and fits size 1. The assignment of gland plate size is based on the respective enclosure description. The modular design allows combination with various cable entries that can be installed into the pre-punched openings. The gland plate is not supplied with additional components such as cable glands, sealing inserts, or mounting accessories.

Installation and Mounting

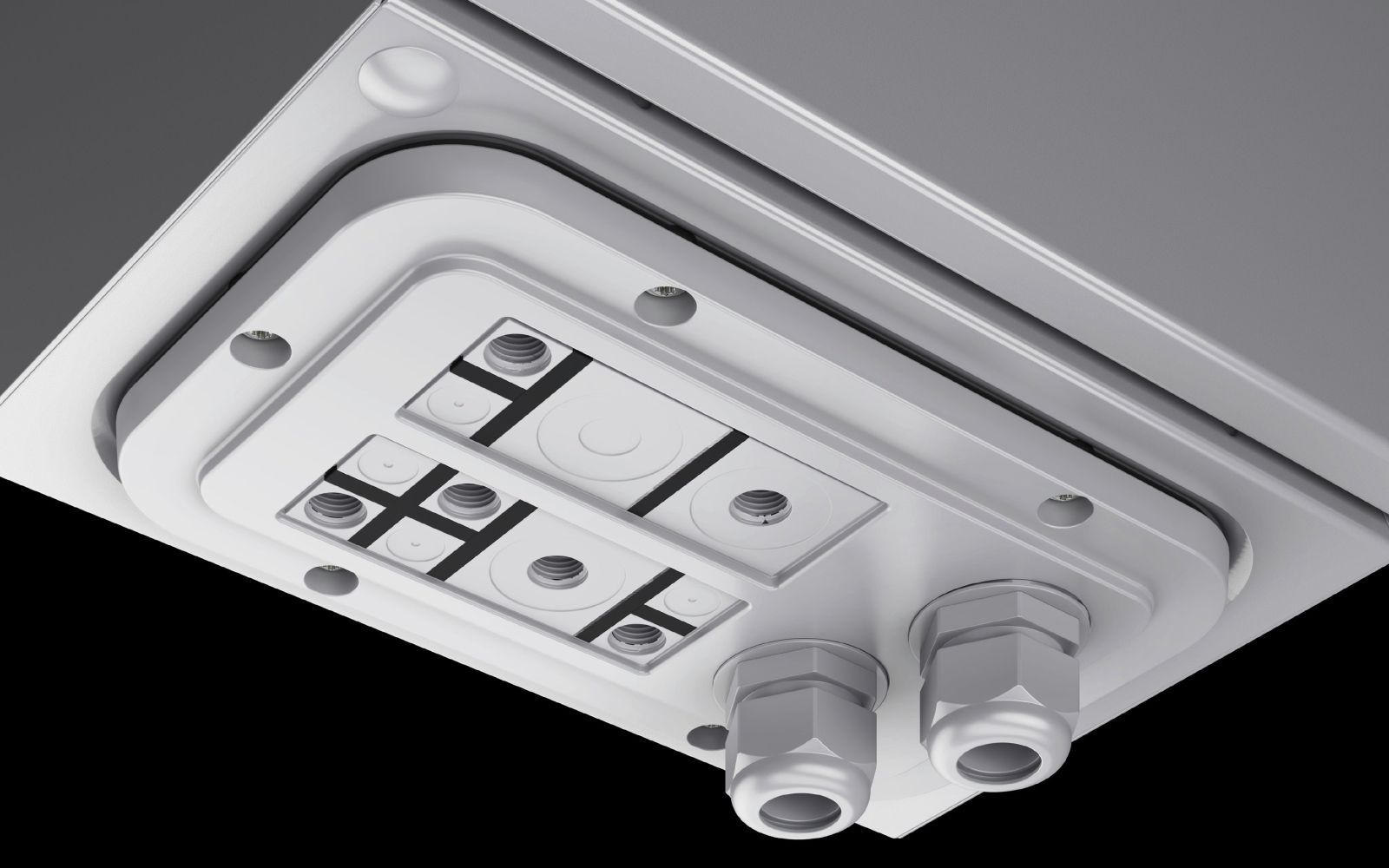

Mounting is done by breaking through the plastic pre-punched holes at the desired locations. The rectangular cutouts and pre-punched holes facilitate the installation of cable entries. The gland plate is inserted into the designated mounting openings of the enclosure and secured. Proper installation is essential to achieve the IP 66 protection rating.

Advantages in Operation
The modular construction of the gland plate reduces installation time and allows flexible adaptation to different cable entries. The integrated rectangular cutouts and pre-punched holes ensure structured and secure cable gland installation. The high temperature resistance and IP 66 protection rating make the gland plate suitable for demanding industrial environments. The use of plastic according to UL 94-V0 increases safety in electrical installations.

The dimensions of the gland plate are 256 mm width and 149 mm depth. The net weight is 0.24 kg. The gland plate is available in a packaging unit of 1 piece.

General
MaterialPlastic according to UL 94-V0
ColourRAL 7035
Number of rectangular cutouts information1 rectangular cutout accepts 10 density inserts, small size
Number of rectangular cutouts2
NoteThe assignment of flange plate size can be found with the respective enclosures
Number of metric pre-forms2 x M12, 1 x M16, 2 x M20, 1 x M25, 2 x M32
Width256 mm
Depth149 mm
Suitable forHousing type: AX
Flange plateSize: 1
Operating temperature range-40 °C...80 °C
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12


Product data sheet
Datasheet for Rittal 2561200, EAN: 4028177938397

Questions & answers

What is the delivery time of Rittal 2561200 Plastic gland plate modular metric pre-punched?

The article Rittal 2561200 Plastic gland plate modular metric pre-punched is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2561200 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2561200 Plastic gland plate modular metric pre-punched always at the best possible price. We can give you a discount of 2% on Rittal 2561200 Plastic gland plate modular metric pre-punched if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
