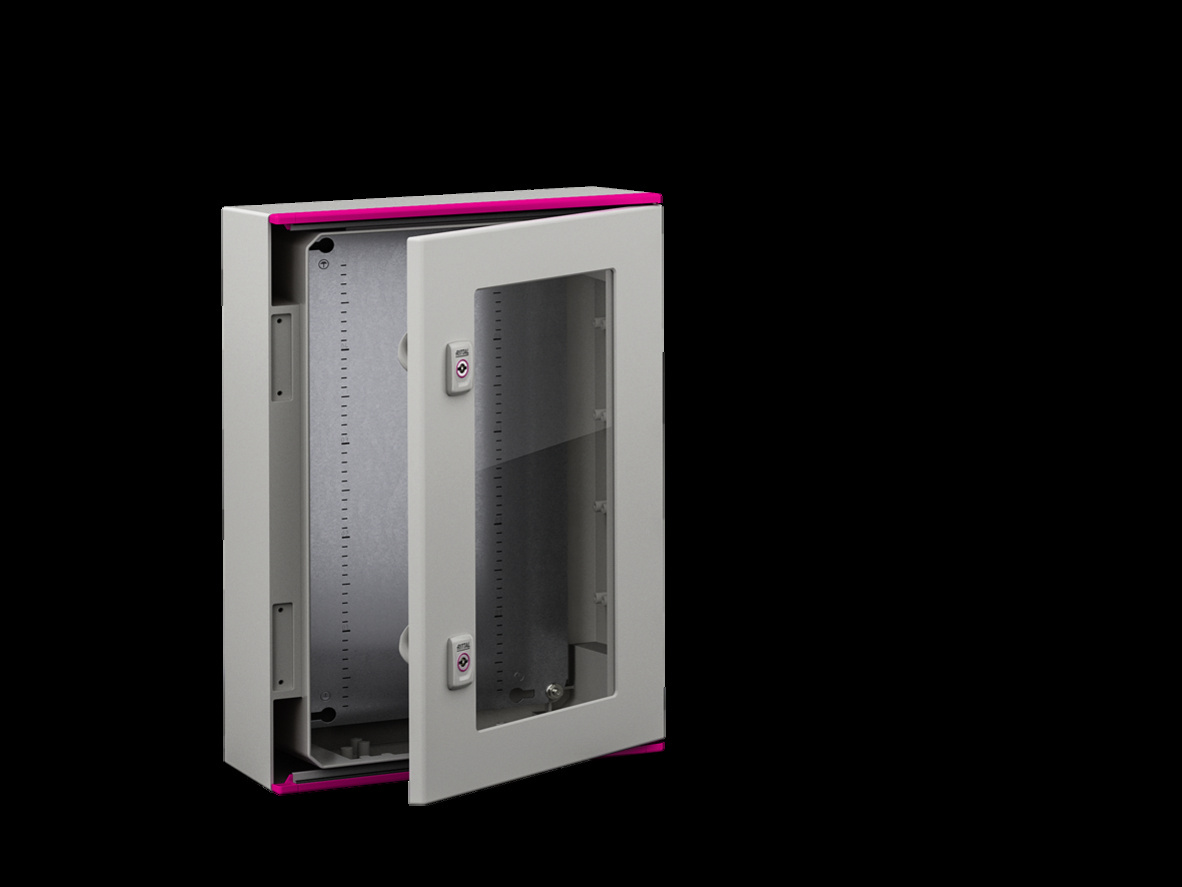

Rittal 1449000 AX plastic enclosure 400x600x200 mm with locking system
|
247,71 EUR |
|
|
( 294,77 EUR incl. VAT ) ≈ £207.33 | ≈ $272.23 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910556 |
| Mfg Part No: | 1449000 |
| UPC/EAN: | 4028177006652 |
| Weight: | 12.14 kg |
| Type: | AX 1449000 |
Product information for Rittal 1449000:
Applications
This enclosure is suitable for use in ambient temperature ranges from -30 °C to +75 °C. However, the actual temperatures may be limited by installed components. It is designed for indoor and outdoor use, particularly in environments with high humidity, splashing water, or dust. The integrated rain shield along the top and bottom edges of the door provides additional protection against precipitation. For long-term exposure to UV radiation and rain, it is recommended to coat the surface with a PUR lacquer to prevent visual degradation.
Functions and Equipment in Detail
The enclosure is fully enclosed and features a 3 mm double-lip seal with two locking mechanisms. The door includes an integrated bottom guide rail to ensure secure positioning. The viewing window is made of polycarbonate and allows visual inspection of installed components without opening the door. Numerous mounting bosses inside the enclosure enable individual interior configuration on a 25 mm grid, for example with system chassis or rails. The mounting plate includes dimension markings to facilitate component positioning.
Technology Explained Simply
The enclosure meets protection class IP 56 according to EN 60 529, meaning it is dust-tight and splash-proof. It is also classified according to NEMA 1, 3R, 3RX, 4, 4X, and 12, as well as Type 1, 3R, 3RX, 4, 4X, and 12 per UL 50E. Protection class II (at 1000 V AC) indicates that the enclosure is double-insulated and does not require grounding. The IK code IK09 indicates high mechanical strength against physical impacts. The F1 Outdoor Rating according to UL 746C confirms suitability for outdoor use under specific conditions. The materials are designed for high temperature resistance, although the surface may be sensitive to UV exposure.
Compatibility and Accessories
Various accessories are available for this enclosure to extend its functionality. These include lock inserts made of zinc die-cast, mounting brackets for interior configuration, mounting plates in various sizes, TS mounting rails for a door width of 400 mm, the AX Mini comfort handle, the AS Multitool AX/VX 4052000, an LED system light 400 (100–240 V, length 262 mm), VX system chassis in various dimensions (e.g. 23 x 64 mm, 14 x 39 mm), and the AX mast mounting 2584100. These components enable flexible and application-specific configuration of the enclosure.
Mounting and Installation
Interior mounting screws are required to secure components within the enclosure. Mounting follows a 25 mm grid, with universal brackets usable for attaching system chassis or other components. The mounting plate features grounding keyhole slots to ensure electrical safety. Fastening is done with Limbach nuts, providing a secure connection. The integrated mounting bosses in the enclosure allow flexible arrangement of components.
Operational Advantages
The enclosure offers high mechanical and climatic durability, making it suitable for industrial and outdoor applications. The viewing window enables quick visual inspection of installed devices without opening the door. The integrated rain shield and double sealing at the top and bottom edges of the door enhance reliability in outdoor environments. The materials are corrosion-resistant and offer long service life. Mounting is simple and flexible, allowing the enclosure to be quickly adapted to specific requirements. QR codes on the enclosure, door, mounting plate, and nameplate enable unique identification and easy access to relevant product information, as well as traceability of individual parts.
| General | |
| Model | with viewing window |
| Material | Cabinet and door: glass-fibre reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, viewing window: polycarbonate, flammability according to UL 94-V0, halogen-free |
| Surface protection | Housing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated |
| Colour | Similar to RAL 7035 |
| Scope of delivery | Enclosure with hinged door with viewing window, fully enclosed, 3 mm double-barrel lock, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom of door as integrated rain protection strip |
| Note | When used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request. |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 56 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| Protection class | II (at 1000 V AC) |
| IK code | IK09 |
| Width | 400 mm |
| Height | 600 mm |
| Depth | 200 mm |
| Mounting plate material thickness | 3 mm |
| Mounting plate dimensions (W x H) | 305 mm x 525 mm |
| Door opening angle | 130° |
| Number of locks | 2 |
| Base material | Plastic |
| Standards | Complies with F1 Outdoor Rating per UL 746C |
| Mounting note | For mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis. |
| With viewing window | |
