Rittal 6320050 AX command panel housing with grip strips, 300x200x155 mm, S

Your rating:
Average rating
product review for Rittal 6320050 AX command panel housing with grip strips, 300x200x155 mm, S
( 4.7 / 5 ) 7 ratings
Rittal 6320050
This image may differ from the desired article.
Rittal 6320050Rittal 6320050Rittal 6320050Rittal 6320050Rittal 6320050Rittal 6320050Rittal 6320050
161,58 EUR
( 192,28 EUR incl. VAT )
≈ £135.24  |  ≈ $177.58
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 6320050 AX command panel housing with grip strips, 300x200x155 mm, S
Datasheet:file_download Download
Lieske Part No.:1598187
Mfg Part No: 6320050
UPC/EAN: 4028177923218
Weight:4.58 kg
Type:AX 6320050

Product information for Rittal 6320050:

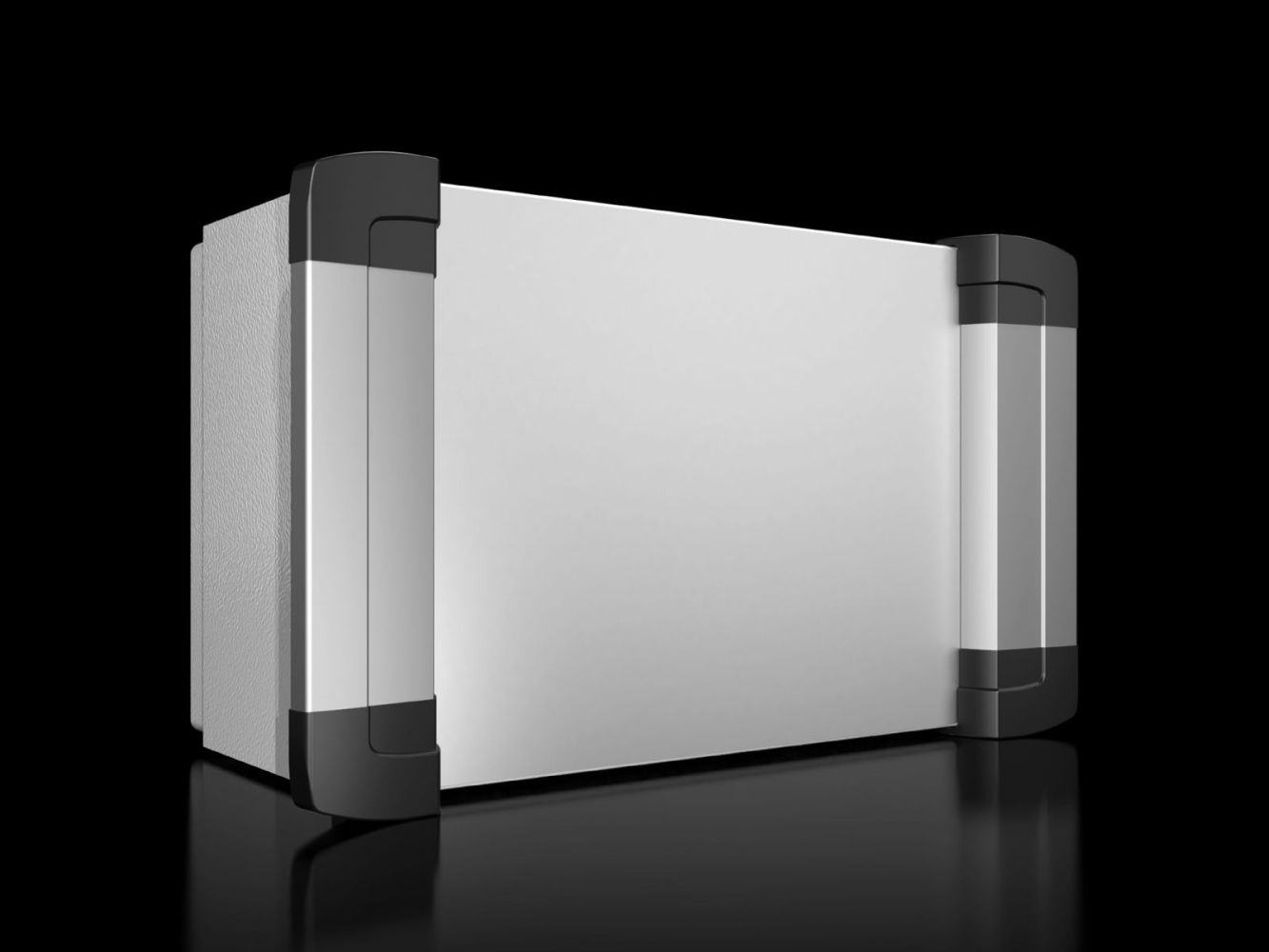

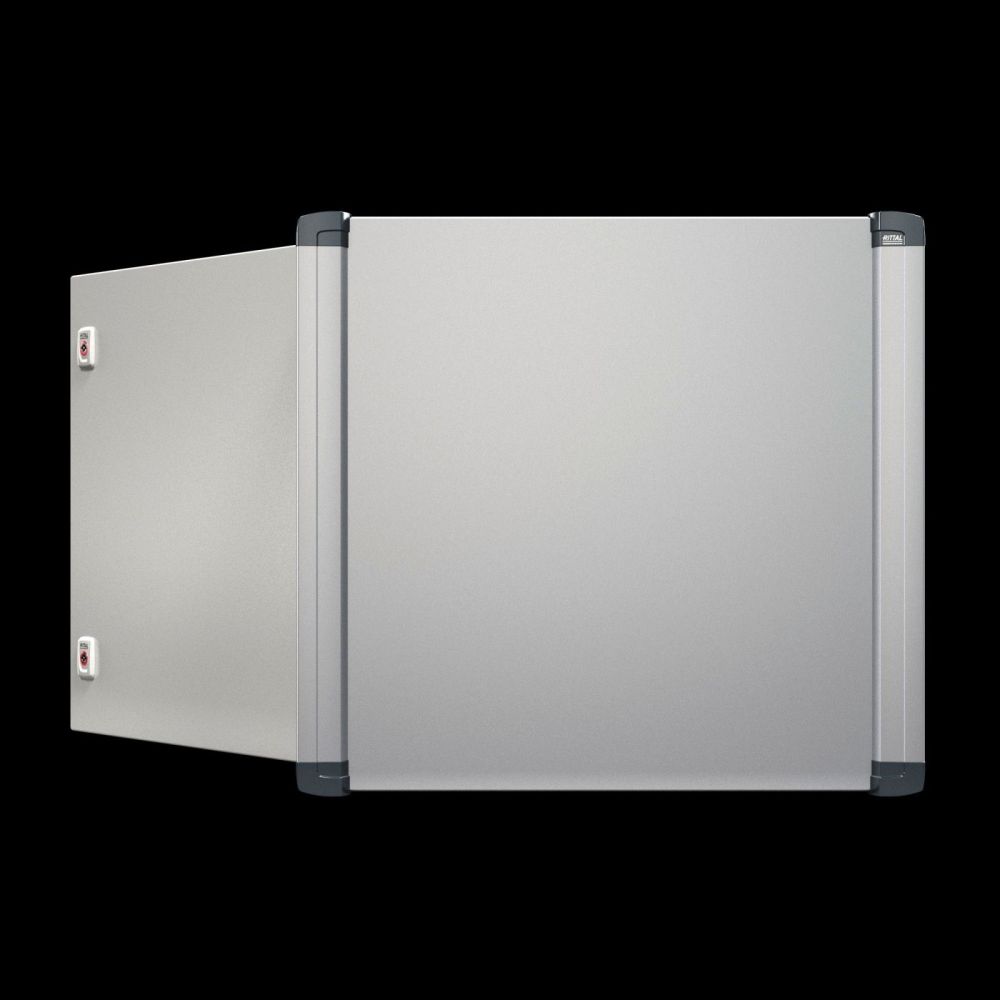

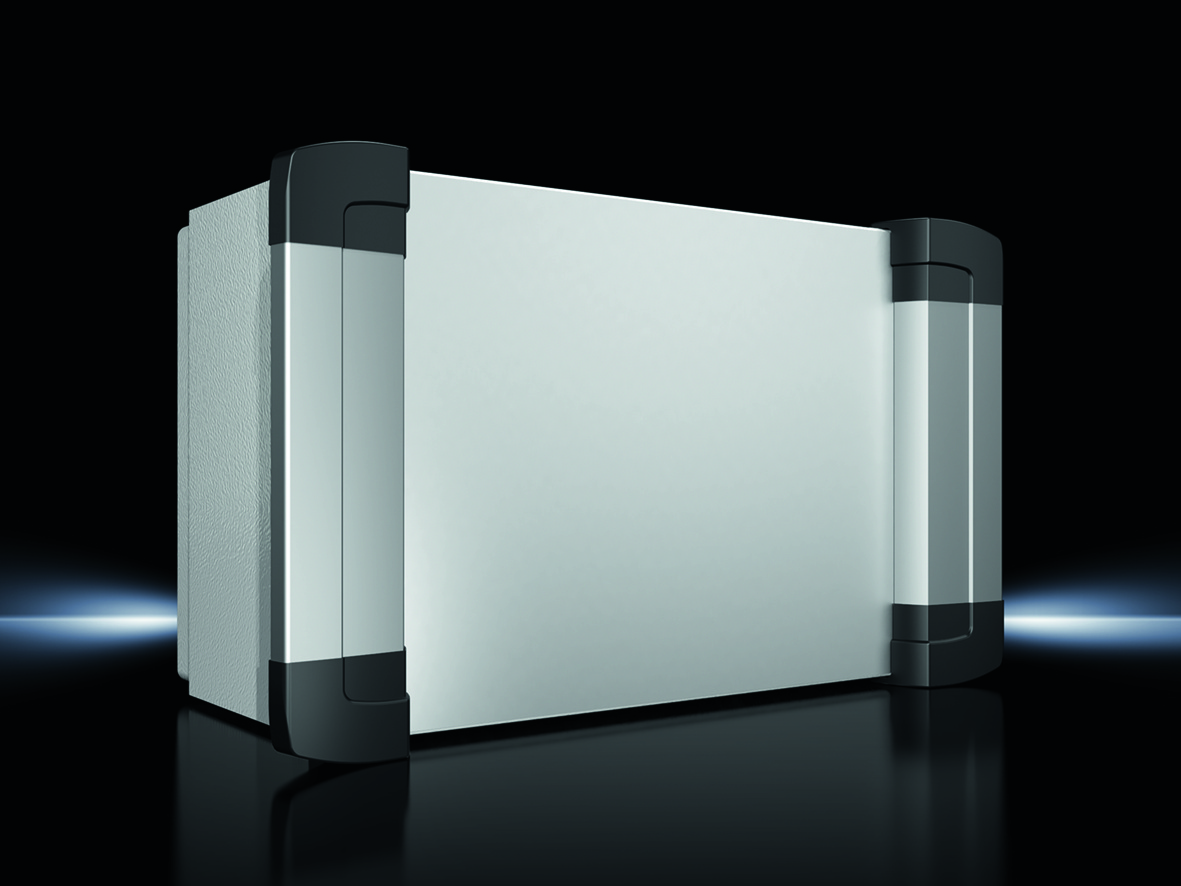

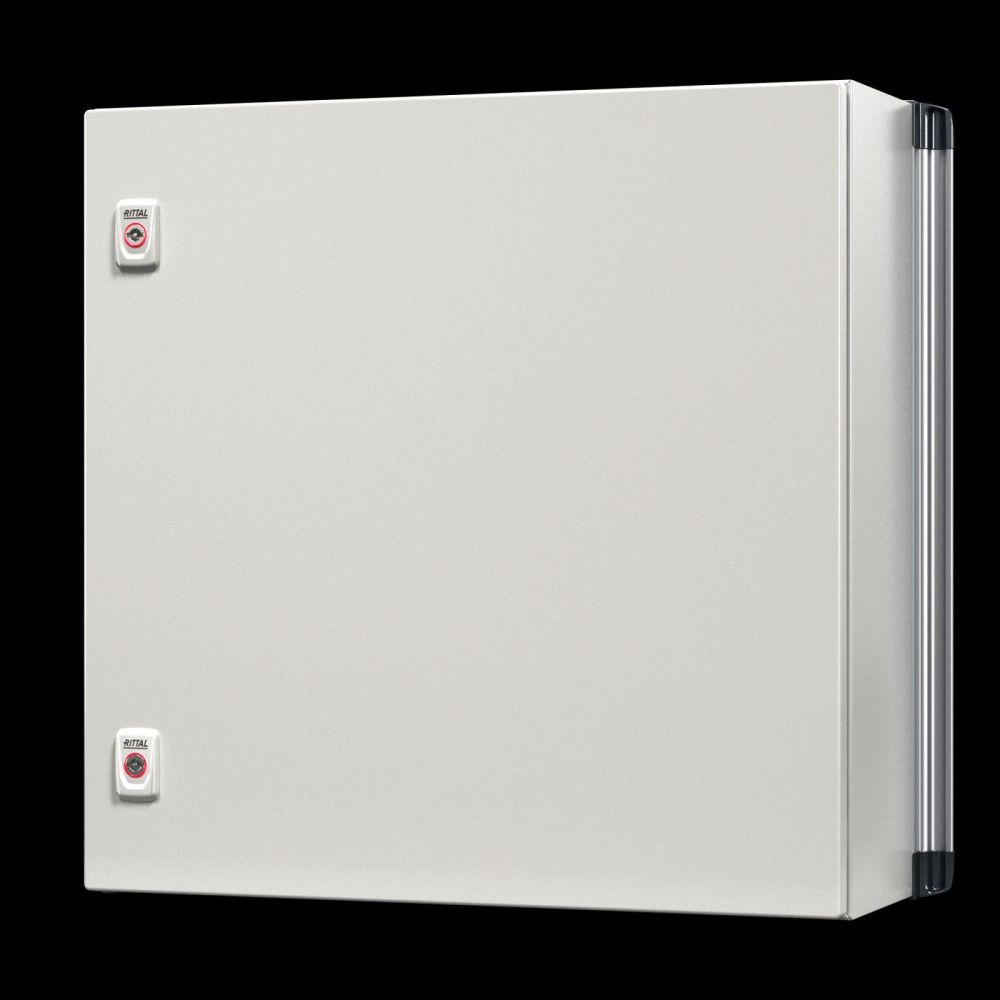

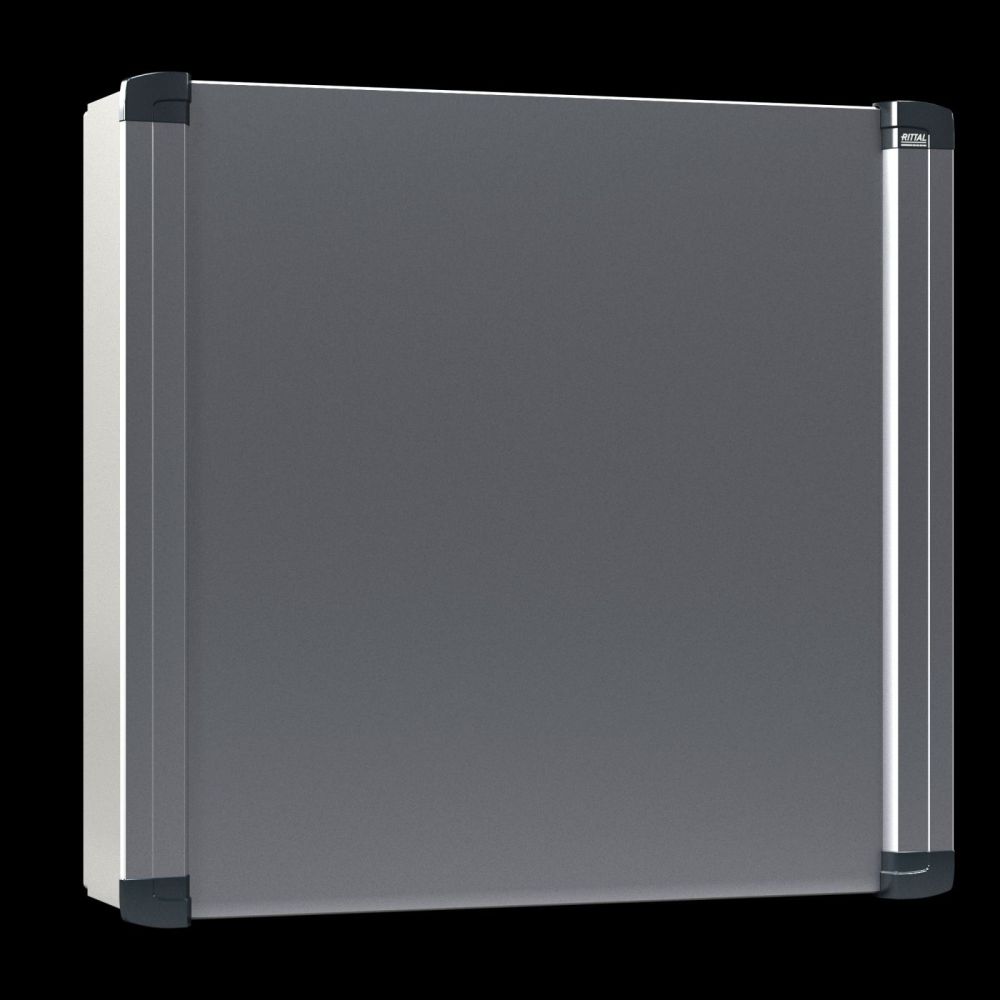

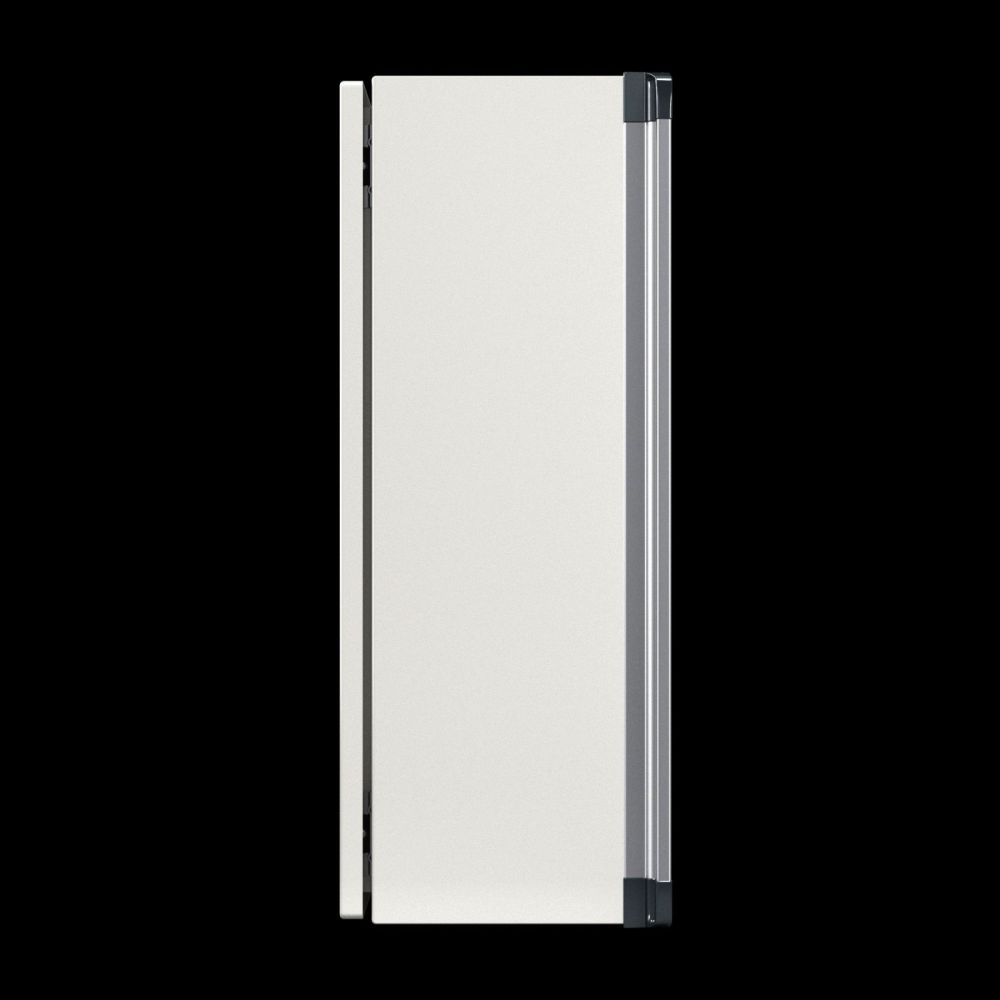

The Rittal AX 6320050 is a command panel housing made of sheet steel, specifically designed for use in industrial plants and enclosures. It features dimensions of 300 mm width, 200 mm height, and 155 mm depth, and is equipped with aluminium grip strips that enable a secure and ergonomic grip. The housing is designed for service access from the rear, facilitating the installation and maintenance of components inside. The 3 mm aluminium front plate is easy to process and can be removed to allow integration of custom control panels or displays. The housing and door surface are dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, providing high mechanical resistance and corrosion protection. The grip strips and front plate are naturally anodized, ensuring a robust and uniform surface.

Applications
This command panel housing is designed for use in industrial environments where a mechanical protection class and resistance against dust and splashing water are required. It is particularly suitable for installations where control elements such as buttons, indicators, or small control panels need to be integrated into enclosures. The design with a mounting arm connection Ø 130 mm allows for easy installation on mounting arm systems of the CP 60/120/180 series, ensuring flexible integration into existing enclosure constructions. The ability to rotate the housing to change the mounting arm connection and door hinge provides additional flexibility during installation.

Functions and Equipment in Detail
The housing features a shaped internal mounting angle with system perforation, allowing easy attachment of mounting components such as mounting brackets or keyboard trays. The latching lock with a 3 mm double-barrel lock insert ensures secure closure. The continuously foamed PU sealing gasket ensures a tight seal and supports the IP 55 protection rating, which is dust- and splash-proof, making it suitable for outdoor use as well. The plastic end caps, in a colour similar to RAL 7024, protect the ends of the grip strips and give the housing a finished appearance.

Technology Explained Simply
The IP 55 protection rating means the housing is protected against dust and splashing water, making it suitable for industrial environments where dirt and moisture may be present. The NEMA 1 and NEMA 12 ratings, along with the UL 50E type rating (Type 1 and Type 12), confirm suitability for indoor and lightly contaminated environments. The IK code IK08 indicates that the housing is resistant to mechanical impacts such as shocks or vibrations with a defined energy level. The use of sheet steel as the base material ensures high strength and durability.

Compatibility and Accessories
The housing is compatible with the CP 60/120/180 mounting arm system and can be combined with various locking systems. The lock inserts with a length of 27 mm, type A, can be replaced with a mini comfort handle AX, enabling flexible adaptation to different security requirements. Suitable accessories include keyboard trays, mounting brackets, and the AS Multitool AX/VX 4052000, which is suitable for mounting and servicing enclosure components. The aluminium front plate can be individually processed to integrate control elements or displays.

Mounting and Installation
Mounting is done via the pre-formed mounting arm connection Ø 130 mm, which can be directly connected to the mounting arm system. The mounting arm connection is offset in the reinforcement plate and can be enlarged if necessary to allow flexible positioning. The ability to rotate the housing allows changing the door hinge and mounting arm connection, which is advantageous during installation in tight or special configurations. The internal mounting angles with system perforation facilitate the attachment of internal components.

Advantages in Operation
The command panel housing offers high mechanical stability and reliable protection for integrated components. The easily processable aluminium front plate allows individual adaptation to specific control requirements. The integrated grip strips and latching lock ensure secure and convenient handling. The IP 55 protection rating and IK08 rating guarantee a long service life even in demanding industrial environments. Compatibility with the CP 60/120/180 mounting arm system and the ability to use various locking systems increase the flexibility and adaptability of the housing to different application scenarios.

General
ModelBracket connection Ø 130 mm
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal, front plate: aluminium, cover caps: plastic
Surface protectionEnclosure and door: dip primed, externally powder coated, textured lacquer, handle strip: natural anodized, front plate: natural anodized
Basic colourRAL 7035
ColourHousing and door: RAL 7035, handle strip: natural anodized, front plate: natural anodized, cover caps: similar to RAL 7024
Scope of deliveryHousing with cutout and reinforcement for mounting arm connection Ø 130 mm, front with max. cutout, covered by easily machinable 3 mm aluminium front plate, side grip rails with end caps, shaped internal mounting angle with system perforation, pre-ribbed latch with 3 mm double-barrel insert
Width300 mm
Height200 mm
Depth155 mm
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
NoteChange of mounting arm connection and door hinge possible by rotating the housing; optional: mounting arm connection Ø 130 mm, offset in the reinforcement plate, pre-formed, can be easily drilled out; locking systems for service access from rear: locking insert, interchangeable with Mini-Comfort handle AX, locking inserts 27 mm, type A; locking systems for service access from front: locking insert, interchangeable with locking inserts 27 mm, type A
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)19.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 6320050, EAN: 4028177923218
