Rittal 2260640 wall-mounted enclosure EL 6 U W x D 600x473 mm fixed installation profiles
|
622,33 EUR |
|
|
( 740,57 EUR incl. VAT ) ≈ £520.89 | ≈ $683.94 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1989794 |
| Mfg Part No: | 2260640 |
| UPC/EAN: | 4028177983151 |
| Weight: | 25.5 kg |
| Type: | AX 2260640 |
Product information for Rittal 2260640:
Applications
This wall-mounted enclosure is designed for indoor use, particularly in areas where compact yet robust mounting of IT or control technology is required. The IP 54 protection rating, achieved in combination with the closed gland plates at the top and bottom, protects against dust and splashing water, making it suitable for environments with moderate contamination risk. The three-piece construction enables easy access to installed devices, enhancing efficiency for maintenance and installation.
Functions and Equipment in Detail
The swing section features a 25 mm hole pattern in the front and rear frames, allowing flexible component mounting. Two 48,3 cm ( 19 inch ) profile rails are mounted at the front to securely fasten standard IT equipment. The design viewing door made of 3 mm single-pane safety glass provides a clear view of installed devices, while the integrated security lock 3524 E with mini comfort handle ensures secure closure. The lock in the middle section is designed as a 3 mm double bar, enabling stable latching of the viewing door.
Technology Explained Simply
The enclosure is made of steel sheet with a thickness of 1.5 mm and powder-coated, providing high mechanical stability and corrosion resistance. The color scheme is RAL 7035 for the wall and swing sections, and RAL 7035/7015 (slate gray) for the viewing door, enabling a uniform visual appearance. The static load capacity is 300 N for the swing section and 100 N for the wall section, allowing mounting of devices with corresponding weight. The installation depth is 420 mm, with a clear depth of 284 mm and a clear width of 502 mm, providing sufficient space for devices.
Compatibility and Accessories
The AX 2260640 is part of the AX/VX system kit and can be extended with various accessories. These include, for example, 48,3 cm ( 19 inch ) fasteners, C-profile rails, mounting plates for terminal boxes or bus enclosures, and earthing rails. The wall mounting bracket for AX steel sheet enables secure wall mounting. Additionally, various door widths for VX system chassis are available, allowing adaptation to different requirements. The IT system light can be used for visual signaling in IT enclosure systems.
Mounting and Installation
Installation is carried out on a wall using the pre-drilled holes in the wall section. The fixed mounting method requires no additional mounting aids, as the enclosure is already equipped with the necessary fastening elements. The three-piece structure simplifies installation, as the swing section is attached and secured after mounting the wall section. The viewing door can be closed after device installation, with the mini comfort handle enabling convenient operation.
Operational Advantages

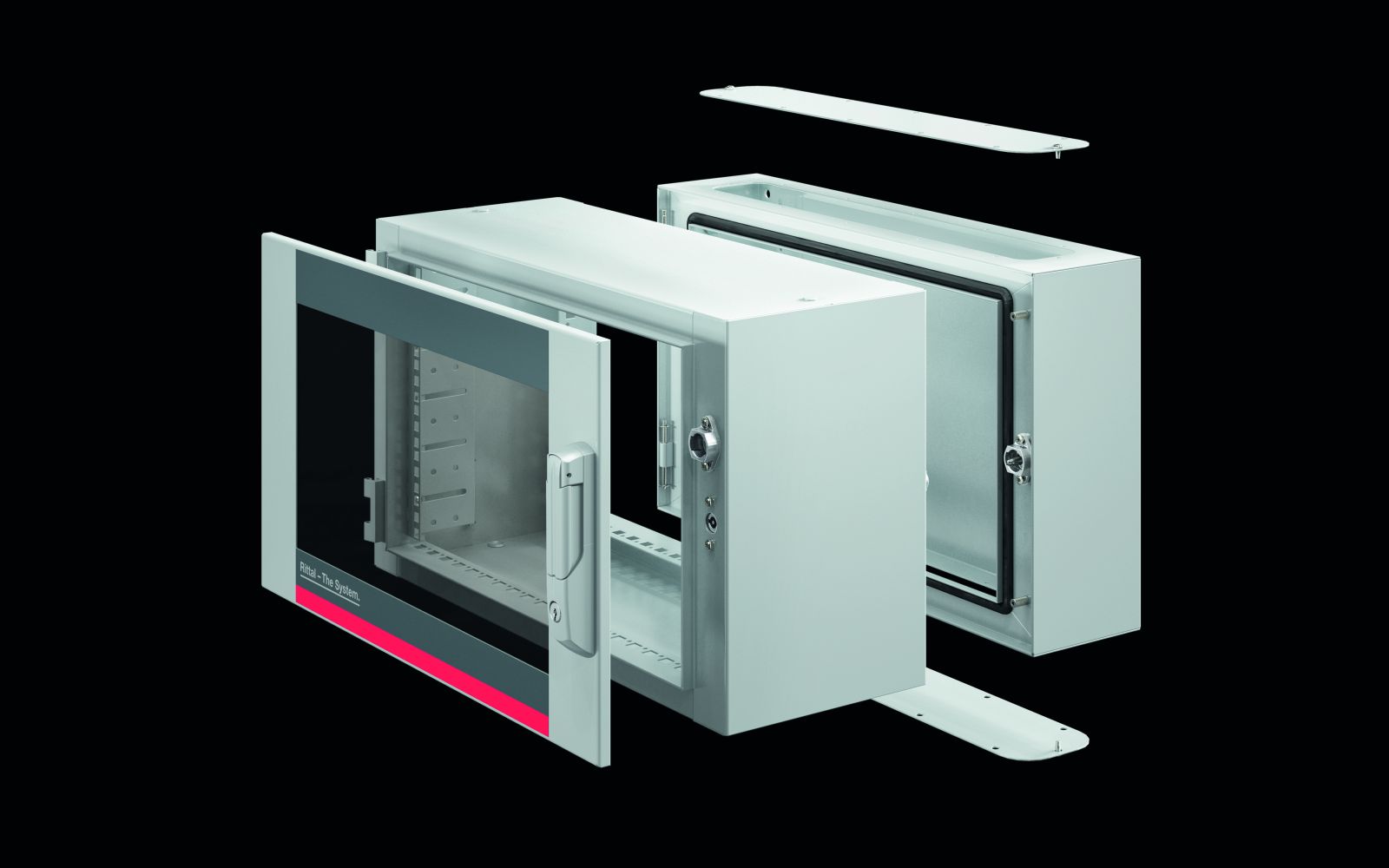

The combination of robust steel sheet, powder-coated surface, and security lock ensures long service life and high reliability. The three-piece construction and 25 mm hole pattern offer flexibility in mounting various devices. The IP 54 protection rating protects against dust and splashing water, increasing operational safety. The clear view through the single-pane safety glass door allows quick inspection of installed components without opening the enclosure.
Certification and Standards
The enclosure complies with IP 54 protection rating according to EN 60 529 and is certified UL + C-UL (listed). The powder-coated surface ensures high corrosion resistance and mechanical stability. The color scheme is RAL 7035 for metallic parts and RAL 7035/7015 (slate gray) for the viewing door, enabling a uniform visual appearance. Manufacturing is carried out considering PCF class Category B, with the PCF value (Cradle-to-Gate) approximately calculated and self-declared based on product weight.
| General | |
| Model | Wall-mounted IT enclosure |
| Material | Wall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm |
| Surface protection | Powder-coated |
| Colour | wall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey) |
| Scope of delivery | Wall section: closed flange plate, top and bottom, swivel section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, locking middle section: 3 mm double bar, locking design vision door: safety lock 3524 E, mini comfort handle |
| Height units | 6 HE |
| Width | 600 mm |
| Height | 345 mm |
| Depth | 473 mm |
| Built-in depth | 420 mm |
| Light dimensions | Clear width: 502 mm, clear depth: 284 mm |
| Depth of swivel part | 316 mm |
| Depth of wall part | 135 mm |
| Number of locks | 1 |
| Load capacity of swivel part (static) | 300 N |
| Load capacity wall part (static) | 100 N |
| Base material | steel sheet |
| Lock | Locking system: Mini comfort handle, lock insert: Security lock insert No. 3524 E |
| Degree of protection IP according to EN 60 529 | IP 54 with flange plate closed top and bottom |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
