Rittal 1560600 AX mounting plate for AX 3-piece W x H: 485 x 325 mm

Your rating:
Average rating
product review for Rittal 1560600 AX mounting plate for AX 3-piece W x H: 485 x 325 mm
( 4 / 5 ) 1 ratings

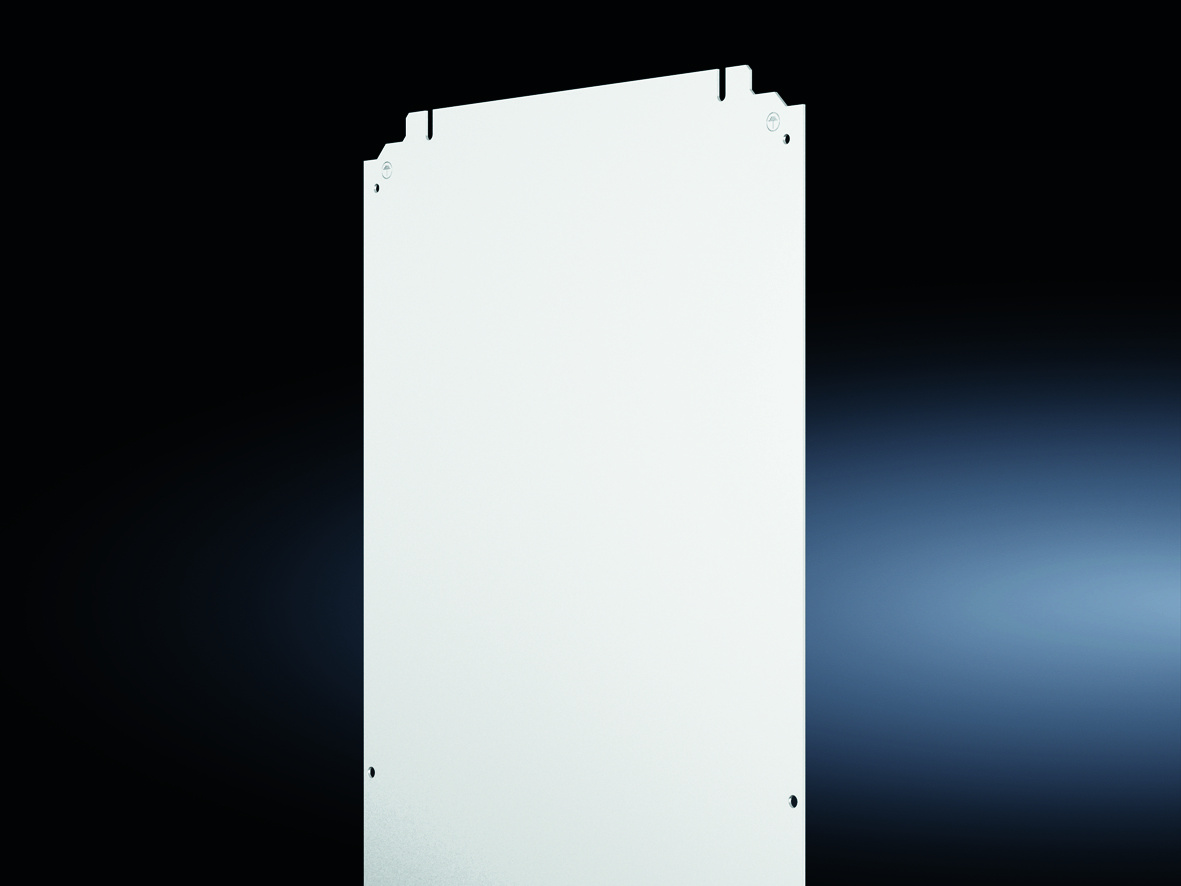

Rittal 1560600
This image may differ from the desired article.
Rittal 1560600Rittal 1560600
27,82 EUR 29,07 EUR
( 33,11 EUR incl. VAT )
≈ £23.29  |  ≈ $30.57
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 1560600 AX mounting plate for AX 3-piece W x H: 485 x 325 mm
Datasheet:file_download Download
Lieske Part No.:895232
Mfg Part No: 1560600
UPC/EAN: 4069196010541
Weight:2.55 kg
Type:AX 1560600

Product information for Rittal 1560600:

The mounting plate AX 1560600 from Rittal is a system accessory for wall-mounted enclosures of the AX series, 3-piece. It is used for mounting components, switches, indicators or other parts outside the enclosure, ensuring optimal accessibility and ease of installation. The plate is specifically designed for wall-mounted enclosures with a minimum width of 600 mm and a minimum height of 345 mm, allowing seamless integration into standard applications of the AX series.

Applications

The mounting plate is used in industrial and technical installations where external mounting of control or operating elements is required. It is particularly suitable for applications in machine building, manufacturing technology or automation technology, where clear structuring of the operating surface and quick maintenance are important. Mounting outside the enclosure improves operability and reduces the need to open the enclosure for adjusting or replacing components.

Functions and equipment in detail

The plate is made of steel sheet with a thickness of 2 mm and is galvanized, providing high mechanical stability and corrosion protection. The surface is designed for use in industrial environments where moisture, dust or minor chemical influences may occur. Dimensions are 485 mm in width and 325 mm in height, providing sufficient space for mounting multiple components. The delivery includes mounting screws, enabling secure attachment to the front of the enclosure.

Technology explained simply

The mounting plate is attached to the front side of the wall-mounted enclosure, with the screws inserted directly into the pre-drilled holes of the enclosure. The galvanization of the plate provides long-term protection against oxidation, which is particularly beneficial in damp or slightly aggressive environments. The steel sheet construction ensures high load capacity, allowing even larger or heavier components to be mounted securely. The precise fit for the AX 3-piece wall-mounted enclosure series ensures accurate alignment and a clean appearance.

Compatibility and accessories

The mounting plate is designed exclusively for wall-mounted enclosures of the AX series, 3-piece. It is compatible with enclosures having a minimum width of 600 mm and a minimum height of 345 mm. Use with other enclosure types or sizes is not intended and may lead to mounting issues.

Mounting and installation

Mounting is done by simply attaching the plate to the front of the enclosure using the screws included in the delivery. The holes in the plate are arranged to fit exactly into the pre-defined mounting points of the enclosure. No additional processing or adjustment is required. After securing the plate, it is equipped with the desired components, with component positioning customizable according to application requirements.

Advantages in operation

External mounting of components significantly simplifies operation and maintenance of the installation. Components are directly accessible without opening the enclosure, reducing maintenance time. The stable construction from galvanized steel sheet ensures long service life and reliable performance even under industrial operating conditions. Clear structuring of the operating surface improves clarity and reduces error sources during operation.

General
MaterialSheet steel, 2 mm
Surface protectionZinc-plated
Width485 mm
Height325 mm
Suitable for housing typeWall-mounted housing AX, 3-piece
Suitable forEnclosure type: wall enclosure AX, 3-piece, width: = 600 mm, height: = 345 mm


Product data sheet
Datasheet for Rittal 1560600, EAN: 4069196010541

Questions & answers

What is the delivery time of Rittal 1560600 AX mounting plate for AX 3-piece W x H: 485 x 325 mm?

The article Rittal 1560600 AX mounting plate for AX 3-piece W x H: 485 x 325 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1560600 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1560600 AX mounting plate for AX 3-piece W x H: 485 x 325 mm always at the best possible price. We can give you a discount of 2% on Rittal 1560600 AX mounting plate for AX 3-piece W x H: 485 x 325 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
