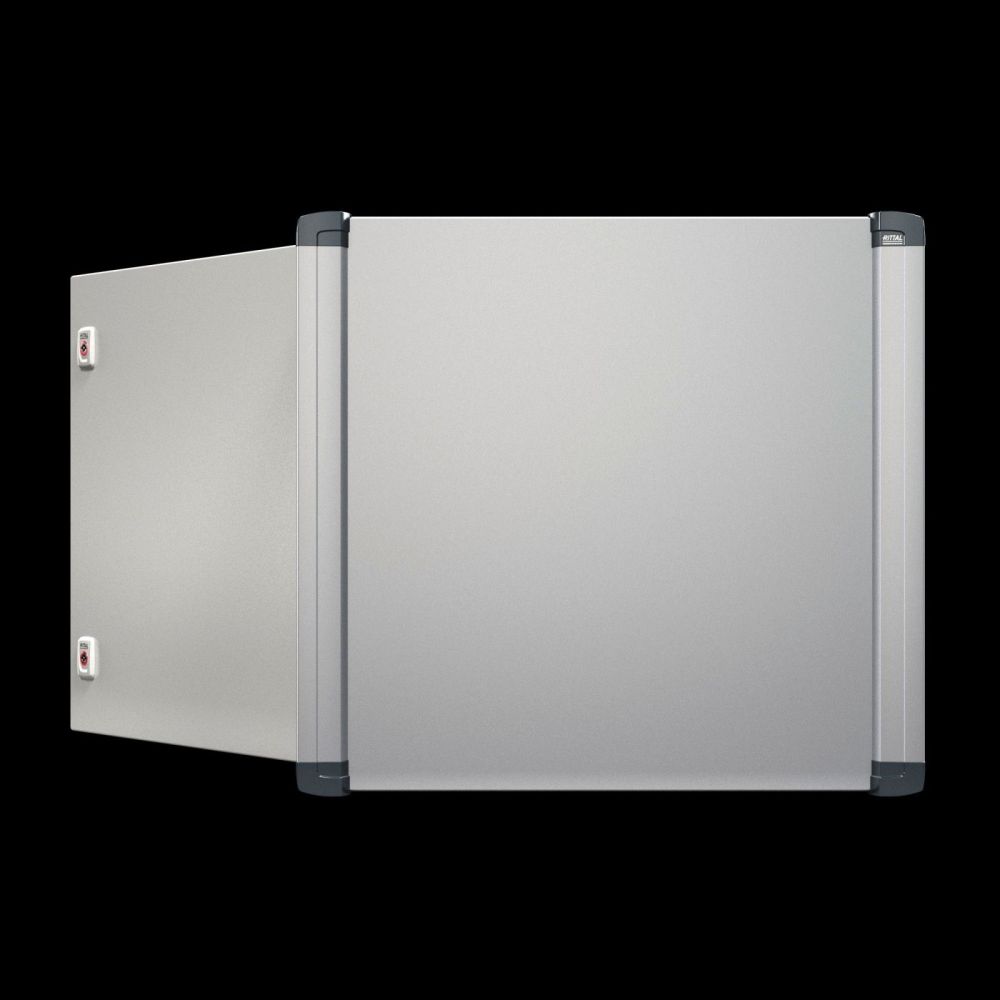

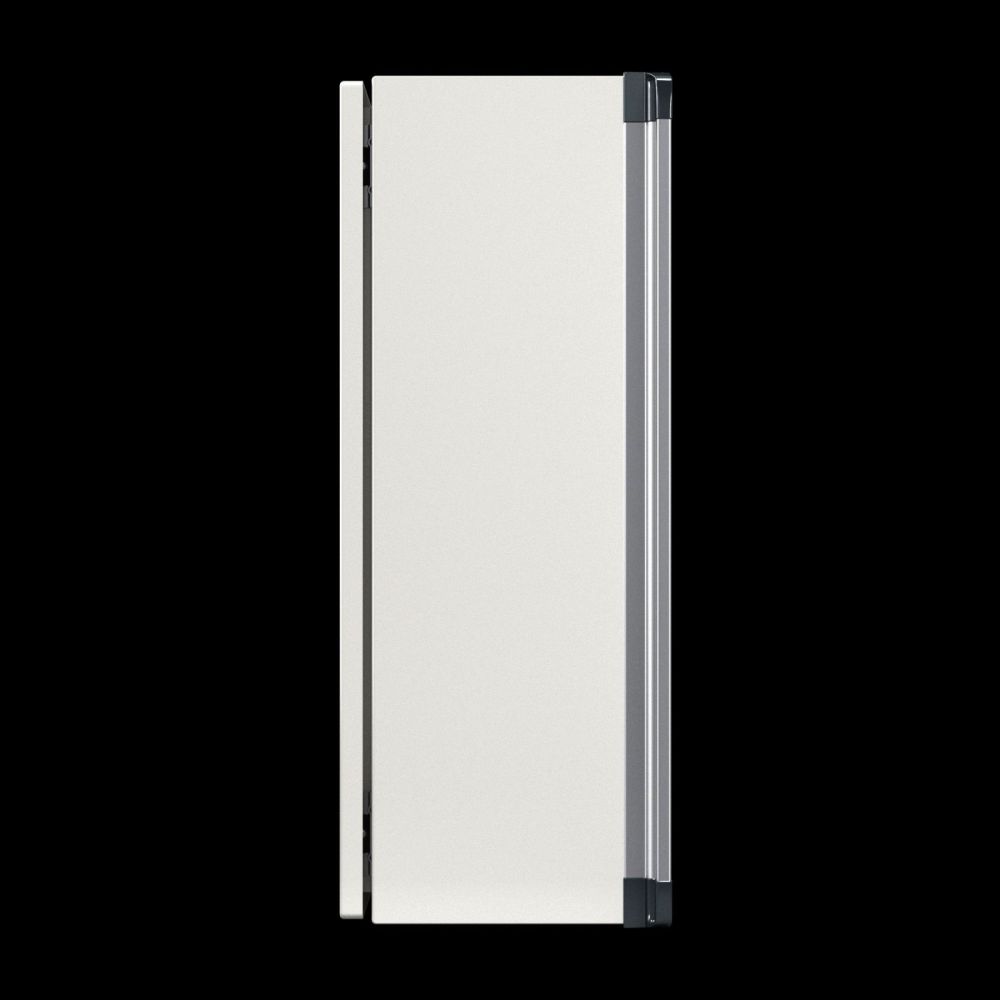

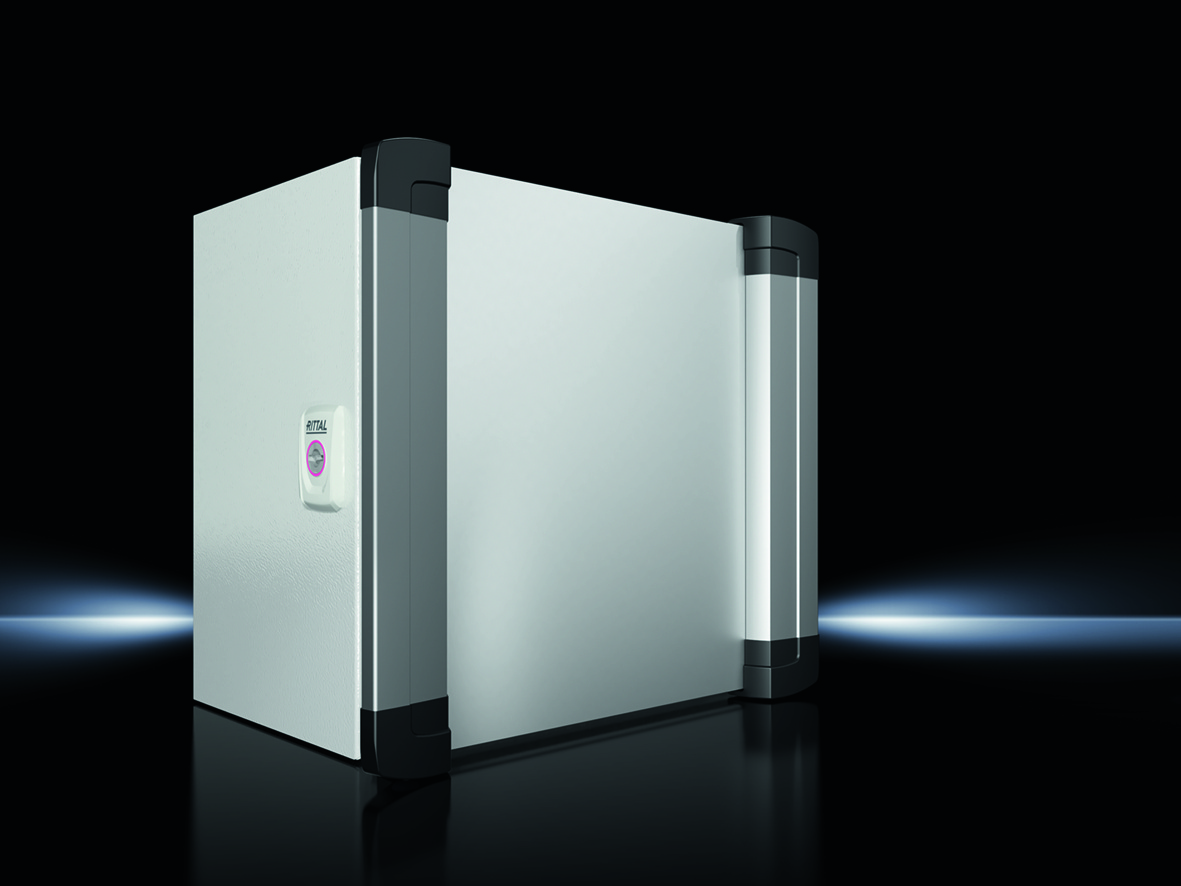

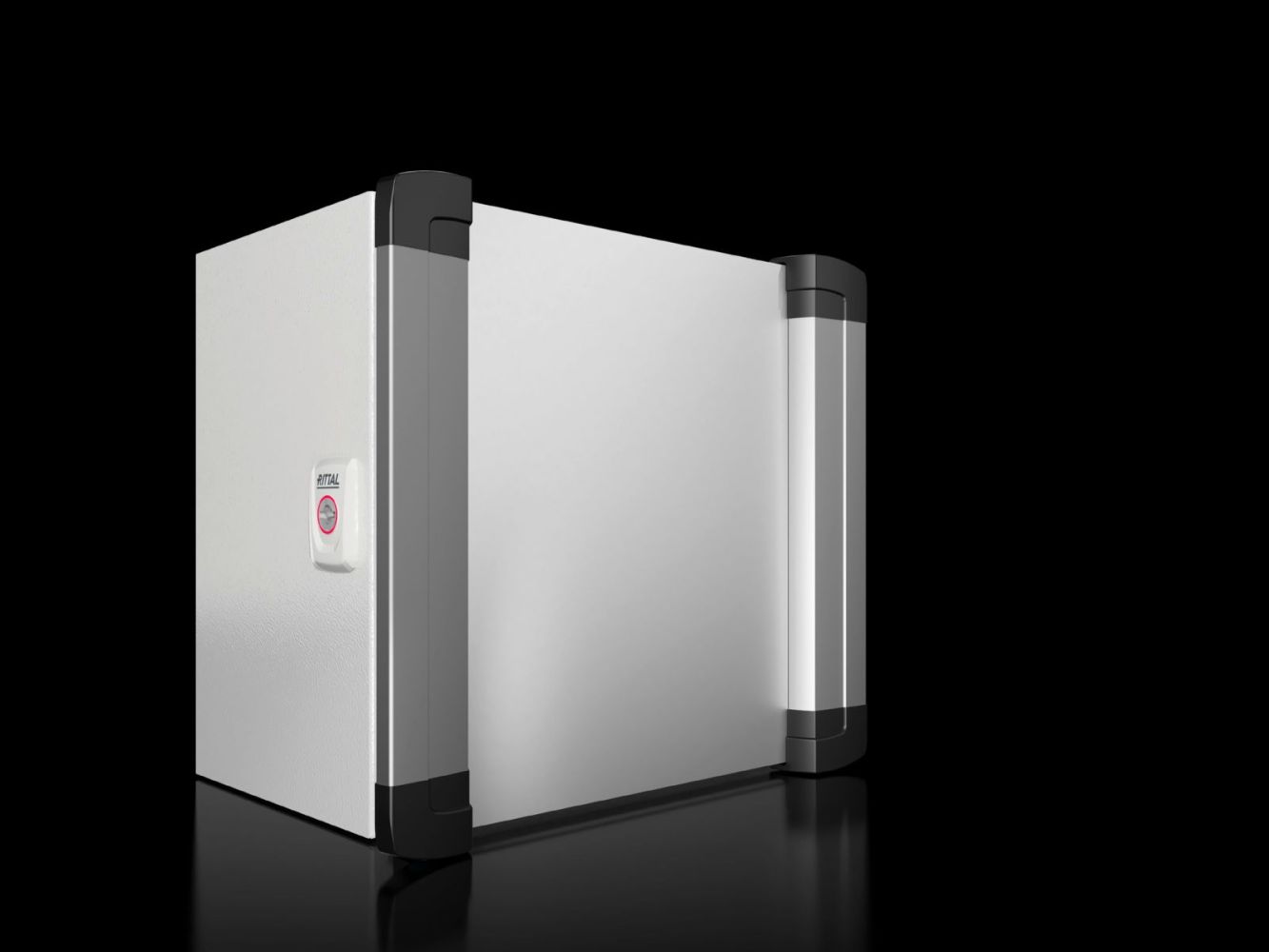

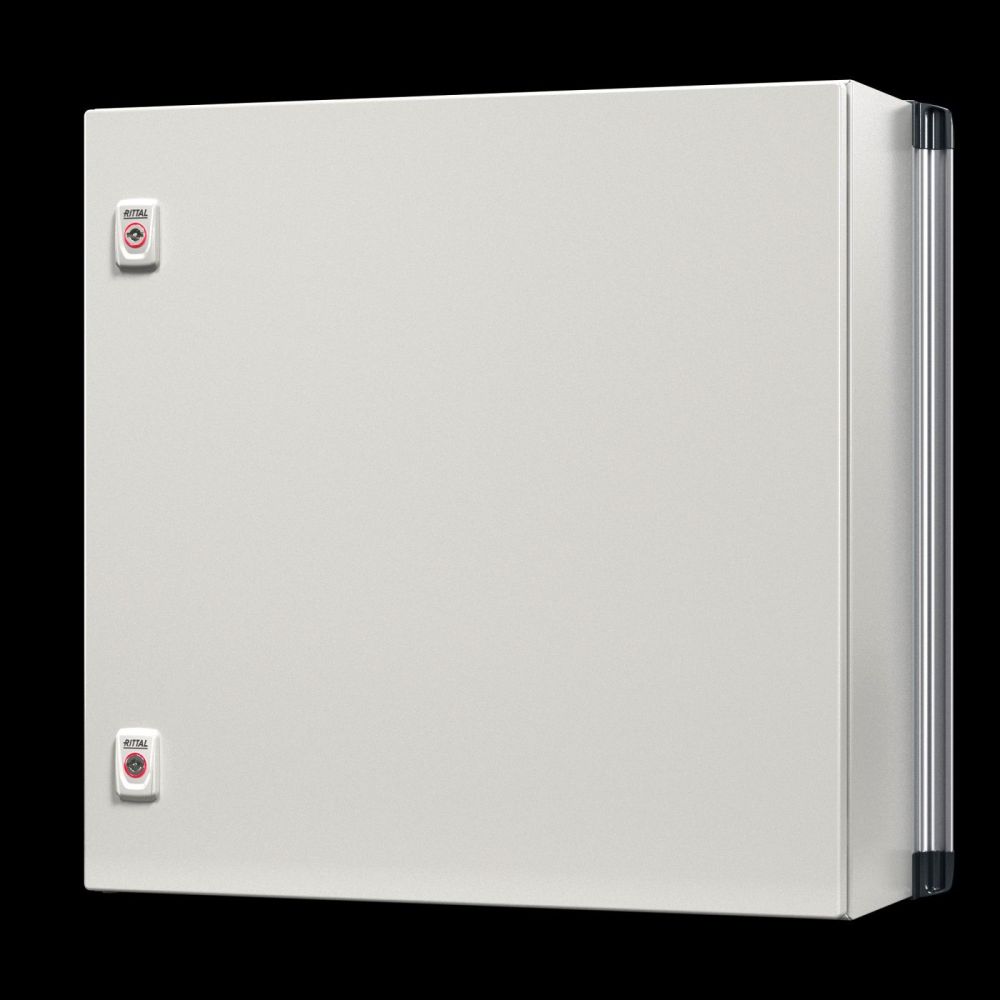

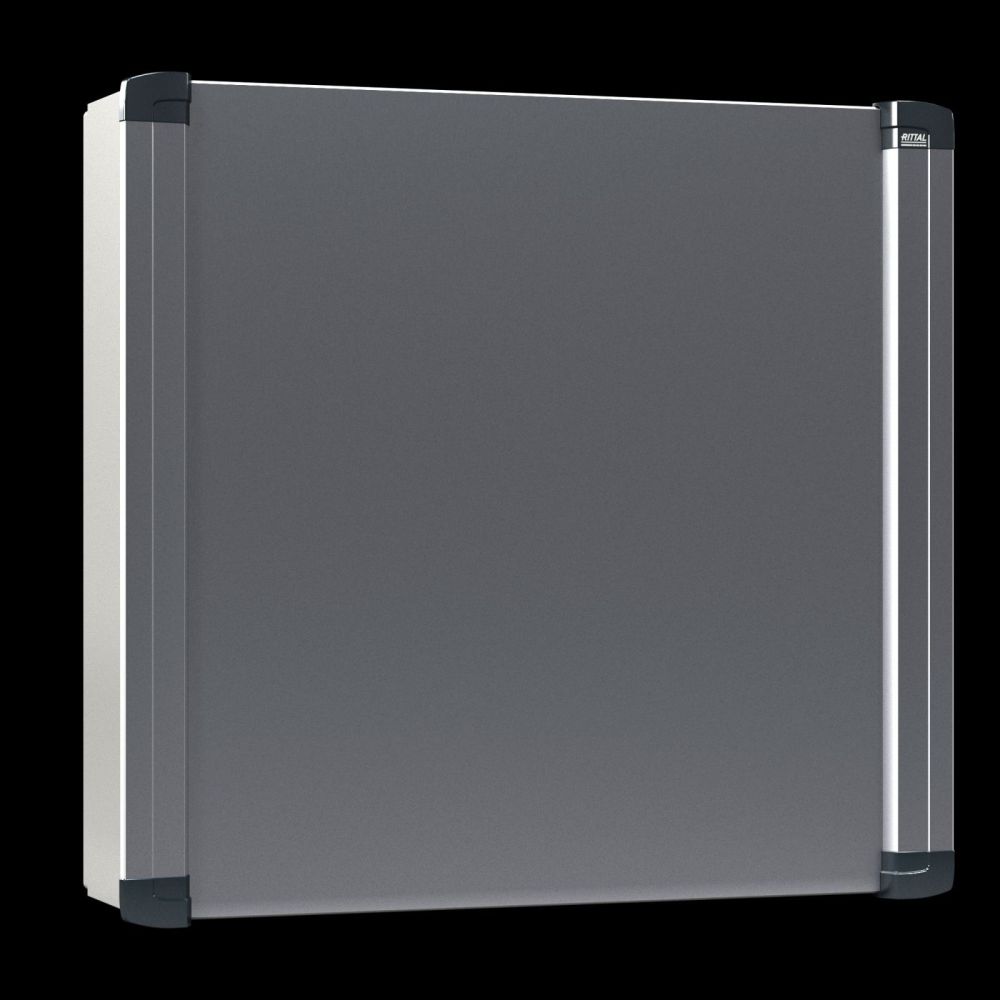

Rittal 6315150 AX command panel housing with grip strips, 300x300x210 mm, S

Your rating:
Average rating
product review for Rittal 6315150 AX command panel housing with grip strips, 300x300x210 mm, S
( 4.6 / 5 ) 8 ratings
Rittal 6315150
This image may differ from the desired article.
Rittal 6315150Rittal 6315150Rittal 6315150Rittal 6315150Rittal 6315150Rittal 6315150Rittal 6315150
-5% 201,71 EUR 211,74 EUR
( 240,03 EUR incl. VAT )
≈ £168.83  |  ≈ $221.68
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 6315150 AX command panel housing with grip strips, 300x300x210 mm, S
Datasheet:file_download Download
Lieske Part No.:1593447
Mfg Part No: 6315150
UPC/EAN: 4028177923232
Weight:7.02 kg
Type:AX 6315150

Product information for Rittal 6315150:

The Rittal AX 6315150 is a command panel housing made of sheet steel, designed for use in industrial plants and control systems. It has dimensions of 300 mm width, 300 mm height, and 210 mm depth, and is specifically designed for connection to support arm systems such as CP 60/120/180. The front side features a 3 mm aluminium front plate that is easy to process, suitable for individual adaptations such as control panels or displays. Service access is from the front, with the door secured by a cam lock with a 3 mm double-barrel lock insert. The side grip strips made of natural anodized aluminium provide a secure and ergonomic grip, while the plastic end caps in a colour similar to RAL 7024 support aesthetic design.

Applications

The housing is designed for use in industrial environments where robust and flexible mounting of control elements is required. It is suitable, for example, for integration into enclosures, control consoles or machine control panels. The protection rating IP 55 ensures high protection against dust and splashing water, making it suitable for outdoor areas or humid environments. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for indoor and lightly contaminated environments. The IK code IK08 provides protection against mechanical impacts, such as light shocks or vibrations.

Functions and Equipment in Detail

The housing is equipped with a pre-formed support arm connection Ø 130 mm, enabling direct mounting to support arm systems. Optionally, the support arm connection can be pre-formed off-centre in the reinforcement plate and simply drilled out. The door can be rotated 180° to switch the support arm connection and door hinge, enabling flexible mounting in various configurations. The inner side features a formed internal mounting angle with system perforation, allowing easy mounting of assemblies and components. The front plate is easily removable to allow individual modifications such as drilling or cutouts.

Technology Explained Simply

The construction from sheet steel offers high mechanical stability and heat resistance. The surface is dip-primed and externally powder-coated with a textured lacquer in RAL 7035, ensuring high corrosion resistance and an attractive appearance. The continuous PU sealing strip around the door ensures a tight seal and prevents dust or moisture from entering. The aluminium grip strips and front plate are naturally anodized, providing high resistance to corrosion and mechanical stress. The cam lock with double-barrel lock insert enables a secure closure, which can optionally be replaced with other locking systems such as Mini Comfort Handle AX or lock inserts 27 mm, type A.

Compatibility and Accessories

The housing is compatible with the support arm system CP 60/120/180 and can be combined with various locking systems. Suitable accessories include lock inserts made of zinc die-cast with a length of 27 mm, adjustable keyboard trays (128 to 228 mm depth), mounting brackets for enclosures and expansion parts, and the AS Multitool AX/VX 4052000. The mounting plate 5051.368 and the shipping bag 5051.300 are available as suitable additions. The use of Mini Comfort Handles AX or other lock inserts allows adaptation to specific safety requirements.

Mounting and Installation

Mounting is done via the pre-formed support arm connection Ø 130 mm, which can be directly connected to existing support arm systems. The internal mounting angles with system perforation allow precise and quick fastening of assemblies. The front plate can be removed for individual modifications. The door can be rotated 180° to switch the door hinge and support arm connection, enabling flexible installation in various mounting configurations. The product is delivered with a cam lock, which can be replaced with other locking systems as required.

Advantages in Operation

The housing offers high mechanical stability and reliable protection against environmental influences. The easily processable aluminium front plate allows individual adaptations without additional tools. The flexible mounting by rotating the housing and compatibility with various locking systems increase versatility. The protection rating IP 55 and IK08 rating ensure high reliability in demanding environments. The integrated system perforations in the internal mounting angle simplify the mounting of assemblies and reduce installation time.

General
ModelBracket connection Ø 130 mm
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal, front plate: aluminium, cover caps: plastic
Surface protectionEnclosure and door: dip primed, externally powder coated, textured lacquer, handle strip: natural anodized, front plate: natural anodized
Basic colourRAL 7035
ColourHousing and door: RAL 7035, handle strip: natural anodized, front plate: natural anodized, cover caps: similar to RAL 7024
Scope of deliveryHousing with cutout and reinforcement for mounting arm connection Ø 130 mm, front with max. cutout, covered by easily machinable 3 mm aluminium front plate, side grip rails with end caps, shaped internal mounting angle with system perforation, pre-ribbed latch with 3 mm double-barrel insert
Width300 mm
Height300 mm
Depth210 mm
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
NoteChange of mounting arm connection and door hinge possible by rotating the housing; optional: mounting arm connection Ø 130 mm, offset in the reinforcement plate, pre-formed, can be easily drilled out; locking systems for service access from rear: locking insert, interchangeable with Mini-Comfort handle AX, locking inserts 27 mm, type A; locking systems for service access from front: locking insert, interchangeable with locking inserts 27 mm, type A
Base materialsteel sheet
Note on part numbercompatible mounting plate 5051.368 with shipping bag 5051.300
PCF/VE (Cradle-to-Gate)30.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 6315150, EAN: 4028177923232
