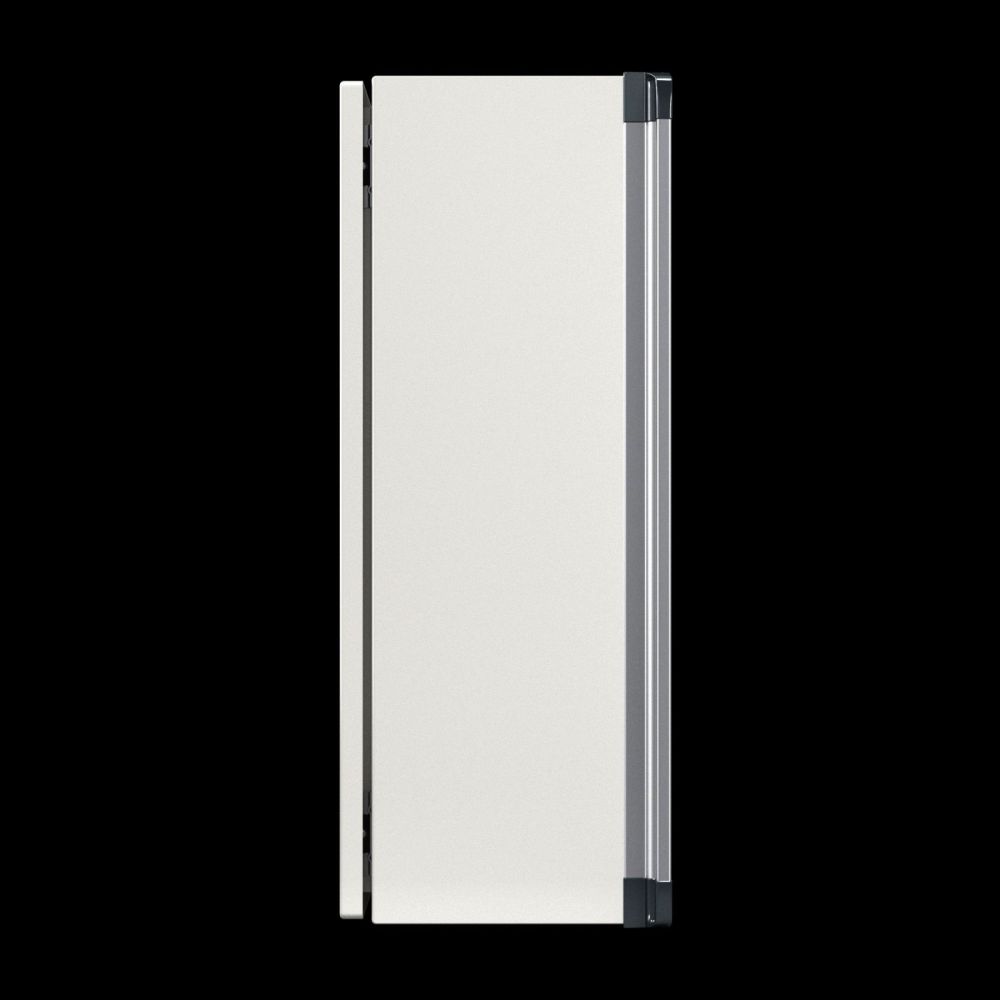

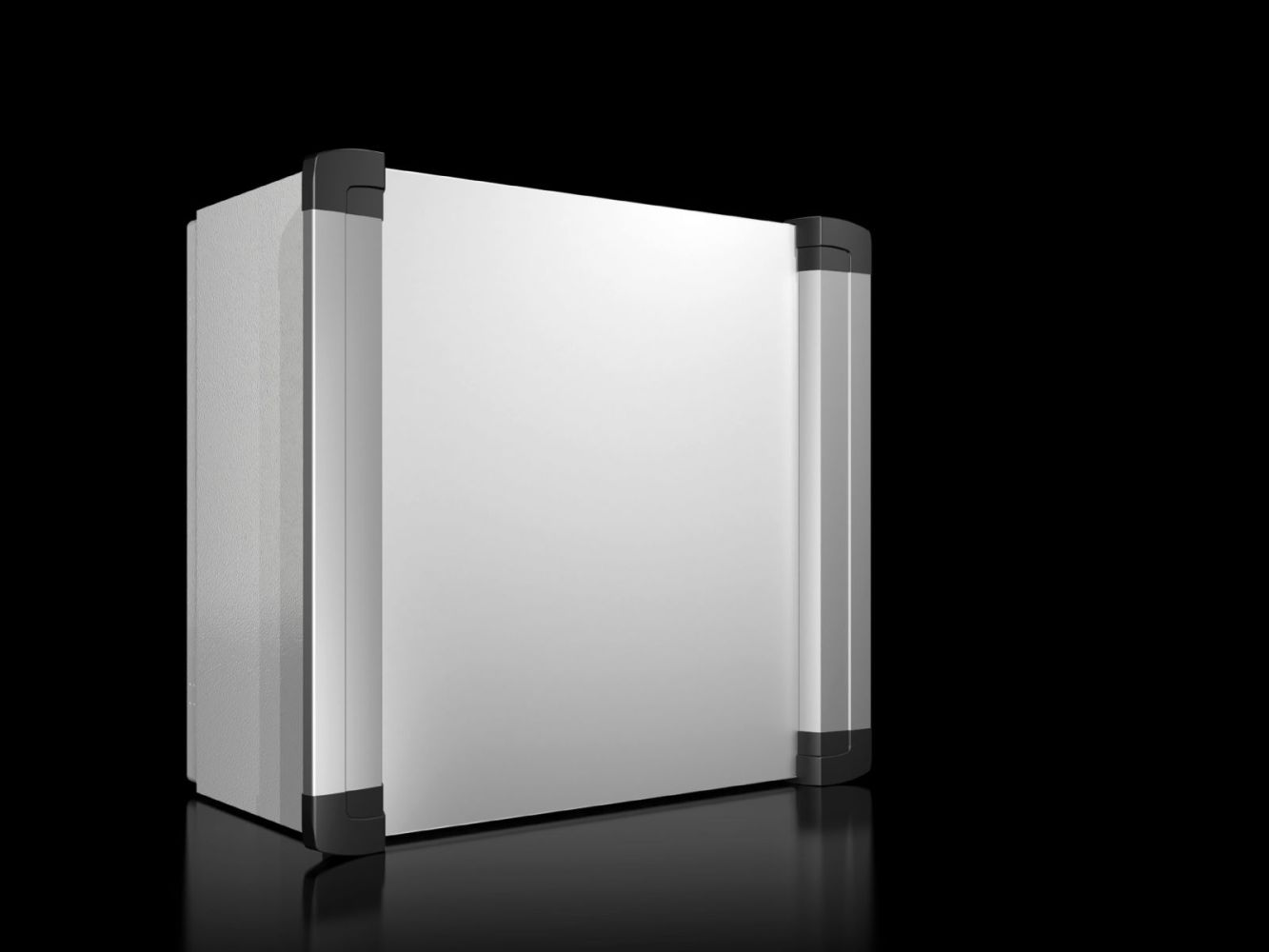

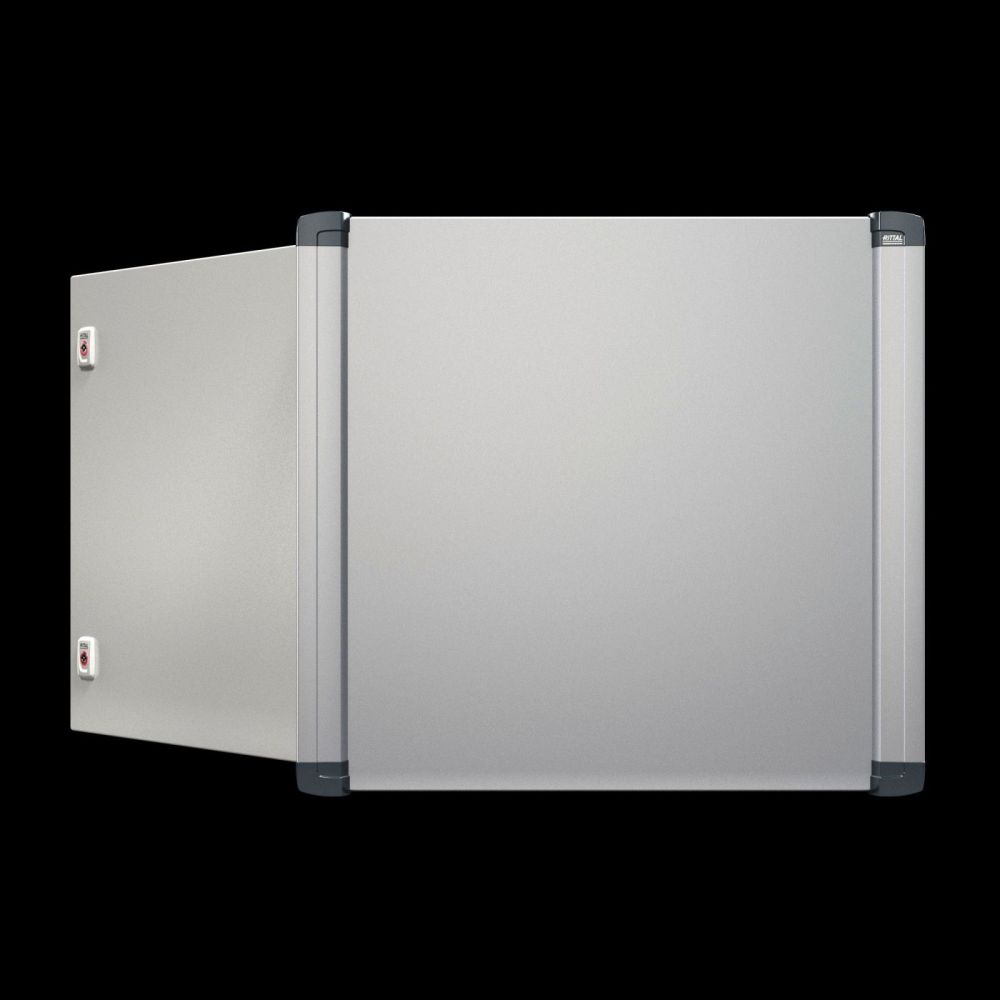

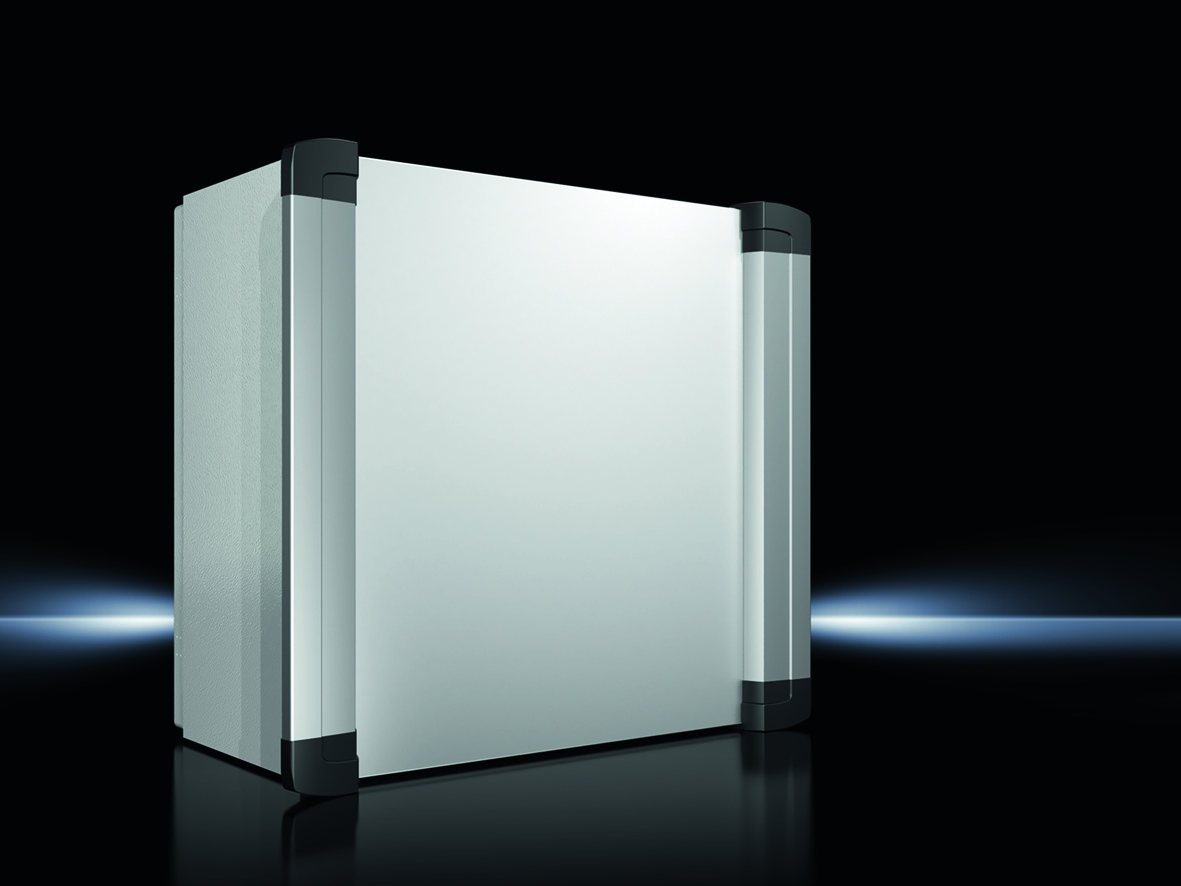

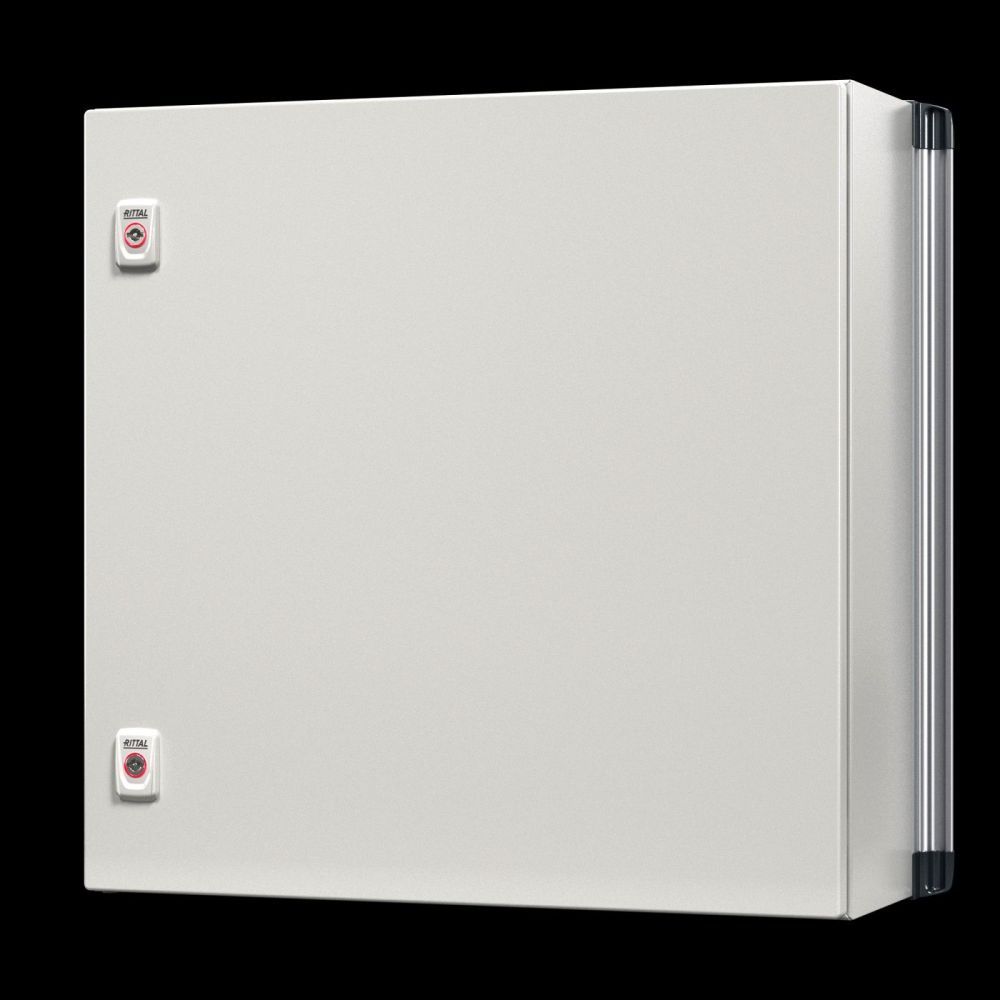

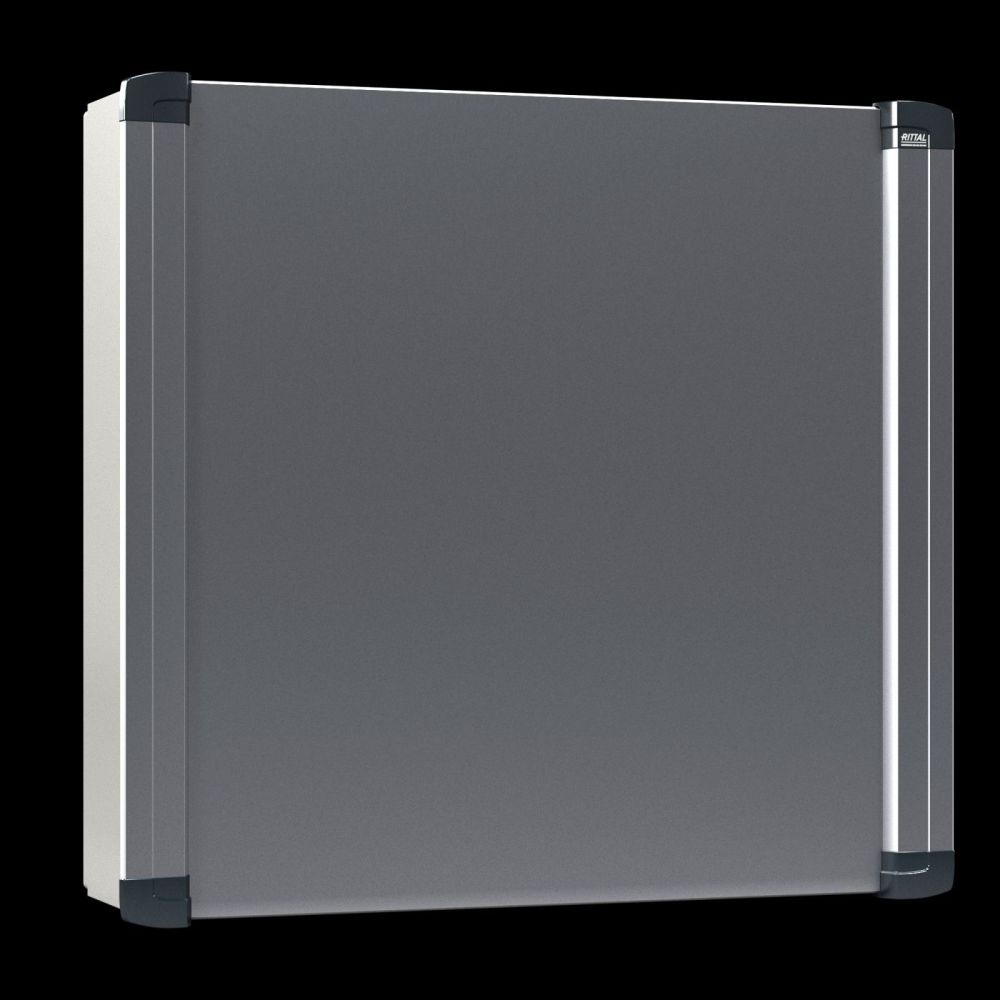

Rittal 6320350 AX command panel housing with grip strips, 380x380x210 mm, S,

Your rating:
Average rating
product review for Rittal 6320350 AX command panel housing with grip strips, 380x380x210 mm, S,
( 4.1 / 5 ) 8 ratings
Rittal 6320350
This image may differ from the desired article.
Rittal 6320350Rittal 6320350Rittal 6320350Rittal 6320350Rittal 6320350Rittal 6320350Rittal 6320350
184,46 EUR 191,51 EUR
( 219,51 EUR incl. VAT )
≈ £154.39  |  ≈ $202.72
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 6320350 AX command panel housing with grip strips, 380x380x210 mm, S,
Datasheet:file_download Download
Lieske Part No.:1598186
Mfg Part No: 6320350
UPC/EAN: 4028177923164
Weight:9.16 kg
Type:AX 6320350

Product information for Rittal 6320350:

The Rittal AX command panel housing with grip strips, type 6320350, is an industrially usable enclosure made of sheet steel, designed for use in systems with control and operating elements. It has dimensions of 380 mm width, 380 mm height, and 210 mm depth, and is specifically designed for connection to the CP 60/120/180 support arm system. The version with support arm connection Ø 130 mm allows for secure mounting on corresponding support arms. The enclosure provides rear service access, facilitating maintenance and servicing of installed components.

Applications
This command panel housing is suitable for use in industrial environments where a robust and easily accessible cover for operating elements, displays, or control devices is required. It is commonly used in automation technology, manufacturing industry, or machine control applications. The protection rating IP 55 ensures high protection against dust and splashing water, making it suitable for outdoor use or humid environments. The NEMA classification includes NEMA 1 and NEMA 12, indicating protection against contact and falling dust as well as splashing water. The type rating according to UL 50E includes Type 1 and Type 12, confirming suitability for use in dry and damp indoor environments as well as environments with minor contamination risk. The IK code IK08 indicates mechanical resistance against impact forces, relevant for use in industrial plants.

Functions and Equipment in Detail
The enclosure is made of sheet steel and is externally powder-coated with a textured lacquer in the color RAL 7035. The door is also made of sheet steel and features a continuously foamed PU seal, ensuring a tight closure. The grip strips are made of aluminium and are naturally anodized, as is the front plate, which has a thickness of 3 mm and is easy to process. The front plate is covered and can be removed if required to install operating elements or displays. The cover caps are made of plastic and are in a color similar to RAL 7024. The delivery includes the enclosure with cutout and reinforcement for the support arm connection, the aluminium front plate, the side grip strips with end caps, a shaped internal mounting angle with system perforation, and a cam lock with 3 mm double-barrel lock insert.

Technology Explained Simply
The construction of the enclosure allows for easy replacement of the support arm connection and door hinge by rotating the enclosure, increasing mounting flexibility. The support arm connection Ø 130 mm is pre-formed off-center in the reinforcement plate and can be enlarged if needed. The locking systems are interchangeable: the cam lock can be replaced with a Mini Comfort Handle AX or with lock inserts 27 mm, type A. This allows adaptation to different security requirements or access options. The internal mounting angles with system perforation facilitate the installation of internal assemblies and enable structured component fixation.

Compatibility and Accessories
The enclosure is compatible with the CP 60/120/180 support arm system and can be extended with various accessories. Suitable accessories include lock inserts made of zinc die-cast with a length of 27 mm, adjustable keyboard trays (128 to 228 mm depth), mounting angles for enclosures and extension parts, and the AS Multitool AX/VX 4052000. For front or rear service access, lock inserts 27 mm, type A, or the Mini Comfort Handle AX can be used. These elements allow individual adaptation to specific operational requirements.

Mounting and Installation
Mounting is done via the integrated support arm connection Ø 130 mm, which connects directly to the support arm system. The side grip strips facilitate handling and positioning of the enclosure. The internal mounting angles with system perforation provide structured mounting options for internal assemblies. The front plate can be removed and processed as needed to install operating elements or displays. The seal ensures a tight closure, guaranteeing the protection rating IP 55.

Operational Advantages
The enclosure offers high mechanical stability due to the use of sheet steel and reinforcement at the support arm connection. The protection rating IP 55 and NEMA classification ensure reliable protection against environmental influences. The interchangeable locking systems allow flexible adaptation to different security requirements. The easily processable aluminium front plate and integrated mounting aids simplify installation and maintenance. The ability to change the support arm connection and door hinge by rotating the enclosure increases mounting flexibility and reduces installation effort.

General
ModelBracket connection Ø 130 mm
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal, front plate: aluminium, cover caps: plastic
Surface protectionEnclosure and door: dip primed, externally powder coated, textured lacquer, handle strip: natural anodized, front plate: natural anodized
Basic colourRAL 7035
ColourHousing and door: RAL 7035, handle strip: natural anodized, front plate: natural anodized, cover caps: similar to RAL 7024
Scope of deliveryHousing with cutout and reinforcement for mounting arm connection Ø 130 mm, front with max. cutout, covered by easily machinable 3 mm aluminium front plate, side grip rails with end caps, shaped internal mounting angle with system perforation, pre-ribbed latch with 3 mm double-barrel insert
Width380 mm
Height380 mm
Depth210 mm
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
NoteChange of mounting arm connection and door hinge possible by rotating the housing; optional: mounting arm connection Ø 130 mm, offset in the reinforcement plate, pre-formed, can be easily drilled out; locking systems for service access from rear: locking insert, interchangeable with Mini-Comfort handle AX, locking inserts 27 mm, type A; locking systems for service access from front: locking insert, interchangeable with locking inserts 27 mm, type A
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)40.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 6320350, EAN: 4028177923164
