Rittal 2262165 wall-mounted enclosure AX 21 U W x D 600x673 mm pre-assembled profile sheet (freight shipping)

Your rating:
Average rating
product review for Rittal 2262165 wall-mounted enclosure AX 21 U W x D 600x673 mm pre-assembled profile sheet (freight shipping)
( 4 / 5 ) 4 ratings
Rittal 2262165
This image may differ from the desired article.
Rittal 2262165Rittal 2262165Rittal 2262165Rittal 2262165Rittal 2262165
-6% 1.029,25 EUR 1.091,01 EUR
( 1.224,81 EUR incl. VAT )
≈ £861.48  |  ≈ $1,131.15
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2262165 wall-mounted enclosure AX 21 U W x D 600x673 mm pre-assembled profile sheet (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1572158
Mfg Part No: 2262165
UPC/EAN: 4028177994041
Weight:57.5 kg
Type:AX2262165

Product information for Rittal 2262165:

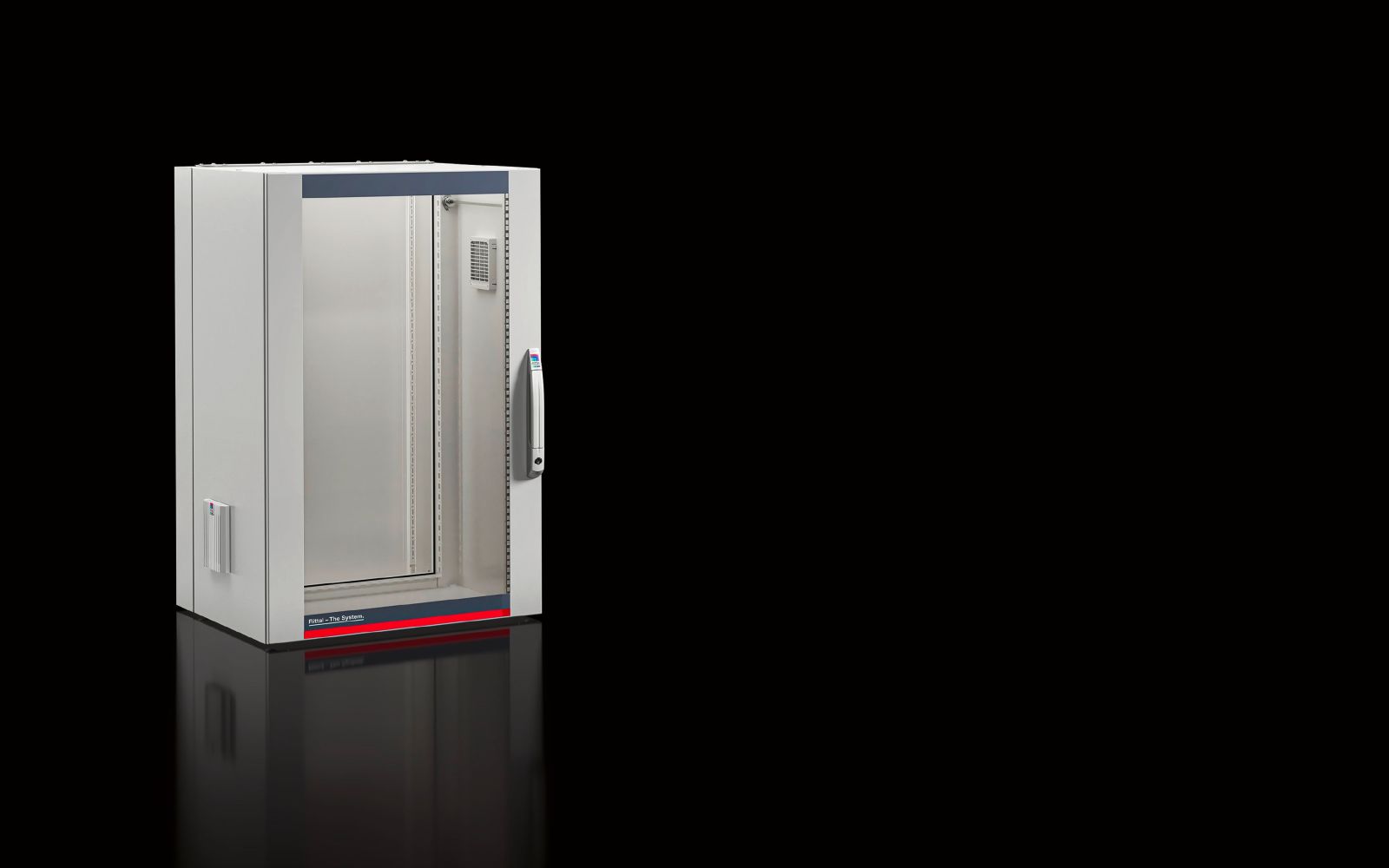

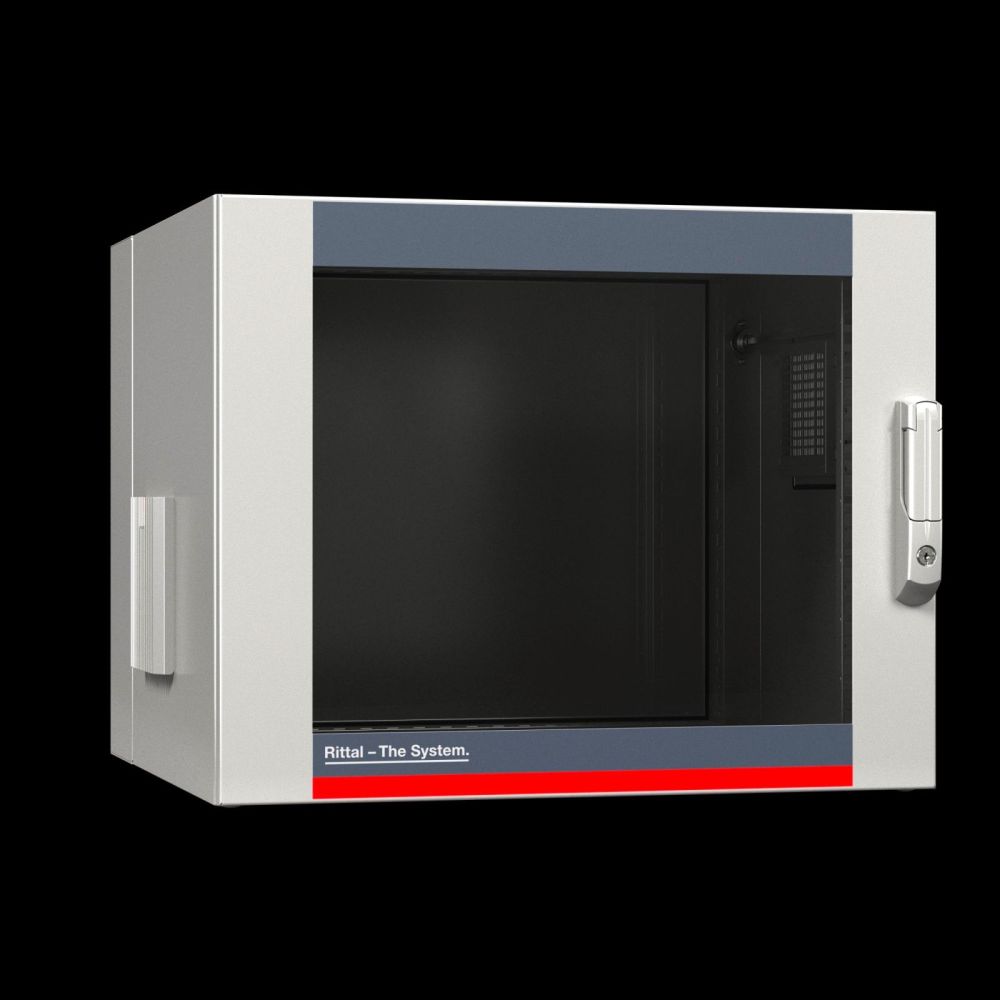

The Rittal AX2262165 is a three-piece wall-mounted enclosure of the IT series, designed for use in industrial and technical installations where secure and accessible protection for electronic devices and network components is required. The enclosure has a total height of 1,012 mm, a width of 600 mm, and a depth of 673 mm, with an installation depth of 620 mm. It offers 21 height units (HE) and is therefore suitable for mounting standard 48,3 cm ( 19 inch ) devices. The three-piece construction consists of a wall section, a swing section, and a design viewing door, ensuring easy access to installed components.

Applications

The enclosure is designed for indoor use, particularly in areas requiring high mechanical resistance and protection against dust and splashing water. The IP 54 protection rating, combined with closed gland plates at the top and bottom, provides effective protection against dust and splashing water from all directions. The IK08 rating ensures mechanical resistance against impact forces, making the enclosure suitable for environments with increased mechanical stress, such as production halls or machine control systems.

Functions and Equipment in Detail

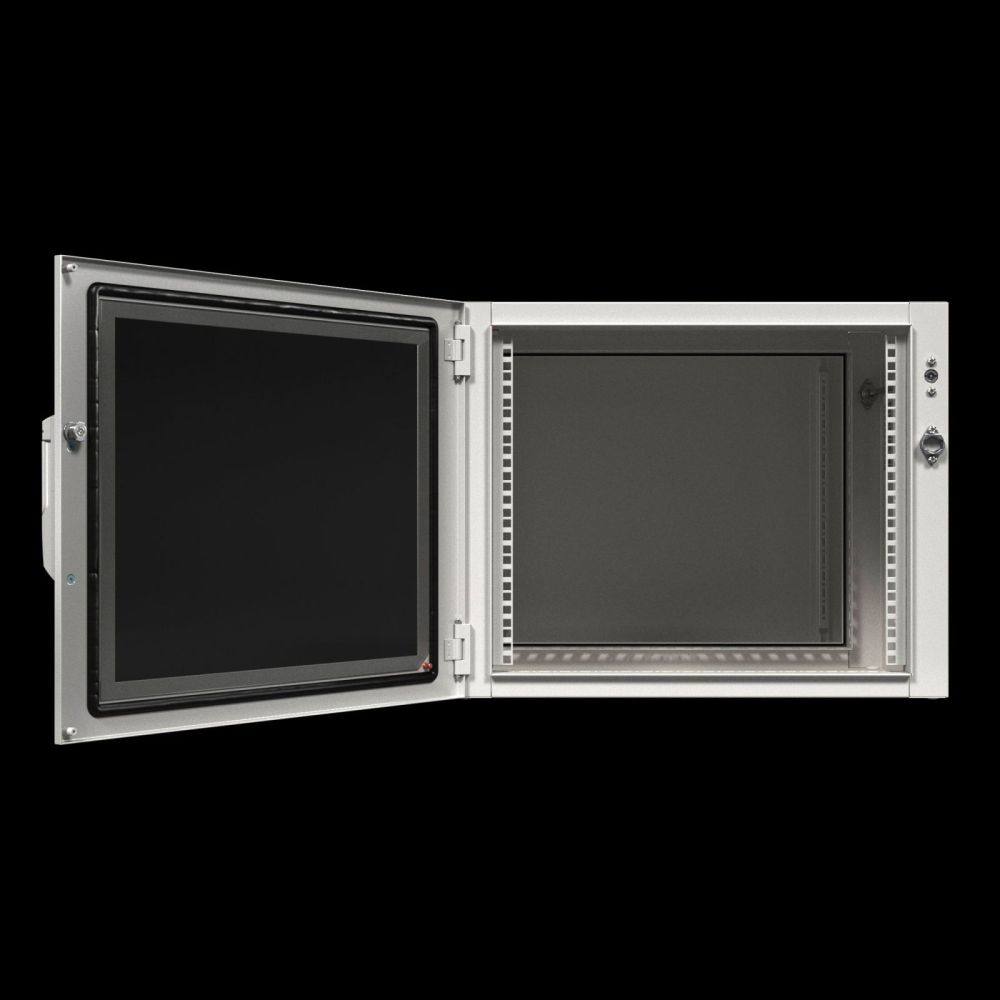

The swing section is equipped with a 25 mm hole grid in the front and rear frame, enabling flexible device mounting. Two 48,3 cm ( 19 inch ) profile rails are already integrated in the front area to facilitate installation of standard devices. The viewing window is made of single-pane safety glass with a thickness of 3 mm, allowing clear visibility of installed components without compromising safety. The color scheme is RAL 7035 for the wall and swing sections, and RAL 7035/7015 (slate gray) for the viewing door, ensuring a uniform visual appearance.

Technology Explained Simply

The construction from sheet steel with a thickness of 1.5 mm provides high stability and mechanical strength. The surface is powder-coated, ensuring high corrosion resistance and durability. The static load capacity of the swing section is 750 N, while the wall section has a load capacity of 250 N. The locking system consists of a safety lock type 3524 E, equipped with a comfort handle and a 2-point locking mechanism, enabling secure and convenient access. Two Blue e+ outlet filters (type 3238.300) are supplied loose to ensure air circulation and protection against particles.

Compatibility and Accessories

The enclosure is part of the AX/VX system kit and can be expanded with various accessories to meet specific requirements. These include, for example, 48,3 cm ( 19 inch ) fasteners, earthing rails, routing panels, component shelves, C-profile rails, fan extension kits, mounting plates for terminal boxes, and wall mounting brackets. These components allow individual adaptation to different mounting and operating scenarios.

Mounting and Installation

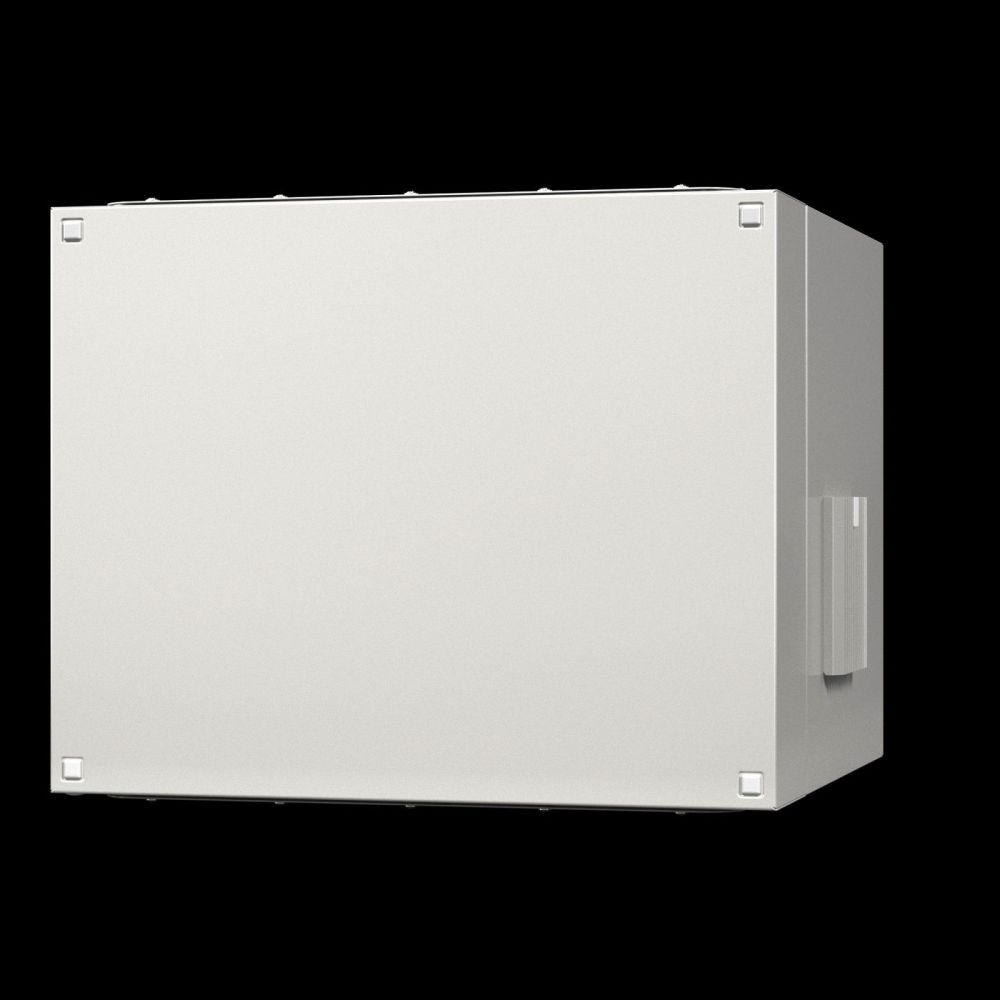

Mounting is done on a wall, with the wall section equipped with closed gland plates at the top and bottom. The installation depth of 620 mm allows for mounting devices of corresponding depth. The clear dimensions are 502 mm in width and 951 mm in height, defining the available space for installed components. The depth of the swing section is 516 mm, while the wall section has a depth of 135 mm.

Advantages in Operation

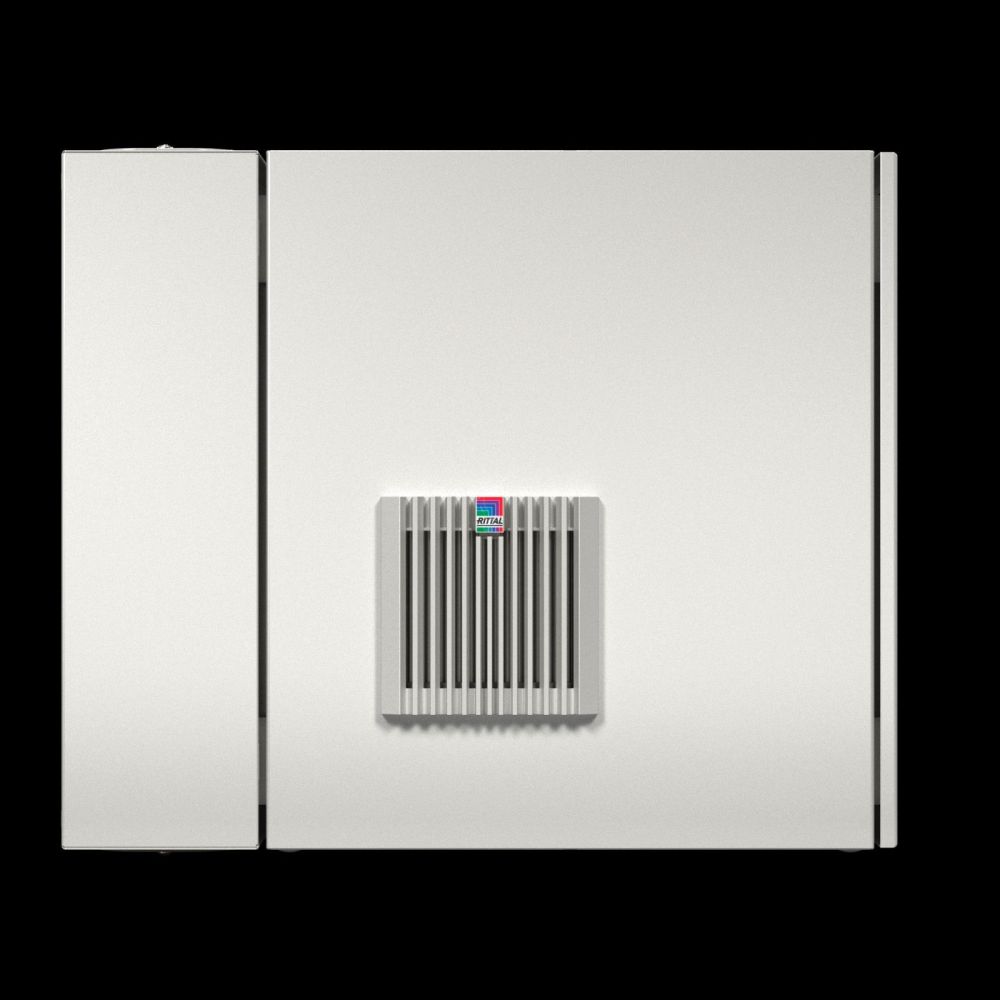

The three-piece structure of the enclosure enables easy and quick access to installed devices without having to open the entire enclosure. The integrated profile rails and hole grid simplify the mounting and positioning of devices. The safety lock and 2-point locking mechanism ensure secure closure, while the Blue e+ outlet filters improve air quality inside the enclosure. The robust construction from sheet steel and the IP 54 protection rating make the enclosure suitable for demanding industrial environments.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swing section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, locking mechanism for design vision door: safety lock 3524 E, locking mechanism for middle section: 3 mm double bar, 2 Blue e+ exit filters 3238.300 (supplied loose), comfort handle for locking inserts and 2-point locking
Height units21 HE
Width600 mm
Height1.012 mm
Depth673 mm
Built-in depth620 mm
Light dimensionsClear width: 502 mm, clear height: 951 mm
Depth of swivel part516 mm
Depth of wall part135 mm
Number of locks1
IK codeIK08
Load capacity of swivel part (static)750 N
Load capacity wall part (static)250 N
Base materialsteel sheet
LockLocking type: comfort handle and 2-point locking, lock insert: security insert lock No. 3524 E
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 2262165, EAN: 4028177994041
