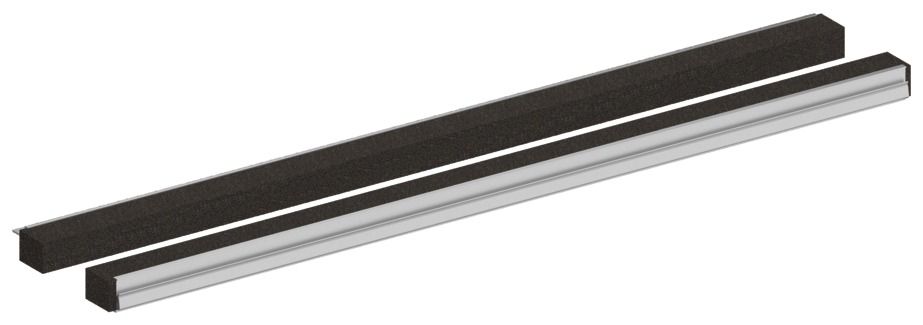

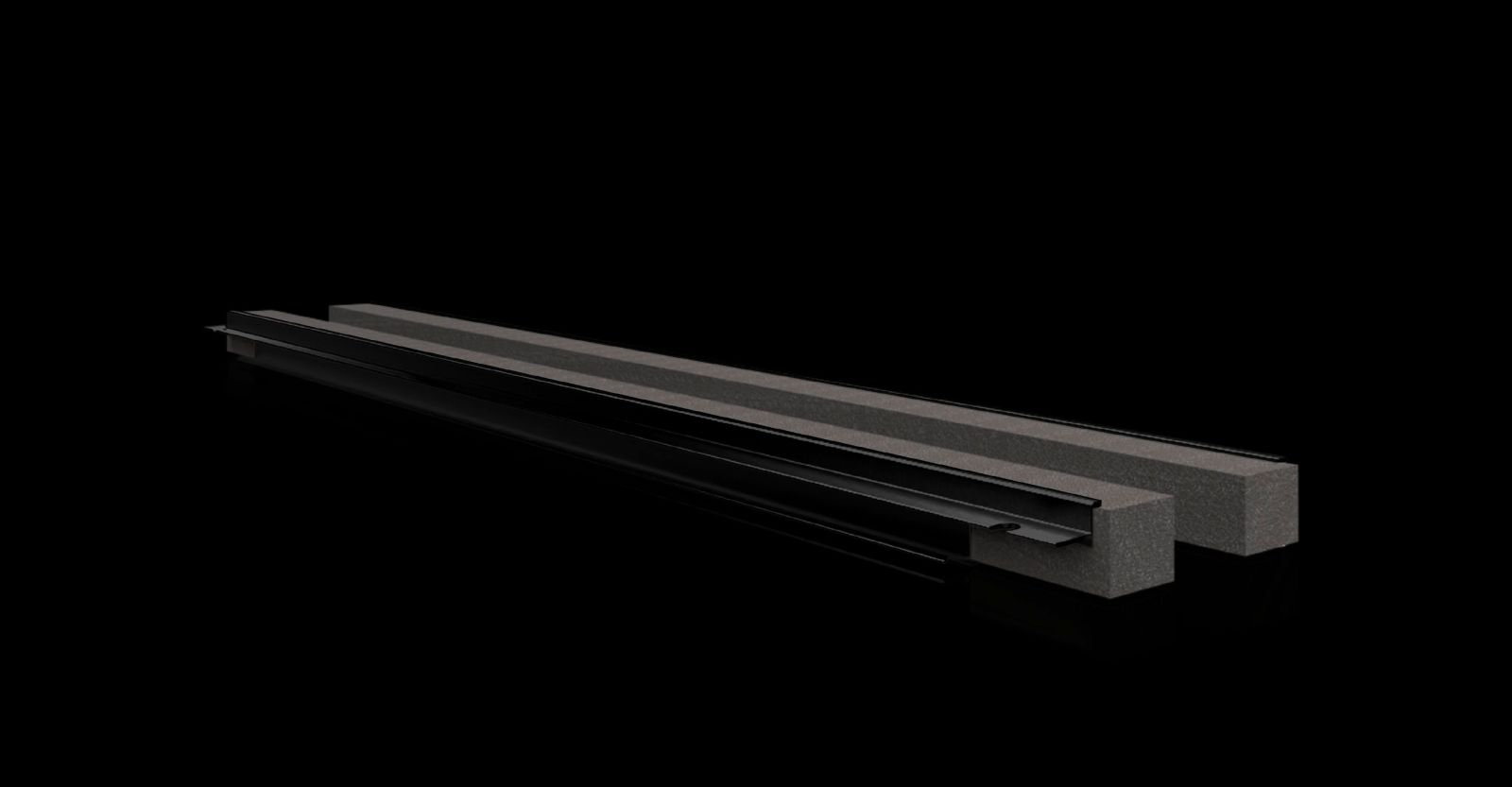

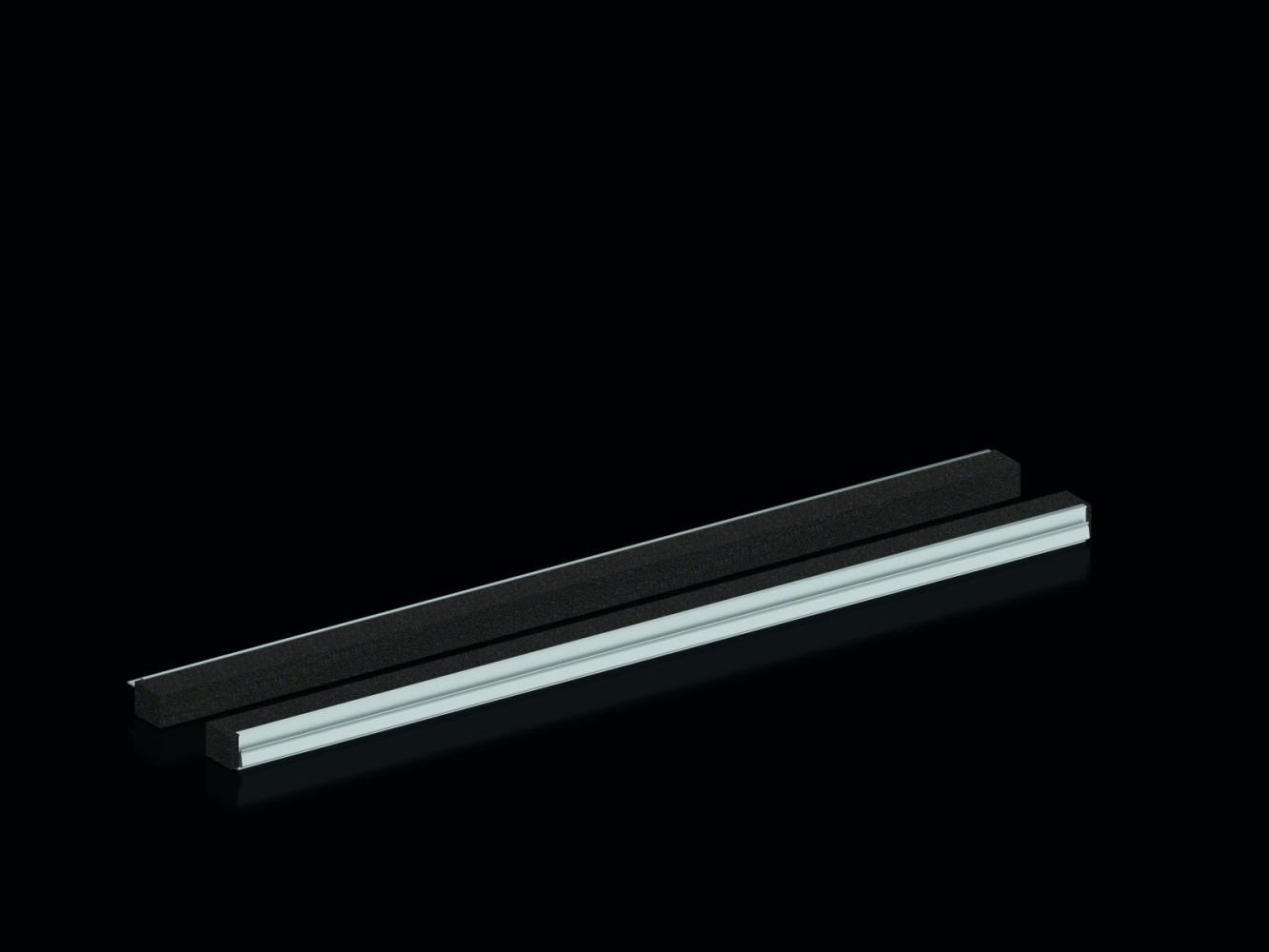

Rittal 8618814 VX profile for cable entry at rear for W: 1600 mm

Your rating:
Average rating
product review for Rittal 8618814 VX profile for cable entry at rear for W: 1600 mm
( 4.5 / 5 ) 4 ratings
Rittal 8618814
This image may differ from the desired article.
Rittal 8618814Rittal 8618814Rittal 8618814
50,37 EUR
( 59,94 EUR incl. VAT )
≈ £42.16  |  ≈ $55.36
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8618814 VX profile for cable entry at rear for W: 1600 mm
Datasheet:file_download Download
Lieske Part No.:1989430
Mfg Part No: 8618814
UPC/EAN: 4028177922839
Weight:0.5 kg
Type:VX 8618814

Product information for Rittal 8618814:

The Rittal VX 8618814 is a profile for cable entry, specifically designed for the rear side of enclosures. It enables structured and tight cable routing into VX enclosures with a width of 1600 mm, as well as into VX SE and console base CX enclosures. The profile is directly snapped onto the base sheet and enclosure frame, enabling simple installation without additional fastening elements. The full-surface contact ensures stable anchoring and prevents displacement during operation.

Applications
This profile is intended for use in industrial enclosures where secure and tight cable entry is required. It is mounted on the rear enclosure side to guide cables from outside into the enclosure. The application is particularly suitable for enclosures with a width of 1600 mm. For enclosures with a width of 1000 mm or more, the base group is divided into two sections. In this case, two cable entry points – left and right – can be used, requiring two profiles per point.

Functions and equipment in detail
The profile is made of rigid PVC, which is flame-retardant and self-extinguishing. It is temperature-resistant up to +60 °C, making it suitable for use in industrial environments with moderate heat loads. The sealing consists of PU foam with a cross-section of 30 x 25 mm, ensuring high sealing of the introduced cables. The elastic clamp profiles included in the delivery ensure a secure and tight connection between the profile and the enclosure frame as well as the base sheet.

Technology explained simply
The profile’s construction allows for easy and quick installation, as it is snapped onto the base sheet and enclosure frame without tools or additional fastening elements. The full-surface contact ensures a stable connection that remains secure even under vibrations or mechanical loads. The PU foam sealing ensures tight sealing, protecting against dust, moisture, and small particles. The materials are designed for use in industrial plants, with rigid PVC providing high mechanical strength and resistance to chemical influences.

Compatibility and accessories
The profile is specifically designed for VX enclosures with a width of 1600 mm, as well as for VX SE and console base CX enclosures. It is not intended for other enclosure types or widths. As suitable accessories, the VX cable strain relief rail, angle profile, W: 1000 mm is offered, which can be used for guiding and organizing cables within the enclosure area. The combination of both elements enables structured and orderly cable routing.

Installation and mounting
Installation is done by snapping the profile onto the base sheet and enclosure frame. No additional fastening is required. The elastic clamp profiles ensure a secure connection. For enclosures with a width of 1000 mm or more, the base group is divided into two sections, allowing for two cable entry points (left and right). Two profiles are required for each point. Installation is quick and does not require special tools.

Operational advantages
The profile provides high sealing of the introduced cables, increasing the reliability of electrical connections and protecting against environmental influences. The simple installation reduces installation time and minimizes error sources. The use of rigid PVC and PU foam ensures long service life and resistance to industrial loads. The full-surface contact ensures a stable connection that remains secure even under mechanical loads.

General
ApplicationsFor mounting on base plate and cabinet frame
MaterialRigid PVC, Flame retardant, self-extinguishing, temperature resistant up to +60 °C, Seal: PU foam, Cross-section: 30 x 25 mm
Scope of deliveryClip-on profiles, including elastic clamp profiles
NoteTwo pieces required per cable entry point. For cabinet width 1000 mm and above, the base group is divided into two width sections. Two cable entry points (left/right) can be used.
Suitable forCabinet type: VX: = 1,600 mm, cabinet type: VX SE, cabinet type: CX console base


Product data sheet
Datasheet for Rittal 8618814, EAN: 4028177922839

Questions & answers

What is the delivery time of Rittal 8618814 VX profile for cable entry at rear for W: 1600 mm?

The article Rittal 8618814 VX profile for cable entry at rear for W: 1600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618814 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618814 VX profile for cable entry at rear for W: 1600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8618814 VX profile for cable entry at rear for W: 1600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
