Rittal 8617180 VX system chassis 23 x 64 mm W x H x D: 1600 mm

Your rating:
Average rating
product review for Rittal 8617180 VX system chassis 23 x 64 mm W x H x D: 1600 mm
( 4.6 / 5 ) 8 ratings
Rittal 8617180
This image may differ from the desired article.
Rittal 8617180Rittal 8617180Rittal 8617180Rittal 8617180Rittal 8617180Rittal 8617180Rittal 8617180
133,75 EUR
( 159,16 EUR incl. VAT )
≈ £111.95  |  ≈ $146.99
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8617180 VX system chassis 23 x 64 mm W x H x D: 1600 mm
Datasheet:file_download Download
Lieske Part No.:1441089
Mfg Part No: 8617180
UPC/EAN: 4028177829183
Weight:6.92 kg
Type:VX 8617.180

Product information for Rittal 8617180:

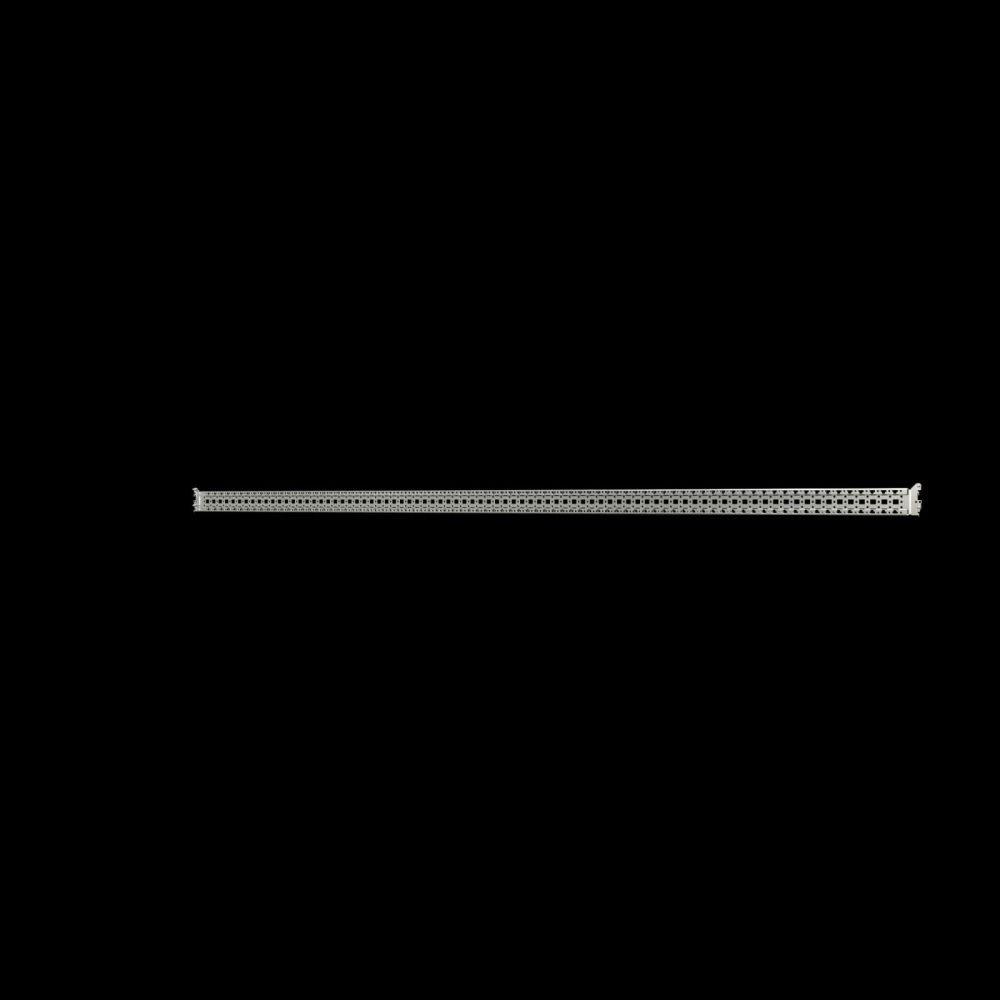

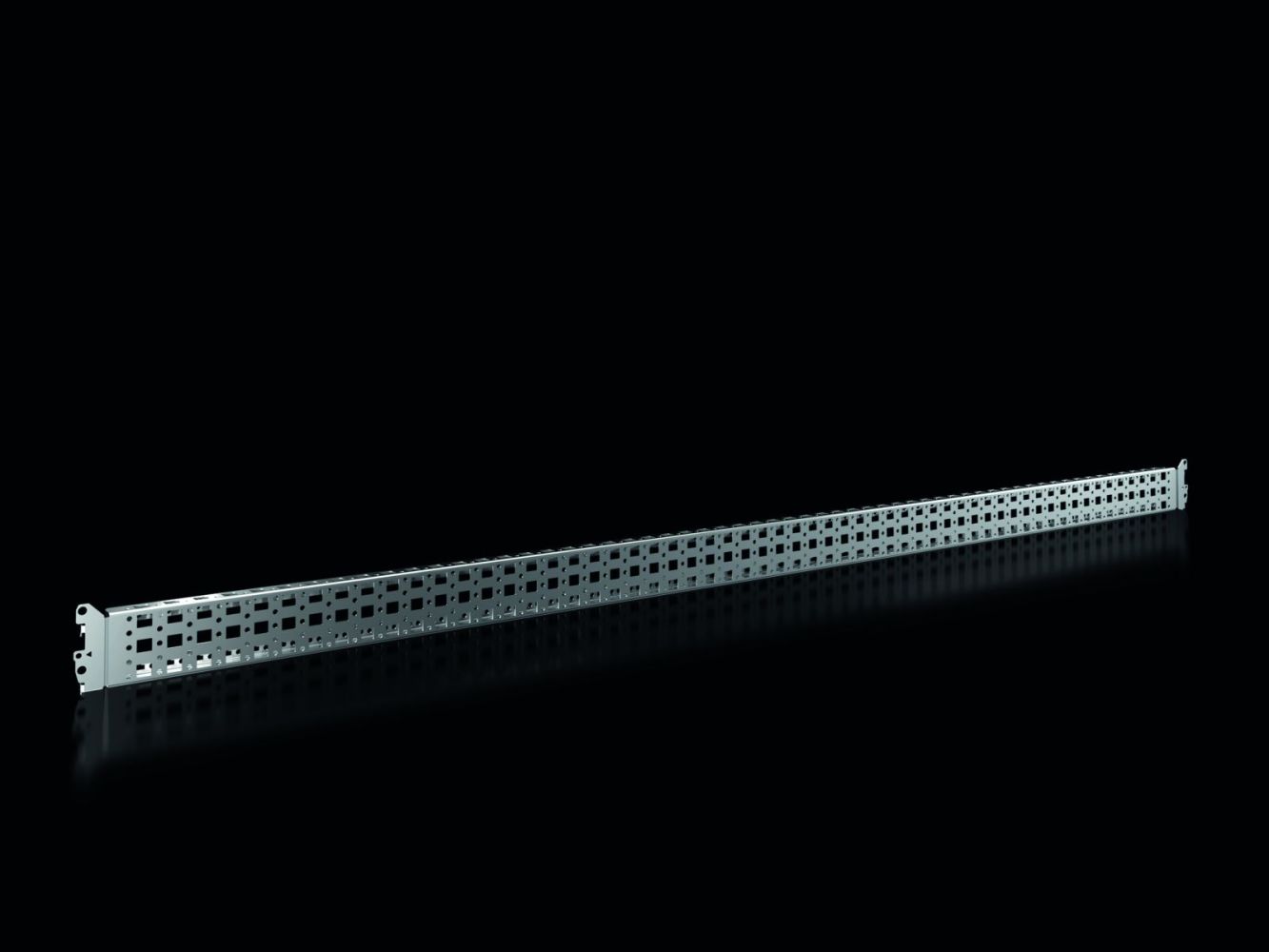

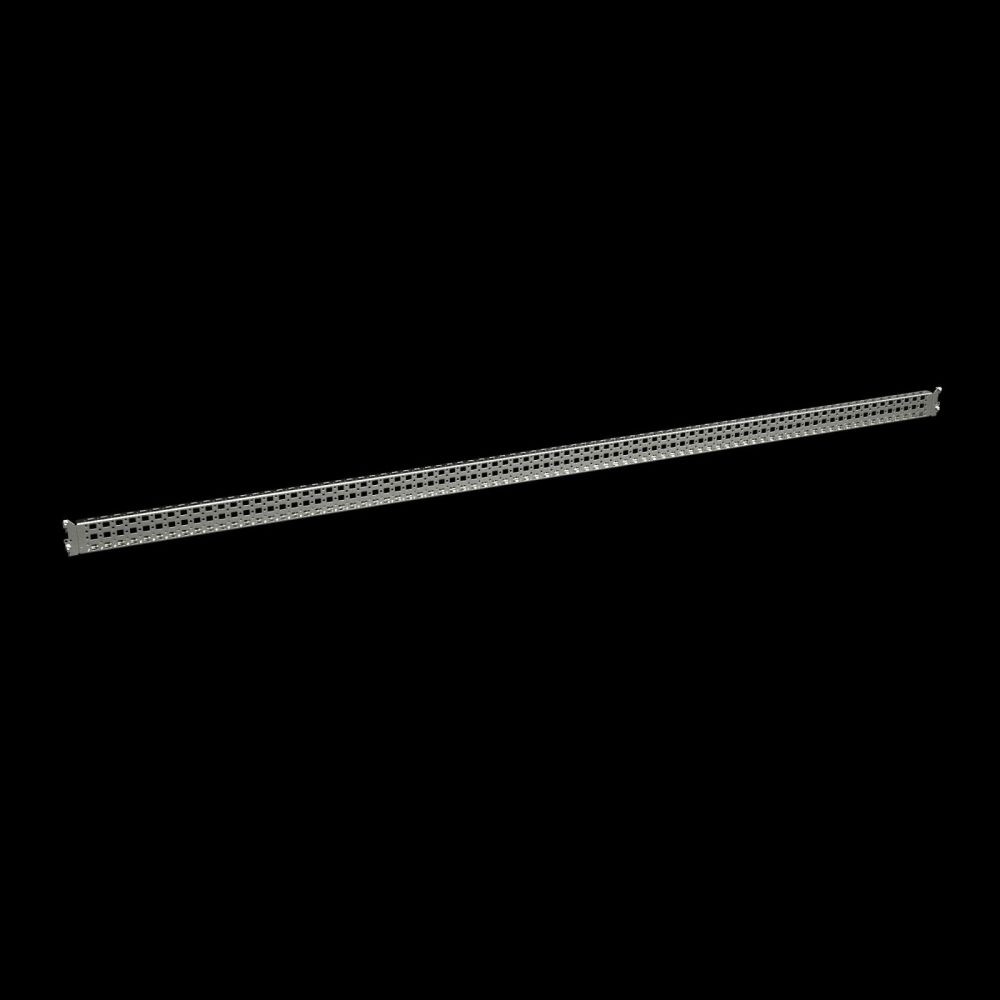

The Rittal VX 8617.180 is a system chassis made of sheet steel with a galvanized surface, specifically designed for variable and individual interior fitting of enclosure frames. It is used on the inner mounting plane in compact enclosures and is designed for enclosures with a dimension of 1,600 mm in width, height, or depth. The chassis features perforation on all four sides, enabling flexible mounting, and is equipped with holes at the top and bottom to mount cage nuts for securing custom components using metric screws. The installation is carried out by inserting into the system perforation and then screwing in place, ensuring a quick and secure installation.

Applications
The system chassis is intended for use in enclosures of type VX, VX IT, and VX SE. It can be mounted on the inner mounting plane at enclosure height 1600 mm. In VX SE enclosures, mounting is possible at enclosure width 1600 mm if a adapter rail for VX compatibility is used. For plinth systems, the chassis can be installed at plinth width 1600 mm on plinth trim panels, with mounting in conjunction with a plinth expansion angle. The construction is thus flexible for various enclosure configurations.

Functions and Equipment in Detail
The chassis provides a stable mounting base for additional components, such as connectors, switches, or small control devices. The perforation on all four sides enables versatile mounting options, with the top and bottom holes specifically designed for cage nuts. The material thickness and galvanized surface ensure high mechanical stability and corrosion protection. The product is delivered in a packaging unit of 4 pieces and includes the necessary mounting material required for installation.

Technology Explained Simply
The system perforation, present on all four sides of the chassis, enables precise and quick mounting into the pre-drilled holes of the enclosure frames. The holes at the top and bottom are designed for mounting cage nuts, which in turn allow securing components using metric screws. This construction is typical for industrial enclosure solutions where modular and flexible arrangement of components is required. The galvanized surface protects the sheet steel from corrosion, which is particularly beneficial in damp or industrial environments.

Compatibility and Accessories
The system chassis is compatible with enclosure types VX, VX IT, and VX SE. For mounting in VX SE enclosures, an adapter rail is required to ensure VX compatibility. When mounting on plinth trim panels, a plinth expansion angle is necessary. As suitable accessories, a cable tie with a length of 150 mm is offered, which can be used to secure cables or wiring inside the enclosure.

Mounting and Installation

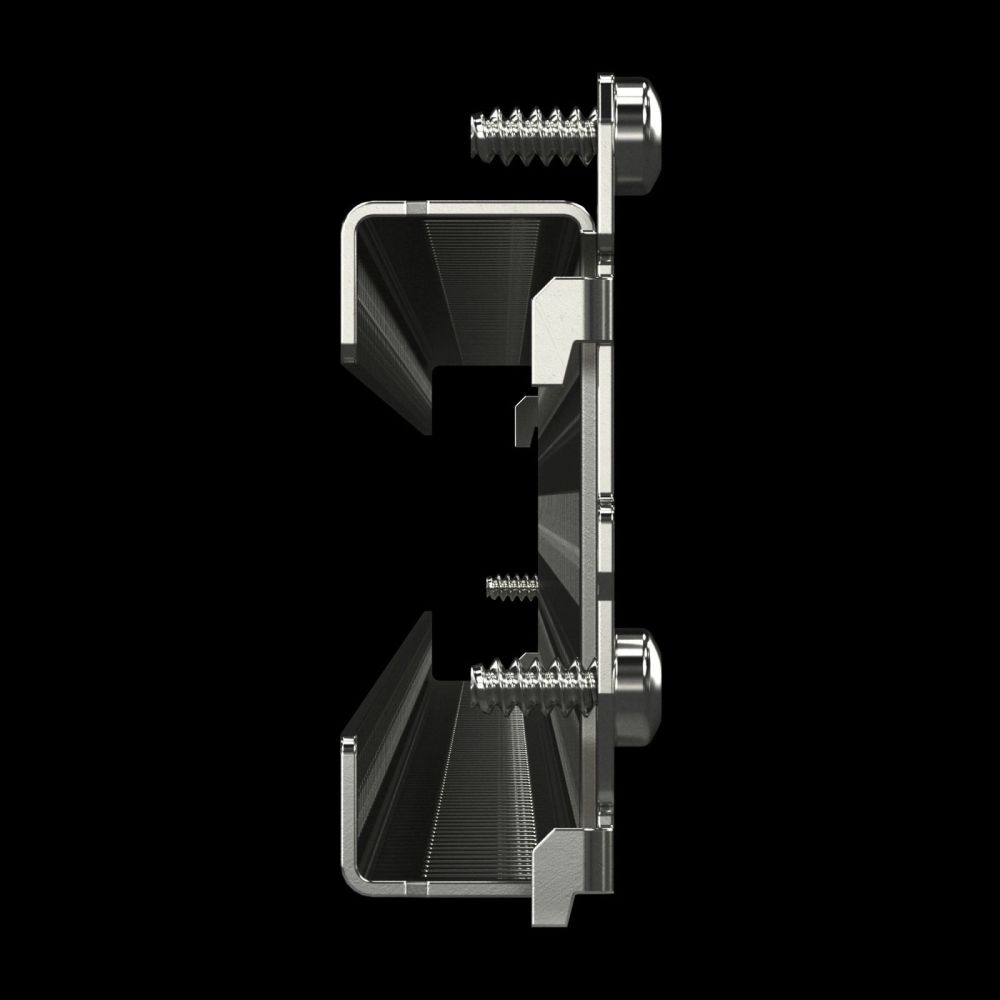

The installation is carried out by inserting the chassis into the system perforation of the enclosure frame and then screwing it in place. The holes on the sides allow for flexible positioning, while the top and bottom holes are intended for mounting cage nuts. The installation solution is designed for enclosures with a dimension of 1,600 mm in width, height, or depth.

Advantages in Operation
The system chassis provides a stable and flexible mounting base for additional components inside the enclosure. The modular construction allows for individual adaptation to specific requirements. The galvanized surface ensures high corrosion protection, extending the product's service life. The quick installation by inserting into the system perforation and screwing reduces installation effort. Compatibility with various enclosure types increases the chassis's application flexibility in different scenarios.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting options VXIn cabinet height 1600 mm, on the inner mounting plane
Mounting options VX SEIn cabinet width 1600 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility
Mounting options VX socketIn base width 1600 mm on base panels, in combination with base mounting angle
Suitable forEnclosure type: VX, VX IT, VX SE, Suitable for width or height or depth: 1.600 mm
PCF/VE (Cradle-to-Gate)35,65


Product data sheet
Datasheet for Rittal 8617180, EAN: 4028177829183

Questions & answers

What is the delivery time of Rittal 8617180 VX system chassis 23 x 64 mm W x H x D: 1600 mm?

The article Rittal 8617180 VX system chassis 23 x 64 mm W x H x D: 1600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617180 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617180 VX system chassis 23 x 64 mm W x H x D: 1600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617180 VX system chassis 23 x 64 mm W x H x D: 1600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
