Rittal 8619740 VX system chassis 14 x 39 mm, door width: 900 mm

Your rating:
Average rating
product review for Rittal 8619740 VX system chassis 14 x 39 mm, door width: 900 mm
( 4.4 / 5 ) 25 ratings
Rittal 8619740
This image may differ from the desired article.
Rittal 8619740Rittal 8619740Rittal 8619740Rittal 8619740Rittal 8619740Rittal 8619740Rittal 8619740
56,24 EUR
( 66,93 EUR incl. VAT )
≈ £47.07  |  ≈ $61.81
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8619740 VX system chassis 14 x 39 mm, door width: 900 mm
Datasheet:file_download Download
Lieske Part No.:1441060
Mfg Part No: 8619740
UPC/EAN: 4028177924673
Weight:1.564 kg
Type:VX 8619.740

Product information for Rittal 8619740:

The Rittal System-Chassis VX 8619.740 is a mounting element made of sheet steel with a galvanized surface, specifically designed for use in enclosures of the VX SE and AX stainless steel series. It is used for the secure mounting of cable ducts, cable conduit holders, door inserts, and other components on the inner side of the enclosure door. The chassis has a cross-sectional dimension of 14 x 39 mm and is designed for a door width of 900 mm. It is supplied in a packaging unit of 4 pieces and includes mounting hardware required for installation at the designated mounting points.

Applications

The system chassis is intended for use in industrial enclosures, particularly in configurations with a door width of 900 mm. It enables structured and stable mounting of cable management elements and other inserts directly onto the door, thereby relieving the interior space of the enclosure and improving accessibility. Use in enclosures of the VX SE and AX stainless steel types is explicitly intended; for mounting in AX sheet steel enclosures, additional use of an AX internal mounting rail is required.

Functions and Equipment in Detail

The chassis features a spacing of mounting points at 775 mm, enabling even and stable mounting of components. The galvanized surface provides good corrosion protection and is suitable for industrial environments. The delivery includes the mounting hardware necessary for installation at the designated points.

Technology Explained Simply

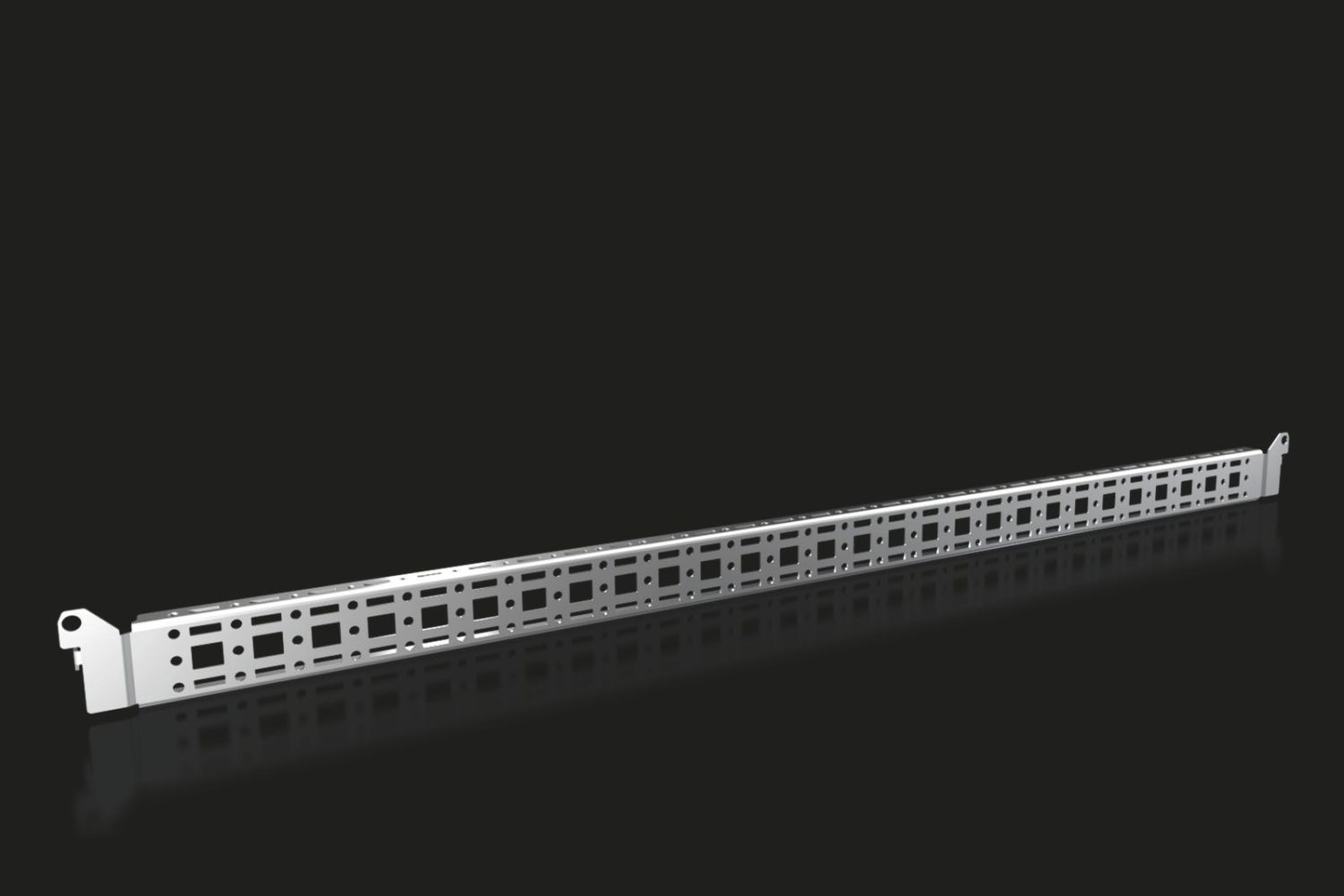

The system chassis is a perforated profile with a mounting flange, serving as a carrier for various inserts. The dimensions of 14 x 39 mm define the cross-sectional shape, designed for connection with standard mounting elements. The galvanized sheet steel surface ensures sufficient mechanical strength and corrosion resistance. Installation is carried out via the designated mounting points, with spacing of 775 mm ensuring even load distribution.

Compatibility and Accessories

The chassis is compatible with enclosure types VX SE and AX stainless steel. When used in AX sheet steel enclosures, combination with an AX internal mounting rail is required. Mounting in enclosures with a width of 800 mm is also possible, although the exact fit is designed for a door width of 900 mm.

Mounting and Installation

Installation is performed by securing at the designated points using the included mounting hardware. When used in AX sheet steel enclosures, the AX internal mounting rail must be installed additionally. The mounting points are spaced at 775 mm to ensure stable and even load distribution.

Advantages in Operation

The system chassis enables structured and secure mounting of cable management elements and other inserts on the enclosure door. This reduces load on the interior space, improves accessibility, and simplifies maintenance. The galvanized surface provides good corrosion protection, and the predefined mounting points ensure stable installation. Compatibility with various enclosure types increases flexibility in planning and executing enclosure installations.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Distance between mounting points775 mm
Suitable for door width900 mm
Mounting options VX SEIn door width 900 mm
Mounting options AX stainless steelIn housing width 800 mm
Mounting noteFor installation in AX sheet metal only in conjunction with mounting rail for indoor installation AX
NoteFor expansion with own components on the system chassis, sheet metal screws or thread-forming screws M5 are required
Suitable forHousing type: VX SE, AX stainless steel
PCF/VE (Cradle-to-Gate)12,06


Product data sheet
Datasheet for Rittal 8619740, EAN: 4028177924673

Questions & answers

What is the delivery time of Rittal 8619740 VX system chassis 14 x 39 mm, door width: 900 mm?

The article Rittal 8619740 VX system chassis 14 x 39 mm, door width: 900 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619740 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619740 VX system chassis 14 x 39 mm, door width: 900 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619740 VX system chassis 14 x 39 mm, door width: 900 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
