Rittal 5302123 VX IT profile rail additional mounting for 48,3 cm ( 19 inch ) standard

Your rating:
Average rating
product review for Rittal 5302123 VX IT profile rail additional mounting for 48,3 cm ( 19 inch ) standard
( 5 / 5 ) 1 ratings
Rittal 5302123
This image may differ from the desired article.
Rittal 5302123Rittal 5302123Rittal 5302123
-8% 20,24 EUR 21,94 EUR
( 24,09 EUR incl. VAT )
≈ £16.94  |  ≈ $22.24
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5302123 VX IT profile rail additional mounting for 48,3 cm ( 19 inch ) standard
Datasheet:file_download Download
Lieske Part No.:1954061
Mfg Part No: 5302123
UPC/EAN: 4028177955516
Weight:0.24 kg
Type:IT 5302123

Product information for Rittal 5302123:

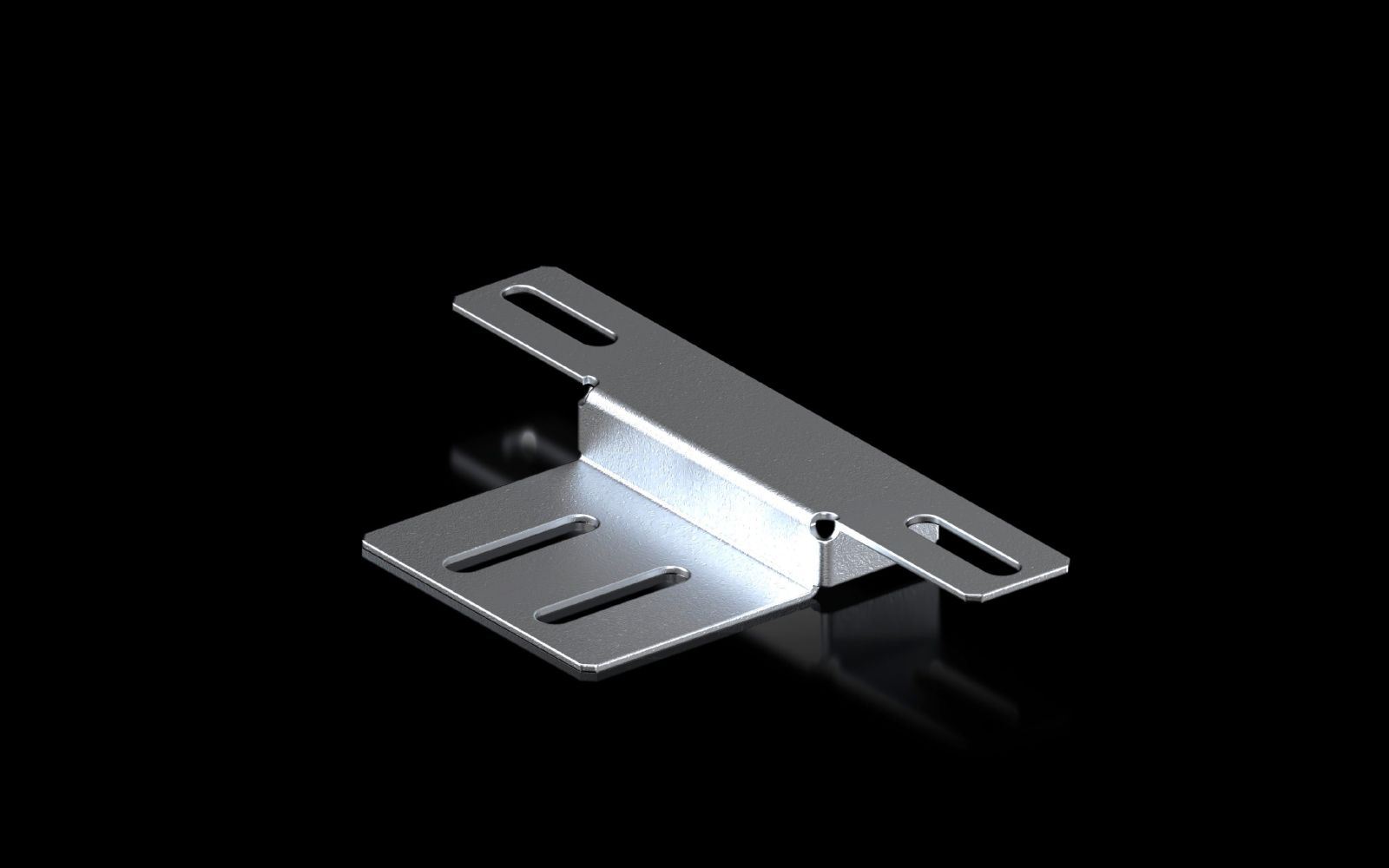

The Rittal profile rail additional mounting IT 5302123 is a specific mounting accessory for VX IT 48,3 cm ( 19 inch )-profile rails standard. It is used for additional fixation of the 482.6 mm (48,3 cm ( 19 inch ))-profile rail on the outer mounting plane of VX frame structures, particularly with a cabinet width of 600 mm. The product is used to counteract twisting of the profile rails, which can occur due to unevenly distributed loads. The additional mounting is directly attached between the profile rail and a mounting profile, thereby increasing the stability of the mounting. In 48,3 cm ( 19 inch ) partial installations, it is also applicable as a single mounting.

Applications

The additional mounting is specifically designed for use in 48,3 cm ( 19 inch ) technology enclosures based on the VX frame structure. It is used with cabinet widths of 600 mm to stabilize the mounting of the 482.6 mm (48,3 cm ( 19 inch ))-profile rails standard. The application is particularly relevant when the load distribution on the rail is uneven, which could cause twisting of the rail. The mounting ensures a secure and stable installation, even under load.

Functions and Equipment in Detail

The additional mounting is made of sheet steel and is painted, providing a robust and corrosion-resistant surface. The color corresponds to RAL 9005, a dark gray that visually integrates into typical IT and electrical installations. The product is supplied in a packaging unit of two pieces and includes the necessary mounting materials required for installation directly between the profile rail and the mounting profile. The mounting is performed on the outer mounting plane of the VX frame structure.

Technology Explained Simply

The additional mounting acts as a mechanical stabilizer, preventing twisting of the profile rail under unevenly distributed loads. This is particularly important in installations where devices are mounted unevenly, which can lead to uneven loading of the rail. The mounting is placed between the profile rail and the mounting profile, securing the rail's position. The use of sheet steel ensures high strength, while the paint coating provides a durable surface. The mounting is not intended for cabinet widths other than 600 mm.

Compatibility and Accessories

The additional mounting is specifically designed for the VX IT 48,3 cm ( 19 inch )-profile rail standard and adapts to the mounting plane of the VX frame structure. It is compatible with VX system chassis in various widths, including 600 mm, 800 mm, 1000 mm, and 1200 mm, which are also available in the range. The mounting is directly attached to the mounting profile, which is part of the VX frame structure.

Mounting and Installation

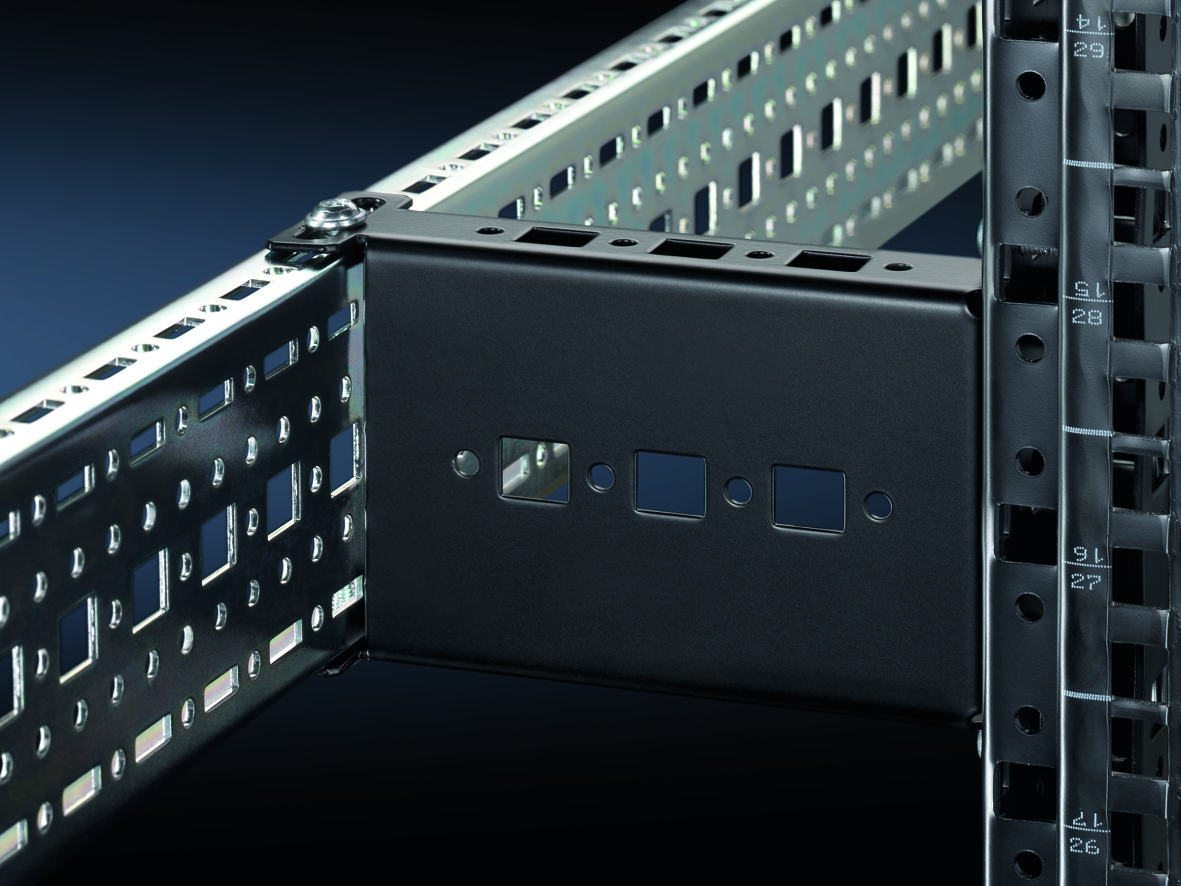

Mounting is performed by attaching the additional mounting directly between the 48,3 cm ( 19 inch )-profile rail and the mounting profile on the outer mounting plane of the VX frame structure. The included mounting elements enable simple and secure installation. The installation is part of the profile rail mounting process and is carried out after the rail is mounted to increase its stability. The mounting is not suitable for cabinet widths other than 600 mm.

Advantages in Operation

Using the additional mounting increases the mechanical stability of the 48,3 cm ( 19 inch )-profile rail, especially under uneven load distribution. This prevents twisting of the rail, enhancing the reliability of the mounting and the safety of installed devices. The mounting is easy to install and requires no additional tools or components. The use of sheet steel and paint coating ensures long service life and resistance to environmental influences. Compatibility with VX system chassis in various widths enables flexible use within VX systems.

General
ApplicationsFor fixing the 482.6 mm (19")-profile rail standard on the outer mounting plane
Materialsteel sheet
Surface protectionPainted
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Suitable forWidth: = 600 mm
PCF/VE (Cradle-to-Gate)1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302123, EAN: 4028177955516

Questions & answers

What is the delivery time of Rittal 5302123 VX IT profile rail additional mounting for 48,3 cm ( 19 inch ) standard?

The article Rittal 5302123 VX IT profile rail additional mounting for 48,3 cm ( 19 inch ) standard is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302123 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302123 VX IT profile rail additional mounting for 48,3 cm ( 19 inch ) standard always at the best possible price. We can give you a discount of 2% on Rittal 5302123 VX IT profile rail additional mounting for 48,3 cm ( 19 inch ) standard if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
