Rittal 8617060 VX system chassis 18 x 64 mm W x D: 1200 mm

Your rating:
Average rating
product review for Rittal 8617060 VX system chassis 18 x 64 mm W x D: 1200 mm
( 4.5 / 5 ) 26 ratings
Rittal 8617060
This image may differ from the desired article.
Rittal 8617060Rittal 8617060Rittal 8617060Rittal 8617060Rittal 8617060Rittal 8617060Rittal 8617060
-10% 93,61 EUR 104,43 EUR
( 111,40 EUR incl. VAT )
≈ £78.35  |  ≈ $102.88
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617060 VX system chassis 18 x 64 mm W x D: 1200 mm
Datasheet:file_download Download
Lieske Part No.:1441095
Mfg Part No: 8617060
UPC/EAN: 4028177829091
Weight:5.46 kg
Type:VX 8617.060

Product information for Rittal 8617060:

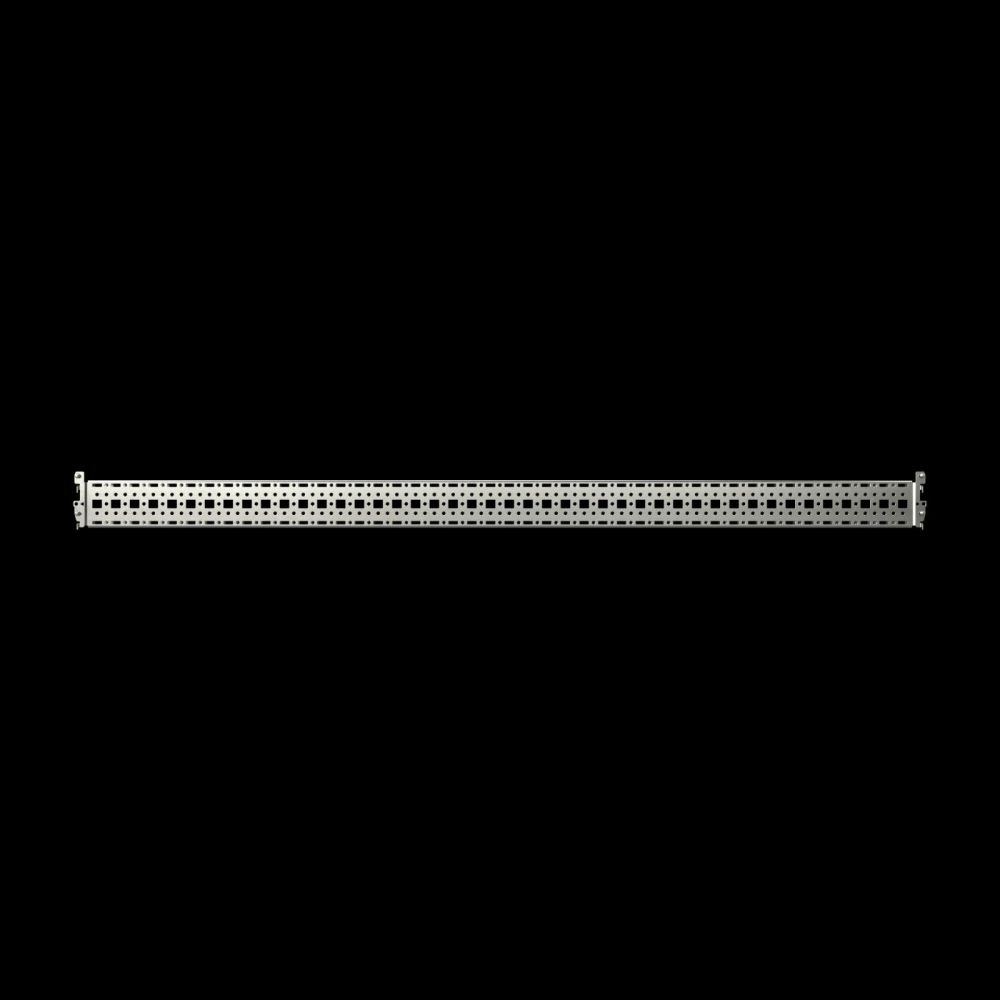

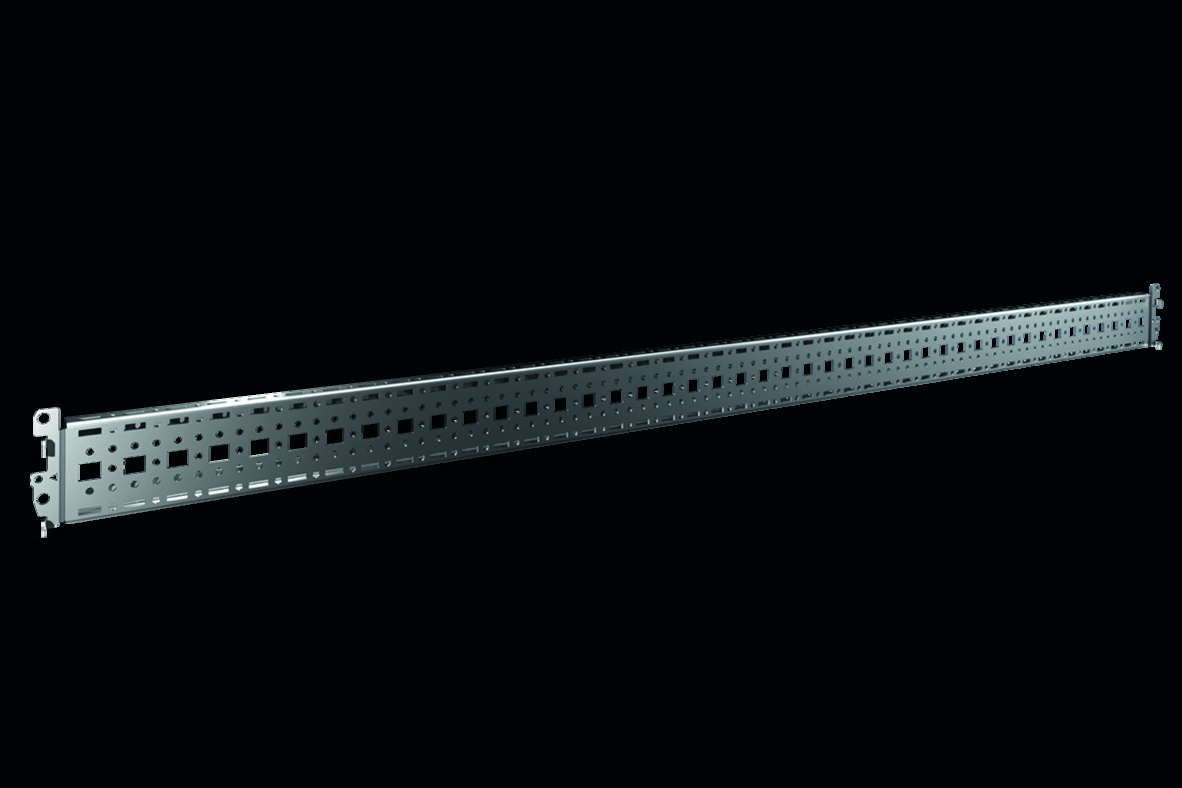

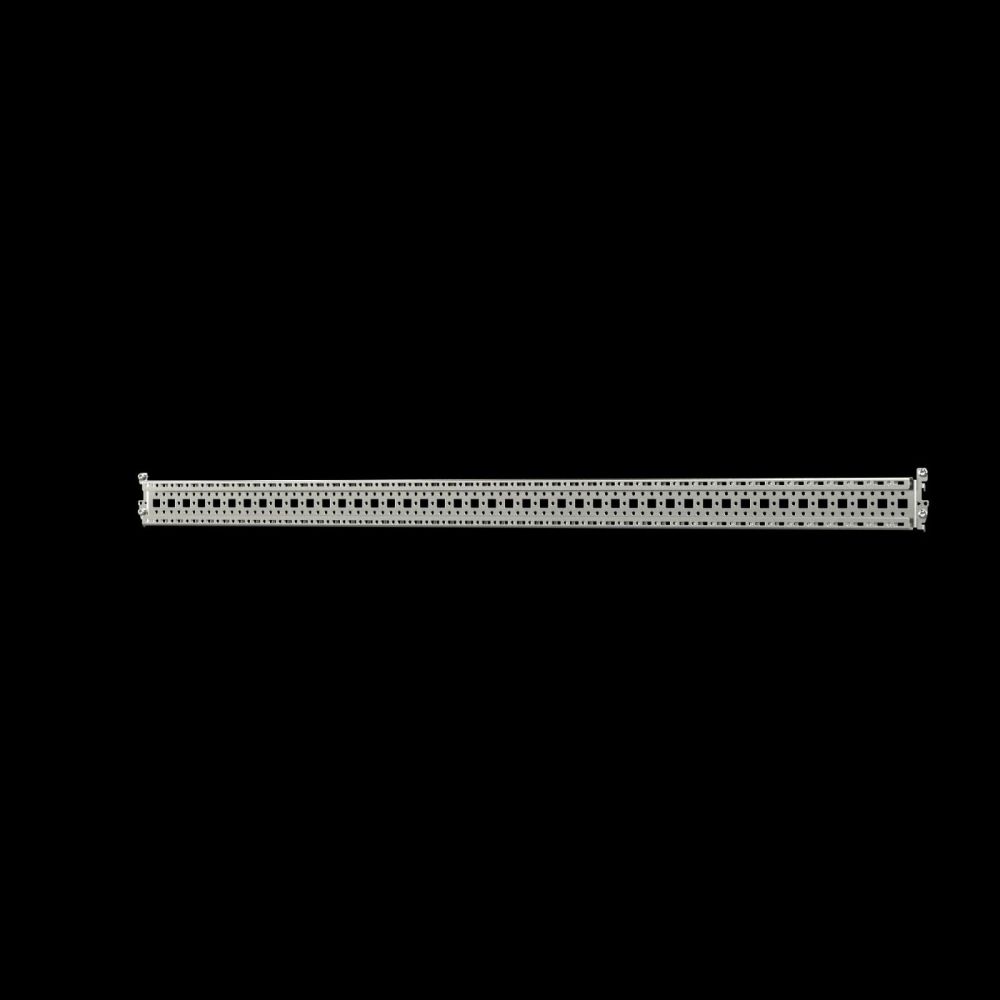

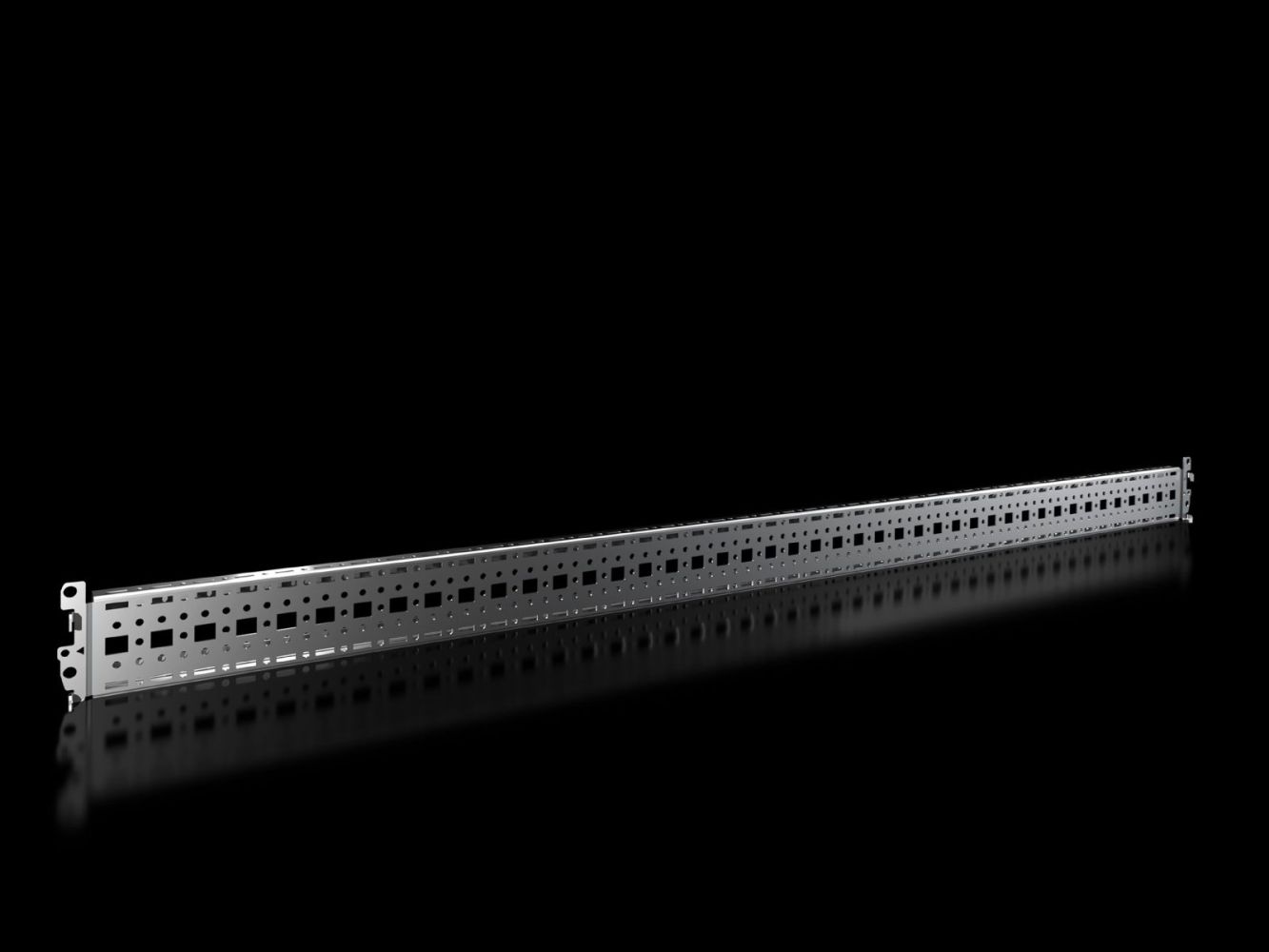

The Rittal VX 8617.060 is a system chassis made of sheet steel with a galvanized surface, specifically designed for variable and individual interior fitting of enclosure frames in the VX system. It serves as a mounting element on the outer mounting plane and enables flexible attachment of modules, devices, or accessories within enclosures. The chassis has dimensions of 18 x 64 mm and is designed for enclosures with a width/depth of 1,200 mm. The packaging unit includes 4 pieces, with mounting hardware already included in the delivery scope.

Applications

The system chassis is primarily used in industrial enclosure construction where a modular and adaptable mounting structure is required. It is suitable for use in enclosures of the VX system, particularly in installations with high module density or when integrating additional components such as controls, sensors, or network devices. Mounting is done on the outer mounting plane, where the chassis can be attached either directly to the enclosure profile or between two existing system chassis 23 x 64 mm. In already bayed enclosures, mounting from the inside of the enclosure is also possible, increasing flexibility during operation.

Functions and Equipment in Detail

The chassis features a system hole pattern on all four sides, enabling versatile mounting options. Installation is done by simply hanging it into the system hole pattern and then securing it with screws. The galvanized surface provides good corrosion protection and is suitable for use in industrial environments. The sheet steel material offers sufficient stability and load capacity for typical loads in enclosure construction. The delivery includes mounting hardware, allowing installation without additional purchases.

Technology Explained Simply

The term system chassis describes a modular mounting element that is hung into the hole grid of the VX enclosure frame. The dimensions 18 x 64 mm refer to the hole spacing in the enclosure profile, which is necessary for mounting. The outer mounting plane refers to the positioning of the chassis outside the main mounting plane, creating additional mounting space. The system hole pattern on all four sides allows flexible mounting of modules in any direction. The galvanized surface protects the sheet steel from corrosion, which is especially important in humid or aggressive environments.

Compatibility and Accessories

The chassis is specifically designed for enclosures in the VX system and fits enclosures with a width/depth of 1,200 mm. It is compatible with other VX system components, particularly with system chassis 23 x 64 mm, between which it can be mounted. As accessories, various screws and fastening elements are available, including thread-forming hex screws M5x10, internal hex screws M8x12 mm, self-tapping screws type ST 4,8 L9,5 mm, SZ internal hex screws for M6 thread, internal hex sheet metal screws type 5,5 L13 mm, and VX internal hex sheet metal screws for stainless steel. These elements can be selected according to requirements and the material of the module to be mounted.

Mounting and Installation

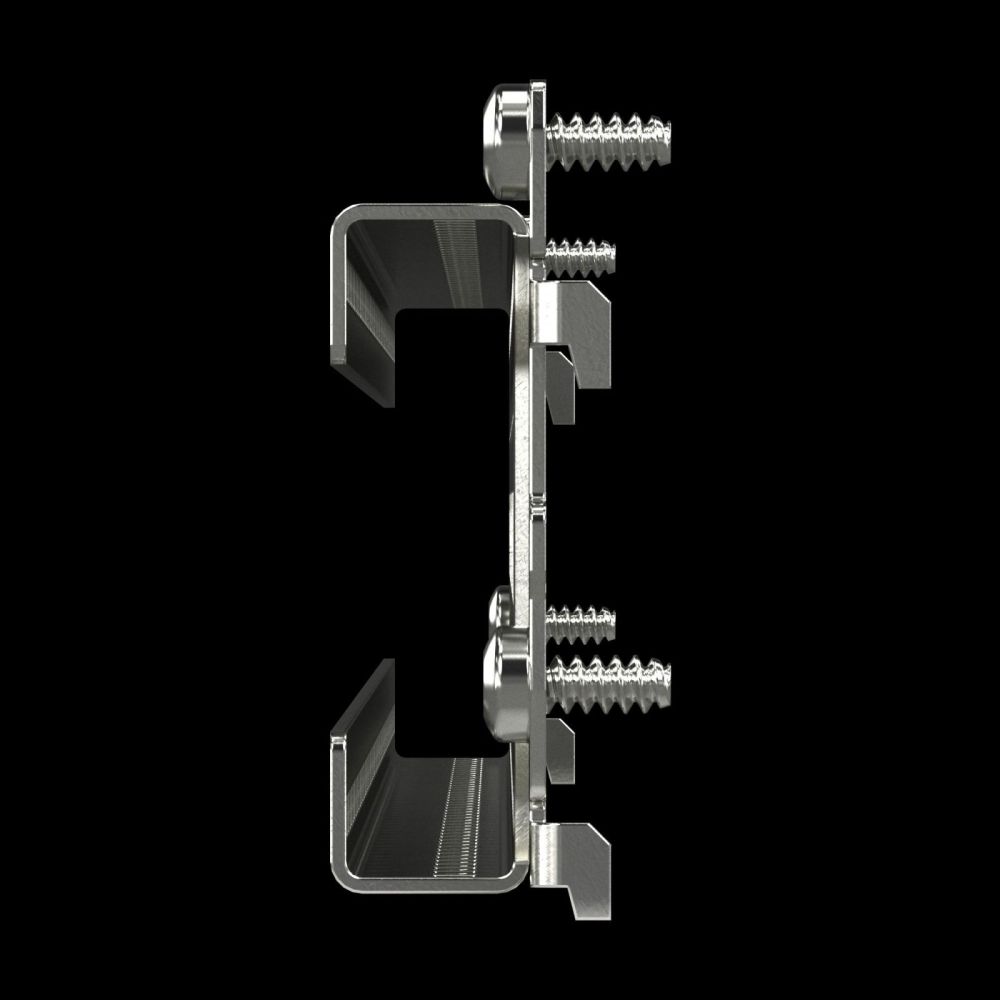

Installation is done by hanging the chassis into the system hole pattern of the enclosure frame. This can be done from the outside, where the chassis is hung into the designated holes and then screwed in place. In already installed enclosures, mounting from the inside is also possible, which is advantageous for later expansions or maintenance work. The system hole pattern on all four sides allows flexible orientation and mounting of modules.

Advantages in Operation

The system chassis offers a flexible and modular mounting solution that supports adaptation needs in enclosure construction. The simple installation by hanging and screwing reduces installation time. Compatibility with the VX system and the use of standardized fastening elements ensure high interoperability. The galvanized surface ensures long service life even in demanding environments. The packaging unit with 4 pieces enables economical procurement for larger projects.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsOn outer mounting plane on cabinet profile, on outer mounting plane between two system chassis 23 x 64 mm
Suitable forEnclosure type: VX, width/depth: 1.200 mm
PCF/VE (Cradle-to-Gate)24,65


Product data sheet
Datasheet for Rittal 8617060, EAN: 4028177829091

Questions & answers

What is the delivery time of Rittal 8617060 VX system chassis 18 x 64 mm W x D: 1200 mm?

The article Rittal 8617060 VX system chassis 18 x 64 mm W x D: 1200 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617060 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617060 VX system chassis 18 x 64 mm W x D: 1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617060 VX system chassis 18 x 64 mm W x D: 1200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
